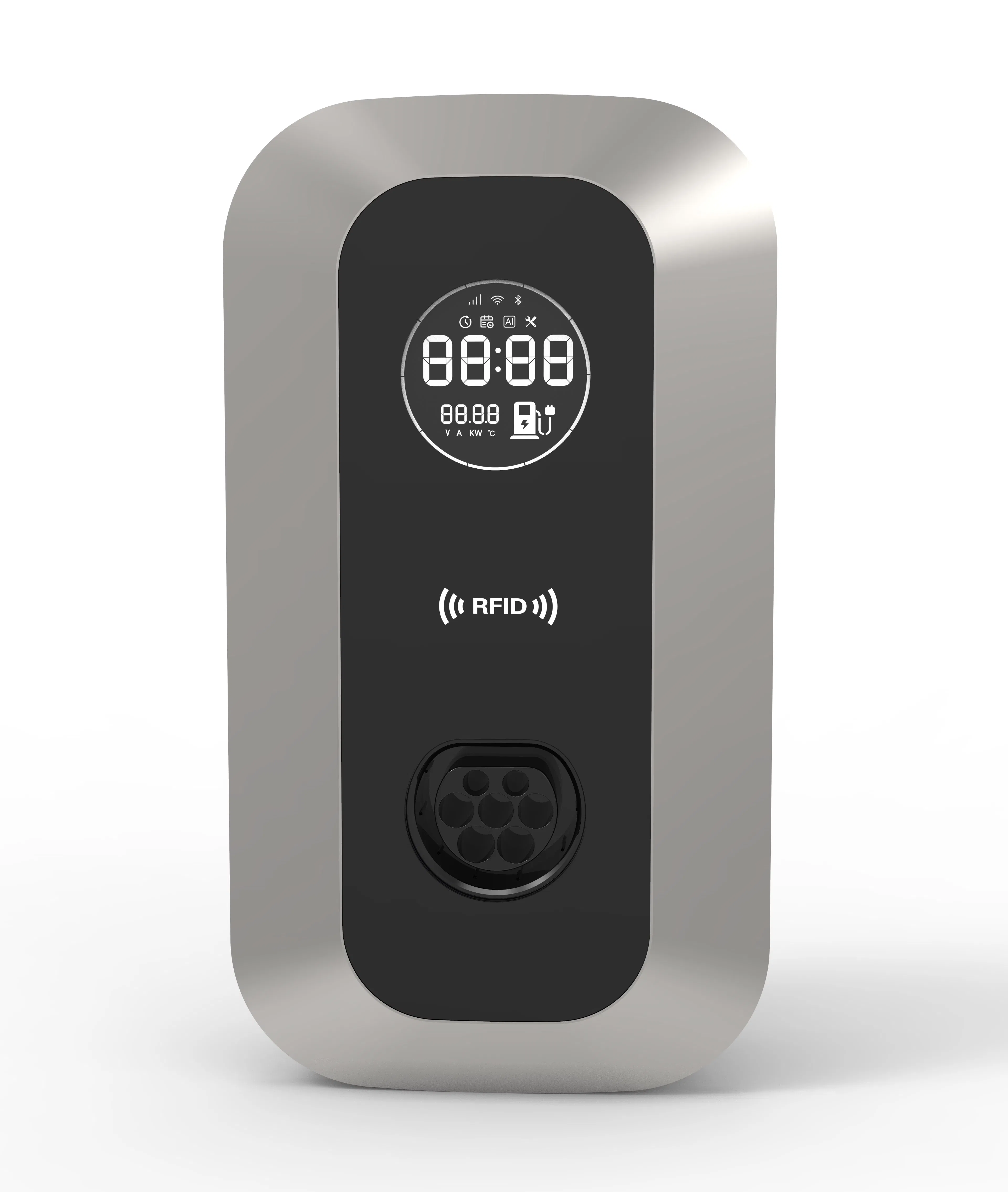

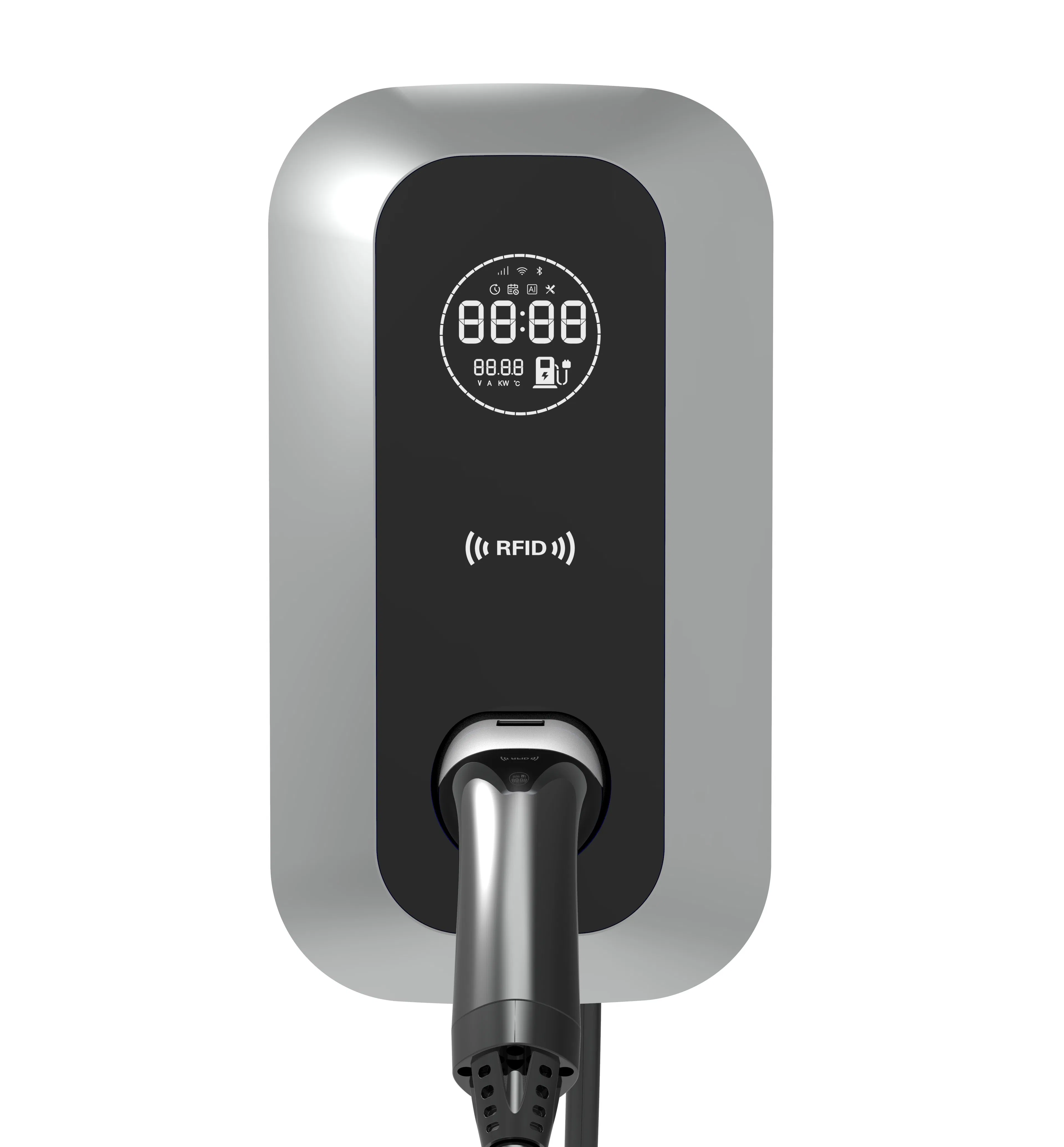

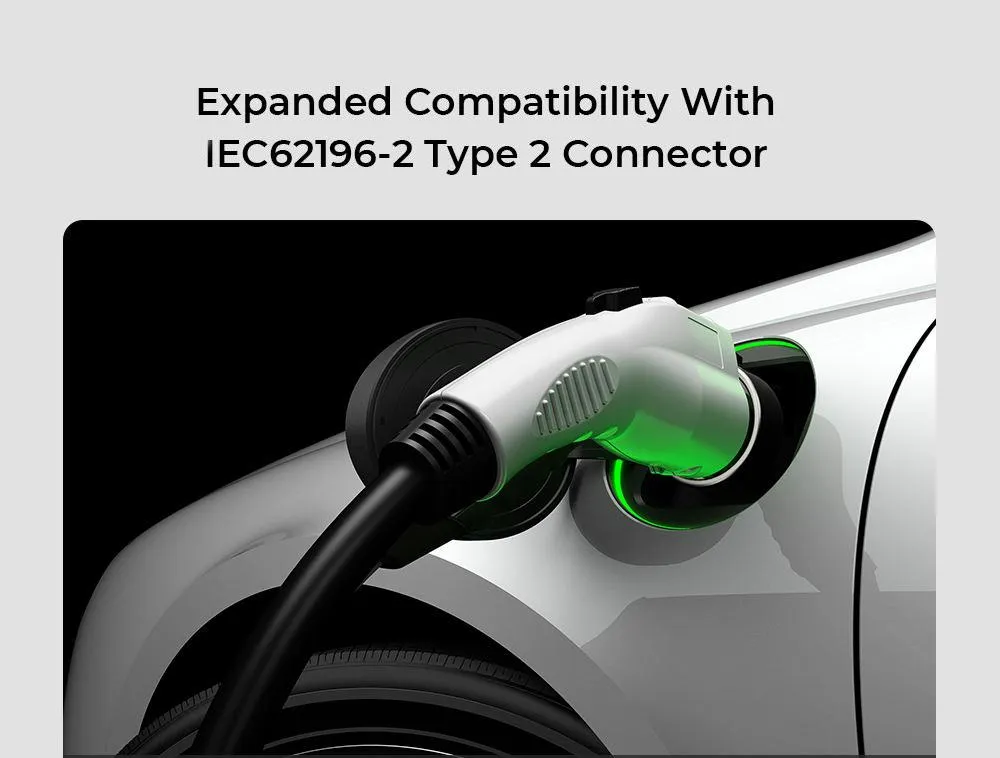

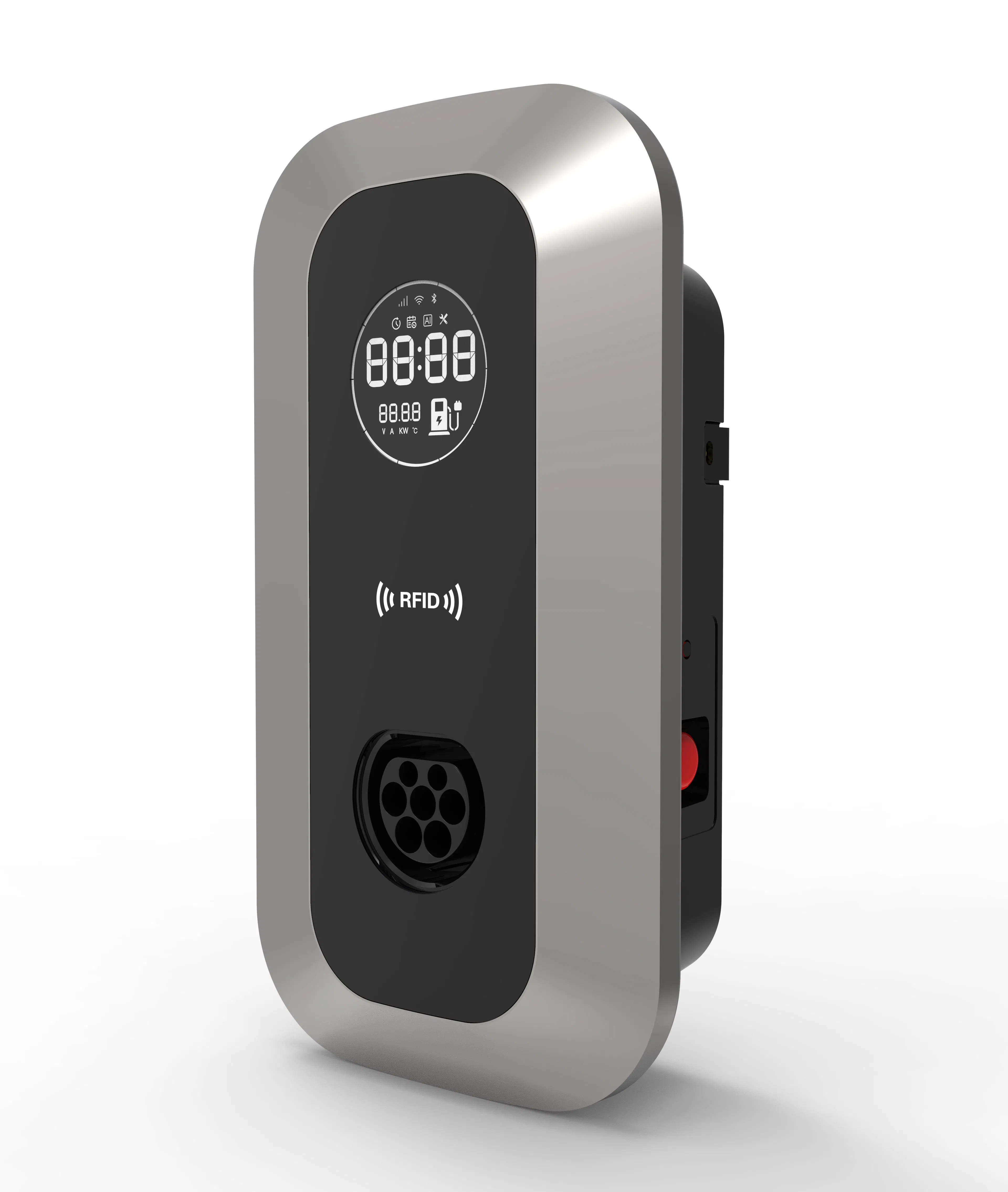

The AMP07 is compatible with most European AC electric vehicles due to the IEC62196-2 Type 2 standard, eliminating brand barriers for electric vehicle owners.

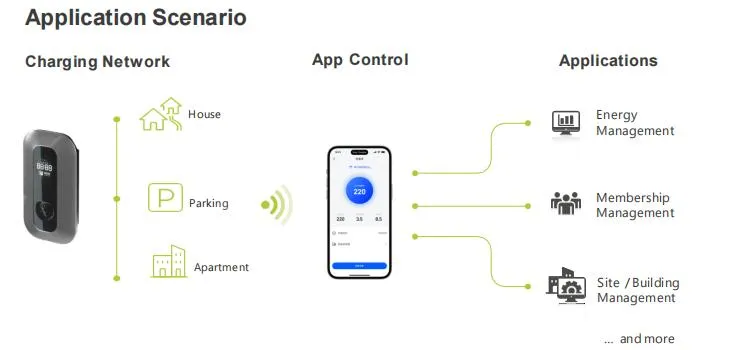

App Control: Allows you to set charging times during off-peak periods, adjust current, and track charging status with your smartphone. Plug-and-Play mode is also available for immediate use.

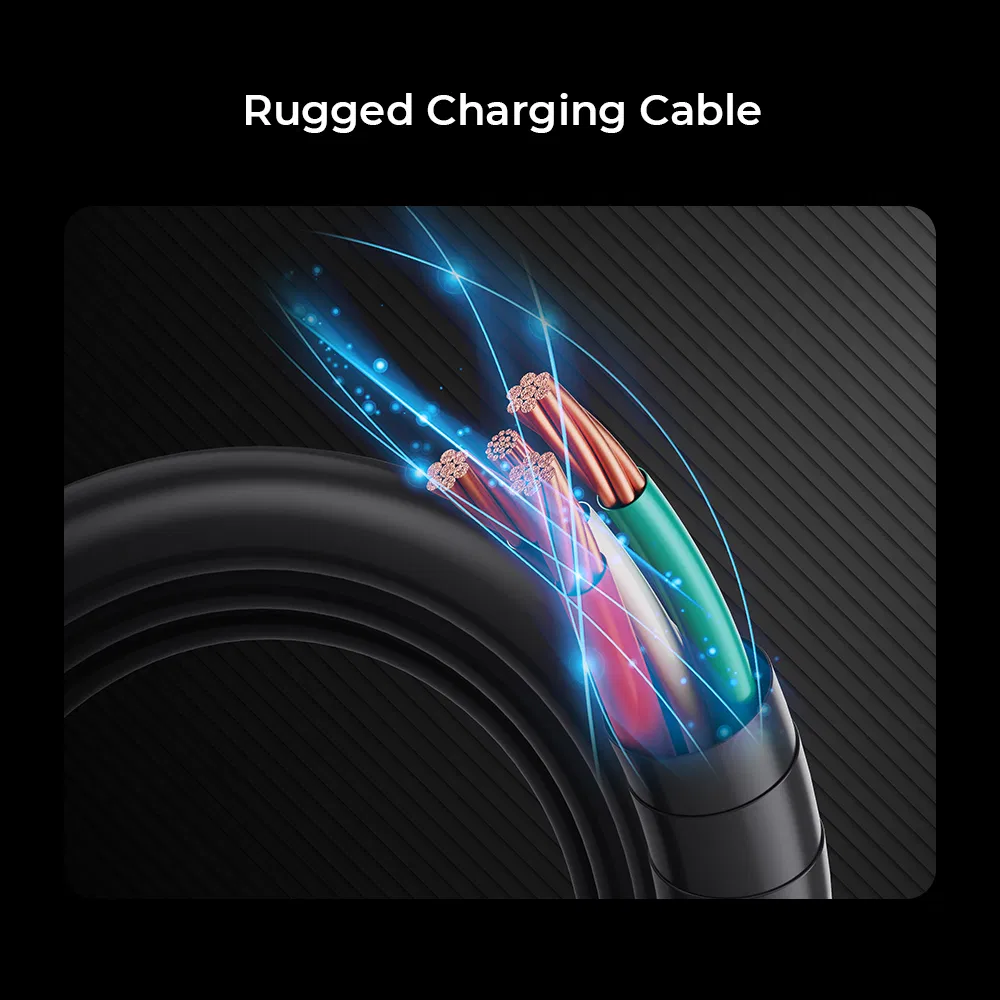

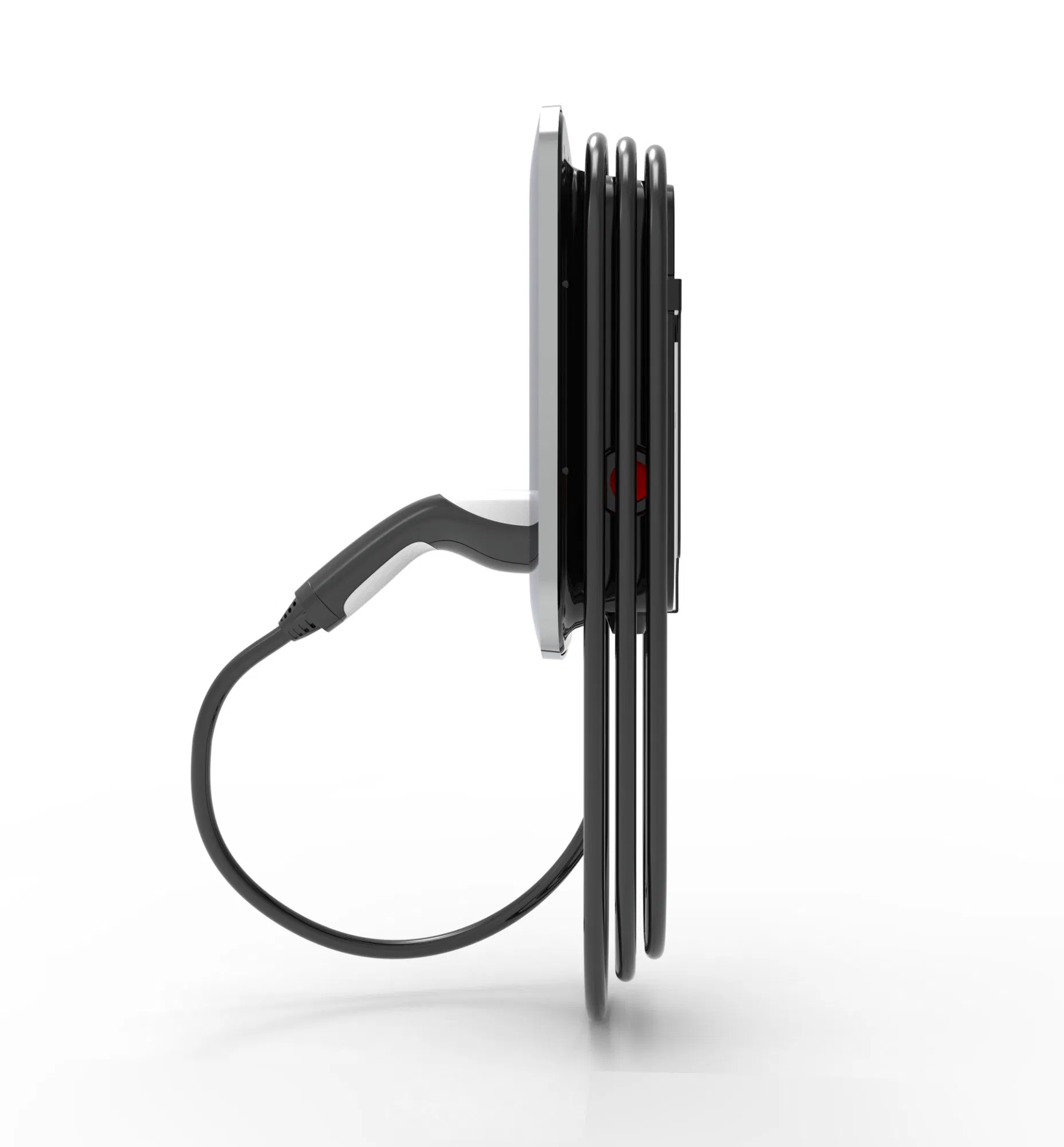

Durable Cable: Comes with a rugged charging cable made of PVC and copper (up to 40A). The 5m cable provides maximum flexibility. When not in use, it can be coiled and stored conveniently.
| System Specification | Model Details | AMP07-C |
|---|---|---|
| System | ||
| Charging Type | Mode 3 | - |
| Dimensions | 222 x 104 x 405mm | - |
| Protection Grade | IP65 / IK10 | - |
| Standard | IEC 61851-22 | - |
| Input & Output | ||
| Input Voltage | 200Vac - 240Vac | 50/60Hz |
| Output Power | 7kW Max | - |
| Output Current | 32A Max | - |
| Cable Length | 5m | - |
| Interface & Environment | ||
| Authentication | App interface | - |
| Connectivity | Wi-Fi, Bluetooth, 4G(opt) | - |
| Temp Range | -25°C to +50°C | - |
