Basic Specifications

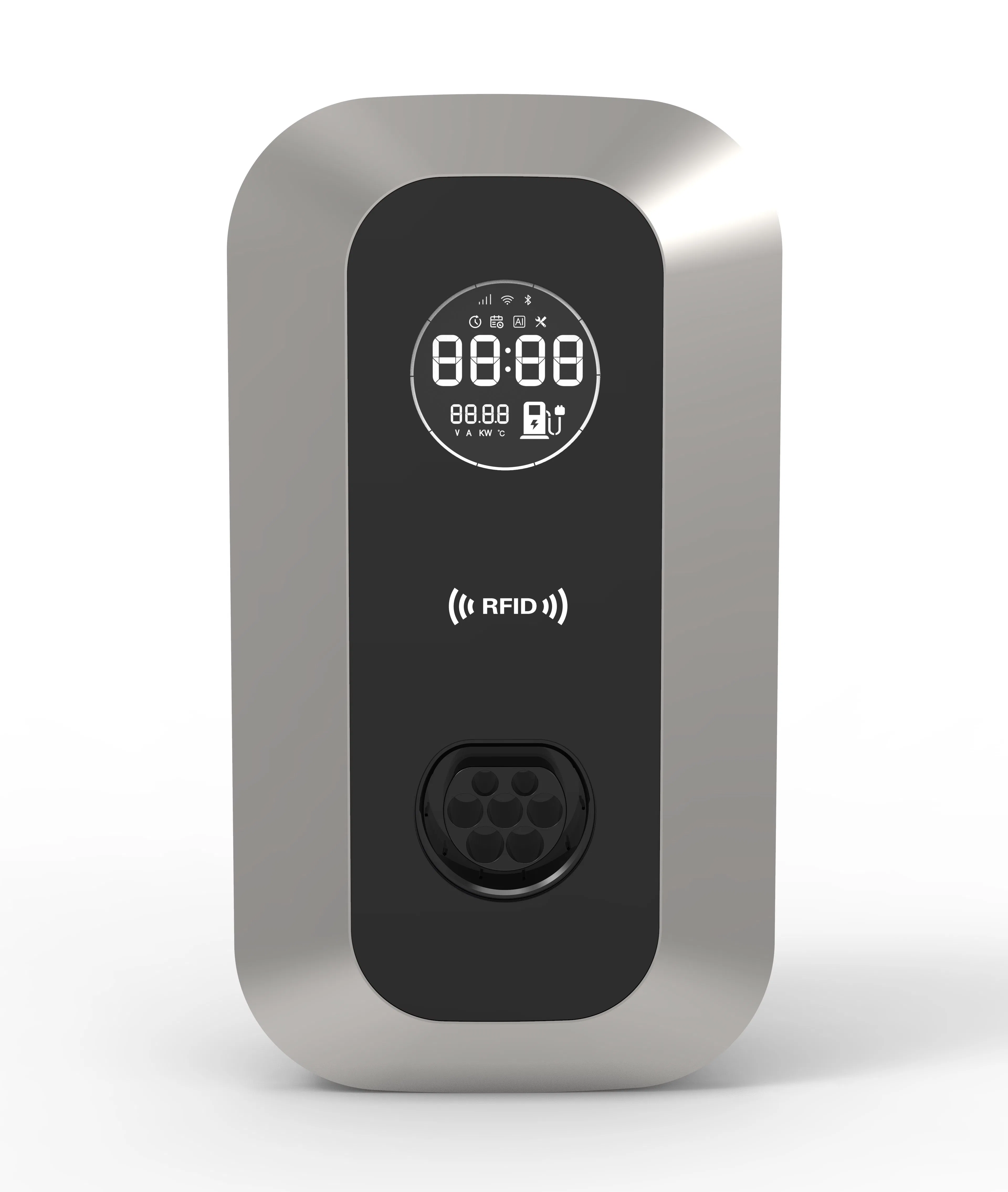

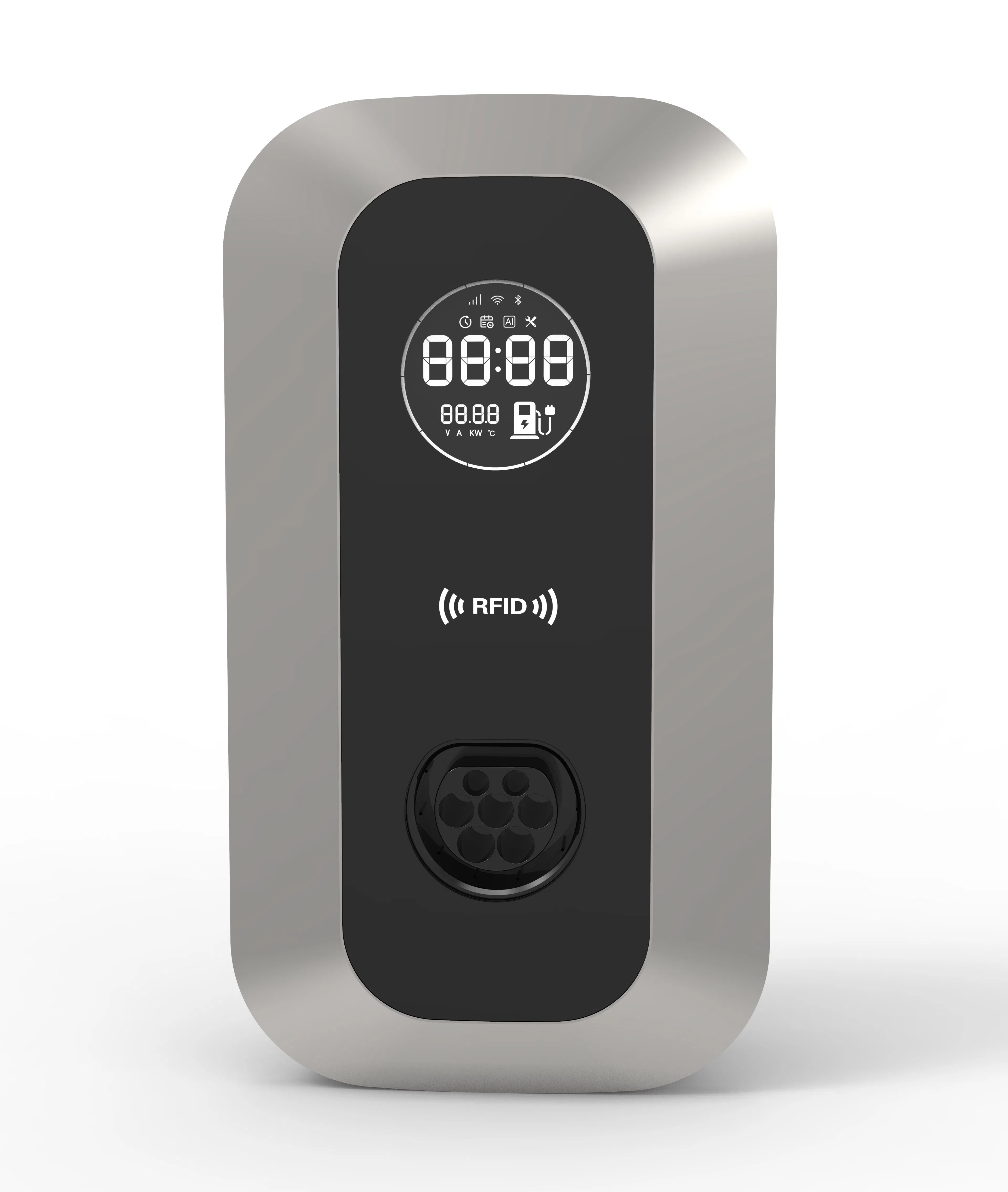

Model NO.AMP07-S
InterfacesOne Pile with One Charge
LocationHome & Company
InstallationWall or Floor Mounted
Charge MethodQuick Charge
Charging TypeMode 3
Protection GradeIP54 / IP65
CertificateCE, TUV
RCCBType-A + 6mA DC
NetworkWi-Fi, Bluetooth
Product Description
✔
Bluetooth Remote Control:
Optional remote control feature for convenient operation from a distance.
✔
Emergency Stop Switch:
Built-in mechanical switch for immediate power cutoff, ensuring maximum safety.
✔
Advanced Monitoring:
Reserved RS485 and Ethernet interfaces for remote management and status tracking.
✔
Full Protection:
Equipped with ten protective mechanisms for reliable and safe daily use.

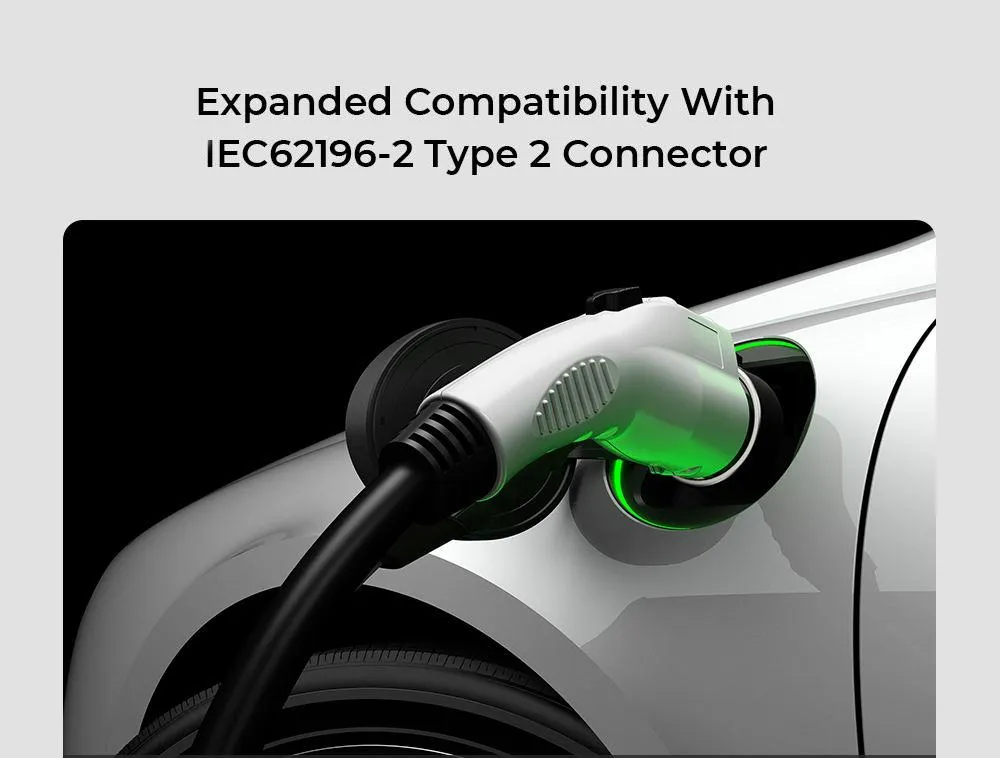

The EU version of the AMP07 is compatible with most European AC electric vehicles via the IEC62196-2 Type 2 standard, eliminating brand barriers for owners. It allows scheduling during off-peak periods to save on electricity bills. Users can manage charging current, delay, and status through a mobile application.
Technical Parameters
| Category |
Feature |
Specification |
| System |
Charging Type |
Mode 3 |
| Dimensions |
222 x 104 x 405mm |
| Net Weight |
3.62 kgs |
| Standards |
IEC 61851-22, IEC 62196 Type-2 |
| Input |
Voltage |
200Vac - 240Vac, 50/60Hz |
| RCCB |
Type-A + 6mA DC |
| Output |
Power |
7kW Max |
| Current |
32A Max |
| Environment |
Temp Range |
-25°C to +50°C (Working) |
Why Choose Our Solutions

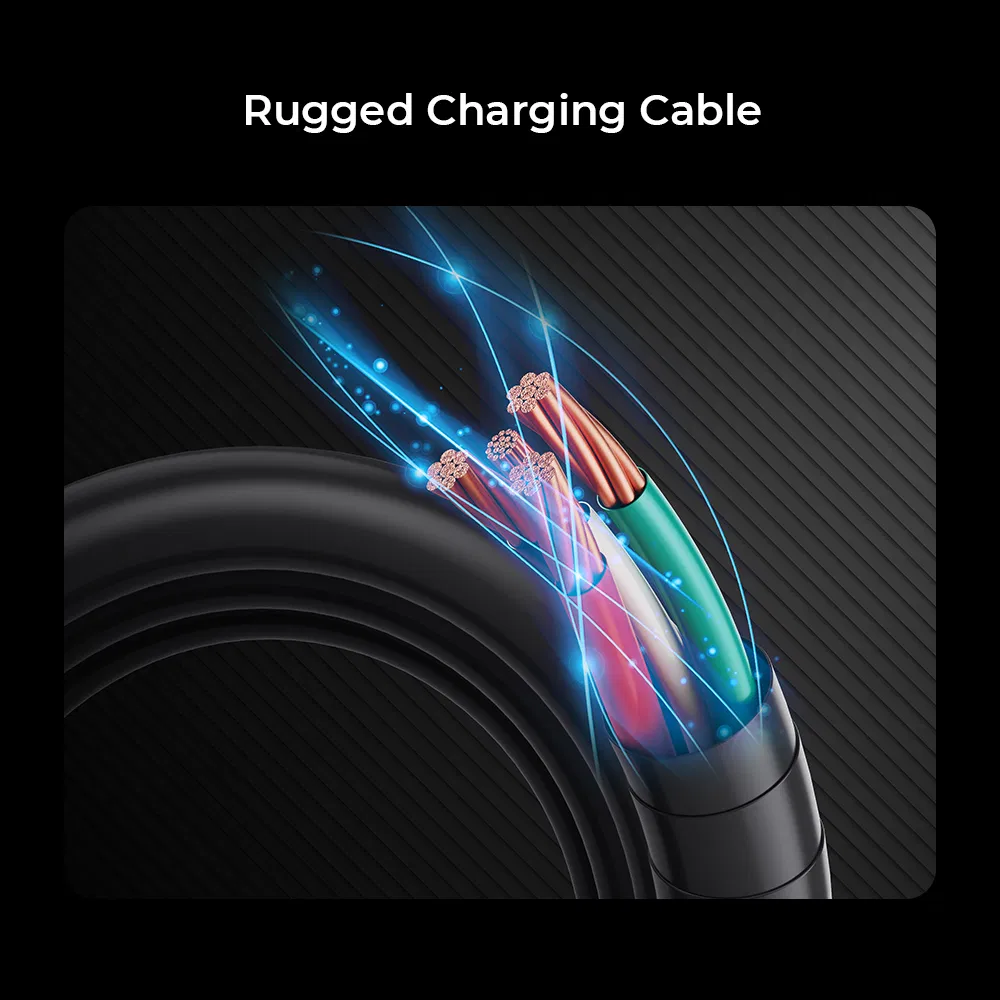

Our infrastructure is designed for longevity and performance. We utilize rugged PVC and copper cables capable of handling up to 40A, ensuring flexibility and durability. With multiple charging standards supported including CCS-1/2, CHAdeMO, and GB/T, we provide a future-proof investment.
Frequently Asked Questions
1. Why choose this EV Charger for your business?
Our technical team ensures industry-leading designs with international standardization. Our products undergo rigorous laboratory testing for various application scenarios, ensuring professional-grade reliability.
2. Are these chargers compatible with global standards?
Yes, we support all major standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China). Our hardware is designed to accommodate multiple regions efficiently.
3. What safety protections are included?
The system includes emergency shutdown, overvoltage, undervoltage, overcurrent, leakage, grounding, temperature, and waterproof protections, along with power-off data protection.
4. Does higher output power always mean faster charging?
Not necessarily. Charging speed is often limited by the vehicle's battery management system. However, high-power chargers are future-proof and can often support charging two vehicles simultaneously.
5. How is after-sales technical support handled?
We provide comprehensive technical training, including manuals and videos. ForMastering parts replacement and maintenance, our technicians offer guidance to master basic upkeep and master urgent master Master mastery.
6. Is the charger suitable for outdoor installation?
Yes, with an IP54/IP65 protection grade and IK10 impact resistance, the station is designed to withstand environmental factors and natural cooling requirements.
