TK4830 Portable EV Charger Testing Device for AC and DC Stations

Customization:	Available
After-sales Service:	Life Time
Warranty:	12 Months Excellent for Service

Basic Information

Model NO.

TK4830

Application

EV charger testing

Power

Electricity

Voltage Output

DCV 200V~1000V; ACV 200V~480V

Current Output

DCI 1A~300A; ACI 0.1A~80A

LCD Display

With LCD Display

Accuracy

Class 0.05

Charger Interfaces

CCS2, Type 2, CHAdeMO

TK4830 Portable Tester for EV DC/AC Charging Station

TK4830 Portable EV Charger Testing Device

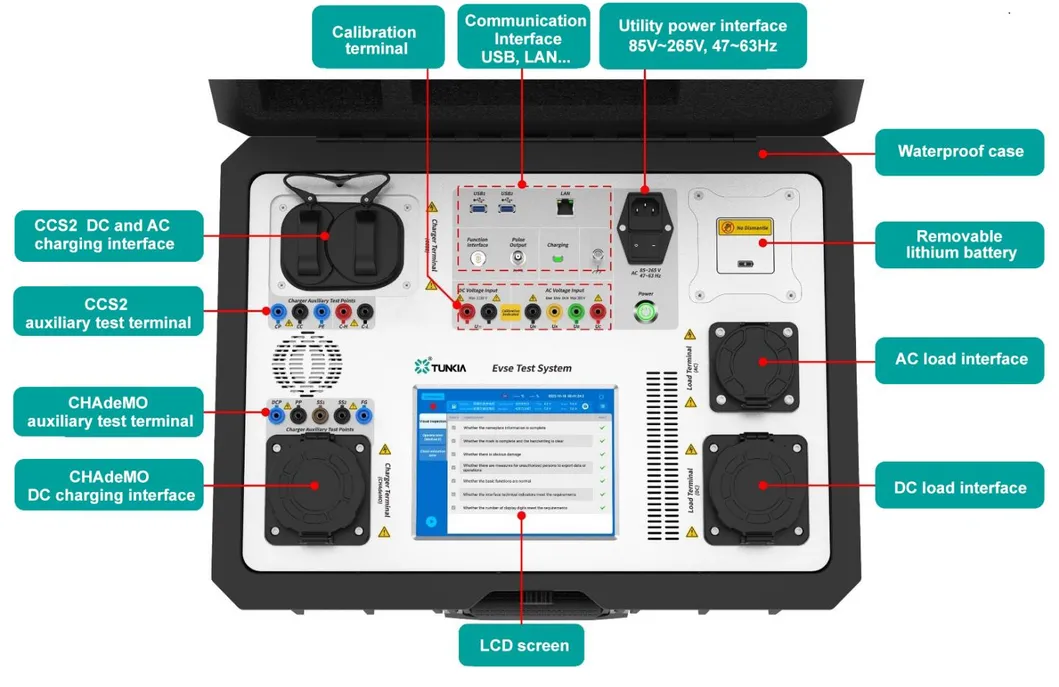

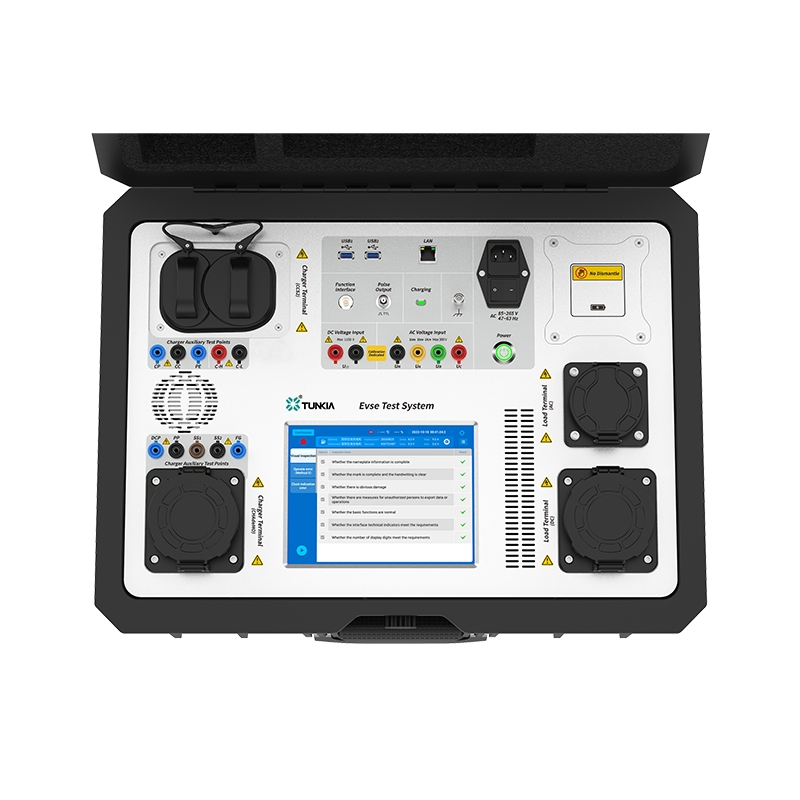

TK4830 is an AC and DC integrated charging station calibration device. The accuracy level of AC and DC power measurement reaches Class 0.05. It supports various international standards including CCS2, Type 2, and CHAdeMO, allowing for comprehensive verification of working errors and clock timing errors.

Verification Capability

1. Working Error: Real-time testing during the charging process via pulse or accumulated electric energy methods.

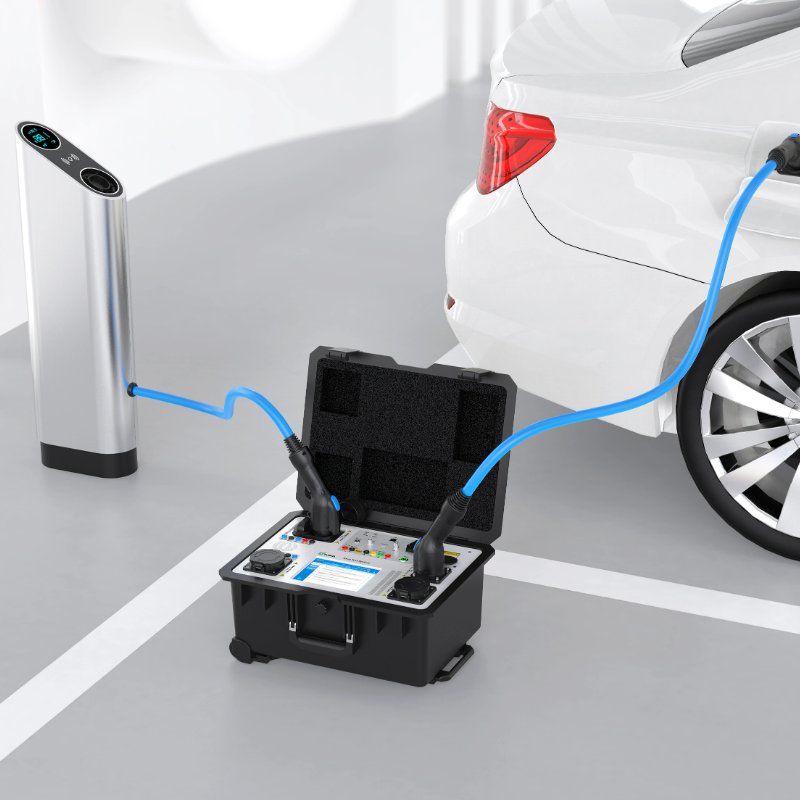

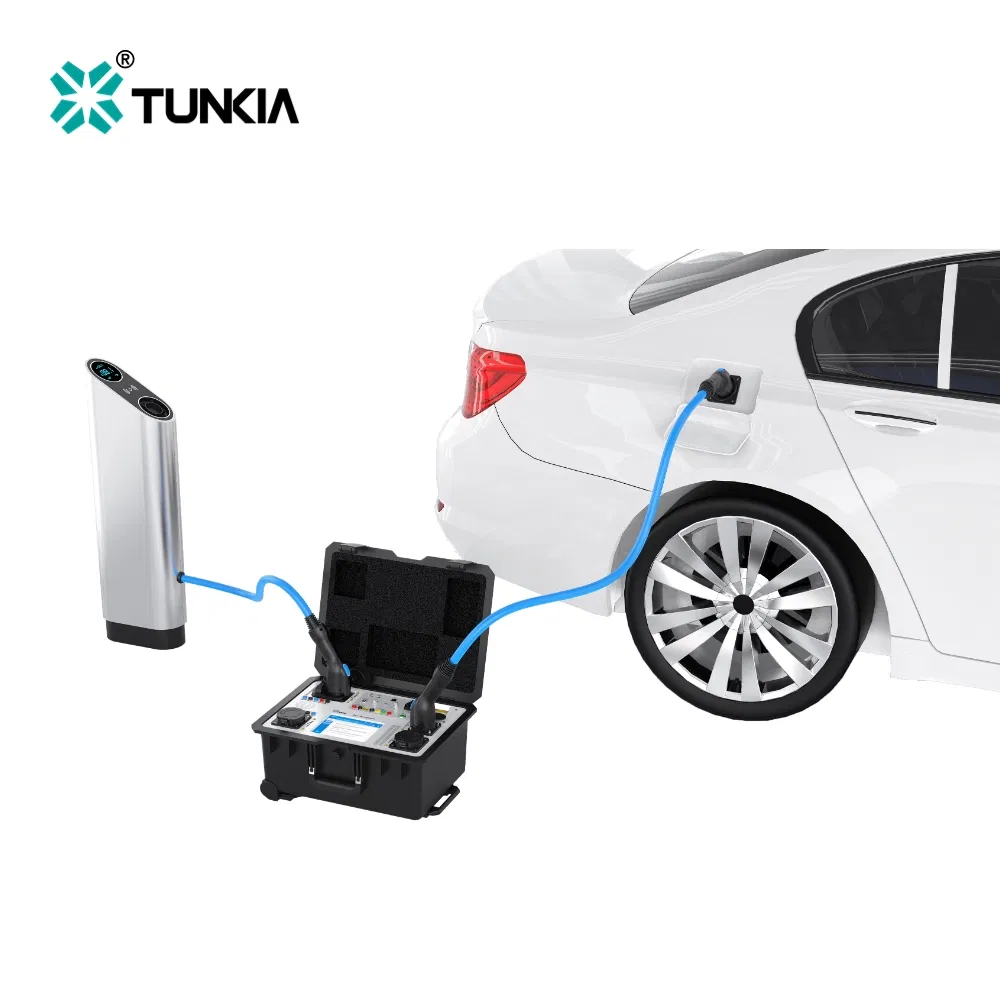

Vehicle as Load

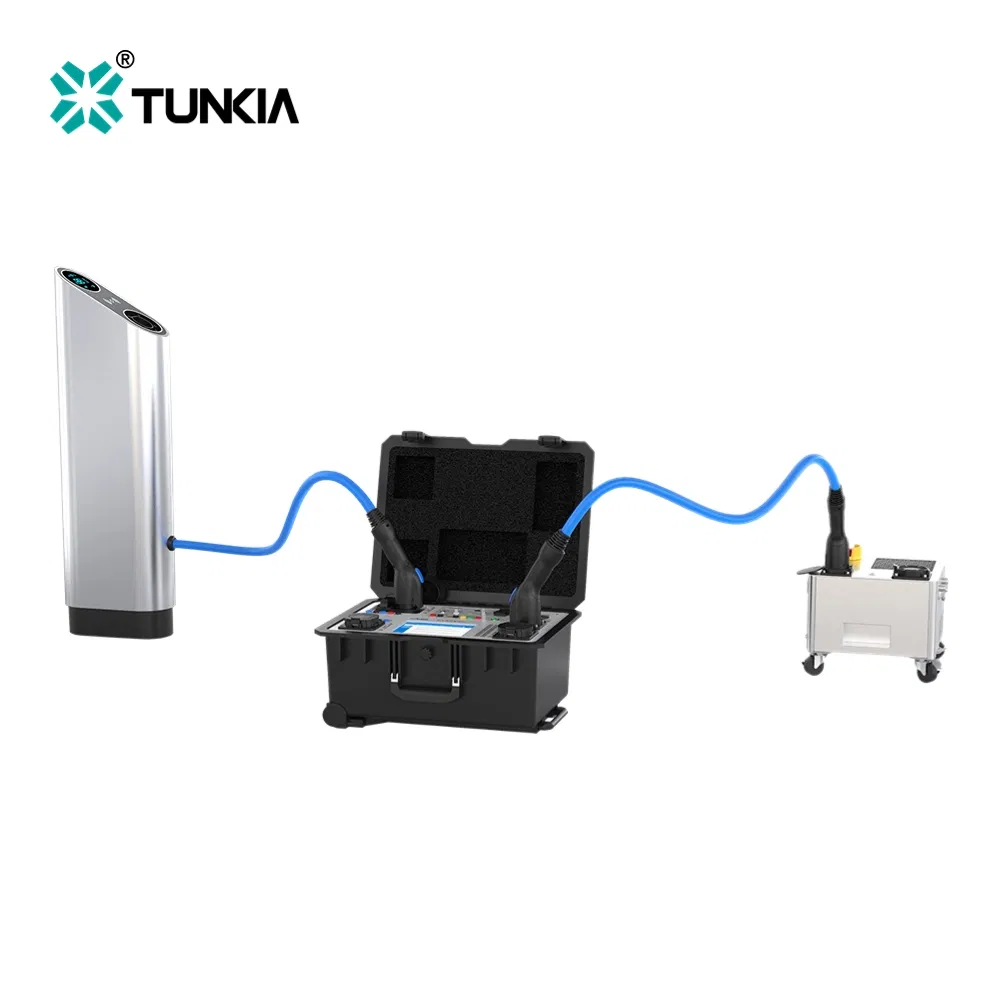

Programmable Load

2. Clock Verification: Integrated time synchronization and clock time error testing for chargers.

Charging Interface Compatibility

DC CCS2

AC Type 2

DC CHAdeMO

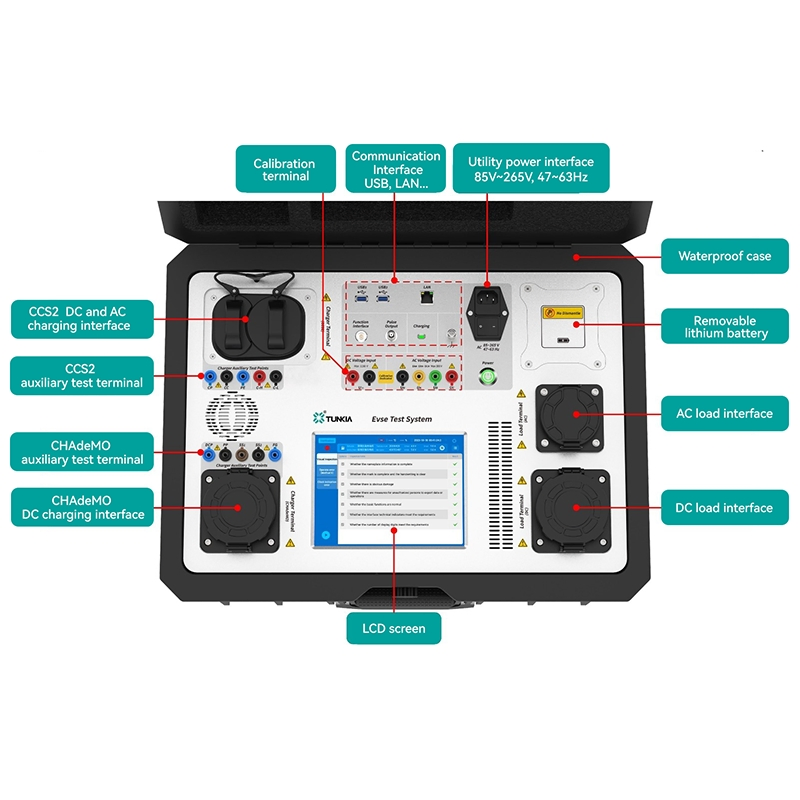

Product Features

1

High Precision Measurement: Supports Class 0.05 accuracy for both AC (up to 480V/80A) and DC (up to 1000V/300A).
2

Flexible Load Matching: Compatible with new energy vehicles or optional resistive loads (DC up to 60kW, AC up to 45kW).
3

Dynamic Metering: Wide dynamic range measurement prevents risks caused by load fluctuations during the charging cycle.
4

Rapid Refresh Speed: Ms-level power refresh reduces errors during asynchronous accumulation.
5

Triple Power Modes: Powered via charging gun head, built-in removable lithium battery, or utility mains.
6

Automated Operation: Control via localized LCD screen or external tablet for streamlined on-site testing.

Technical Specifications

Parameter	Measurement Range	Uncertainty (k=2)
DC Measurement
DC Voltage	200V ~ 1000V	0.025% * RD
DC Current	5A ≤ I ≤ 300A	0.025% * RD
DC Current	1A ≤ I < 5A	0.05% * RD
AC Measurement
AC Voltage	Three-phase 200V ~ 480V	0.025% * RD
AC Current	Three-phase 0.1A ~ 80A	0.025% * RD
General Specifications
Communication	USB, LAN, Bluetooth or WiFi
Operating Temp	-25°C ~ 55°C

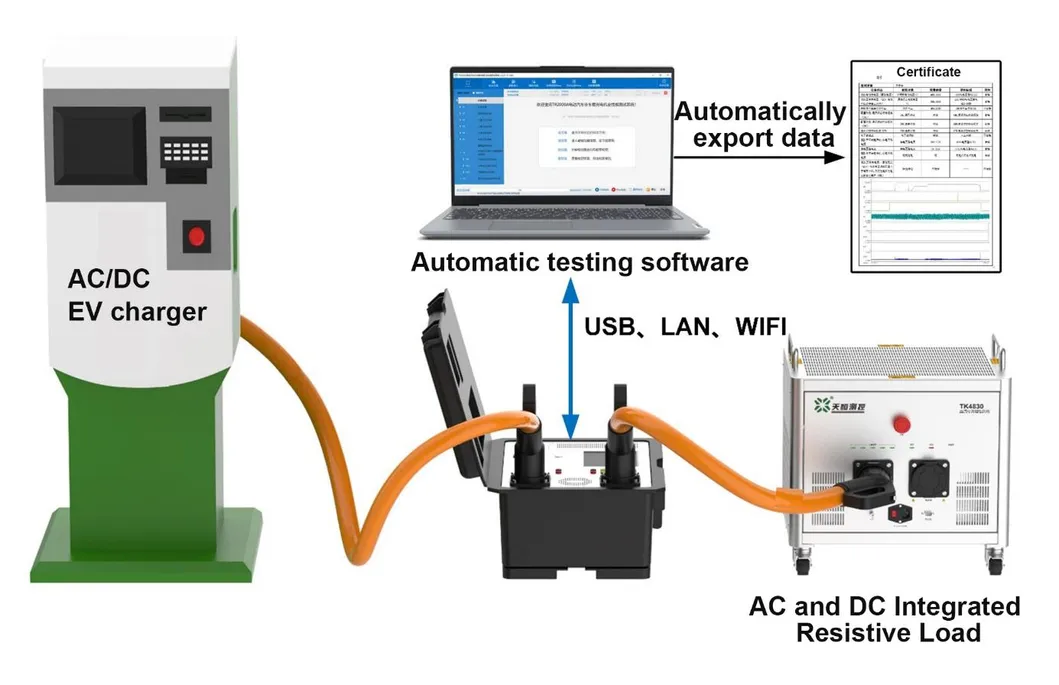

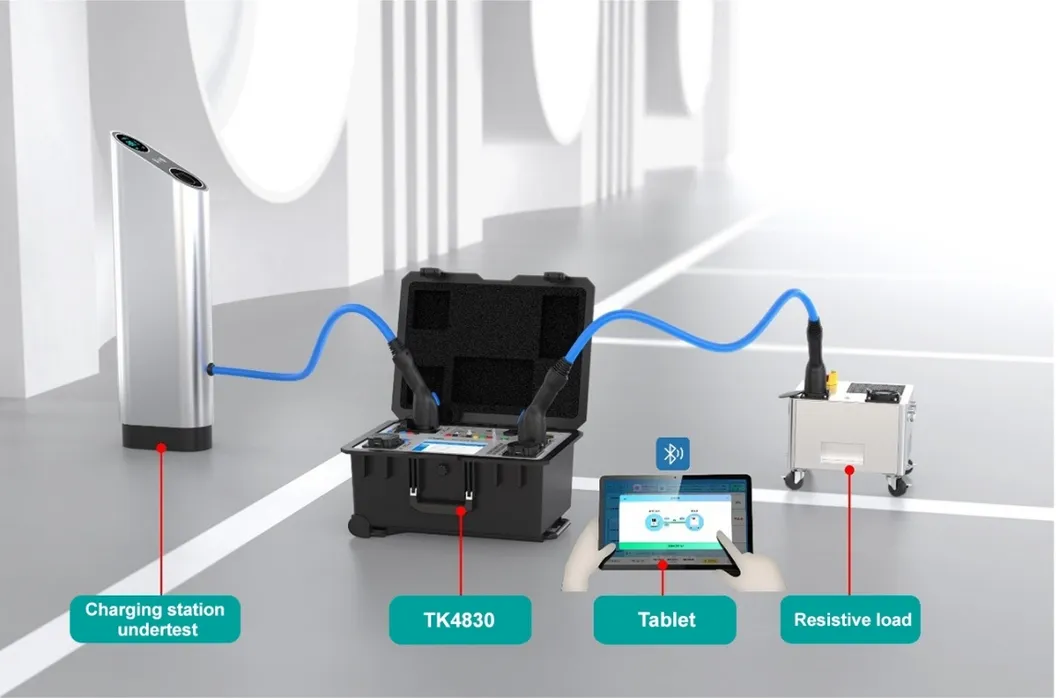

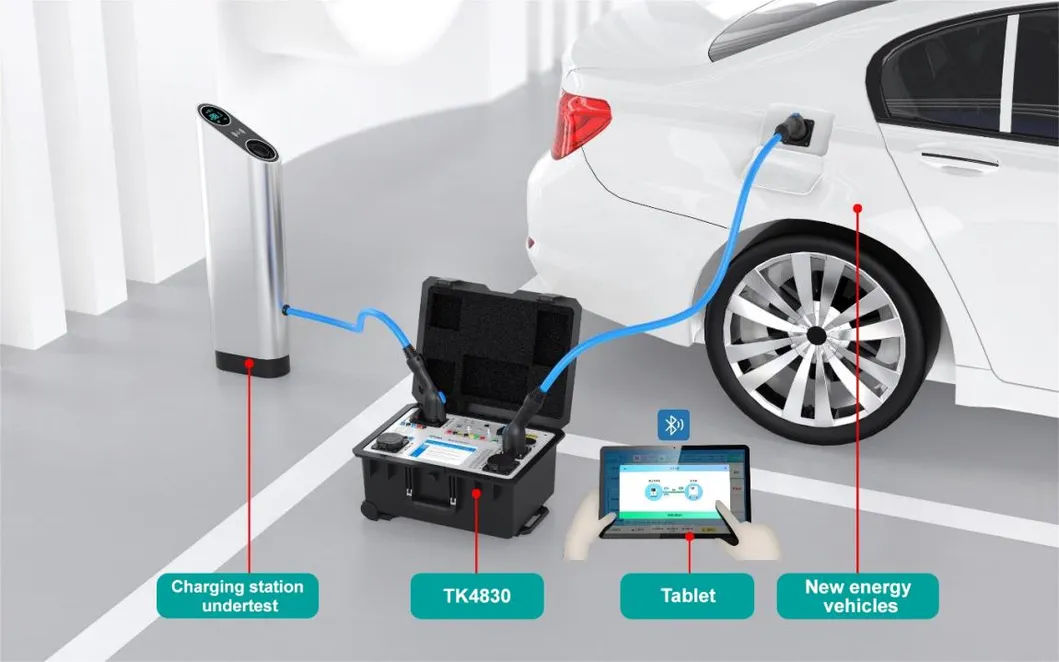

On-site Application

Frequently Asked Questions

What charging standards does the TK4830 support?

The TK4830 supports multiple international standards including European standard CCS2 DC, Mennekes (Type 2) AC, and Japanese standard CHAdeMO DC interfaces.

What is the accuracy level of this device?

This device provides high-precision calibration with an accuracy level of Class 0.05 for both AC and DC power measurements.

Can I test a charging station without a real electric vehicle?

Yes, the device is flexible. You can use either a new energy vehicle as a load or use a programmable resistive load for testing.

How is the TK4830 powered during on-site testing?

It offers three power modes: drawing power directly from the charging gun head, using its built-in removable lithium battery, or via standard mains power.

Does the device support high-power DC load testing?

Yes, DC loads can be cascaded. Up to four 60kW loads can be connected together to reach a maximum power of 240kW.

What specific errors can be verified with this tester?

It is designed to verify the working error of the charger (via pulse or energy methods) and the real-time clock time error of the charging station.
