Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
1 / 5
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1
Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1

Small Footprint Fleet Charging 480kw EV DC Charger Pile Ocpp 2.0.1

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T, CCS1, CCS2, Chademo, GB/T, CCS1, CCS2, Chademo, GB/T
Installation: Floor Type, Floor Type
Send Inquiry

Product Description

Basic Information
Model NO.:EXP480K2-Combined
Charging Standard:CCS / CHAdeMO / GBT
DC Output:150VDC - 1000VDC
Rated Power:480kW
Interfaces:Multiple Charging Support
Protection Class:IP54 (Cube) / IP55 (Dispenser)
Certification:CE
Warranty:24 Months
Product Description

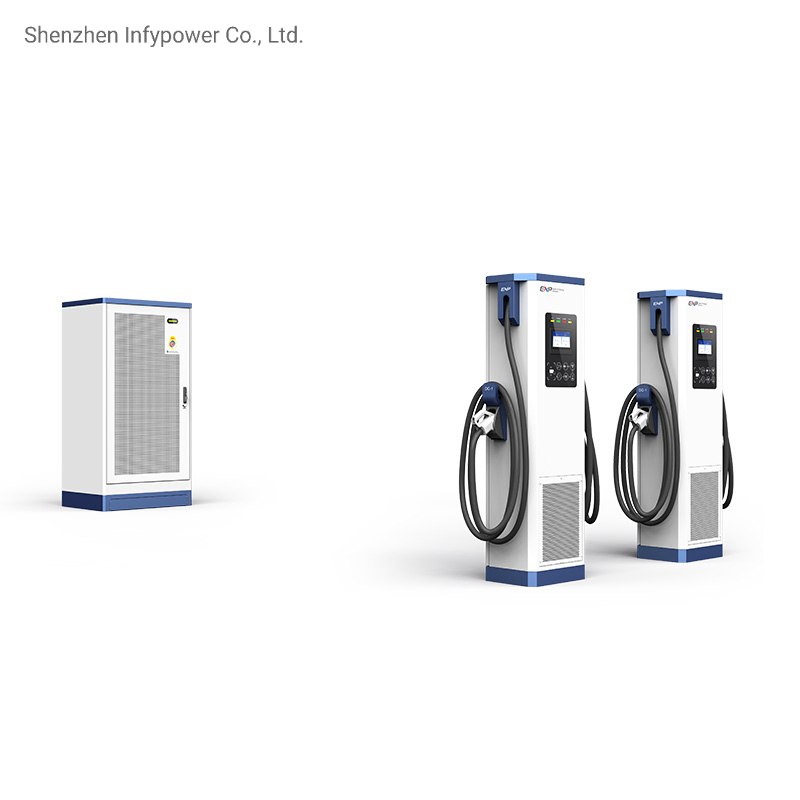

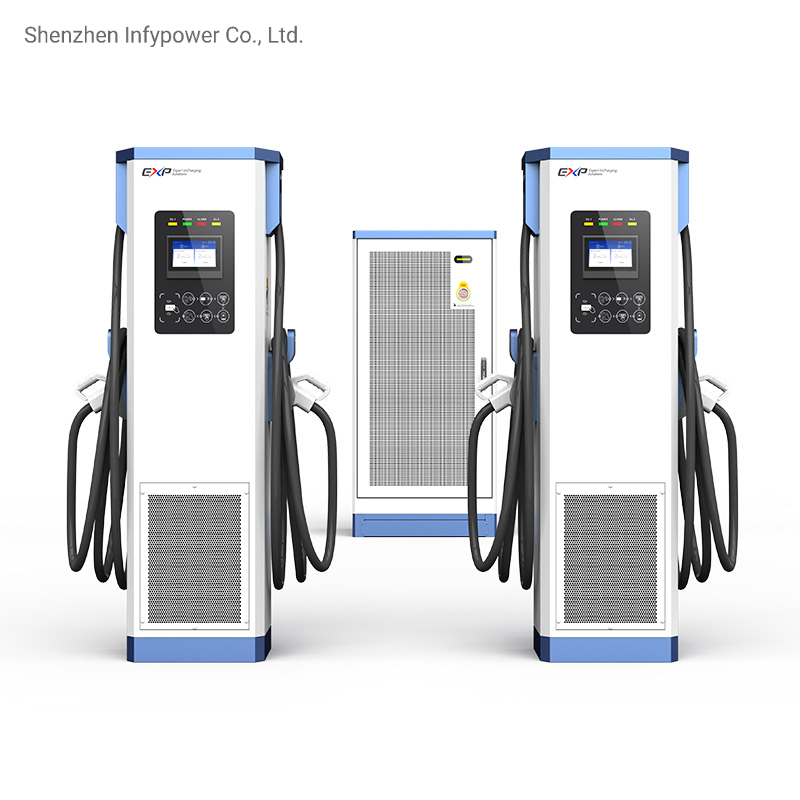

EXP480K2-FFR & LDC is a split-type super power EV charger designed for multi-EV charging demands. Equipped with one 480kW power cube and two charging dispensers, it supports up to 4 electric vehicles simultaneously. Utilizing CoolRing net power transfer technology, it ensures efficient high-power delivery and features a user-friendly 7" LCD touch screen.

  • ★
    Universal Standard: Fully supports CCS1/CCS2, CHAdeMO, and GBT charging standards.
  • ★
    Smart Management: Advanced power distribution and smart charging strategy for optimized efficiency.
  • ★
    Ultra-Fast Output: Maximum output current up to 960A with voltage range from 150Vdc to 1000Vdc.
  • ★
    Advanced Cooling: 500A liquid cooling solution available via AnyCooling technology.
  • ★
    User Experience: Tempered glass 7'' TFT capacitive touch screen with multiple billing modes.
Detailed Photos

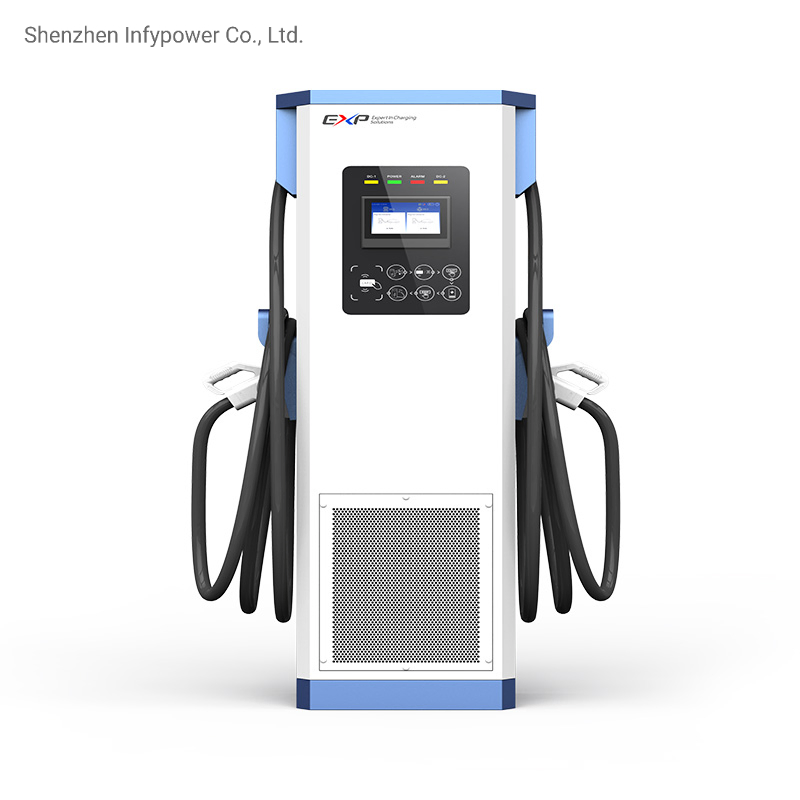

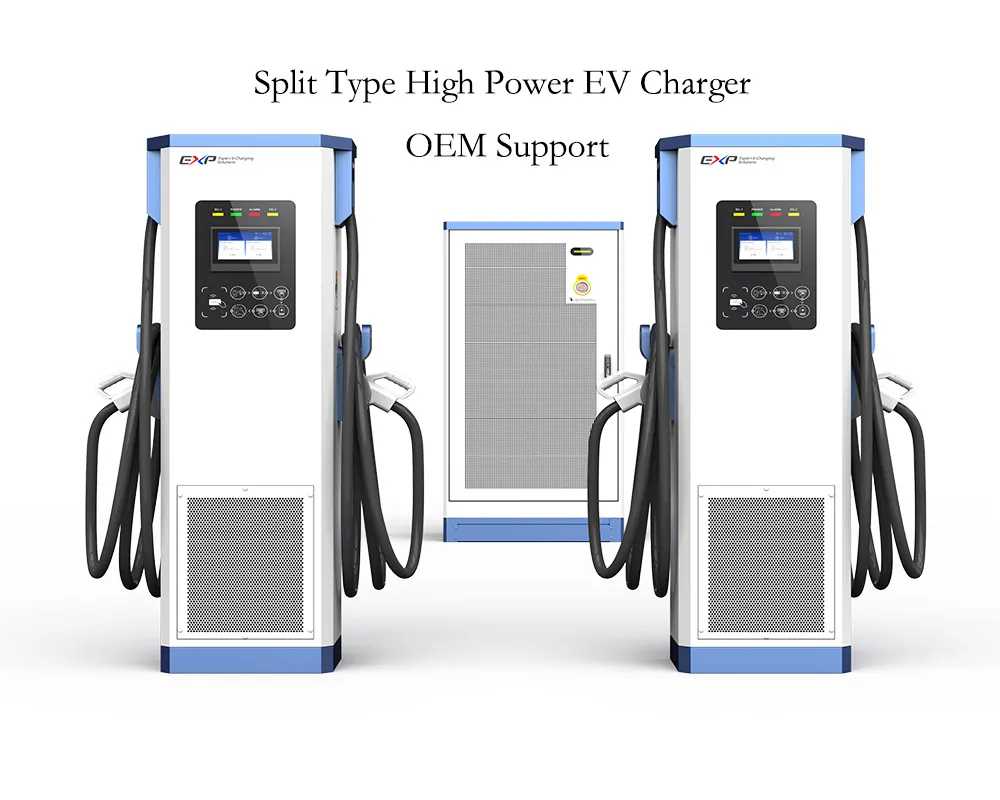

EV DC Charger Main View

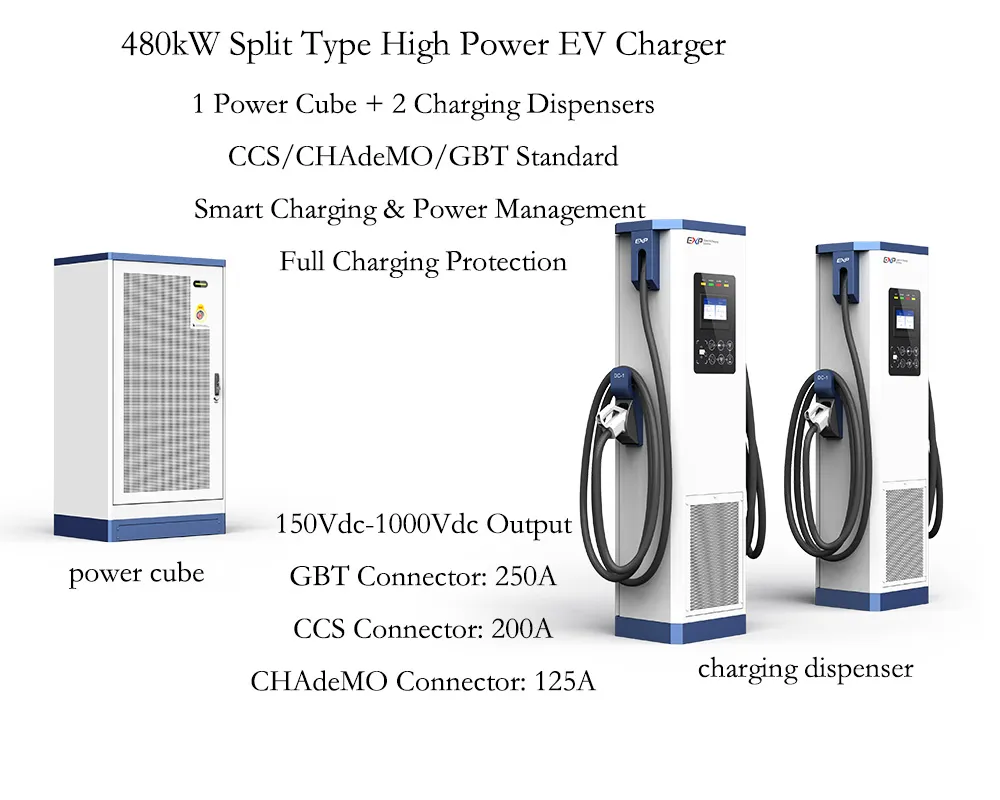

EV DC Charger Side View
Technical Parameters

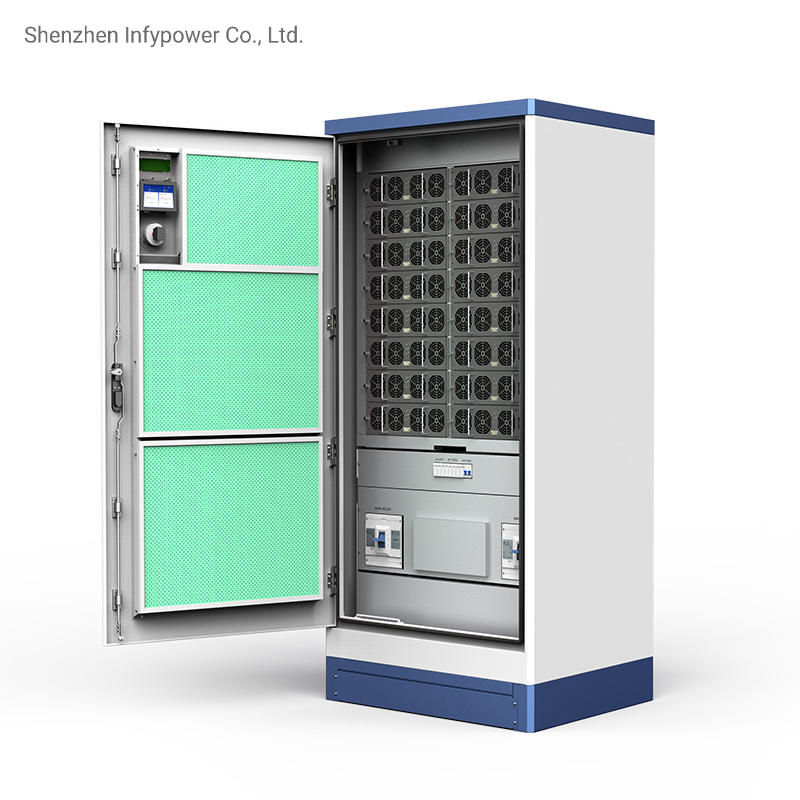

Power Cube Specifications

ParameterSpecification
Rated PowerDC 480kW @ 300V-1000V
AC InputMax input current 2*431A with RCDA breaker
DC Output Range150Vdc-1000Vdc, Efficiency over 95%
Max Output Current1600A@300V, 960A@500V, 480A@1000V
Dimension & Weight1000mm*2000mm*800mm / 558kg

Charging Dispenser Specifications

ParameterSpecification
Rated PowerDC 480kW
DC Input150V-1000V, 2-channel DC bus
Max DC Output CurrentUp to 960A (Total combined)
ProtectionIP55 Outdoor Protection
Dimension & Weight500mm*1750mm*350mm / 160kg
Packaging & Shipping

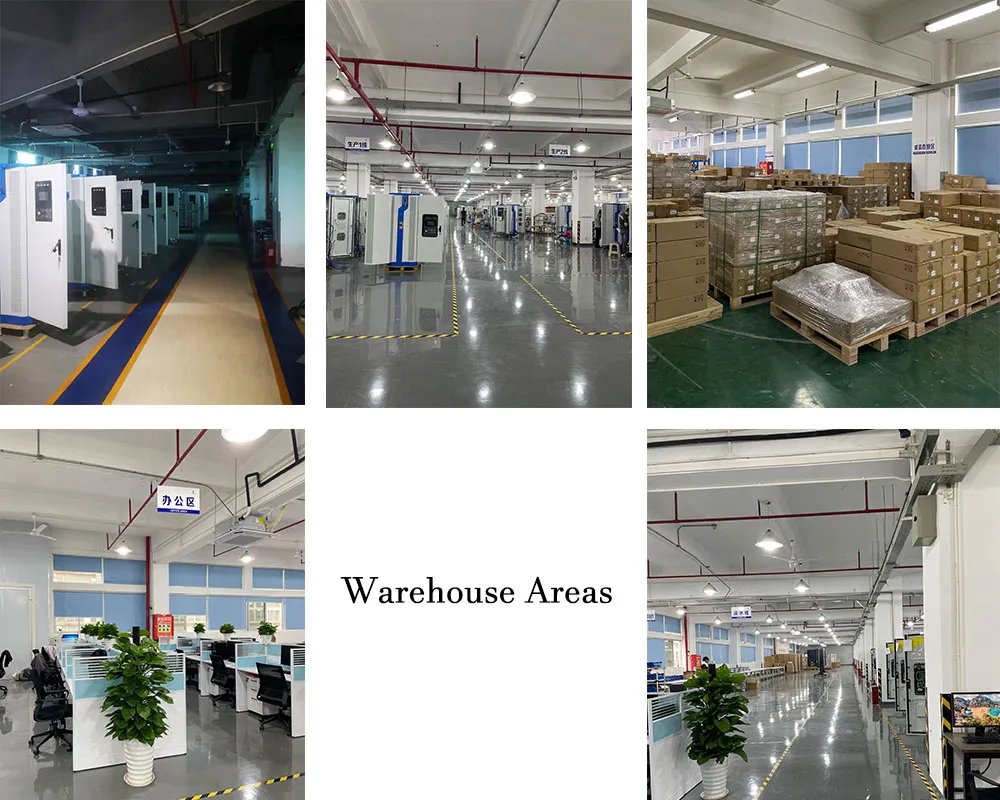

Packaging Detail 1
Packaging Detail 2
Company Profile
Company Facility

A high-tech company professionally engaged in power modules and power system solutions. With abundant experience in power electronics and intelligent control technology, we specialize in electric vehicle charging and energy storage solutions. Our products are recognized for high reliability, efficiency, and wide output voltage ranges. With over 70% of staff in R&D, we hold more than 150 patents and maintain strategic cooperation with global brand customers to build a greener planet.

Certifications & Exhibitions

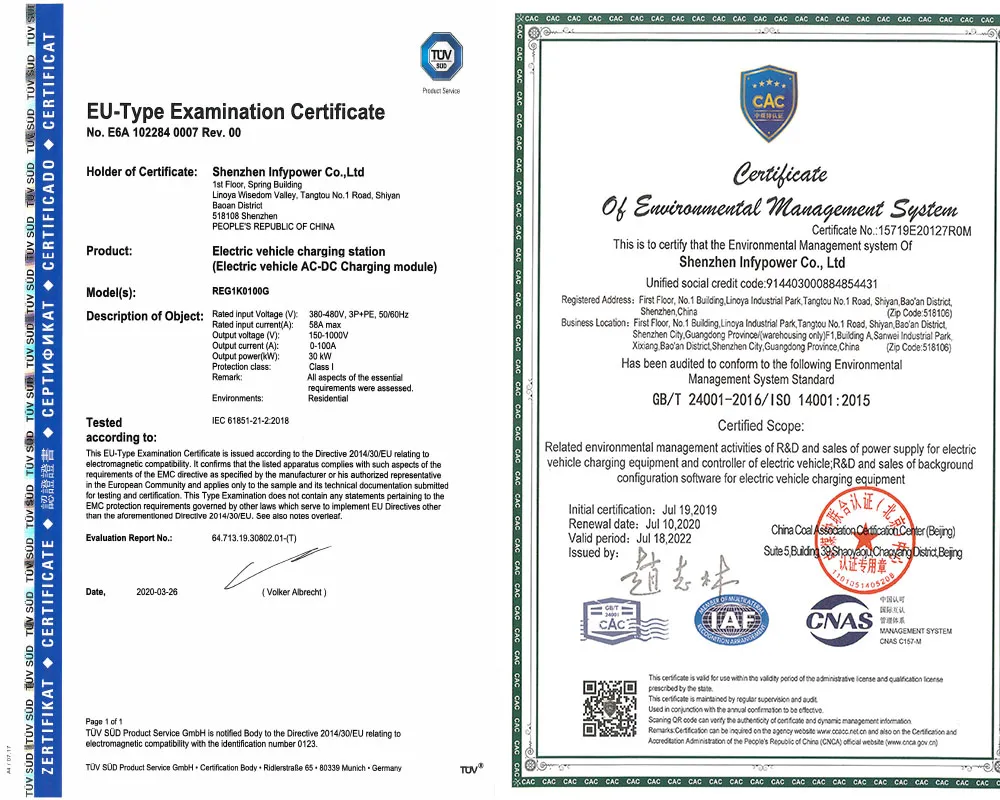

Certification 1

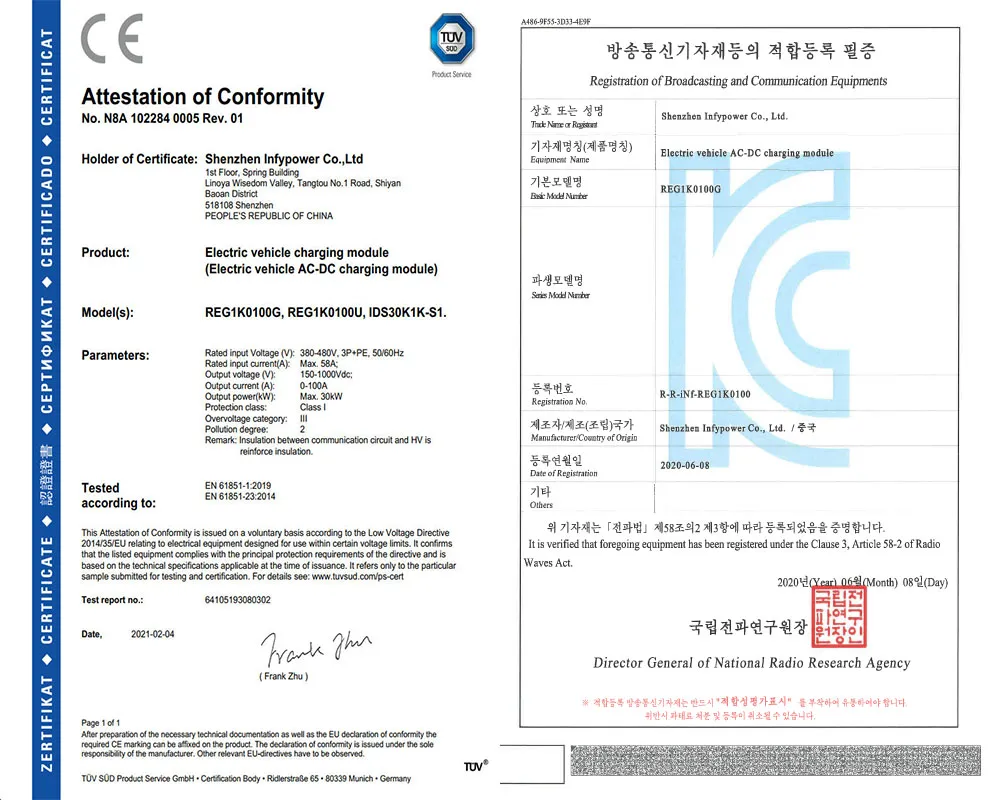

Certification 2
Exhibition 1
Exhibition 2
Exhibition 3
Exhibition 4
FAQ
Q: How do you handle shipments?
A: For small orders, we use express services like FedEx, DHL, or UPS on a door-to-door basis. For large shipments, we utilize sea or air freight in containers.
Q: What is the typical delivery time?
A: Normally, it takes about 30 days to prepare the goods. Large quantities or customized orders may require additional time.
Q: What are your standard payment terms?
A: Our standard term is 100% TT advance with the order. Other terms may be negotiable for long-term strategic partners.
Q: Do you offer customized services?
A: Yes, we provide flexible OEM and ODM services based on our extensive project experience. MOQs depend on specific customization requirements.
Q: What is the warranty period for your products?
A: We provide a 24-month warranty starting from the receipt of the shipment under normal operating conditions.
Q: What certifications do your products hold?
A: Our chargers are fully qualified with international certifications such as CE for Europe, UL for the USA, and KC for South Korea.
