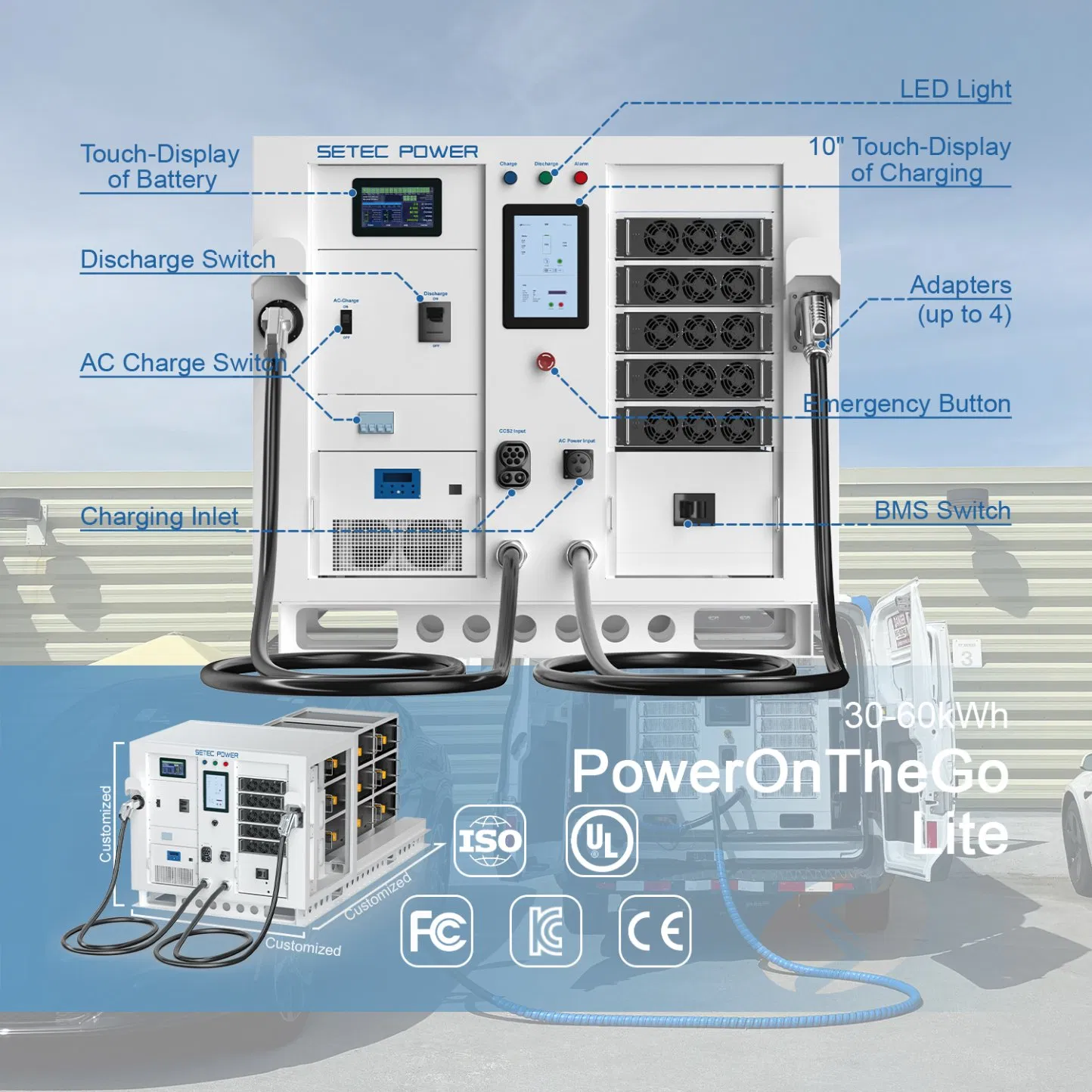

SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
1 / 5
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System
SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System

SETEC POWER Self-developed Modules 30kW 60kW Fast Charging 30kWh 60kWh Portable Battery Pack Energy Storage System

Customization: Available
Nominal Capacity: 30kWh / 60kWh
Size: Customized
Send Inquiry

Product Description

⭐ Basic Information
Weight
Customized
Warranty
2 years
Input Models
DC/AC Charge
Output Voltage
307V
Output Power
30kW / 60kW
Battery Type
LFP
Network
Ethernet / WIFI / 4G
Communication
OCPP 1.6 / OCPP 2.0 / TCP
Display
10" Daylight Readable
Payment
RFID / OCPP
Operation Temp
-20℃ to +50℃
Cooling Method
Fan Cooling
Origin
China
HS Code
8504401400
📦 Packaging & Delivery
Package Size
500.00cm * 200.00cm * 200.00cm
Gross Weight
4000.000kg
Transport
Wooden Package

30kWh 60kWh CCS CHAdeMO NACS Portable Power Battery Solar Energy System

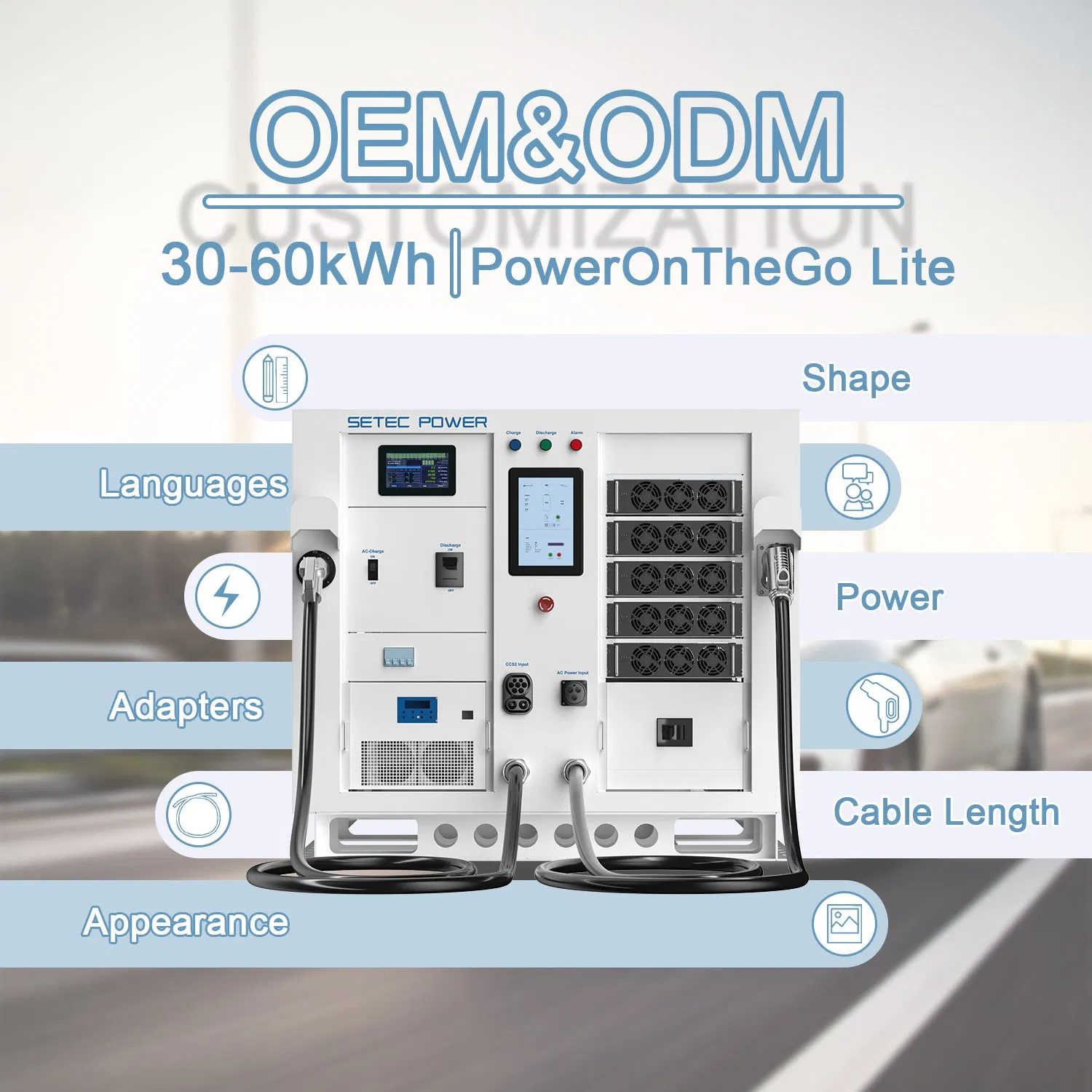

PowerOnTheGo Lite - Flexible Energy Storage & Fast Charging Solution

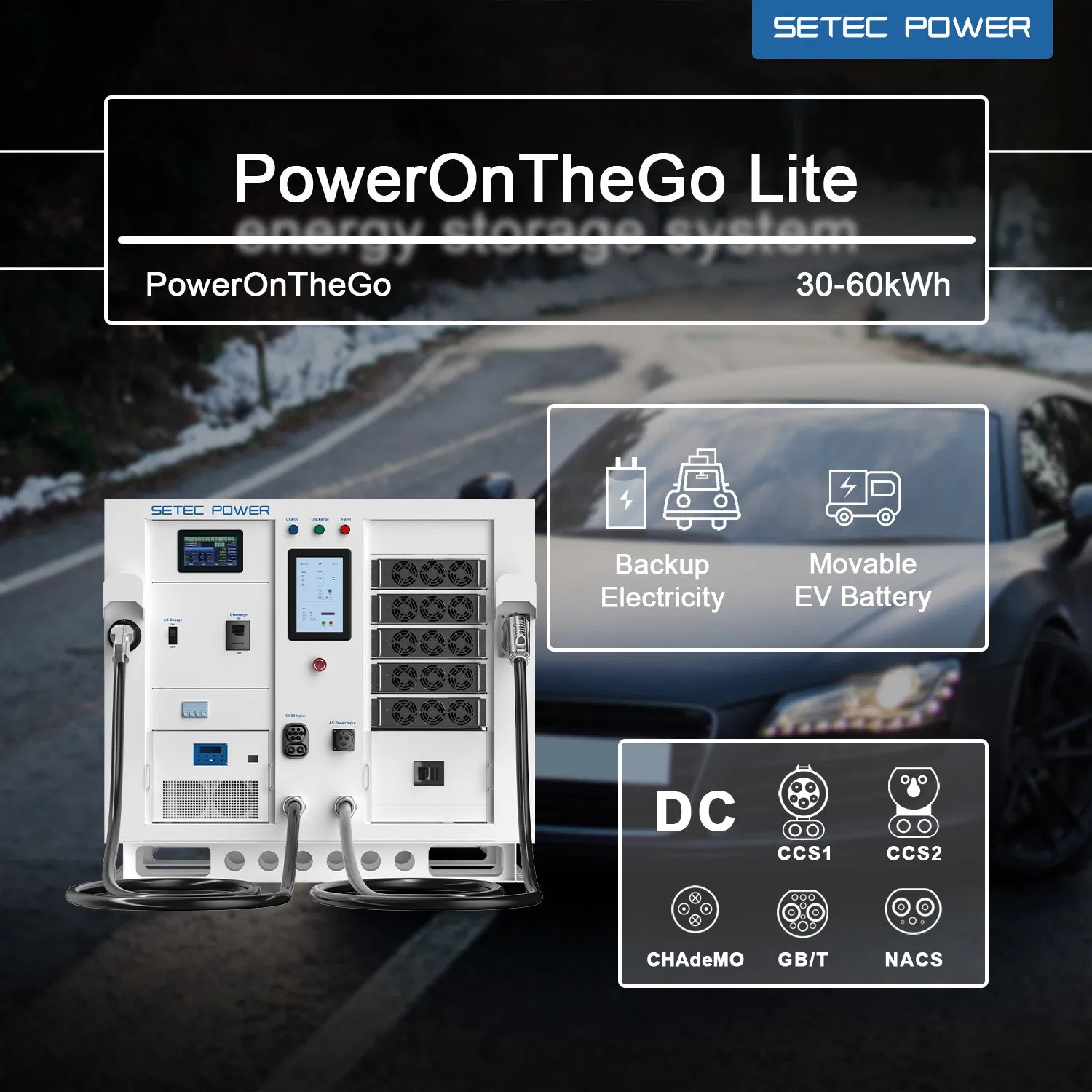

Fast Charging Portable Battery Pack
📊 Technical Parameters
Data Model 30kWh 60kWh
OPTIONAL Output Adapters CCS1 / CCS2 / CHAdeMO / GB/T / NACS
Electrical Spec Input Models DC: CCS1 / CCS2 / CHAdeMO / GB/T / NACS Inlet
AC: 480/380Vac Three-phase
Output Power 30kW 60kW
Battery Type / Life Span LFP / 6000 Cycles
Control Display / Network 10" Touch Screen / Ethernet / WIFI / 4G
Environment Temp / Altitude -20ºC to +50ºC / <2000m

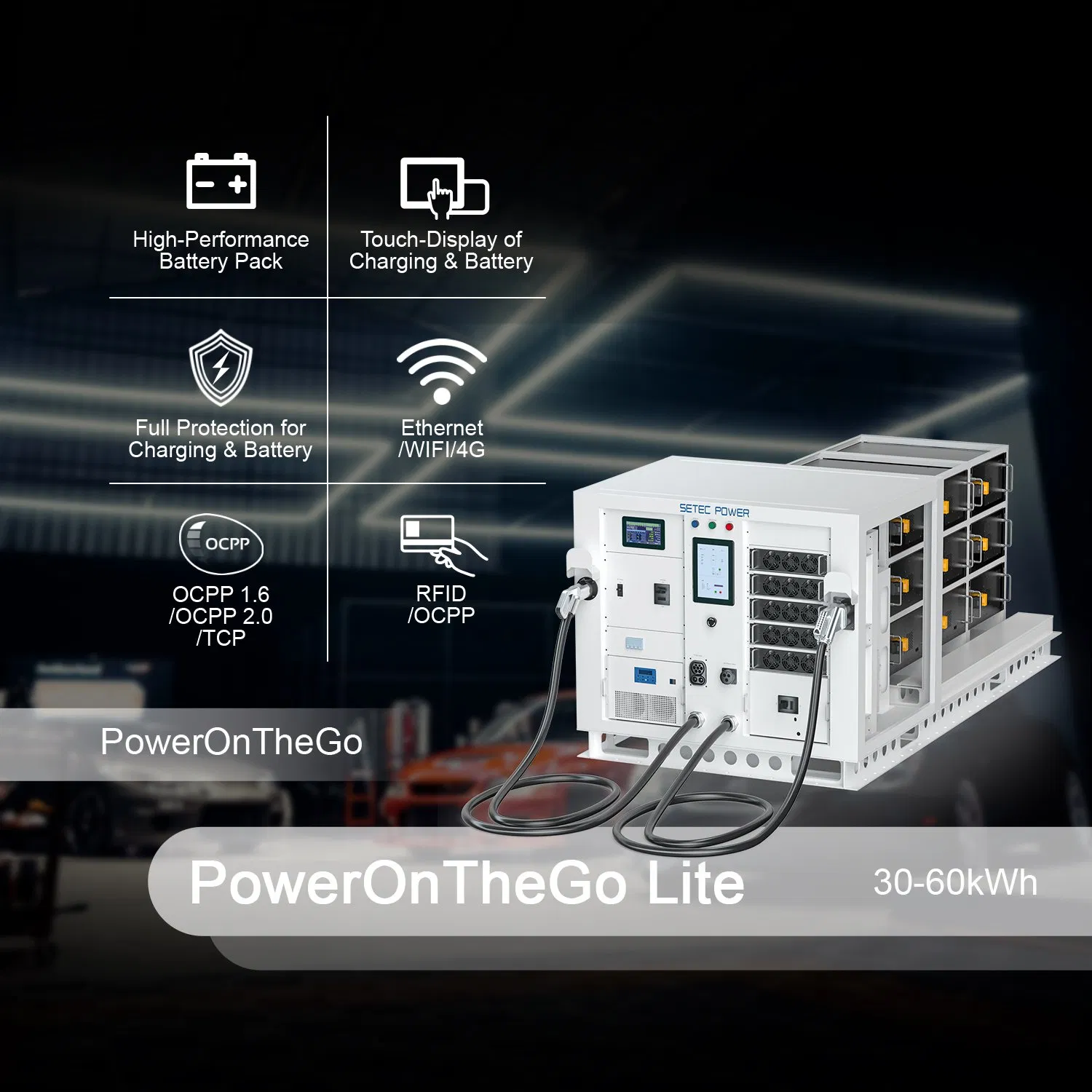

🔍 Product Details
Feature 1 Feature 2 Feature 3
Feature 4 Feature 5
🏢 Professional Manufacturing

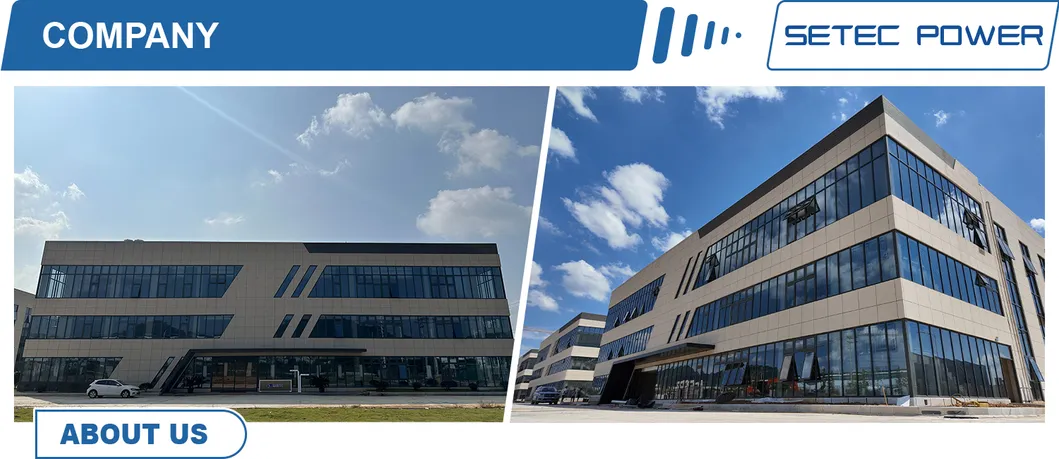

Manufacturing Facility

Established in 2004, the enterprise is one of the earliest pioneers dedicated to the research and development of electric vehicle charging stations and customized solutions. With over 80,000 square meters of production and R&D facilities, the focus remains on the entire process of research, design, and production of EV charging equipment.

The facility has obtained numerous system certifications including UL, CNAS, ISO14001, and ISO9001. Products are exported to over 120 countries and regions globally, providing reliable charging services for electric vehicle owners.

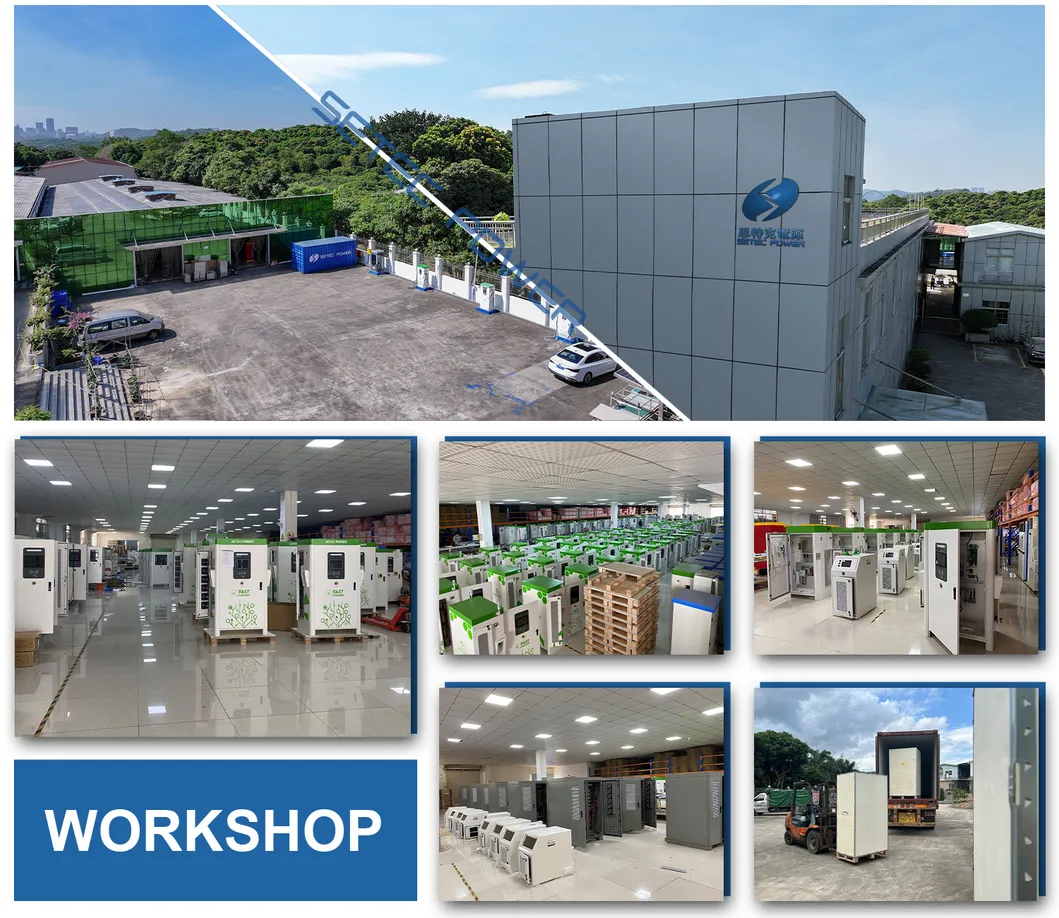

R&D Center
🤝 Global Partners & Cases

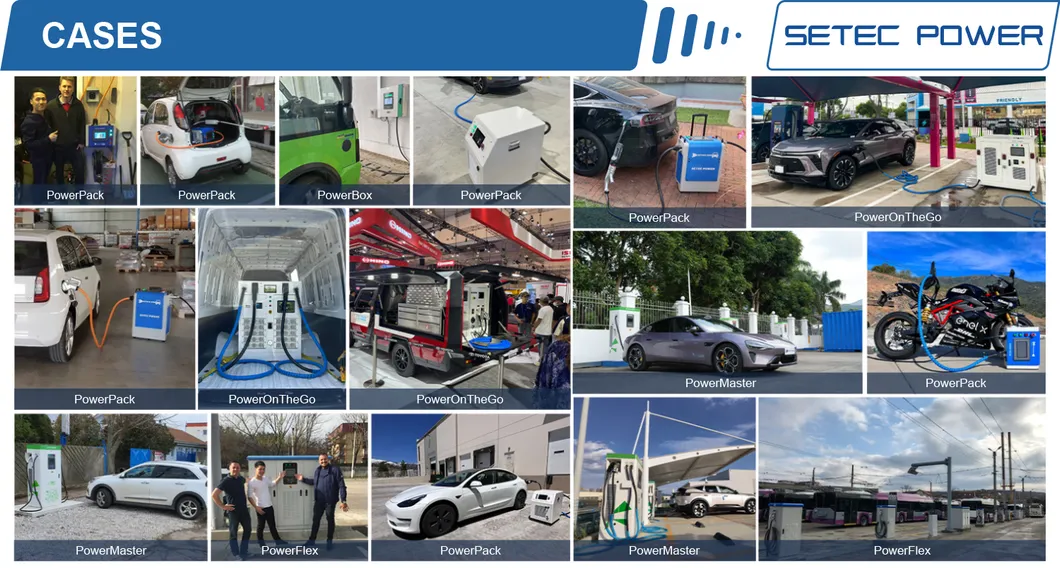

Global Partners Application Case
📜 Certificates & Exhibition
Product Certificates
International Exhibition
❓ Frequently Asked Questions
What charging standards does this portable system support?
The system supports multiple output standards including CCS1, CCS2, CHAdeMO, GB/T, and NACS, making it compatible with almost all electric vehicles globally.
What is the battery lifespan and type?
The system uses high-quality LFP (Lithium Iron Phosphate) batteries with a life span of over 6,000 cycles for long-term reliability.
Can it operate in extreme temperature conditions?
Yes, the equipment is designed to operate efficiently in temperatures ranging from -20°C to +50°C.
What are the available power and capacity options?
We offer two main configurations: 30kWh battery capacity with 30kW output power, and 60kWh battery capacity with 60kW output power.
How can the system be monitored?
It features a 10" daylight-readable touch display and supports network connectivity via Ethernet, WIFI, and 4G, using OCPP 1.6/2.0 protocols for remote management.

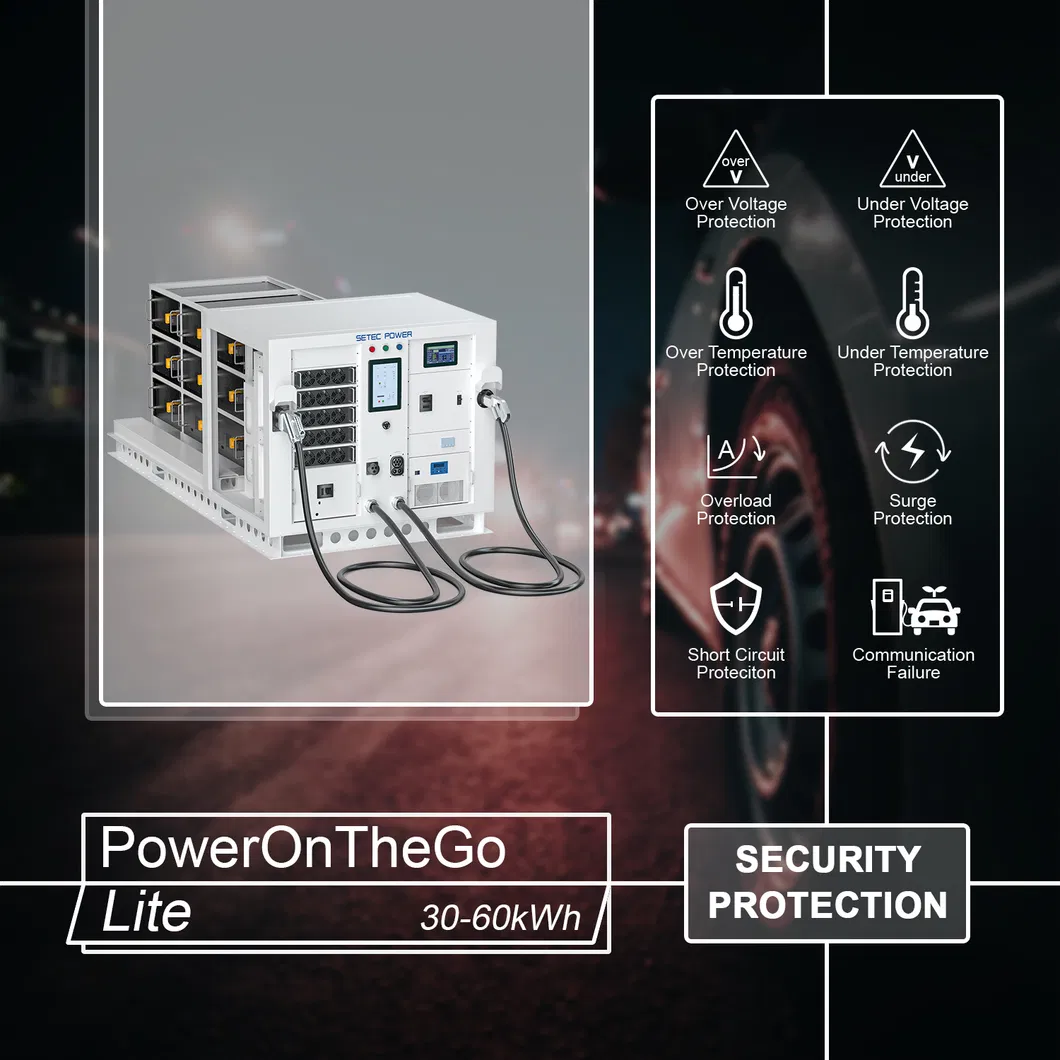

What kind of protection does the device have?
The system includes multiple safety features: Over/Under Voltage protection, Overload protection, Short Circuit protection, Surge protection, and Temperature protection for both batteries and the device.
