Volt Charger
1 / 5
| Model NO. | STS1200 | Charger Application | Standard Battery, Battery Charger |
|---|---|---|---|
| Nominal Voltage | 12V/24V/36V/48V/60V/72V | Charger Style | Intelligent Charger |
| Compatible Battery | Lithium/Li-ion LiFePO4/Lead Acid Battery | Efficiency | ≥ 93% (Full Loading) |
| Certification | CE | Output Power | 1200W |
| Protection | Multiple Protection | IP Rating | IP34 |
| Warranty | 24 Months | Origin | China |
Intelligent Battery Chargers

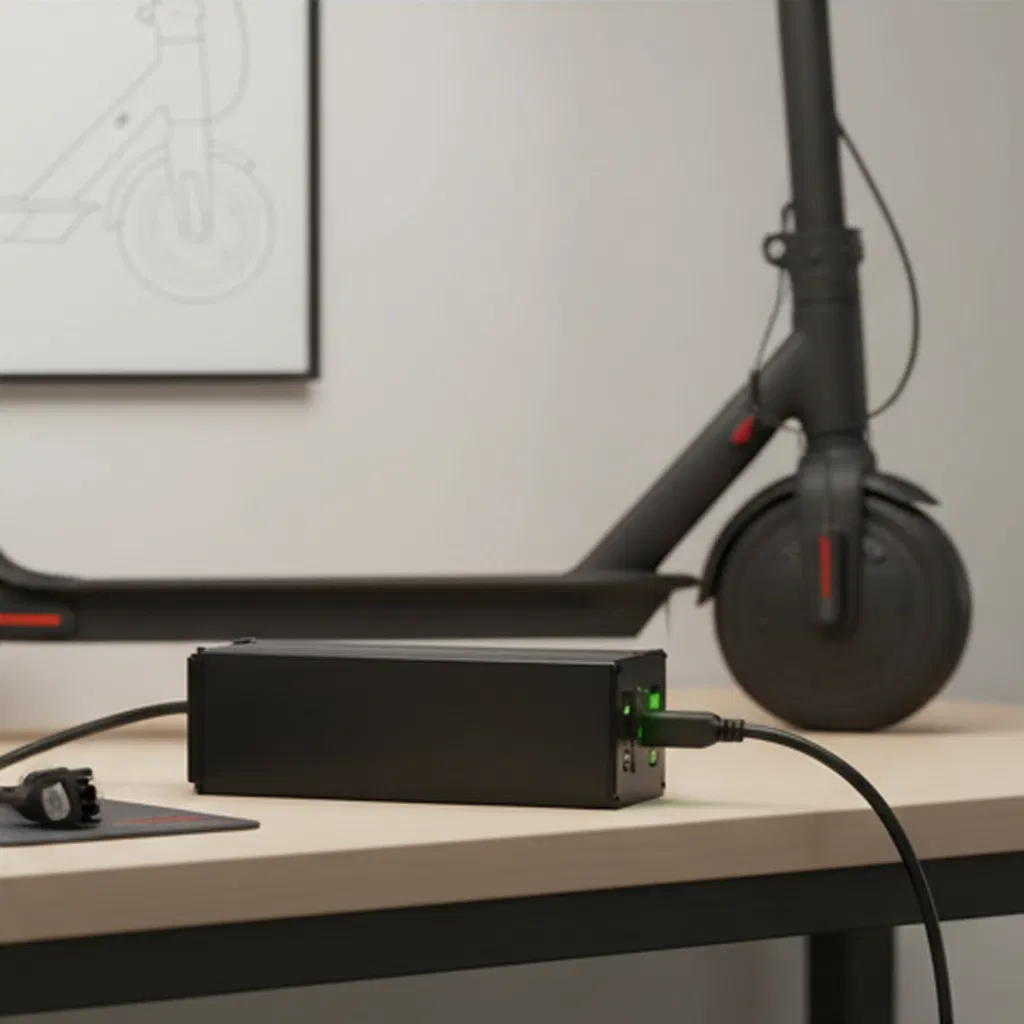

This smart battery charger is meticulously designed for lead-acid, LiFePO4, and lithium battery packs. It is widely utilized for recharging electric vehicles, including electric forklifts, sightseeing cars, patrol cars, golf carts, and electric dining vehicles.

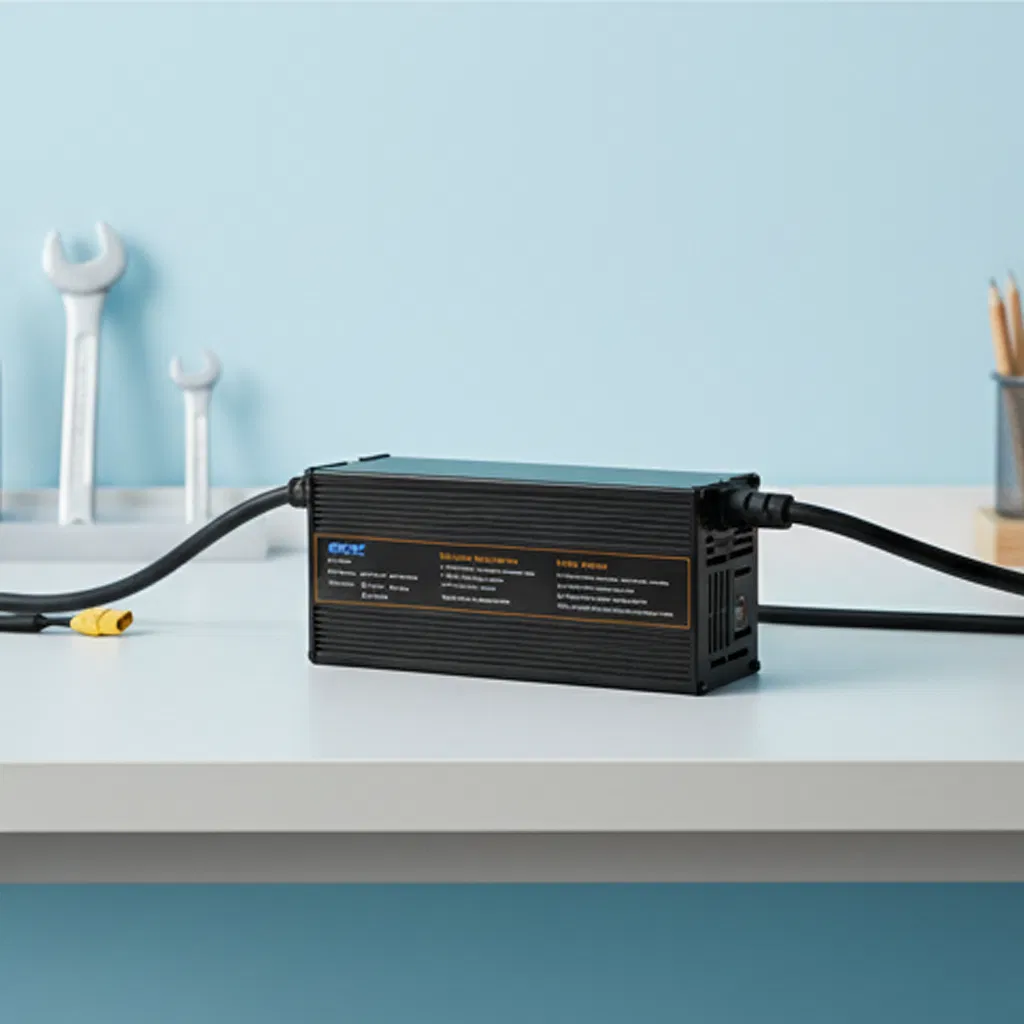

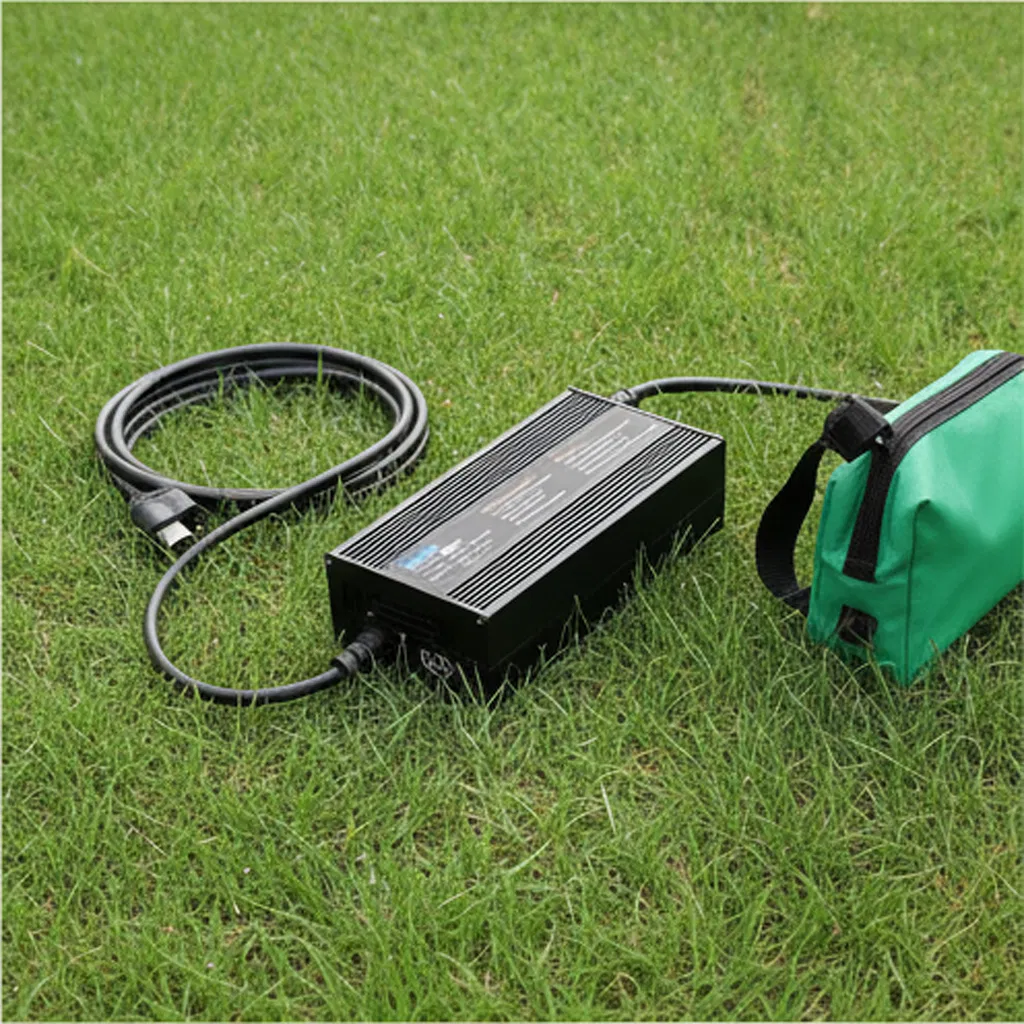

Constructed with a fully enclosed aluminum alloy shell, it ensures rapid heat dissipation. The integrated intelligent temperature control fan guarantees stable long-term operation. With an IP34 waterproof rating, it is splash-proof and rain-proof, providing peace of mind for outdoor applications.
| STS1200 Battery Charger Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Constant Voltage (CV) | Current (CC) | Cut-off Current | Net Weight | Size (mm) | |||
| Lead Acid | Li-ion | LiFePo4 | Lead Acid | Lithium | ||||

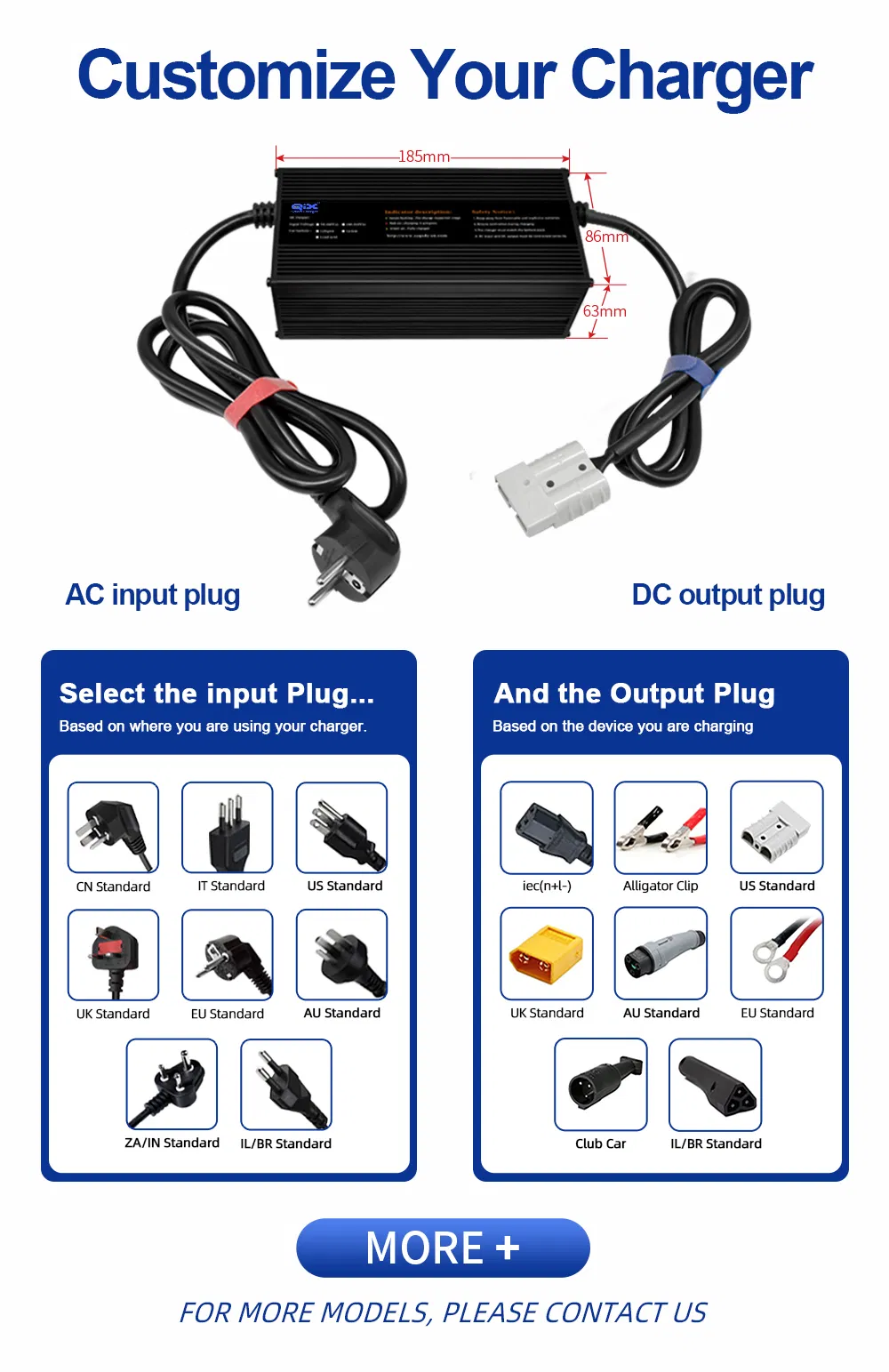

| 12V | 14.7V | 16.8V | 14.6V | 30A | 4A | 3A | 1.3kg | 185*86*63 |
| 24V | 29.4V | 33.6V | 29.2V | 30A | 4A | 3A | ||
| 48V | 58.8V | 54.6V | 58.4V | 15A | 2A | 1.5A | ||
| 60V | 73.5V | 71.4V | 73V | 15A | 2A | 1.5A | ||
| 72V | 88.2V | 84V | 87.6V | 12A | 1.6A | 1.2A | ||

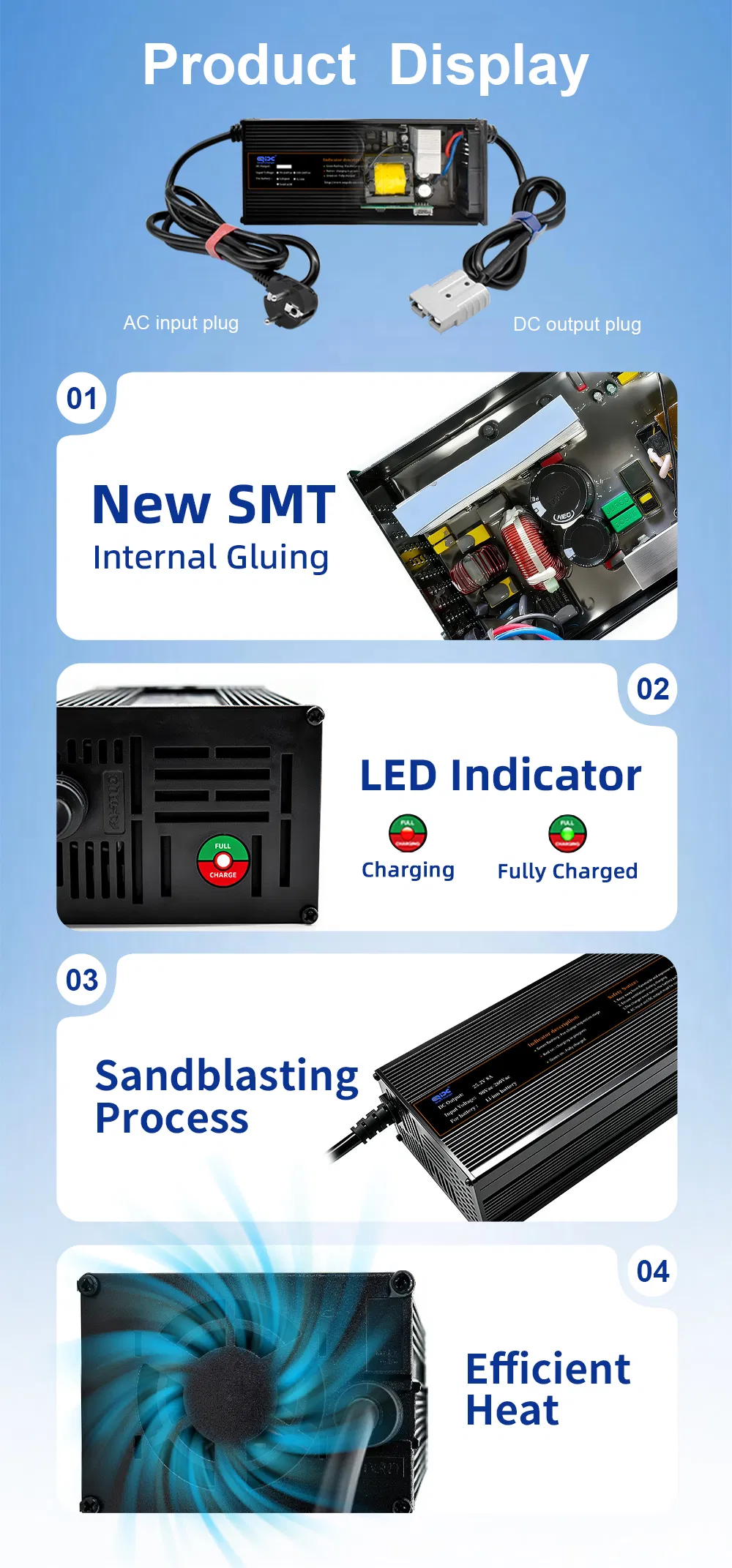

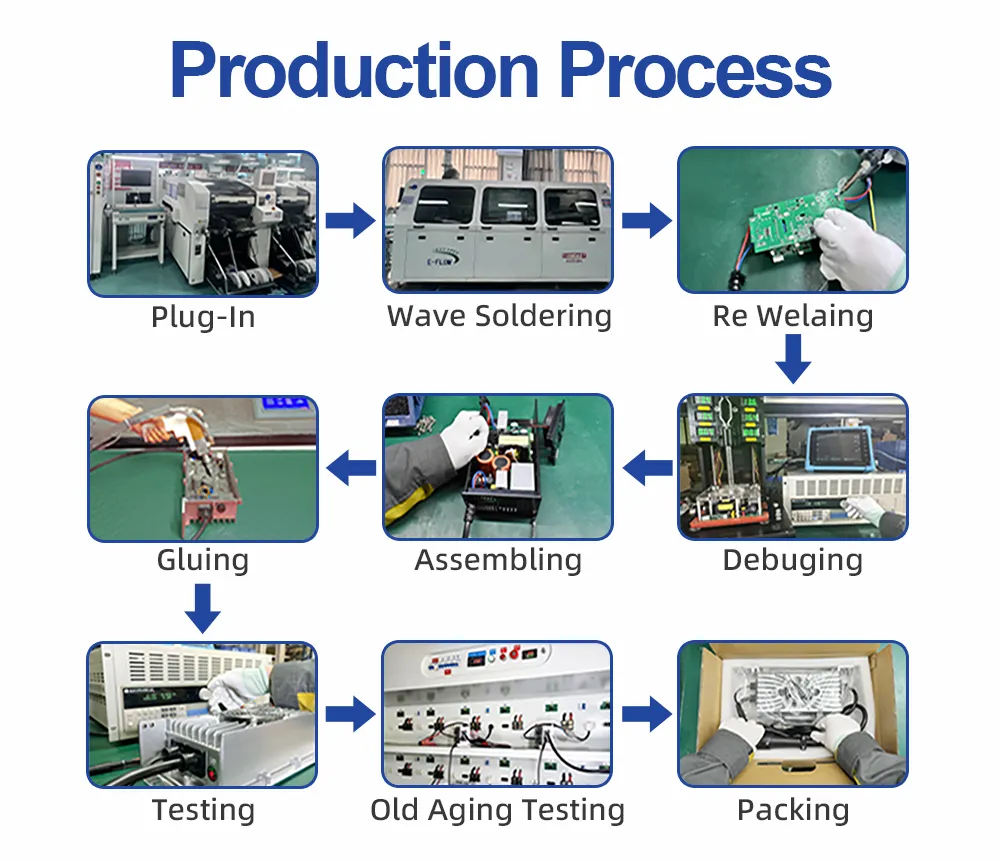

Precise mounting of components followed by wave soldering for stable electrical connections.
Functional testing of circuits followed by modular assembly into the structural framework.
Core parts are sealed for waterproof and shockproof performance, followed by rigorous functional verification.
Simulating long-term operation to ensure reliability, finished with shockproof packaging.
Our products adhere to global excellence standards. Our credentials include:

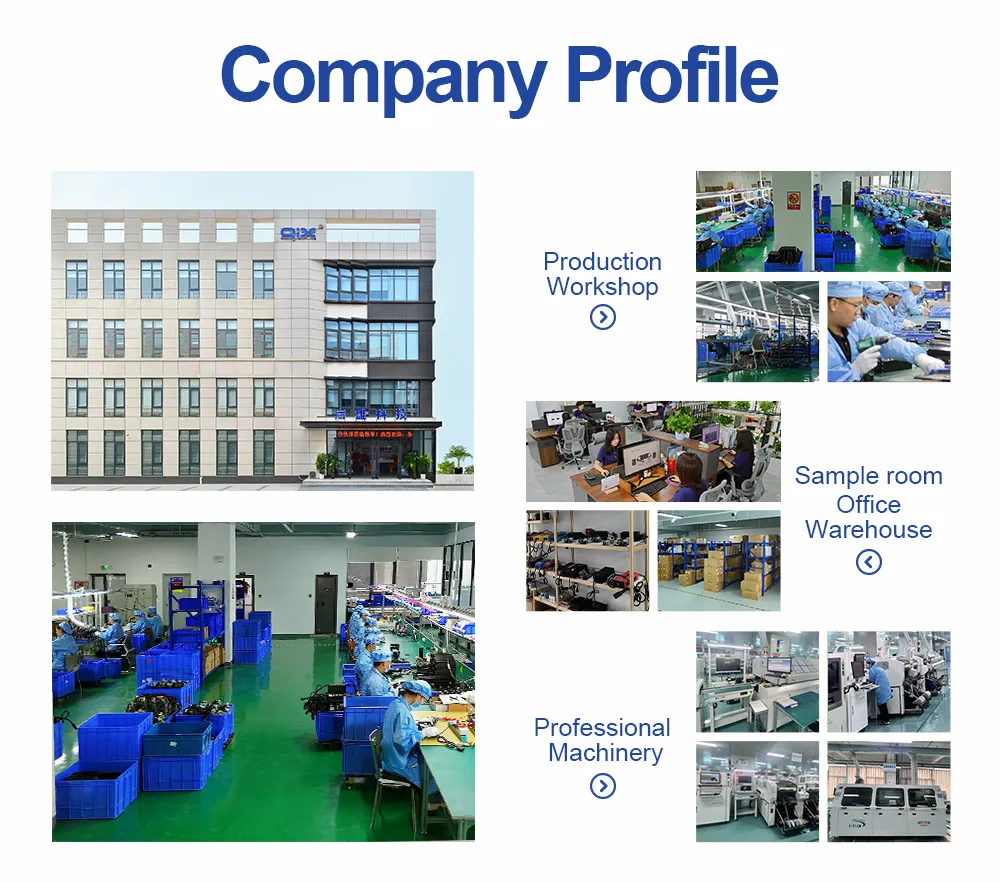

With over 20 years of expertise in the new energy sector, our intelligent production base spans 3000 square meters. We implement a "Five Dimensional Quality Assurance System" with 26 inspection processes from raw material to delivery.
We are dedicated to providing efficient and safe charging solutions for electric motorcycles, bicycles, and tricycles worldwide, maintaining a commitment to innovation, quality, and service.
Standard packaging includes shockproof paper boxes. We collaborate with major logistics partners like DHL, FedEx, and UPS, as well as sea freight options to ensure timely and safe arrival of your orders.
Lead Time: 15-25 days depending on order quantity.
