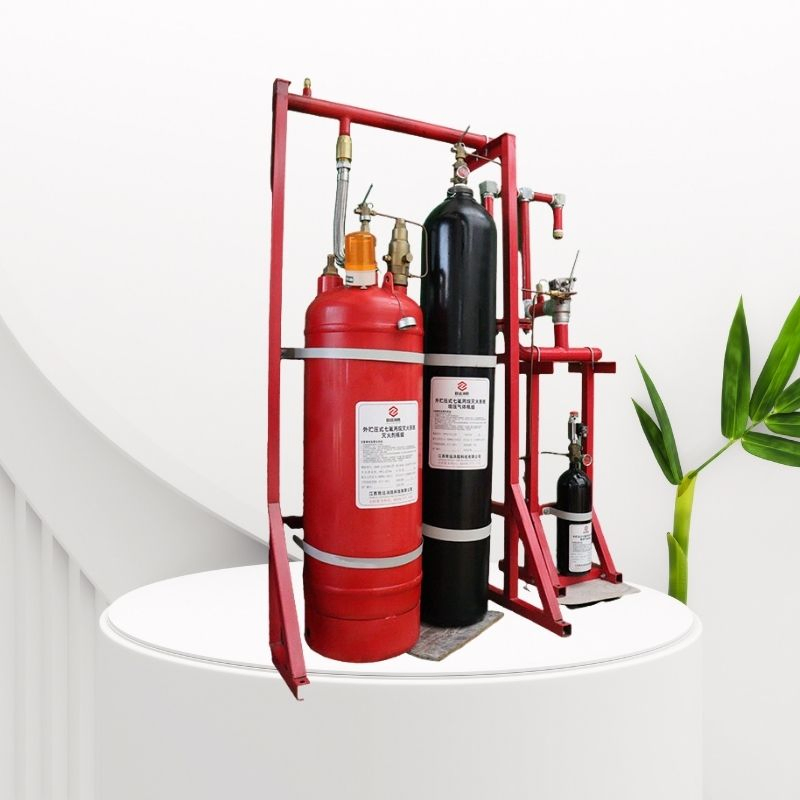

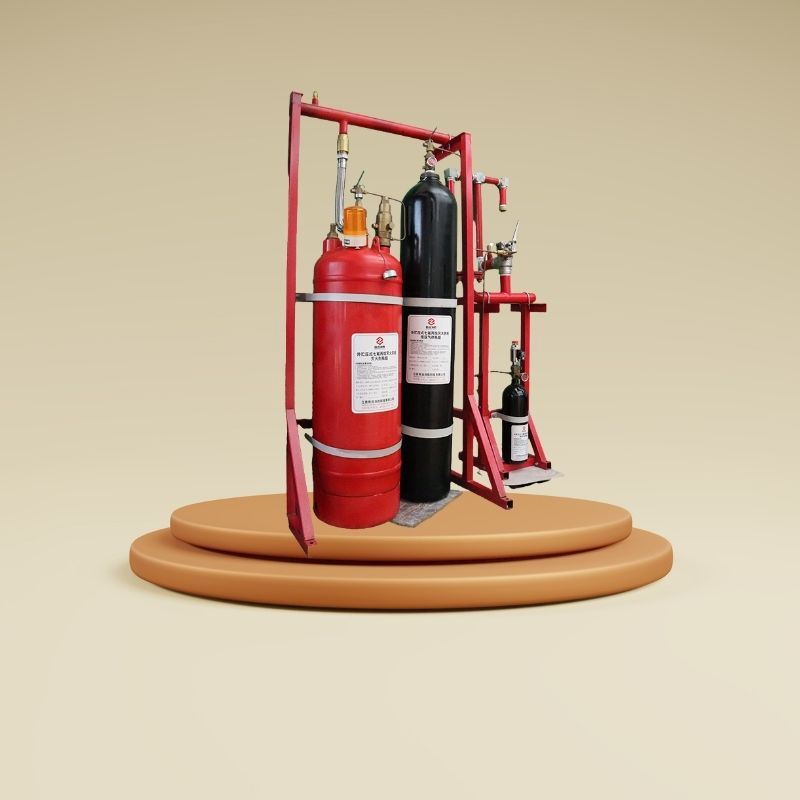

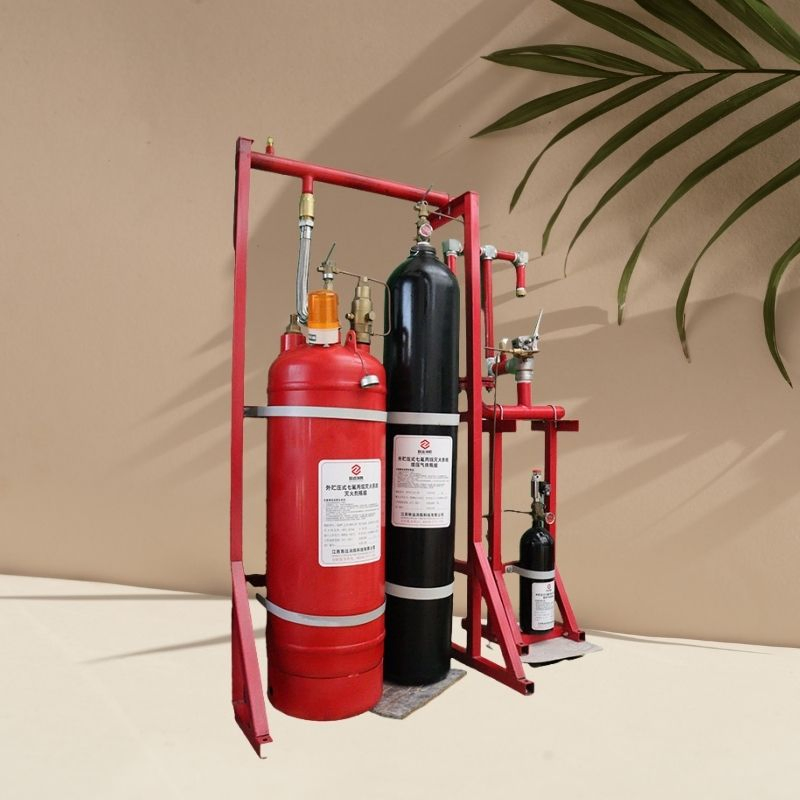

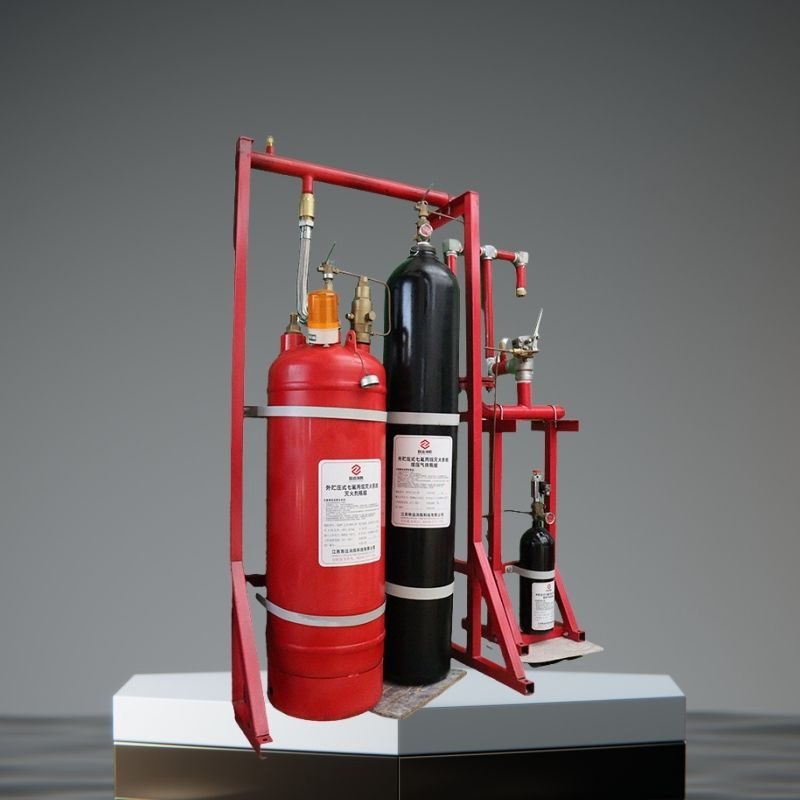

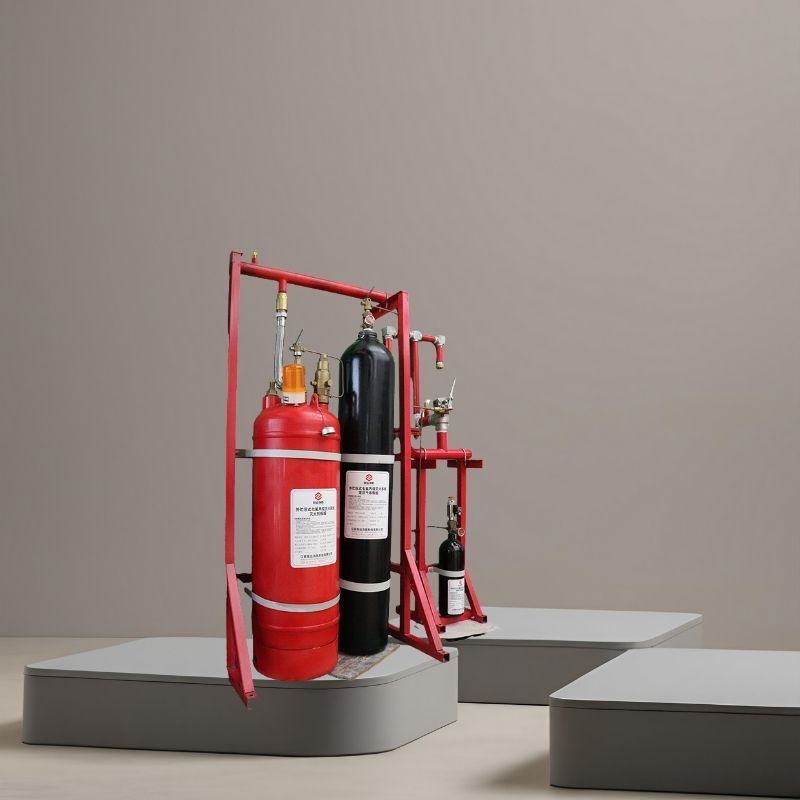

Pipe Network Perfluorohexanone Fire Protection for EV Charging Hubs (5.6MPa)

Customization:	Available
Type:	Smoke Sensor Probe
Anti-theft Alarm System Approach:	Passive

Basic Info.

Model NO.

QMP90/4.2-ZY

Alarm Type

Sound and Light Alarm

Smoke Detector

Photoelectric Smoke Style

Surface Temp

≤ 150 ° C

Discharge Time

15-30s

Material

Spray Painted Shell

Operating Temp

-50 ° C ~ +110 ° C

Extinguisher Class

Class D

Concentration

100G/M³

Humidity

≤ 95%

Product Description

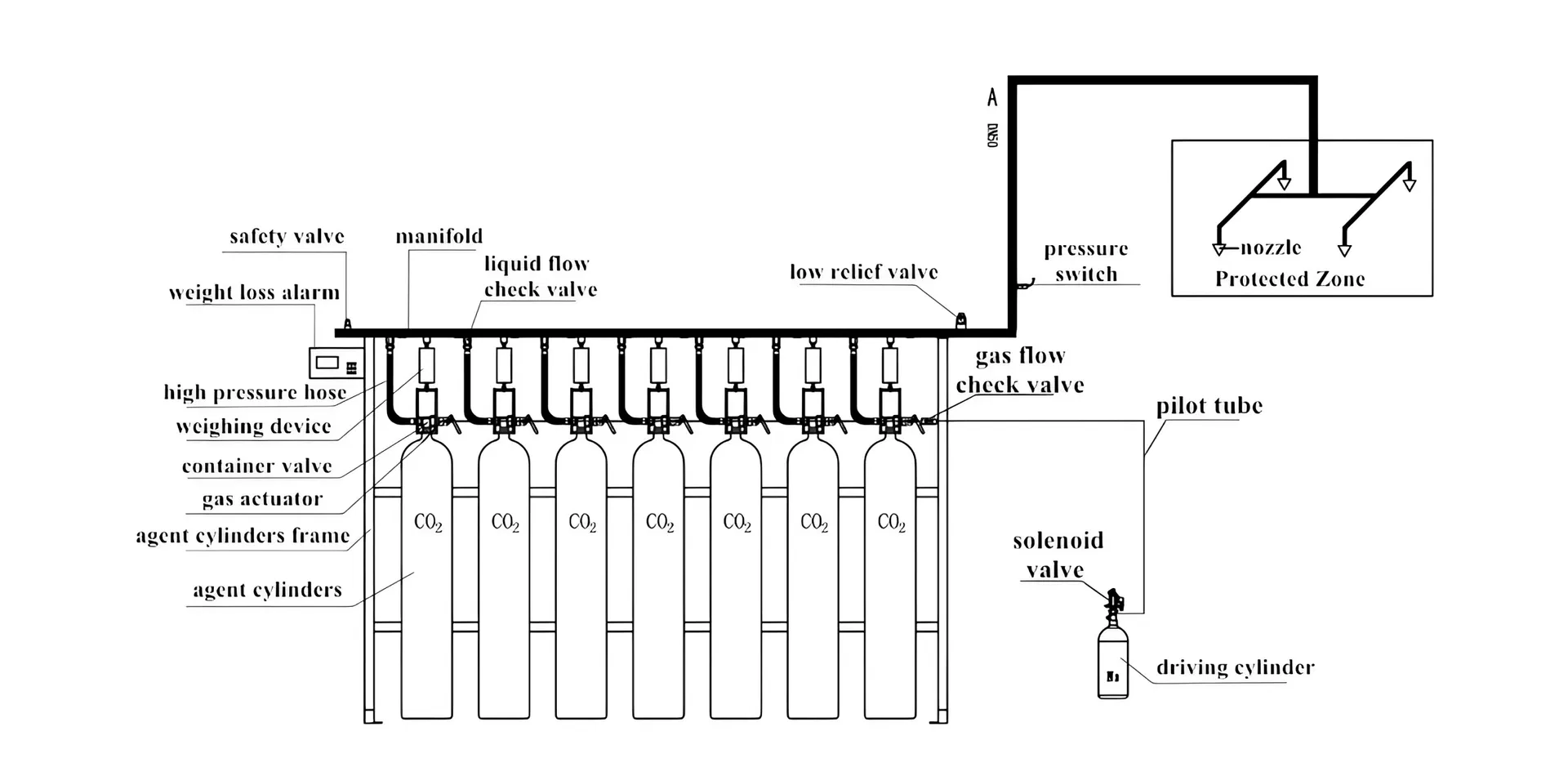

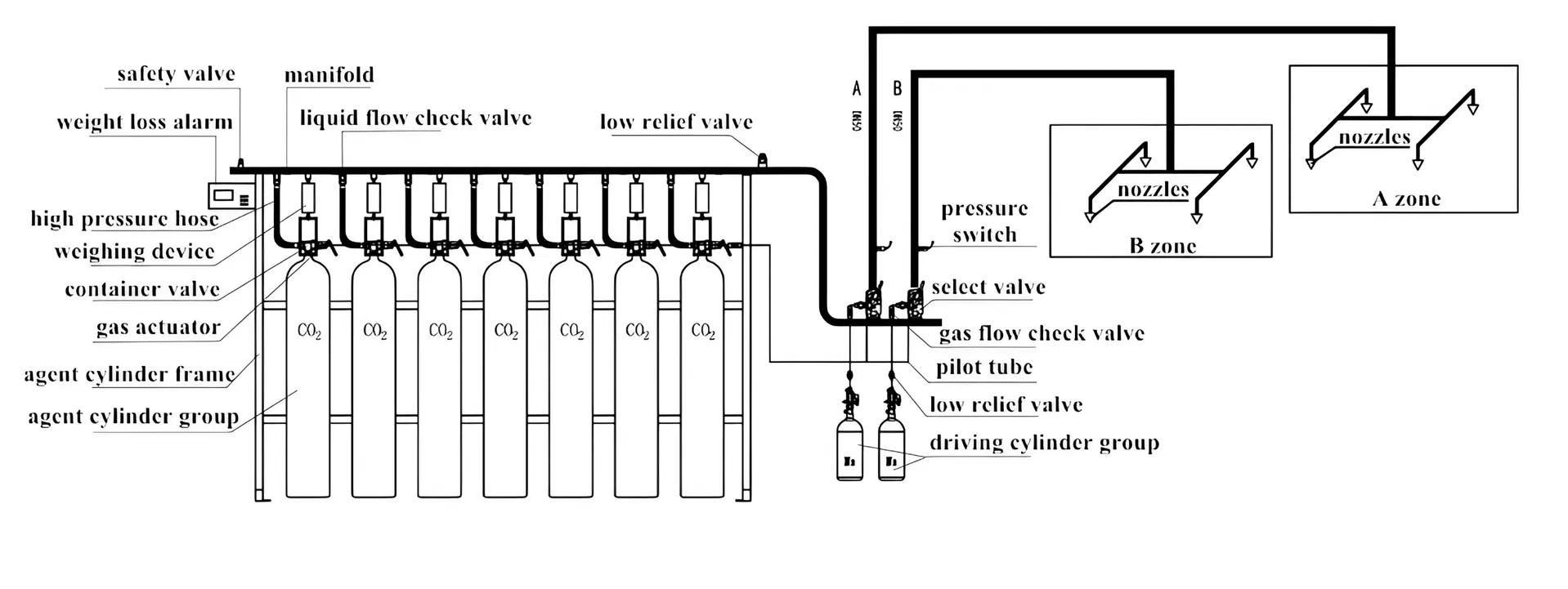

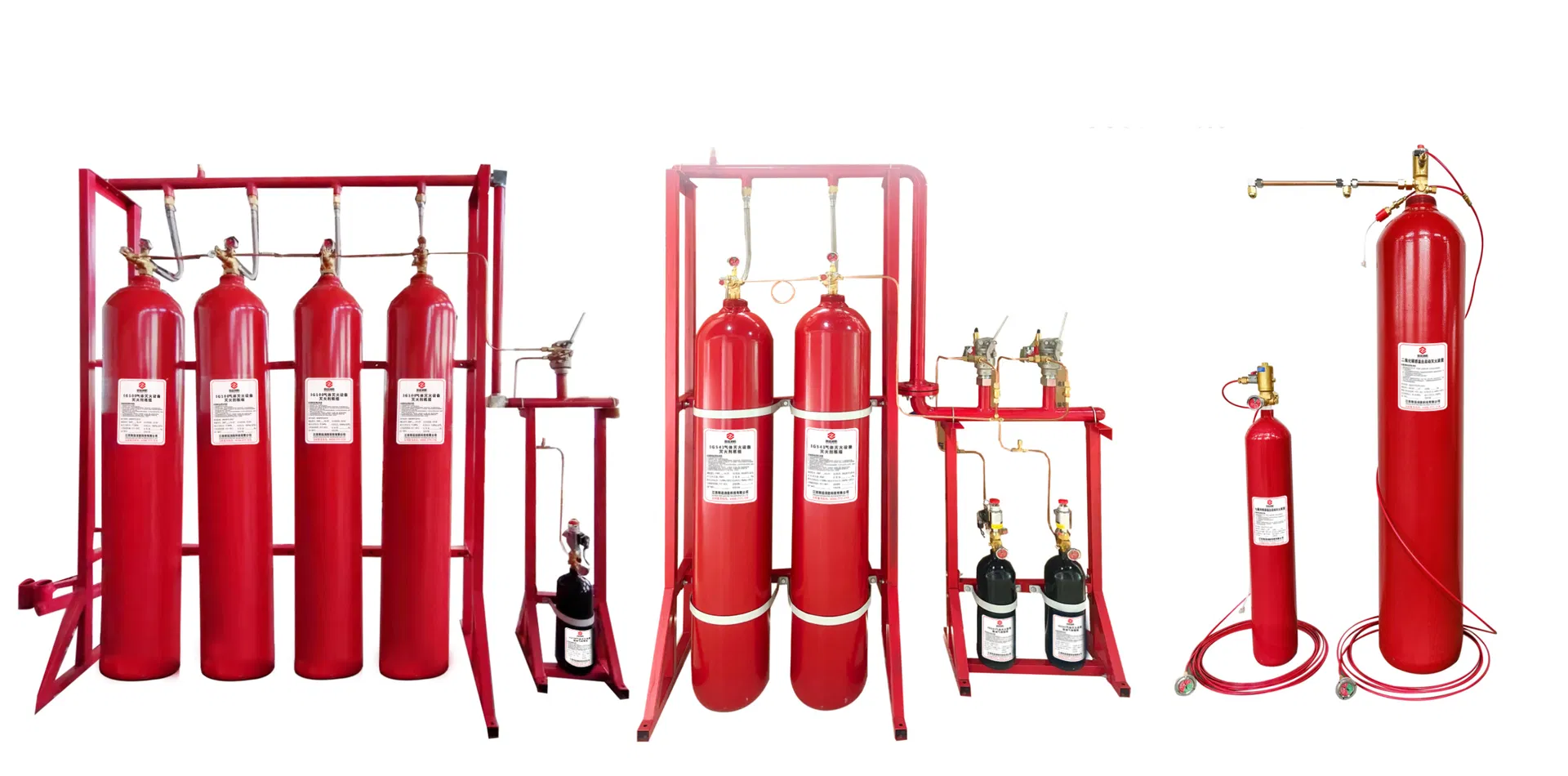

IG-541 Inert Gas Fire Suppression System

IG-541 is a clean agent fire extinguishing system utilizing an inert gas mixture (52% Nitrogen, 40% Argon, and 8% Carbon Dioxide). It is widely accepted as the best performing, cost-effective, and environmentally friendly solution.

Environmentally Friendly: Composed of natural gases, harmless to humans and ozone-friendly.
Total Flooding System: Fast and reliable suppression for enclosed spaces.
Safe & Reliable: Electrically non-conductive with zero residue after discharge.
Patented Pressure Regulation: Automatically regulates discharge pressure for a constant flow rate.
Multiple Activation: Supports automatic, manual, and emergency mechanical release.

Why Choose This System

Factory Direct Supply with competitive pricing.
20+ Years of Professional Industry Experience.
Certified Products: ISO, CE, CCC approvals.
Customization Available: OEM/ODM supported.
Advanced agent canning technology and core independent tech.

Technical Specifications

Model	Cylinder Volume (L)	Storage Pressure	Max Working Pressure	Filling Density	Discharge Time	Driving Gas	Activation Power
QMH15	80L	15MPa	17.2MPa	≤0.60 kg/L	≤60s	Nitrogen	DC24V / 1.5A
QMH20	90L	20MPa	23.2MPa	≤0.60 kg/L	≤60s	Nitrogen	DC24V / 1.5A

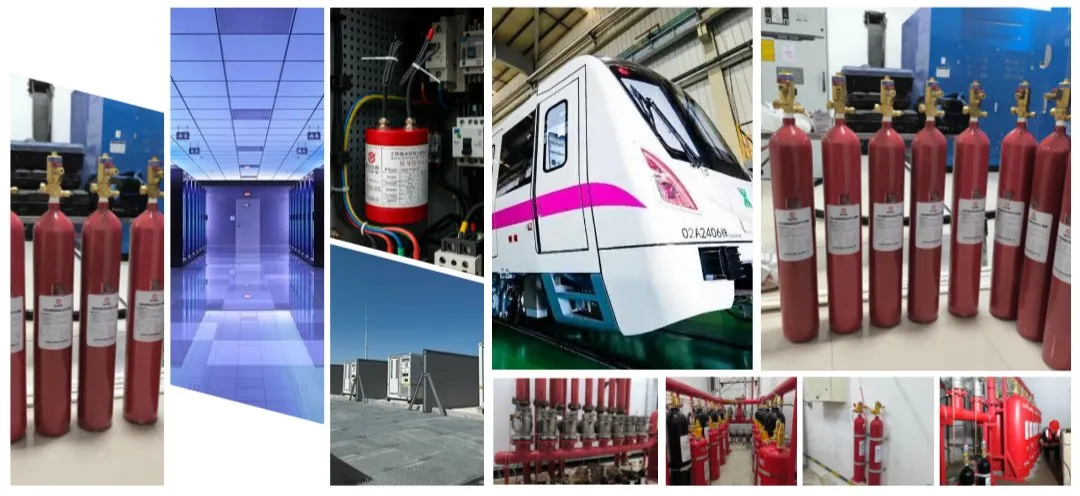

Typical Applications

Ideal for small sealed spaces including:

Transformer rooms and power stations
Cable tunnels and subways
Industrial plants and workshops

Archives, museums, and libraries
Engine rooms and machinery spaces
Public and commercial facilities

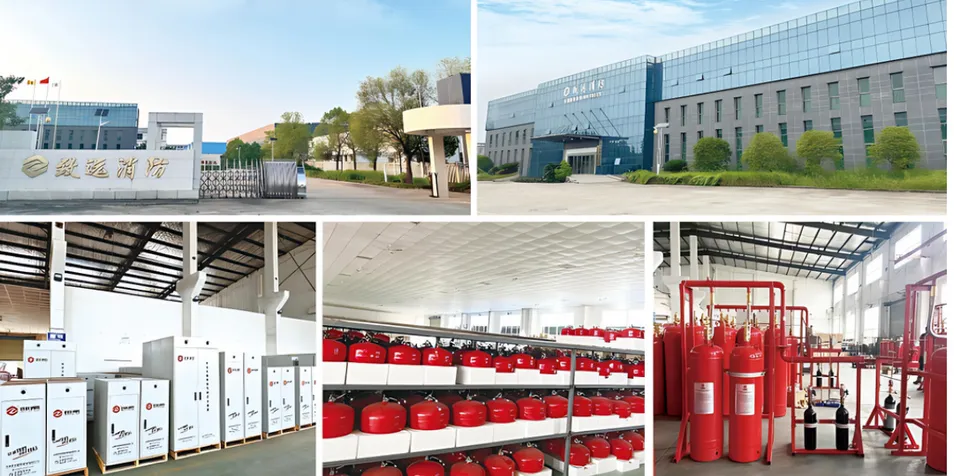

Production & Quality Control

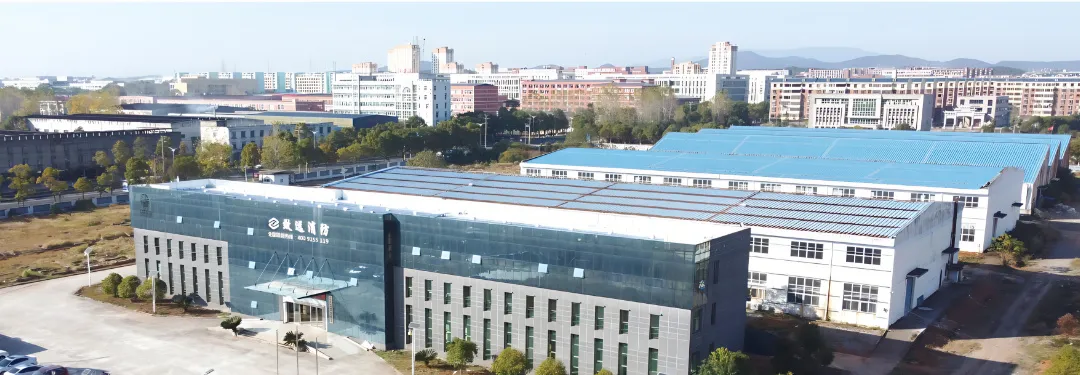

The facility includes modern, standardized workshops and laboratories equipped with advanced testing and experimental equipment. Our expert R&D team ensures every fire extinguishing device reaches industry-leading standards through rigorous management and quality systems.

Certifications & Exhibitions
