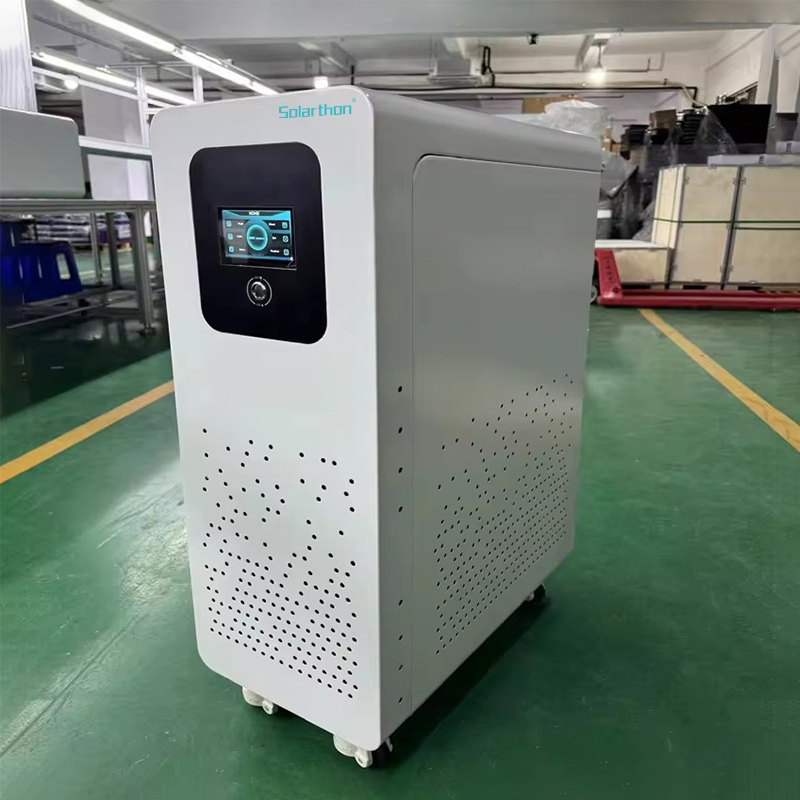

Reliable off-Grid Solar Energy Storage Solution for Remote Areas

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
LF52230-10
Nominal Capacity
460ah
Cycle Life
500,000h
Battery Type
LiFePO4
Nominal Voltage
51.2V
Communication
RS485/RS232/Can
Max. Charging Current
300A
Max. Discharging Current
200A
System Type
Rack-Mounted
Origin
China

Product Description

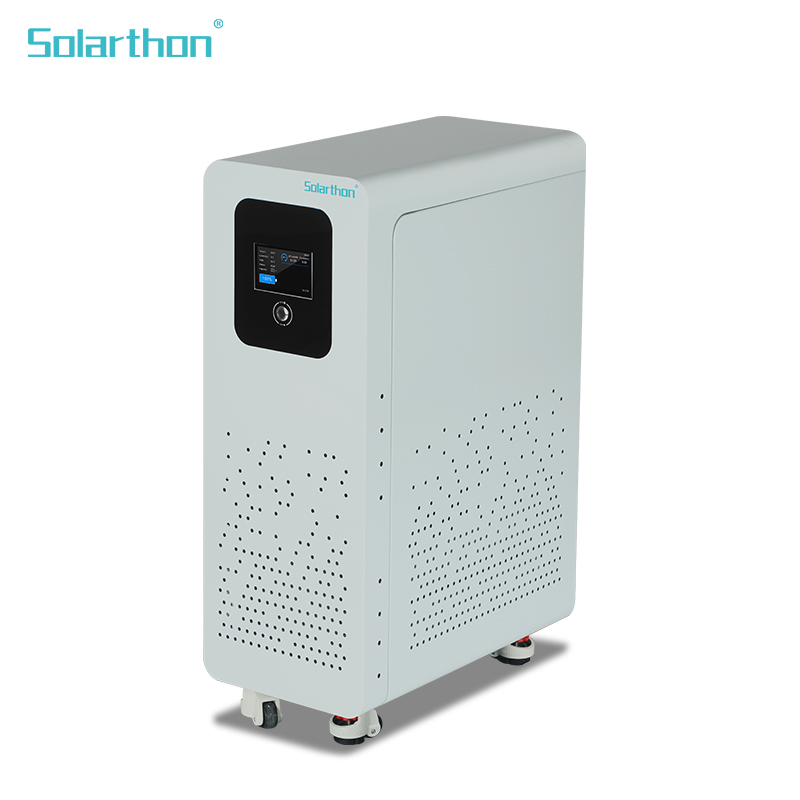

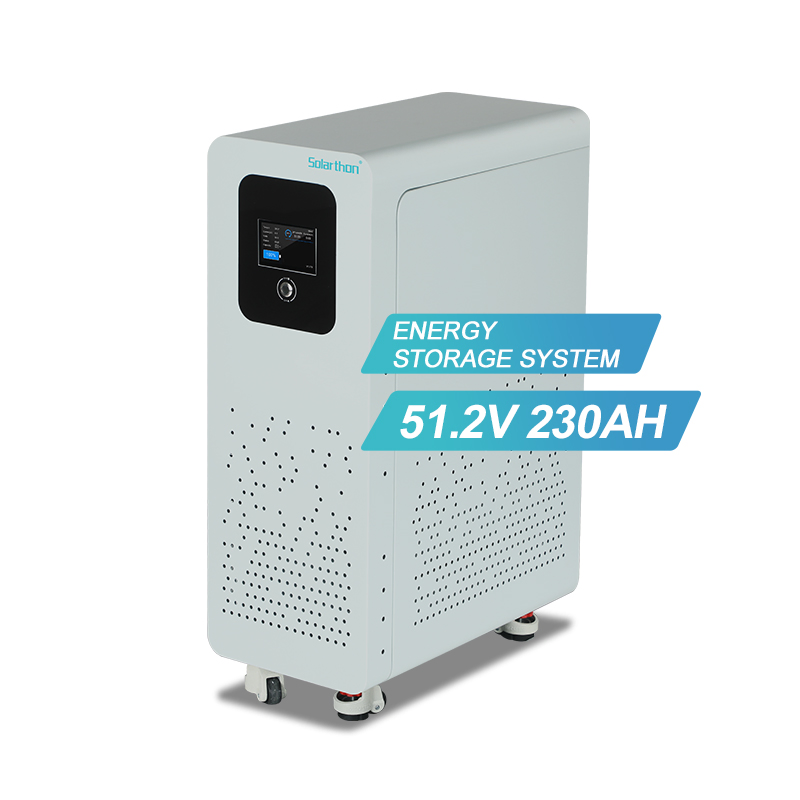

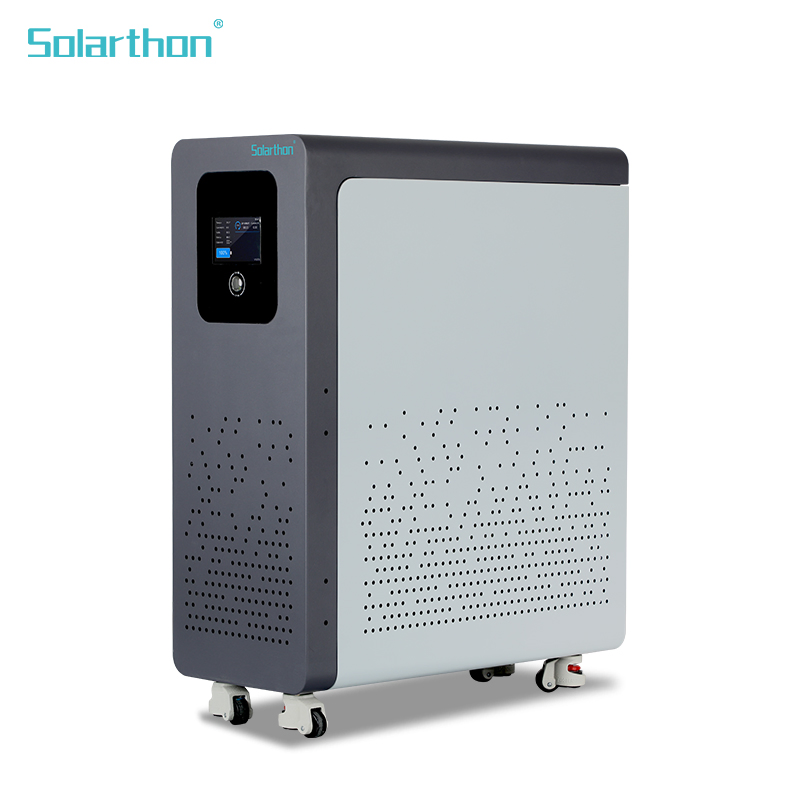

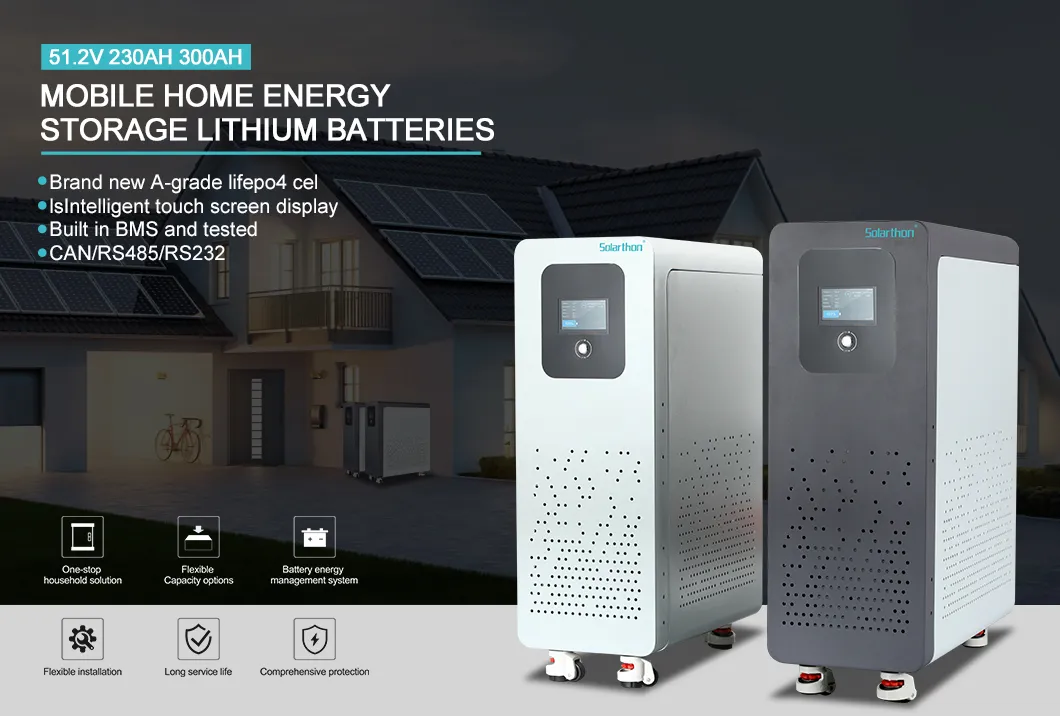

Explore the 51.2V 230AH/300AH lithium battery designed for mobile home energy storage. This product provides energy storage and supply to a wide range of electrical equipment, including household, commercial, and UPS systems.

  • BUILT-IN BMS: Modular battery with quality BMS, ensuring full cell protection.
  • SAFETY: Using LiFePO4 batteries for safe home energy storage.
  • SCALABLE: Modular battery scales for larger storage capacity.
  • LONG LIFE: Designed for 15-20 years, offering over 4000 cycles.
  • EASY INSTALLATION: Wall mount or ground stack, easy connection to inverters.

Technical Specifications

Item No. LF52230-10 LF52300-10
Battery TypeLiFePO4LiFePO4
Nominal Voltage51.2V51.2V
Nominal Capacity230Ah300Ah
Max. Charging Voltage58.4V58.4V
Max. Discharging Voltage40V40V
Cycle Life>4000>4000
Working Temperature (Charge)-3ºC ~ 65ºC-3ºC ~ 65ºC
Weight100kg126kg

Manufacturing Advantages

Our pure sine wave output inverters ensure a smooth and high-quality power output, similar to the public power grid. With low repair rates and a long lifespan, these systems offer exceptional reliability and environmental friendliness.

Certifications & Packaging

Each battery is protected with thick custom sponge during shipping and secured in multi-layer dangerous goods export corrugated cartons. For added verification, each unit features a unique QR code.

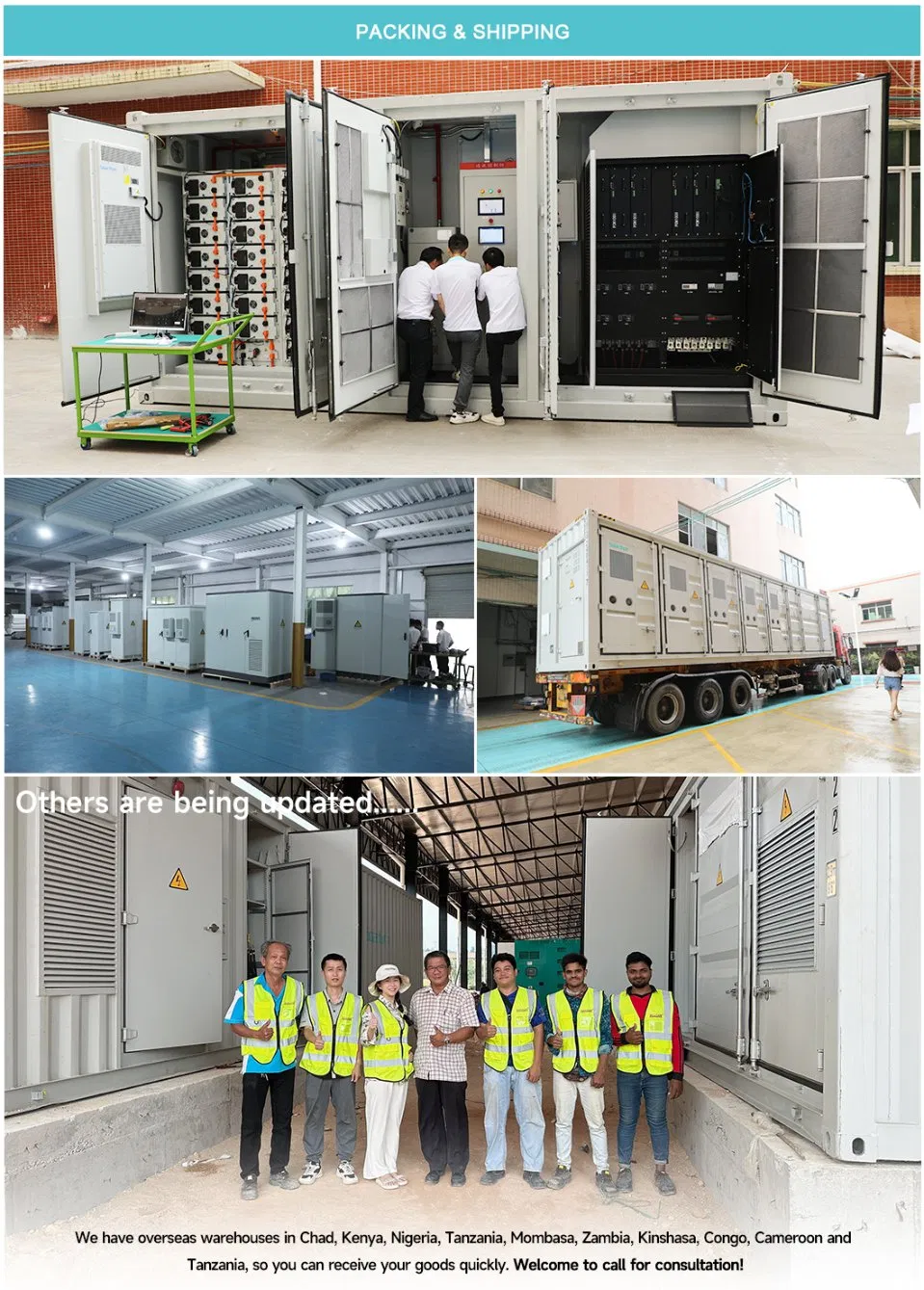

Shipping Standards

Frequently Asked Questions

1. What is the expected cycle life of these batteries?
The batteries are designed for a long lifespan, offering over 4000 cycles and lasting between 15 to 20 years under proper maintenance.
2. Are the batteries compatible with standard inverters?

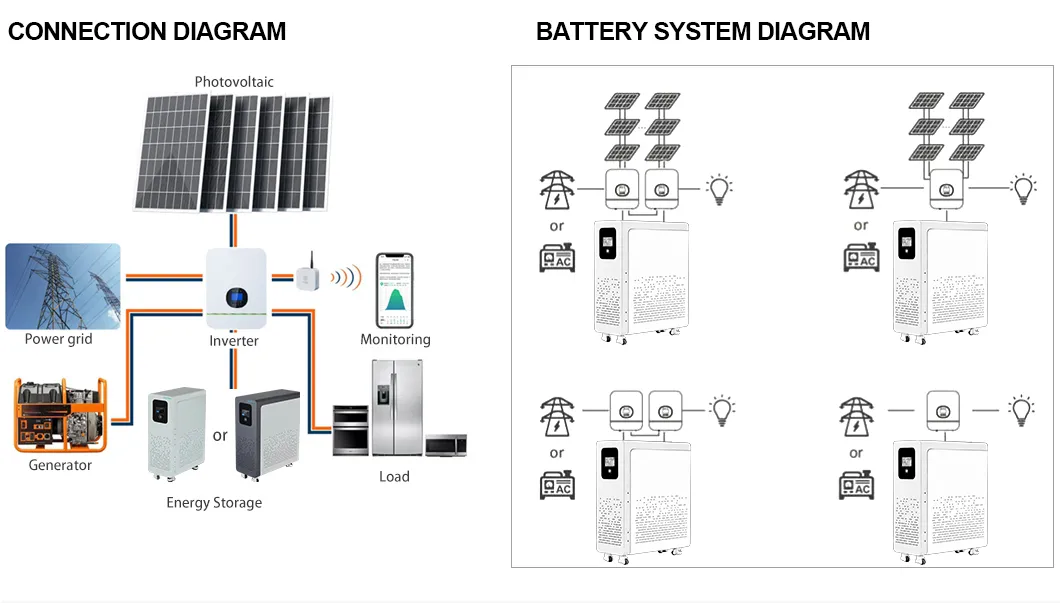

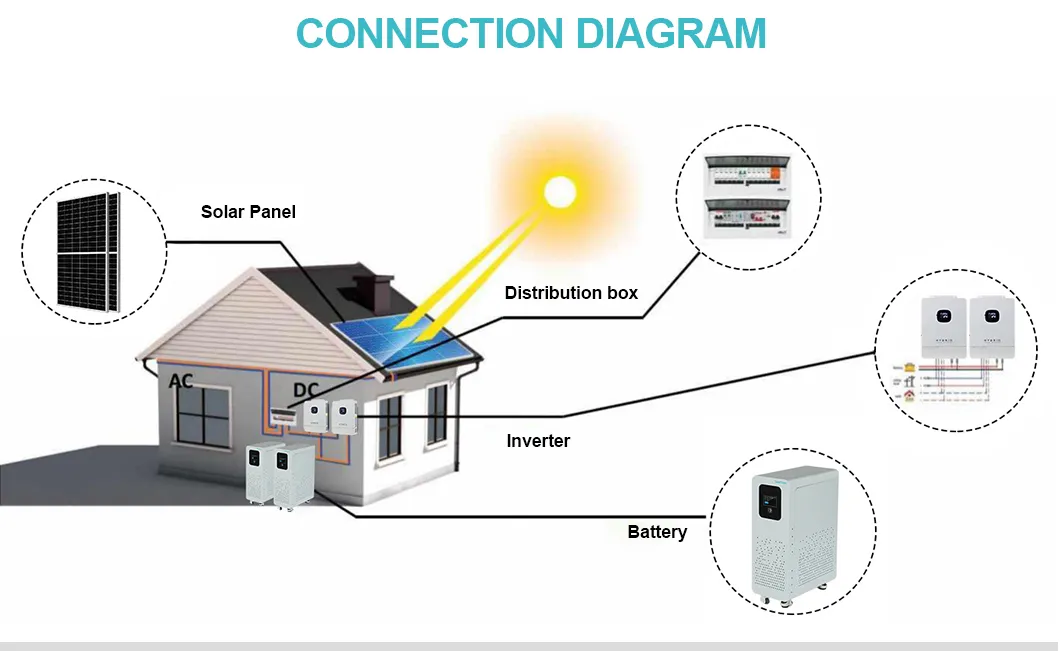

Yes, our battery packs are compatible with off-grid inverters, grid-connected inverters, and hybrid inverters.
3. What safety protections are included?
The batteries feature a high-performance built-in BMS (Battery Management System) for full cell protection, software protection, and a strong protective housing.
4. How are the products packaged for international shipping?
We use thick custom sponges and multi-layer corrugated cartons specifically designed for dangerous goods exports to ensure safe arrival.
5. Can the capacity be expanded in the future?
Yes, the modular design allows for easy scaling, meaning you can add more units to increase your overall energy storage capacity.
6. What voltage options are available for the inverters?
Our systems support various output voltages including 110V, 115V, 120V, 220V, 230V, and 240V with 50/60Hz self-adaptation.
