Advanced LiFePO4 Energy Storage with Air Cooling Technology

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■ Basic Information

Model NO.	ECO-E101WX	Nominal Capacity	101kwh
Cycle Life	6000 Cycles	Application	Industrial Commercial Factory
Cooling	Air-Cooled	OEM/ODM	Yes(Accepted)
Communication Port	Modbus TCP/IP	Type	Energy Storage System
Grid Type	On Grid / Off Grid	Transport Package	Wooden Case

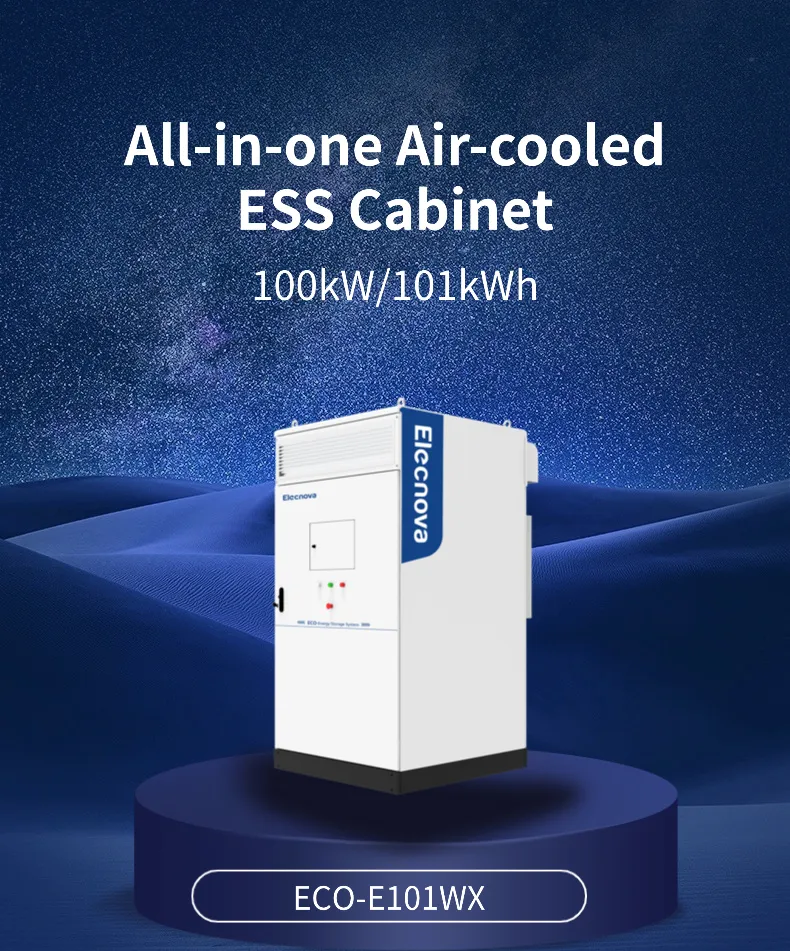

■ Product Overview

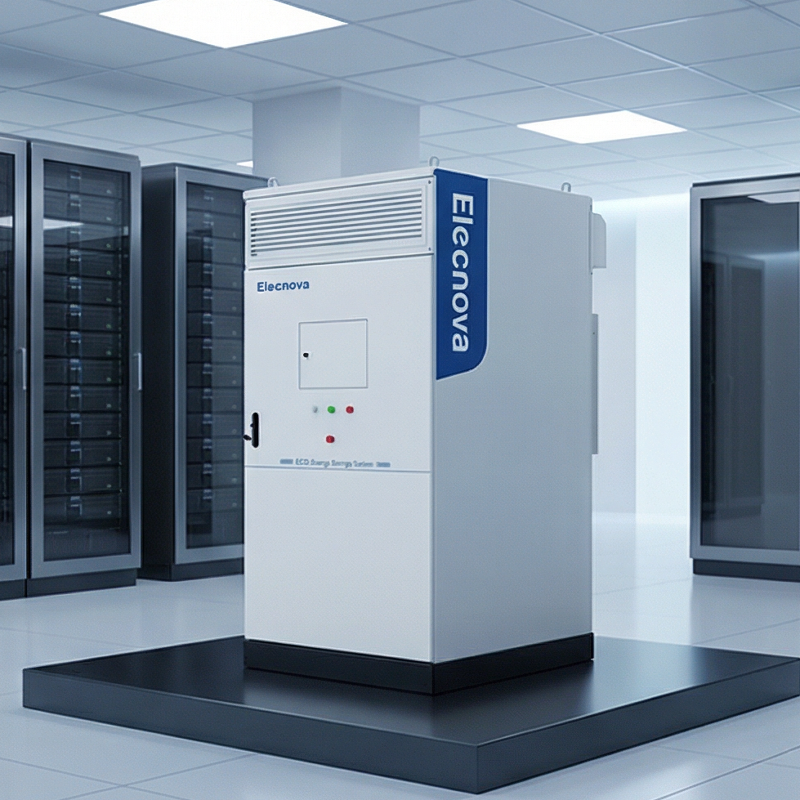

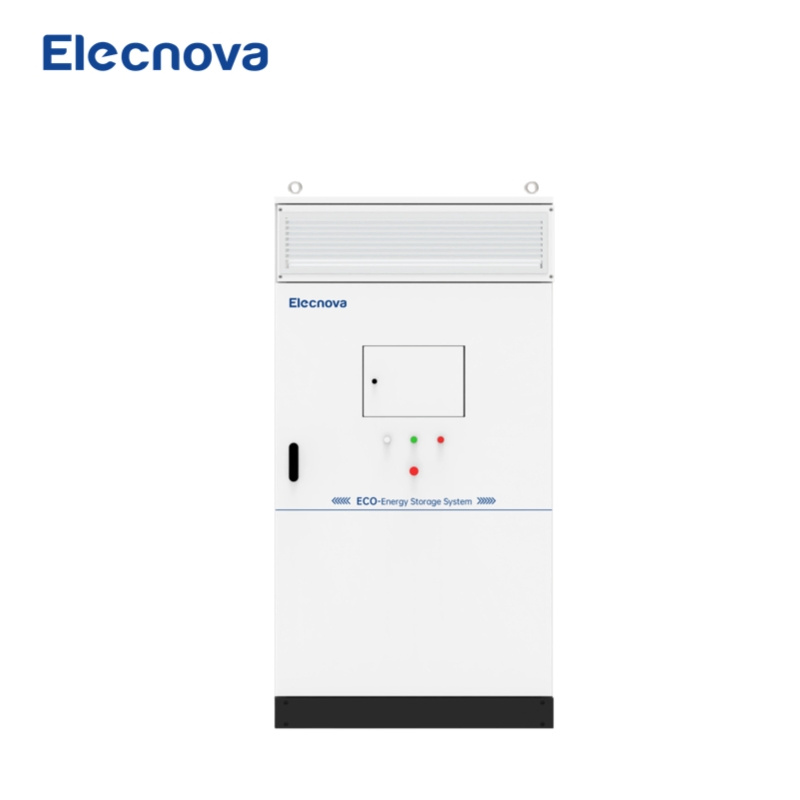

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

C&I Ultra All-in-one modular BESS cabinets (air-cooled/liquid-cooled) with ≥90% efficiency and IP55 protection, ideal for commercial & industrial scenarios.

Solar Pro Seamlessly integrates with PV systems, featuring battery ESS, EMS, and compatibility with multiple hybrid inverter brands.

NovaStack Plug-and-play 20ft container systems, designed for grid-connected C&I and utility-scale energy storage projects.

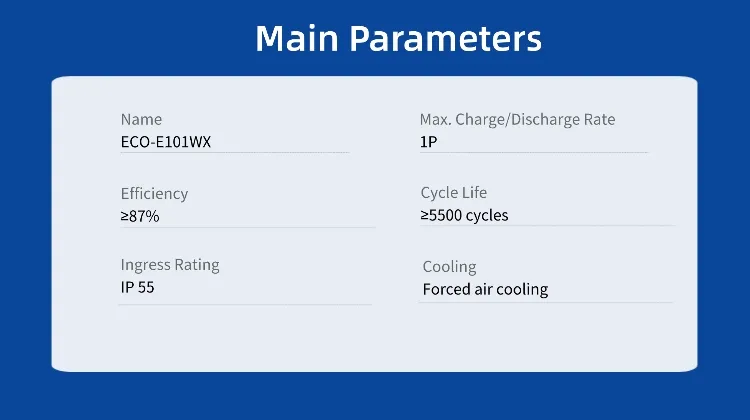

■ Product Parameters

DC Side
Cell Type	LFP / 120 Ah
System Configuration	101 kWh / 1P264S
Rated DC Voltage	844.8 V
Max. Charge/Discharge Rate	1 P
AC Side
Rated Output Power	100kW
Rated AC Voltage	230 / 400 V
Grid Type	3W+PE / 3W+N+PE
General Data
Round Trip Efficiency	≥ 87%
Cycle Life	≥ 5,500 cycles
Ingress Rating	IP55
Dimensions (WDH)	1,2501,2002,150 mm
Weight	2,000 kg

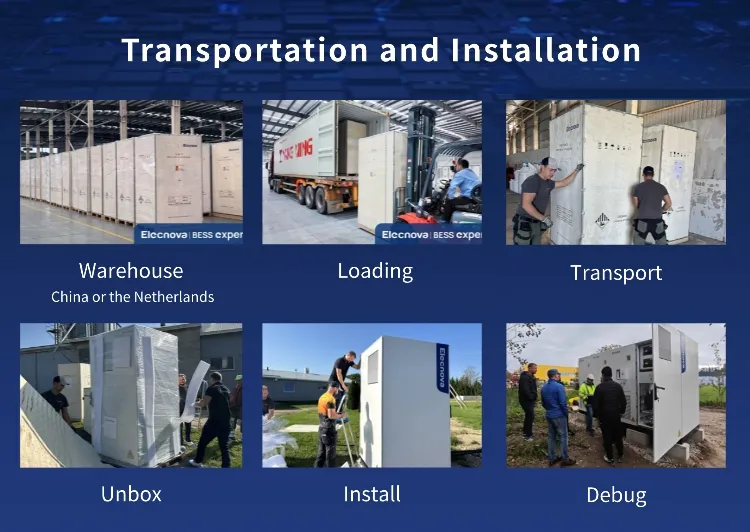

■ Logistics & Installation Process

Warehouse & Loading Professional warehouses ensure equipment is managed to the highest standards. Specialized forklifts and strict protocols ensure safe loading.

Transport & Unbox Trusted logistics network delivers worldwide with full visibility. Careful on-site unboxing ensures components remain intact.

Install & Debug Rigorous installation guidelines followed by thorough technical debugging to optimize energy dispatch.

■ Global Presence

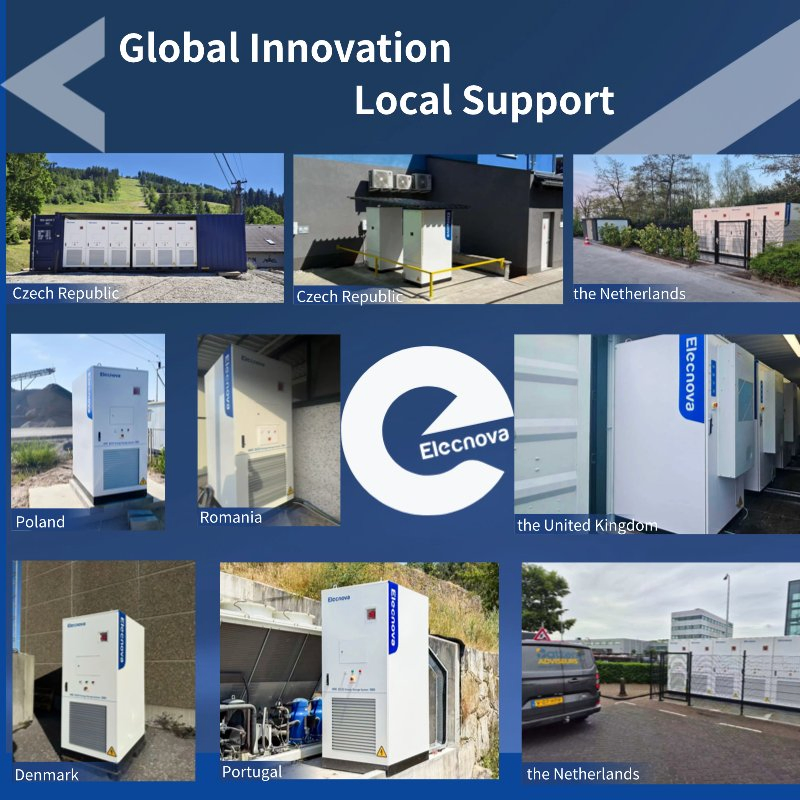

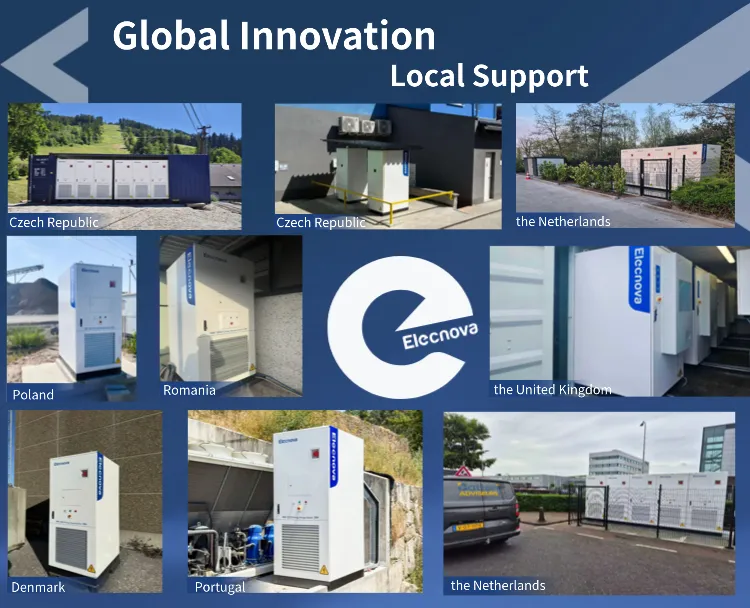

From Italy, the Netherlands, Belgium, Czech Republic, and Poland in Europe, to Ukraine, Southeast Asia, Africa, and the Middle East, our energy storage solutions are transforming energy landscapes worldwide.

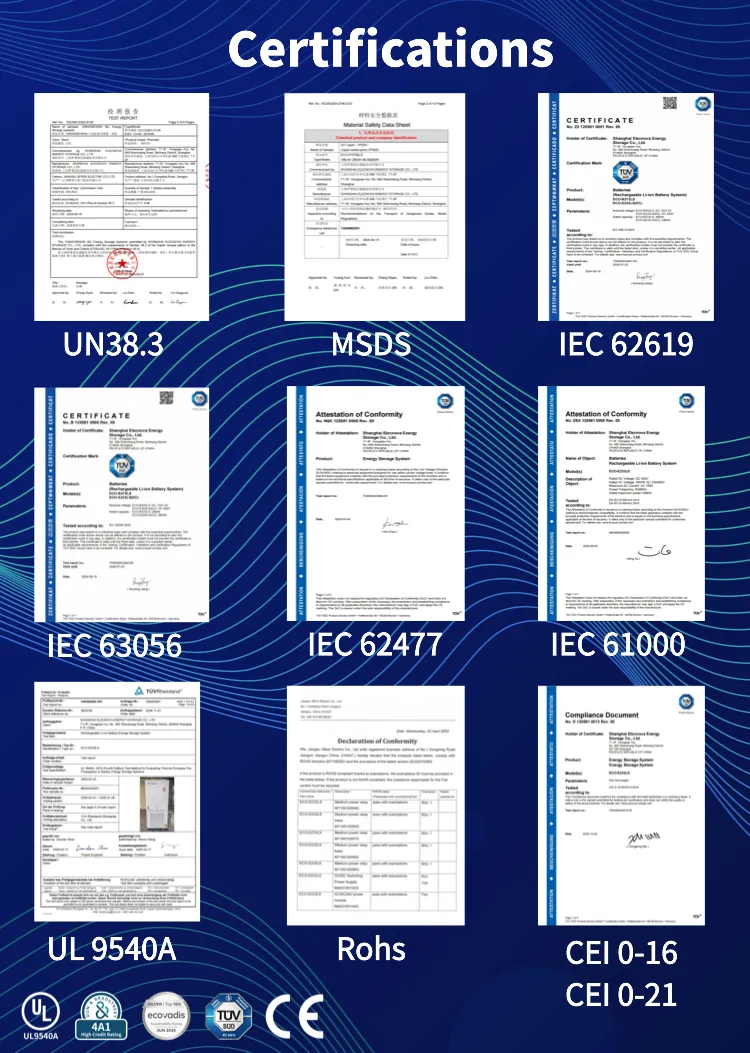

■ Service & Certification

We offer an industry-leading max 5+5 years warranty, coupled with a cells performance warranty of up to 8000 cycles. Our solutions hold international certifications including: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, IEC 61000, CEI 0-16, and UL 9540A.

■ Manufacturing Capability

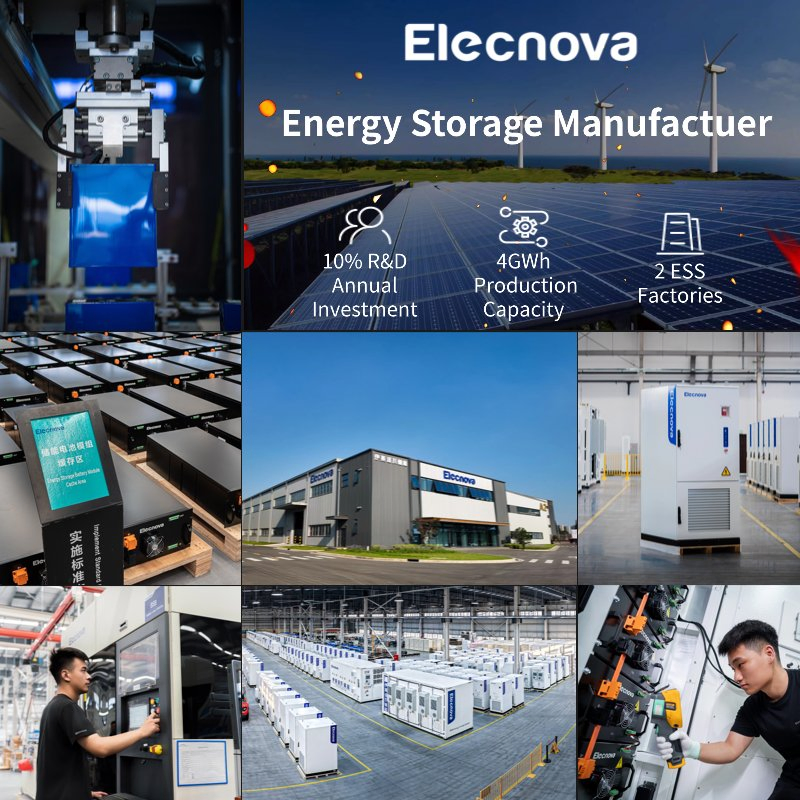

With 28 years of industry experience, we operate a production capacity of 2GWh across two specialized ESS factories. Equipped with automated Module and PACK production lines, we ensure standardized manufacturing with rigorous quality control.

■ FAQ

Are you a trading company or manufacturer?

We are a professional manufacturer with over 28 years of experience, employing more than 600 staff members.

Can you supply OEM & ODM services?

Yes, we provide both OEM and ODM services based on minimum order quantity requirements.

How long is the warranty for your energy storage products?

Our standard warranty ranges from 5 to 10 years depending on the project requirements.

Can you ship battery products internationally?

Yes, we have long-term partnerships with professional forwarders specializing in safe battery shipment by sea or air.

How is after-sales service handled?

We have overseas branches and service partners that provide localized repair, replacement, and technical support.

Why should we choose your storage systems over others?

We specialize in the full production chain, including PCS, Battery PACK, BMS, EMS, and complete all-in-one cabinets, ensuring perfect integration and efficiency.
