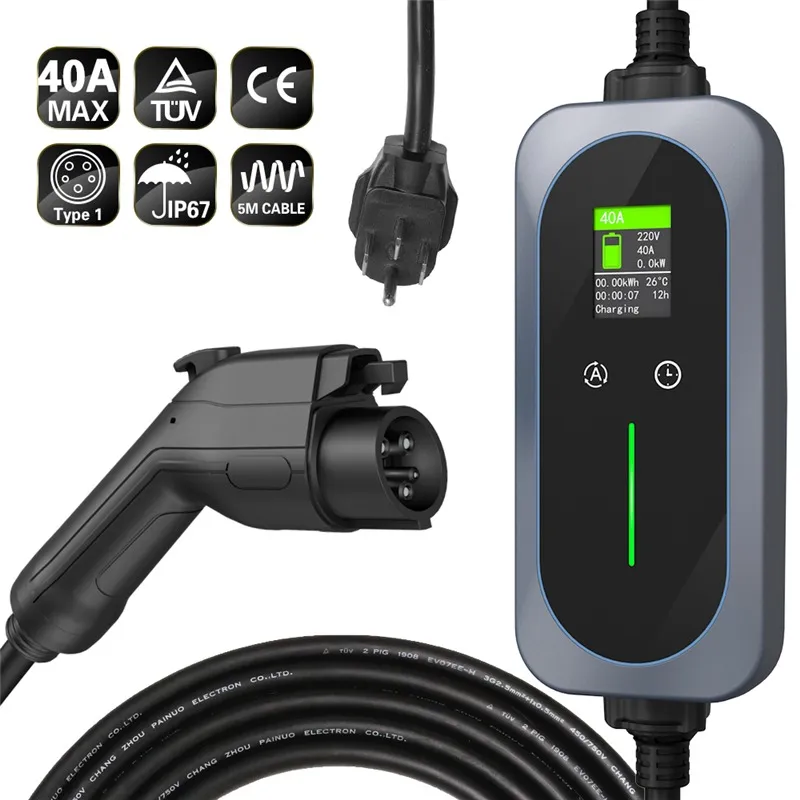

Volt Charger
1 / 5
| Model NO. | MD-PA-40A |
| Location | Private Use |
| Charging Interfaces | One Pile with One Charge |
| Start Mode | APP Control |
| Rated Current | 16A/20A/24A/32A/40A |
| Rate Power | 9.6kw Max |
| Operating Voltage | 110V~250V AC |
| Insulation Resistance | >1000MΩ |
| Terminal Temperature Rise | <50K |
| Withstand Voltage | 2000V |
| Working Temperature | -30℃ ~+50℃ |
| Contact Impedance | 0.5m Max |
| Charger Type | Type 1 J1772 Plug |
| Transport Package | Standard Box |
TIME: Press the button once for 1 hour of charging, up to 9 hours.

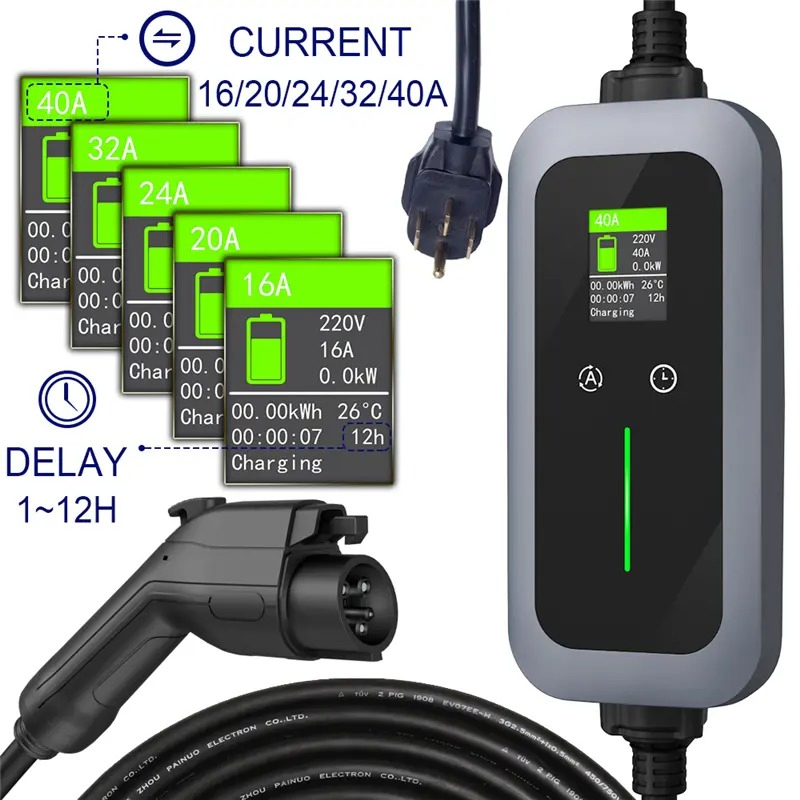

CURRENT: Switch between 5 levels (16A/20A/24A/32A/40A) to suit your vehicle.
DELAY: Set a delayed start by 1 hour increments, up to 12 hours.

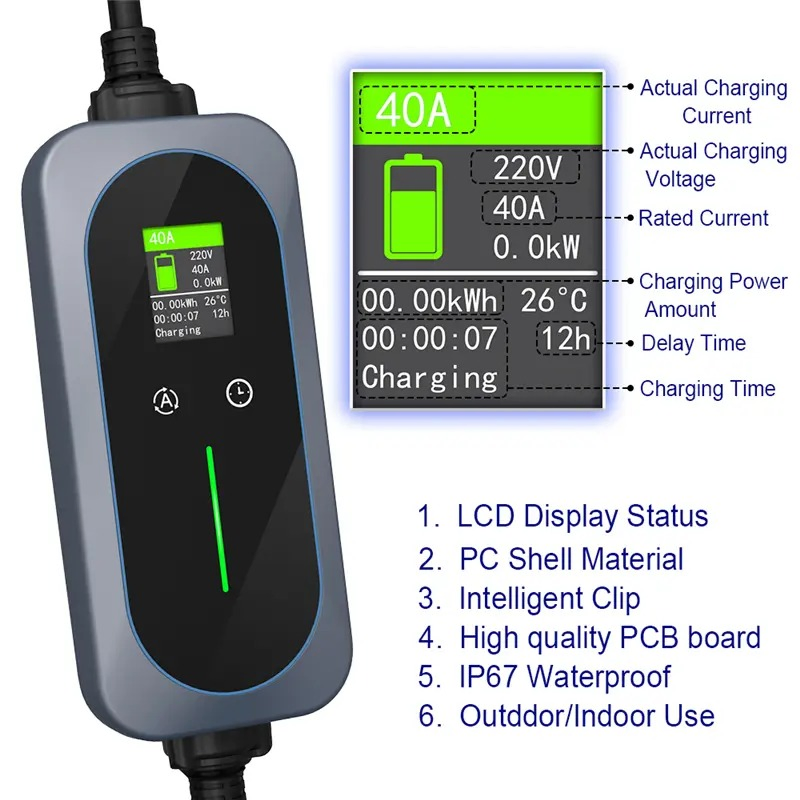

Monitor real-time charging status including time, voltage, current, power, and temperature on the integrated screen.
The "full link" temperature control system protects the unit. If temperatures reach 75°C, it cuts current within 0.2S. Power resumes once it drops below 50°C.
Rugged, rolling-resistance shell protects against car impacts. IP67 rating ensures reliable outdoor use in rain and snow.
| Rated Current | 16A/20A/24A/32A/40A |
| Rate Power | 9.6KW Max |
| Operating Voltage | 110V~250V AC |
| Insulation Resistance | >1000MΩ |
| Terminal Temperature Rise | <50K |
| Withstand Voltage | 2000V |
| Working Temperature | -30°C ~+50°C |
| Contact Impedance | 0.5m Max |
| Portable EV Charger | Type1 J1772 Plug |
Supports current adjustments and scheduled charging. Automatically enters standby mode when fully charged to save energy.
Accurate monitoring of PWM signal changes and effective repair of capacitor units helps maintain long-term battery life.

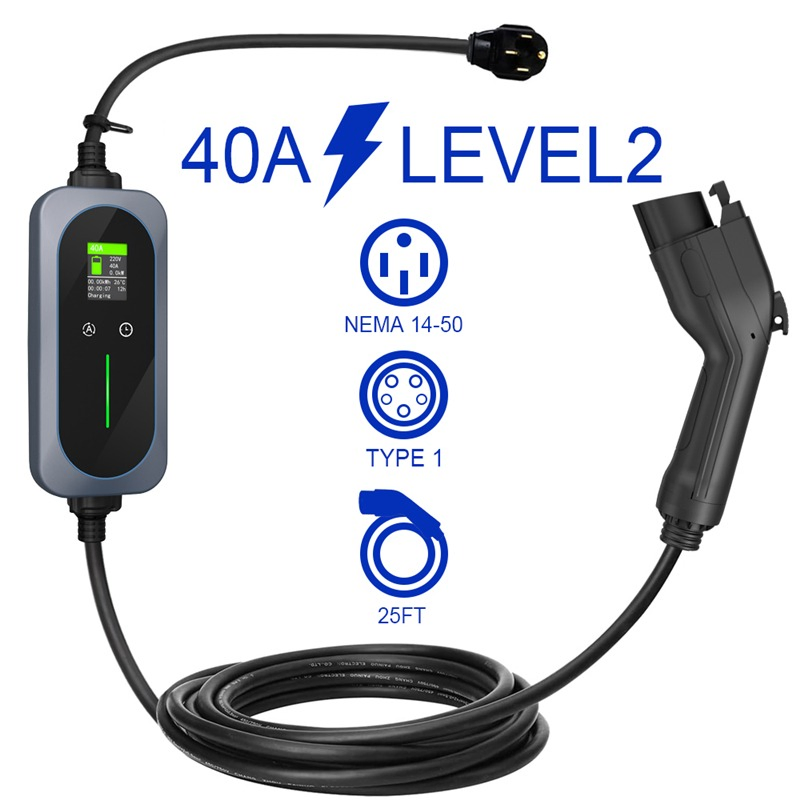

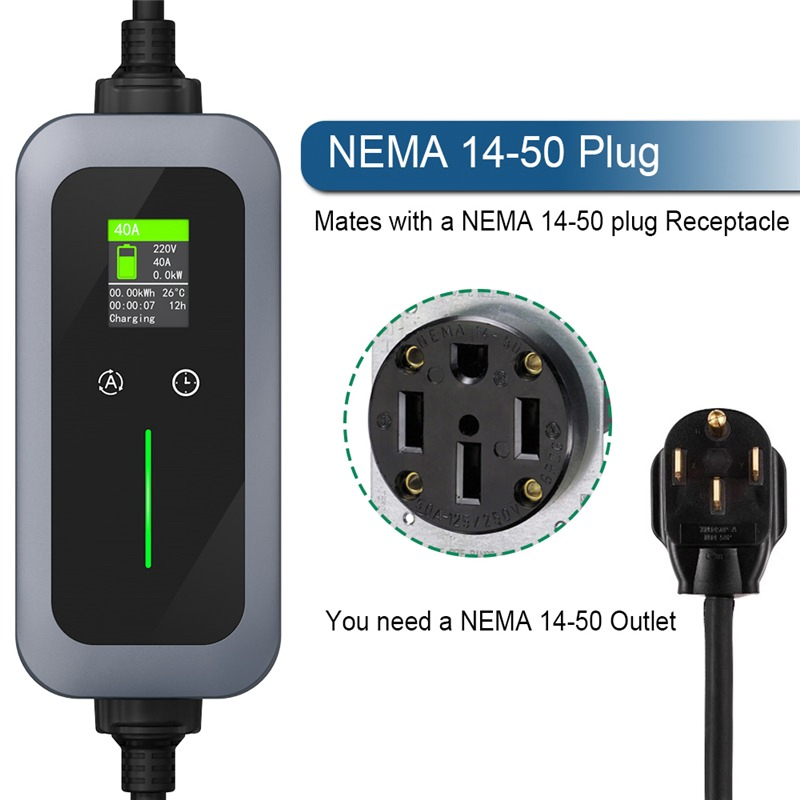

Flexible customization including cable material (TPE/TPU) and various plug types (NEMA 14-50, NEMA 6-30P, CEE, etc.).
Samples: 2-5 working days.
Standard orders (>100pcs): 7-15 working days.
Customized orders: 20-30 working days.
One-year warranty on all products. High reliability with strict inspections and certifications like CE and CSA.
