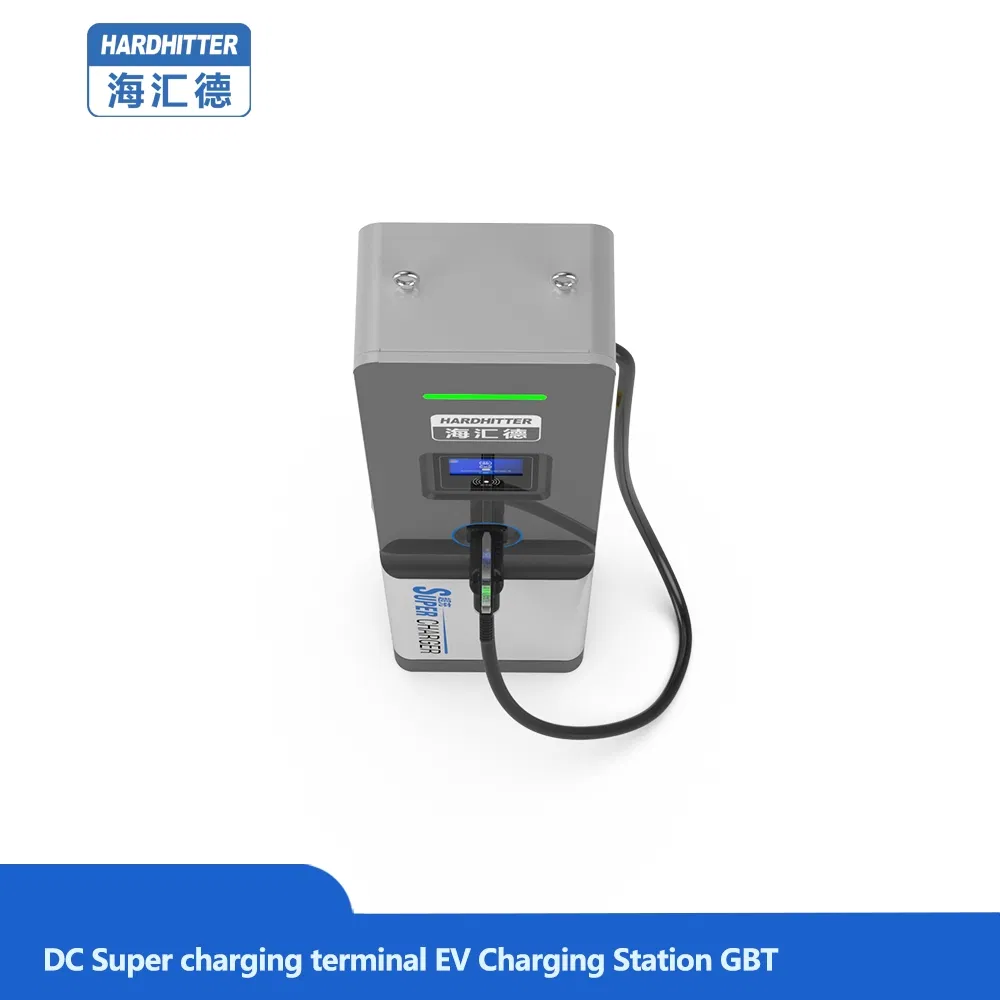

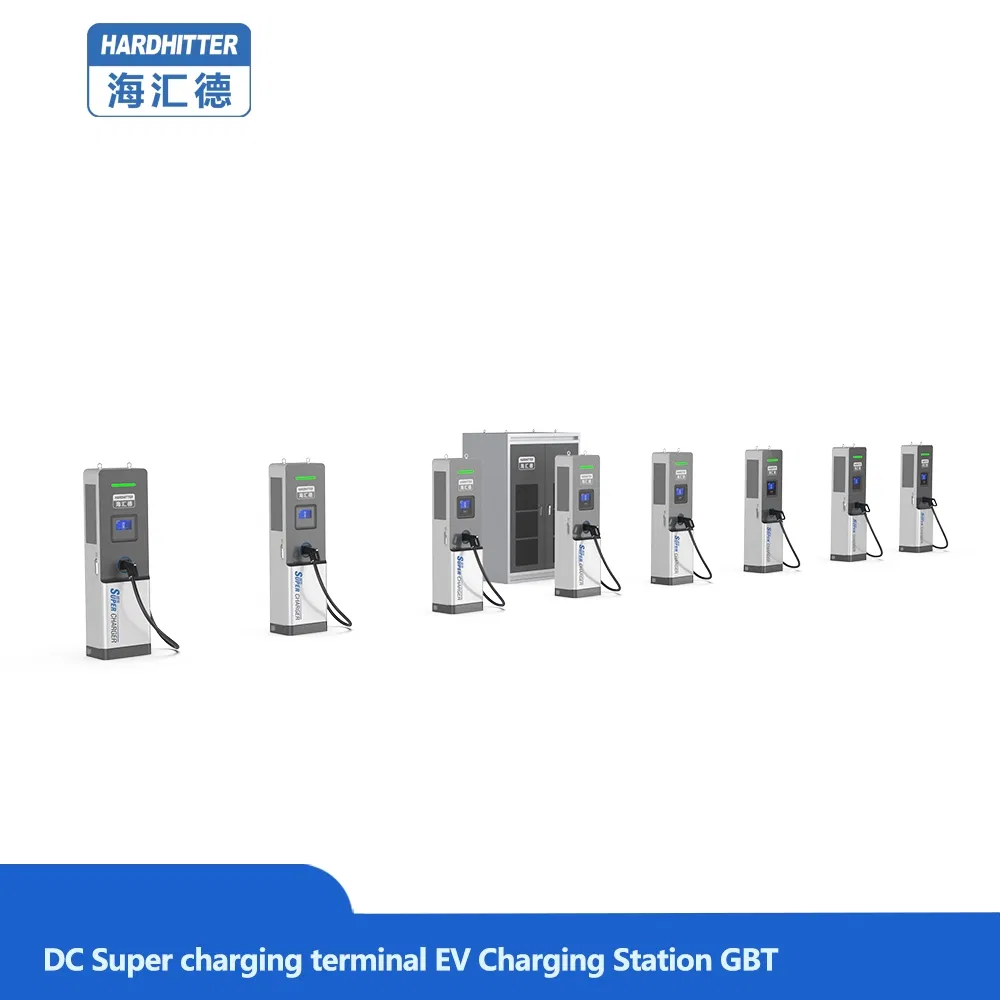

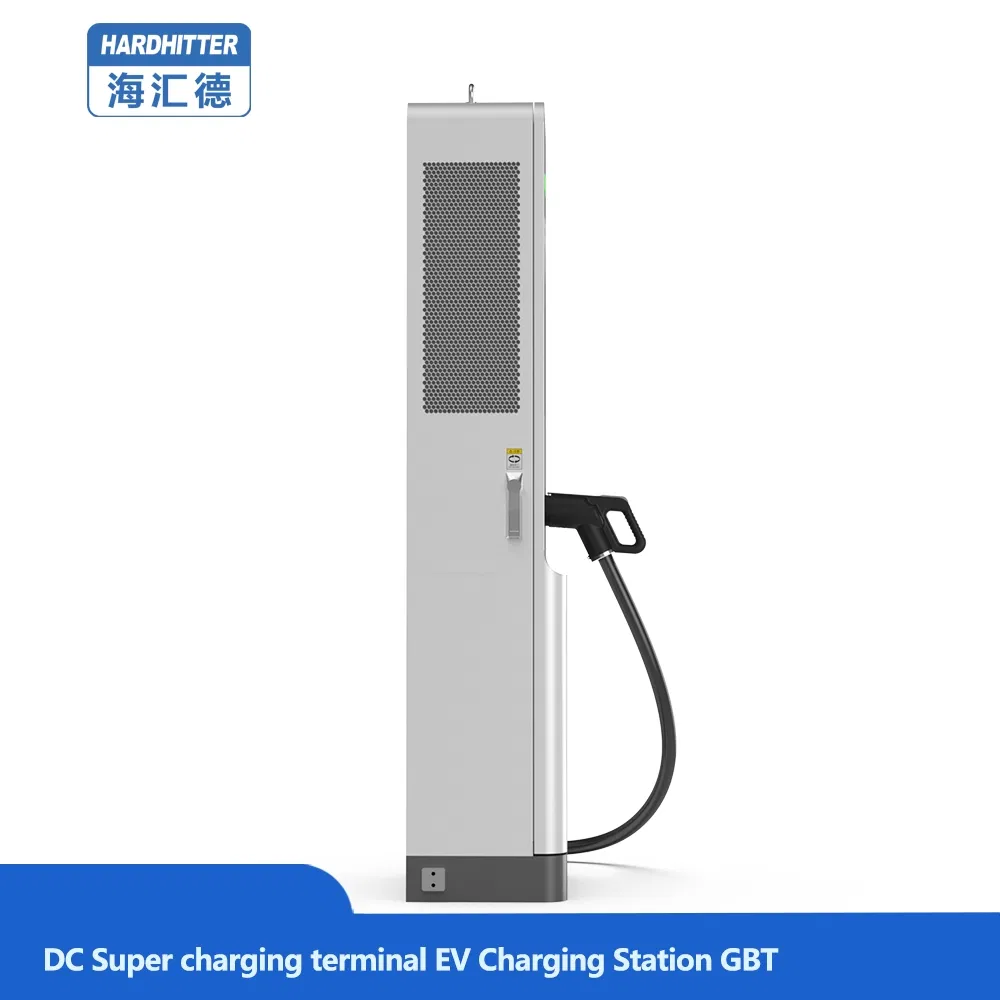

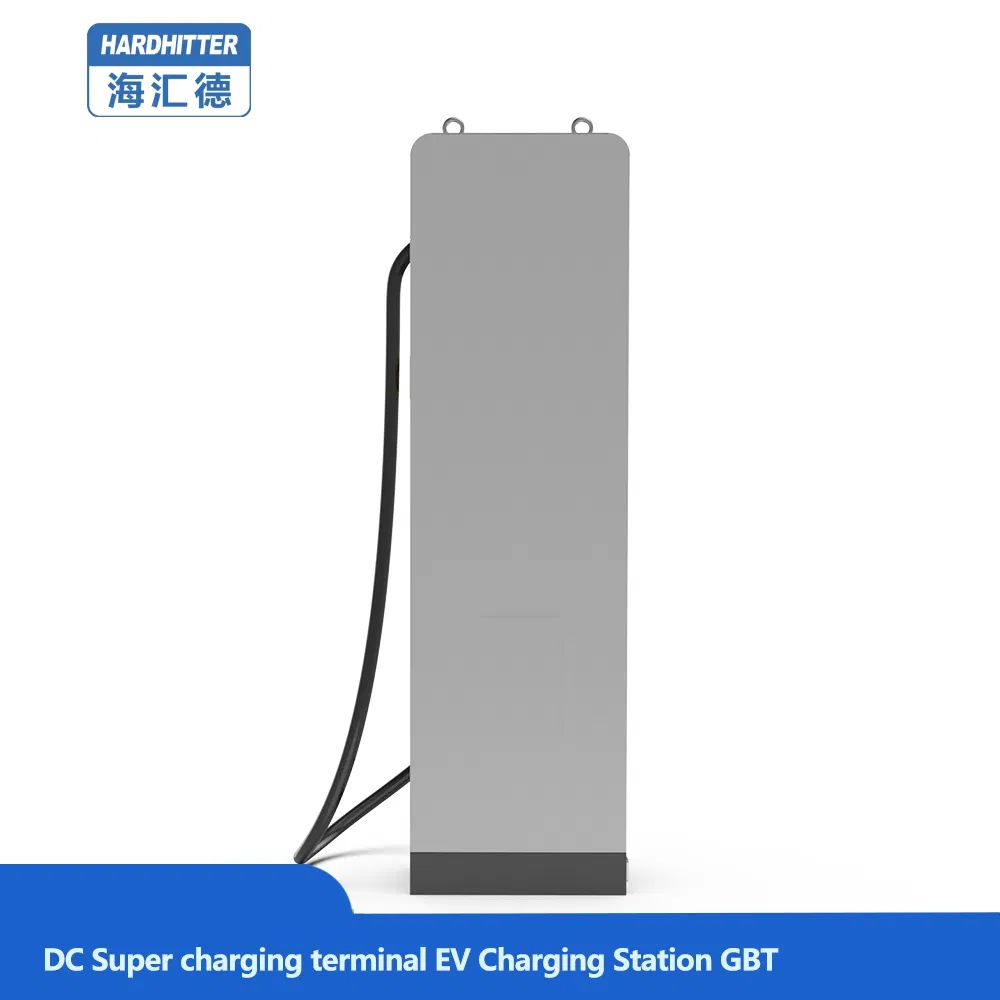

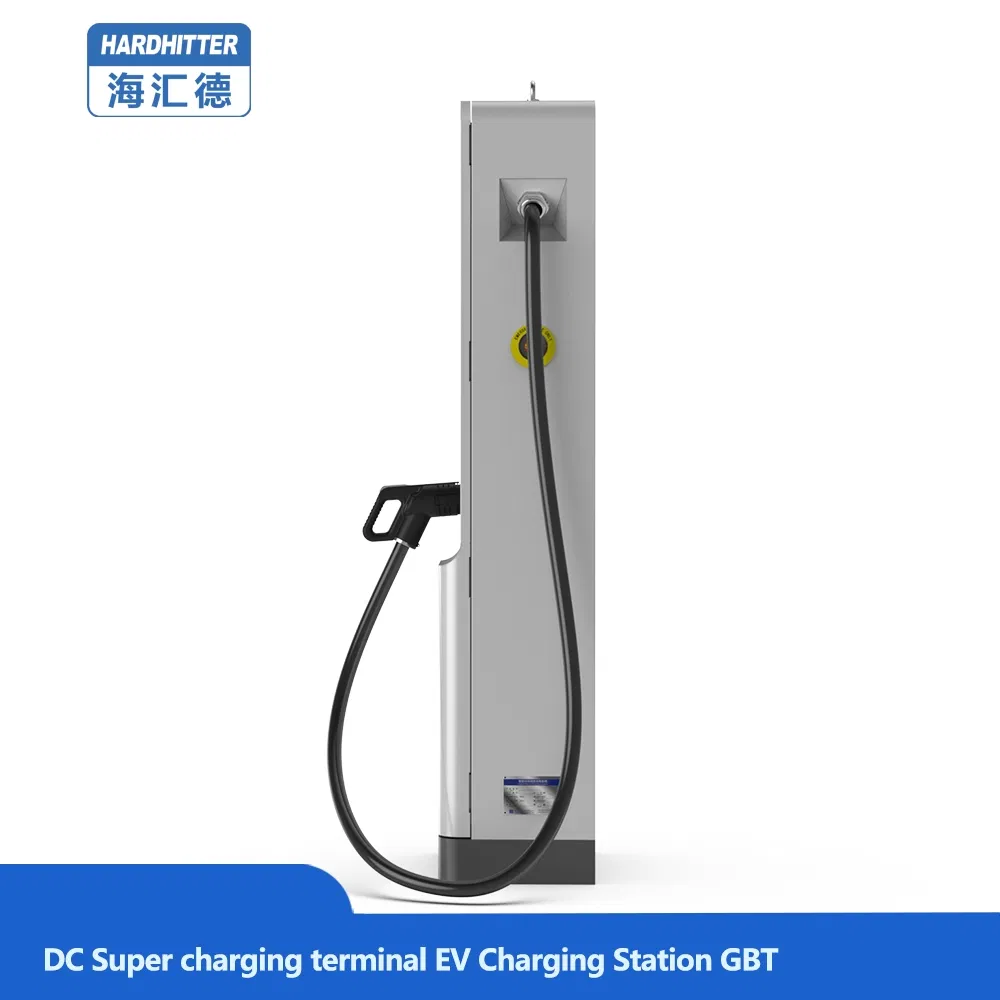

Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
1 / 5
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2
Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2

Intelligent Power Scheduling Charging System: DC Super Charging Terminal Designed for Fast EV Charging Stations CCS2

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

🚀 Basic Specifications
Model NO.:HQC21-HMI-111-E
Interfaces:One Pile with One Charge
Location:Public Use
Installation:Floor Type
Charge Method:Quick Charge
Output Voltage:200~1000V
Output Current:600A(GB/T), 500A(CCS2)
Charging Interface:GB/T, CCS2
Temperature:-40°c~+60°c
Protection Level:IP55
Weight:≈140kg
Specification:500mm*1750mm*350mm
📊 Technical Parameters
Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)
Charging InterfaceGB/T, CCS2
User Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform remote start, button Start
Altitude≤2000m
Dimensions500*350*1900mm(W*D*H)
Communication InterfaceCAN
Wiring MethodBottom Incoming
💡 Product Features
  • ■High power: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
  • ■High protection: Electrical components and heat dissipation system are designed separately, with a protection level up to IP55.
  • ■Low noise: High-efficiency liquid cooling system increases efficiency by 50%, noise less than 50dB.
  • ■High safety: Intelligent temperature control algorithm accurately monitors the charging gun to prevent abnormal temperature rise.
  • ■Convenient upgrade: Conventional terminals can be easily upgraded to super charging terminals, doubling the charging current.
  • ■Ultra-fast charging: Maximum output of 600kW allows for over 300km of travel after just 5 minutes of charging.

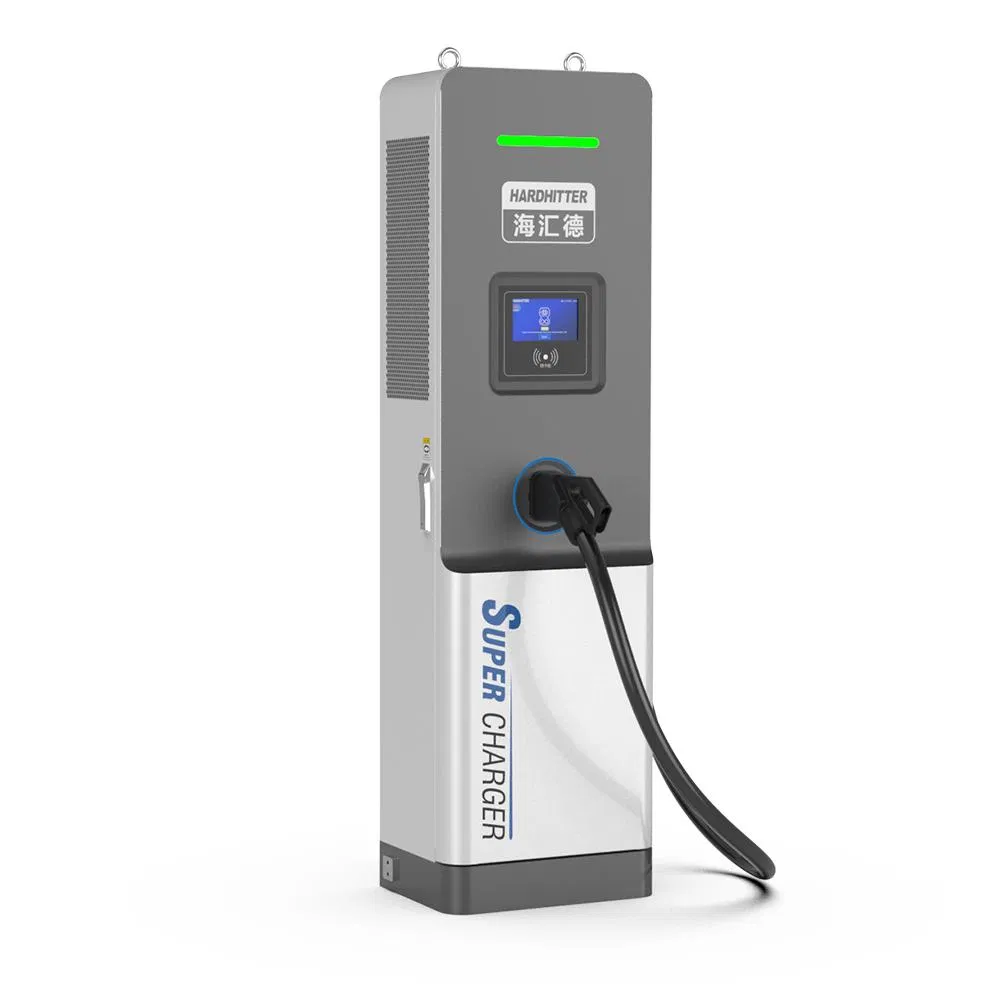

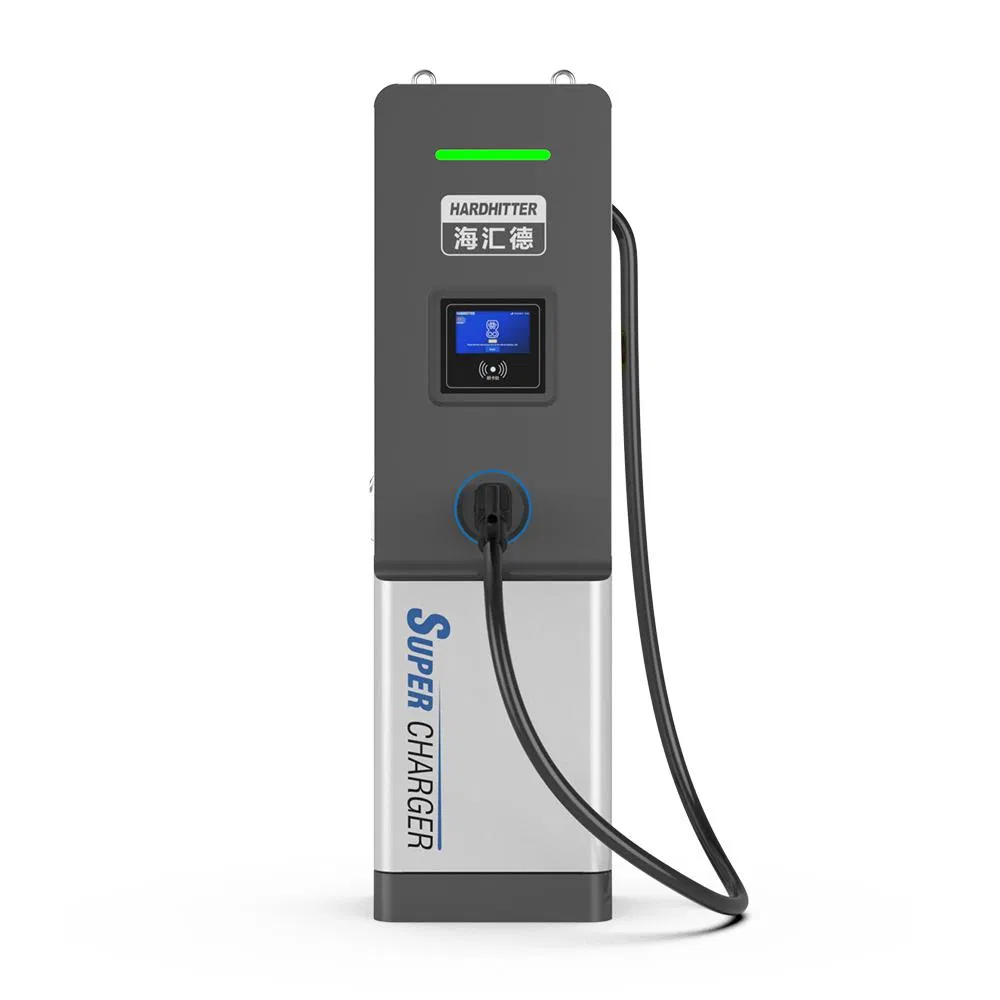

DC Super Charging Terminal

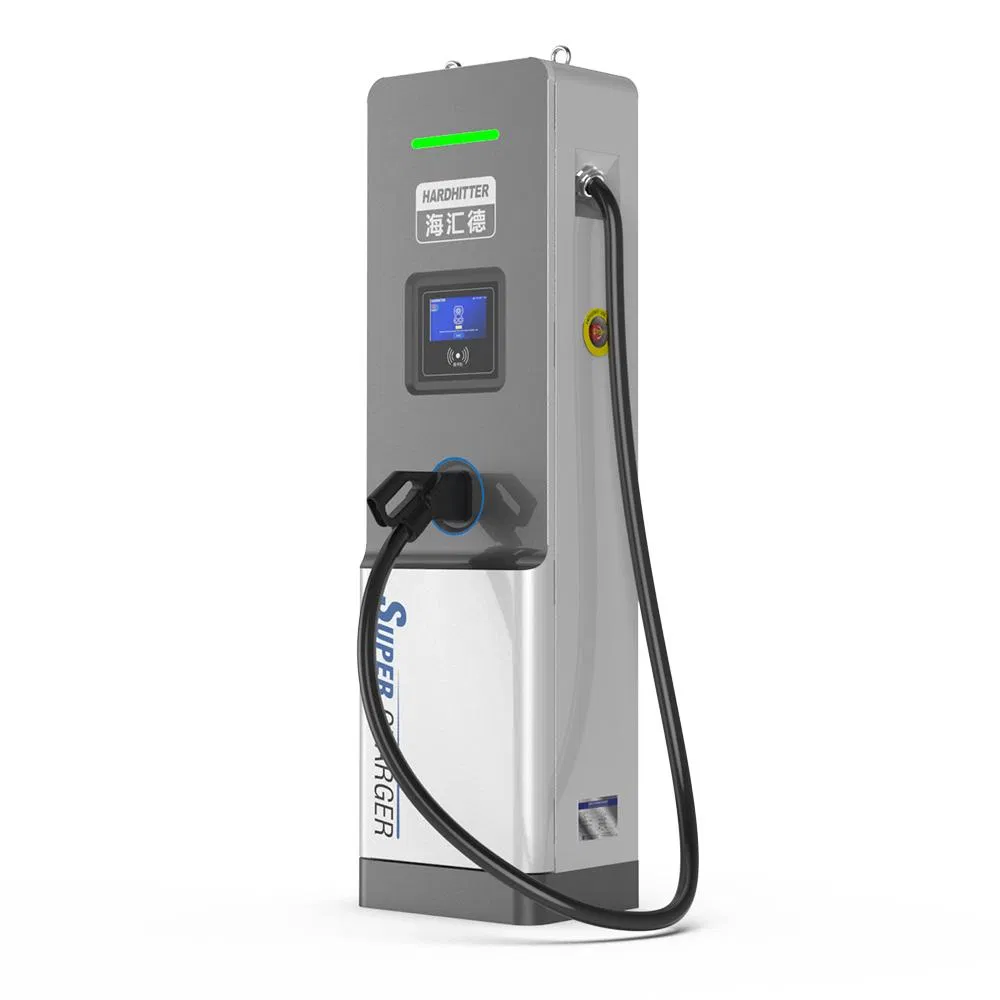

DC Super Charging Terminal
DC Super Charging Terminal

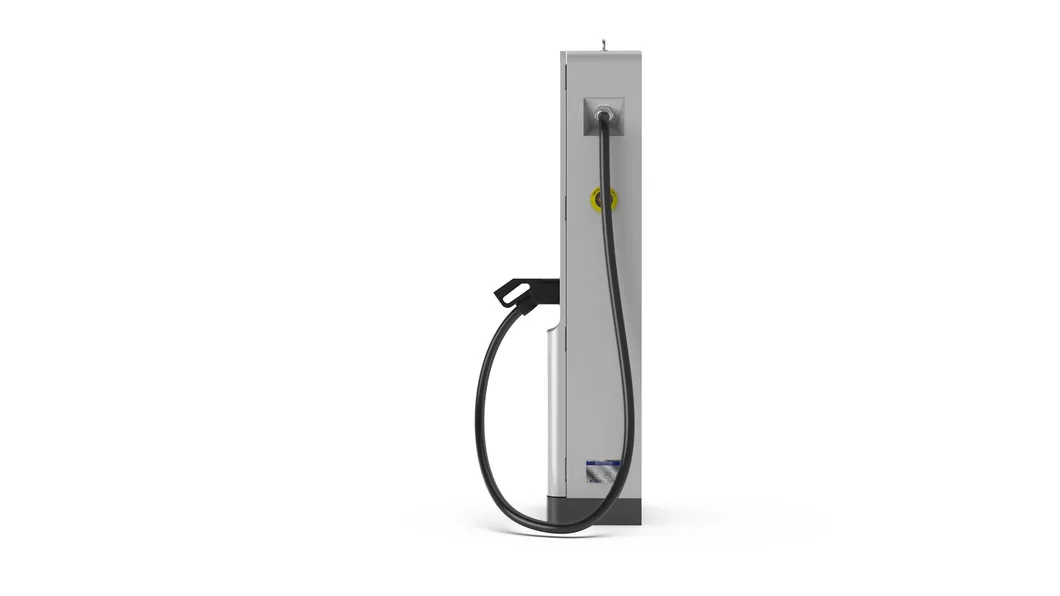

Charging Station View

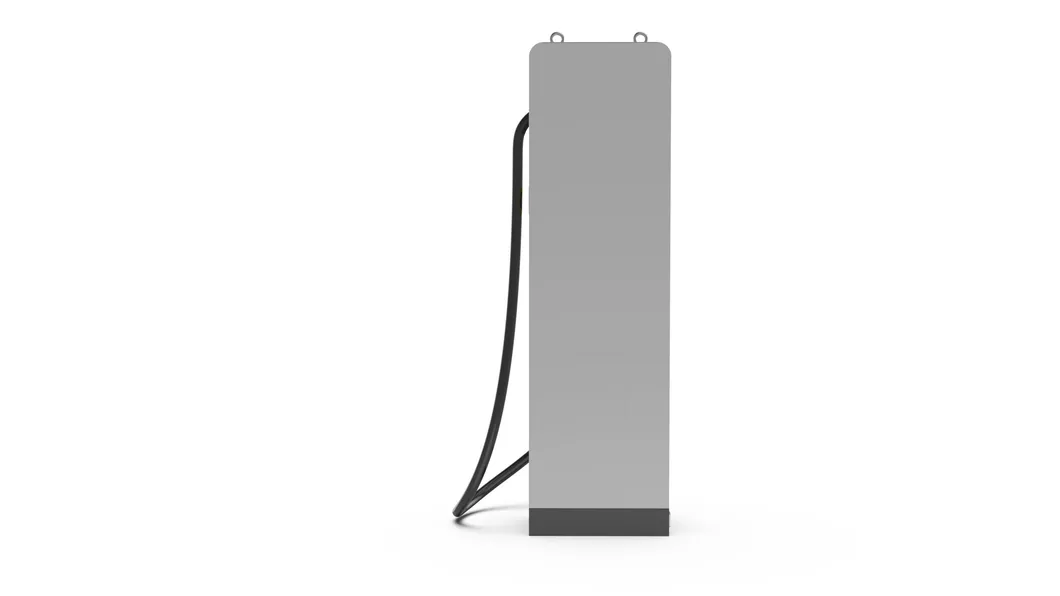

Charging Station Setup
Charging Station Details
🏭 Professional Display
Display 1
Display 2

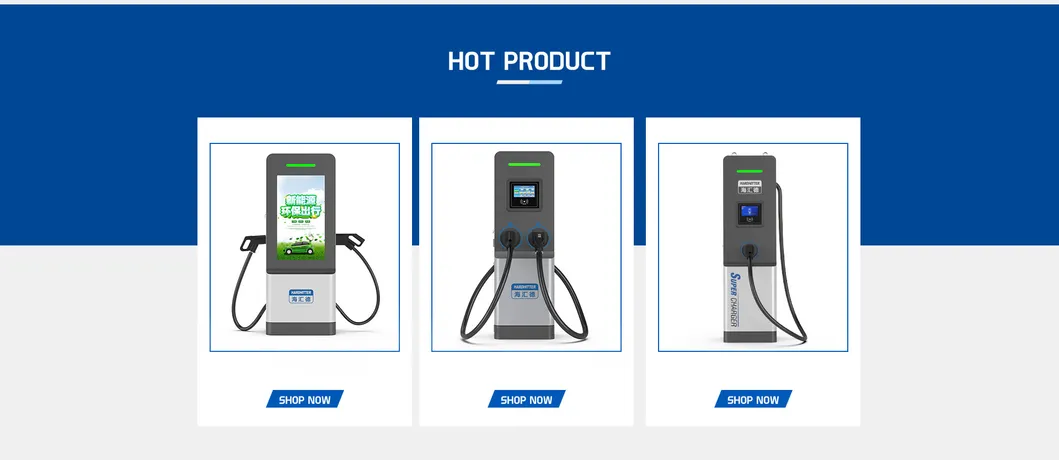

Display 3

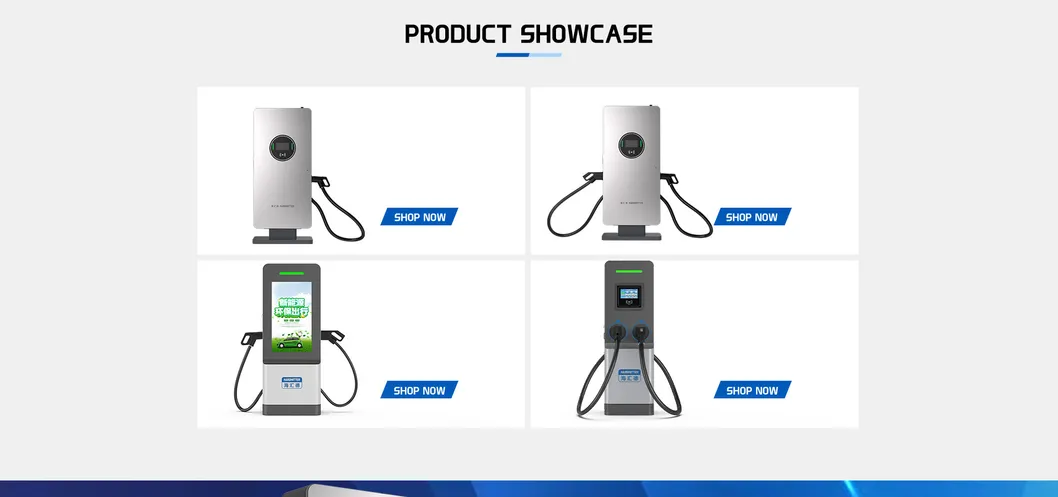

Display 4
Display 5
Display 6
Display 7
Display 8
Display 9
❓ Frequently Asked Questions
Q: What is the typical lead time for an order? A: Generally, it takes 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do your products have quality certification? A: Yes, we have a strict quality control system. Our EV charging products are passed with CE and TUV certifications to ensure the best quality.
Q: How long is the product warranty? A: The warranty of our products is 12 months upon the receipt of your shipment under normal circumstances.
Q: Can you provide customized OEM/ODM services? A: Yes, we have been involved with OEM and ODM projects since 2012 and can provide professional customized services for our clients.
Q: Can this EV charger charge all electric vehicles on the road? A: Yes, all models of our EV Chargers work with all Electric Vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to work with our chargers.
Q: Does the EV Charger require an app or internet connection? A: Some models are standalone using RFID cards or plug-and-play. Other models are Wi-Fi connected and compatible with Apps and any OCPP 1.6j application.
