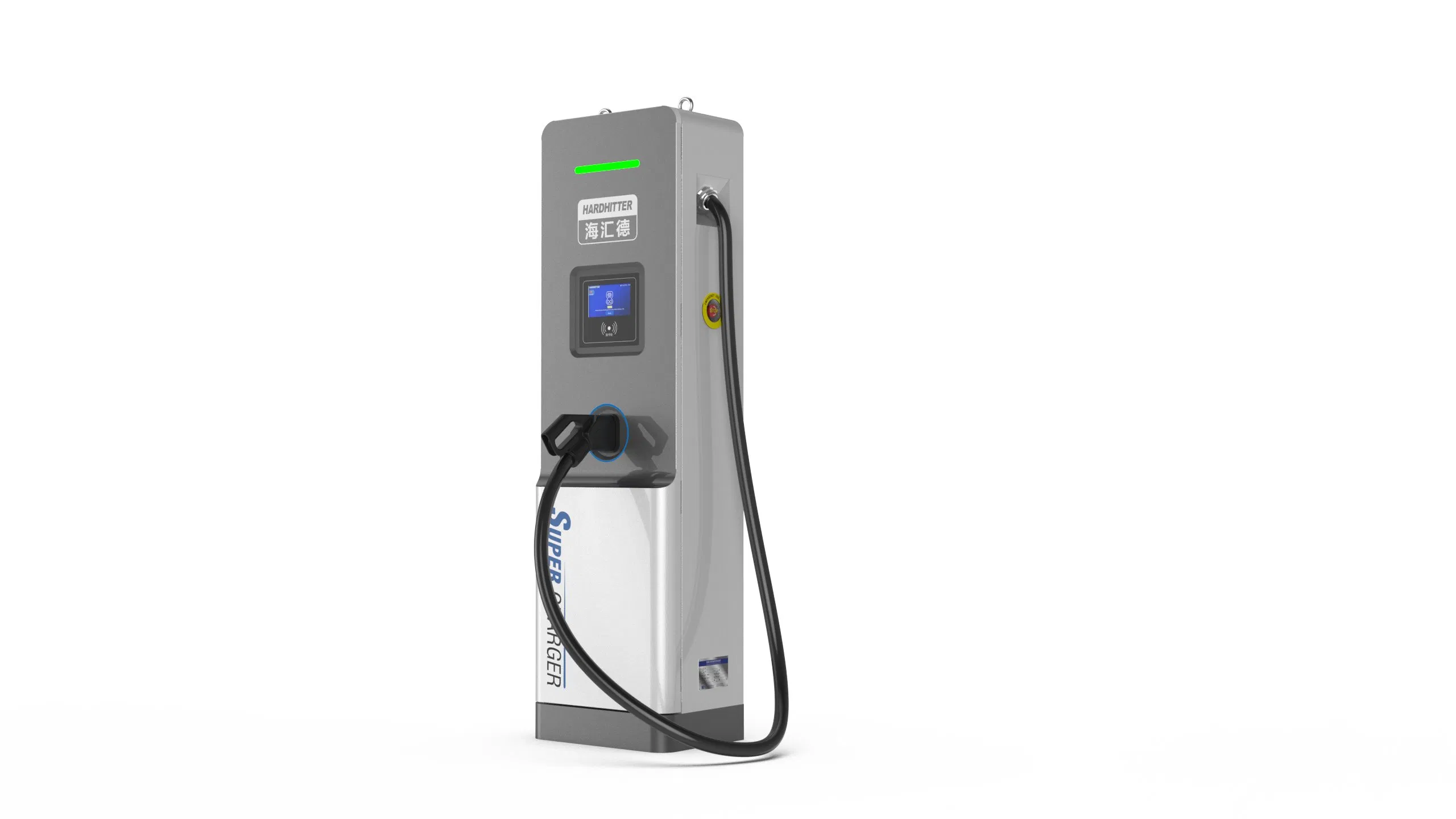

Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging

Still deciding? Get samples of $ !
Request Sample

Product Description

⚡ Basic Information
Model NO.HQC21-HMI-111-E
Charging InterfacesOne Pile with One Charge
InstallationFloor Type
Charge MethodQuick Charge
Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)
Protection LevelIP55
Operating Temp.-40°c ~ +60°c
Weight≈140kg
HS Code8504409999
📋 Product Parameters
Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform Remote Start
Altitude≤2000m
Dimensions500*350*1900mm (W*D*H)
Gun Cable LengthCar: 4.5m / Bus: 6m
CommunicationCAN Interface
Wiring MethodBottom Incoming
🚀 Product Features
High Power Output Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
Enhanced Protection Electrical components and heat dissipation system are designed separately, achieving IP55 protection level.
Ultra-Low Noise Equipped with high-efficiency liquid cooling system, reducing noise to less than 50dB under standard conditions.
Intelligent Temperature Control Uses correction algorithms to monitor the charging gun temperature, quickly reducing current during abnormal heat rise.
Rapid Charging Speed Maximum 600kW output allows for over 300 kilometers of travel after just 5 minutes of charging, rivaling refueling speeds.
🖼️ Product Display

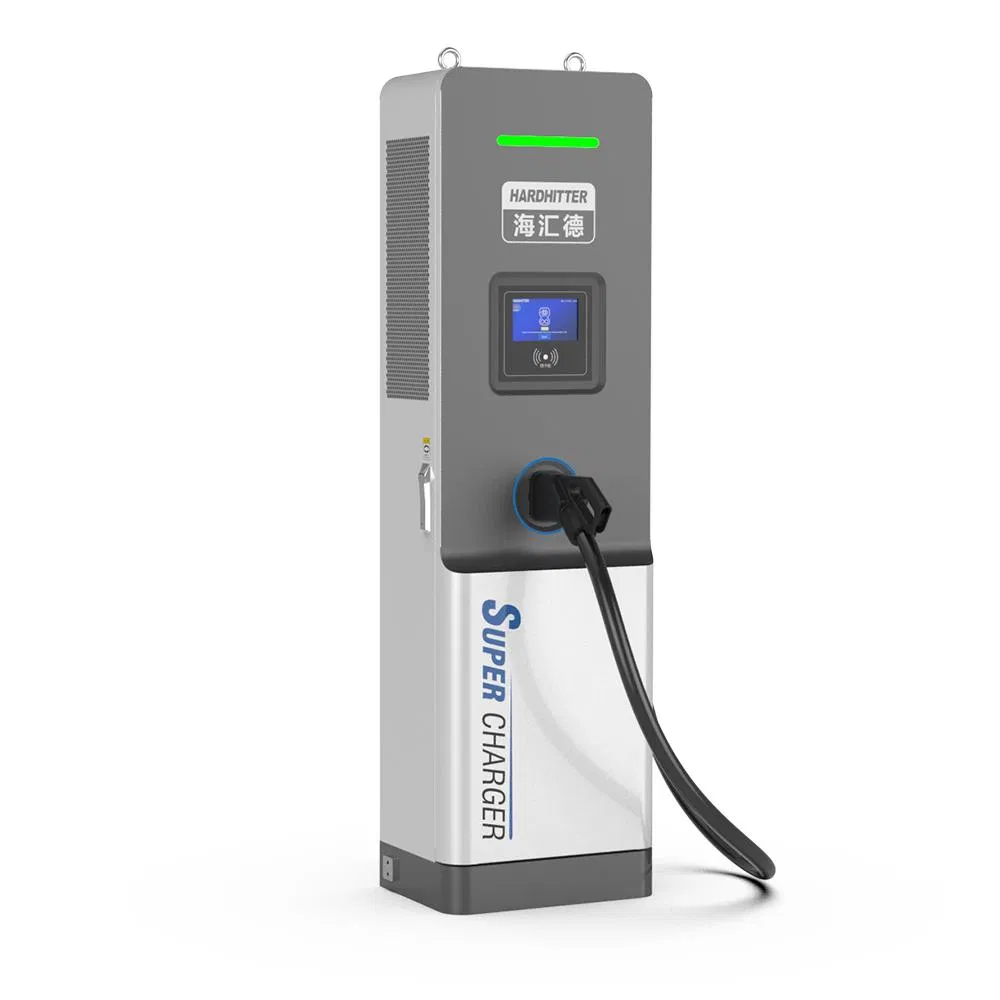

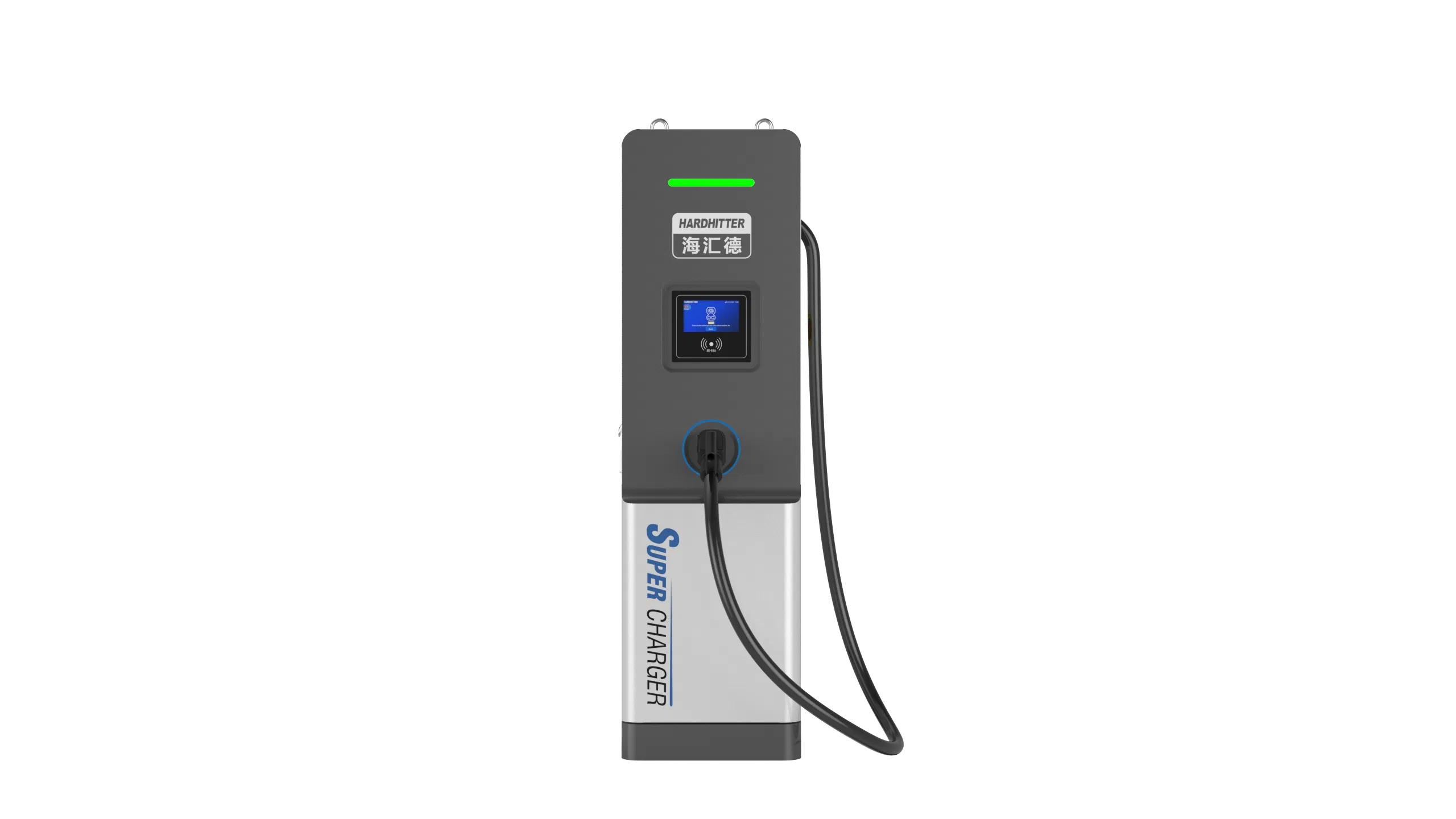

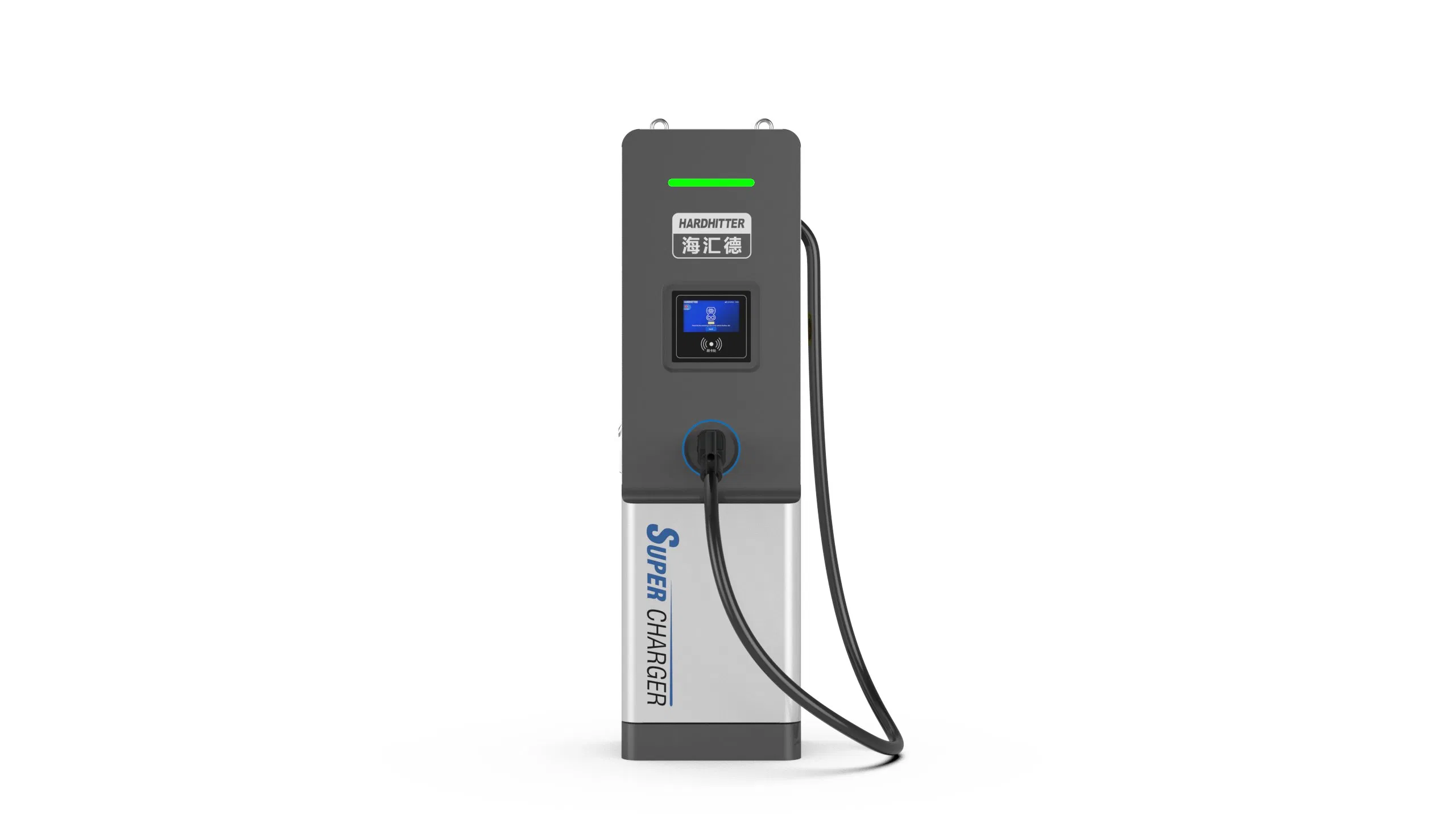

DC Super Charging Terminal 1

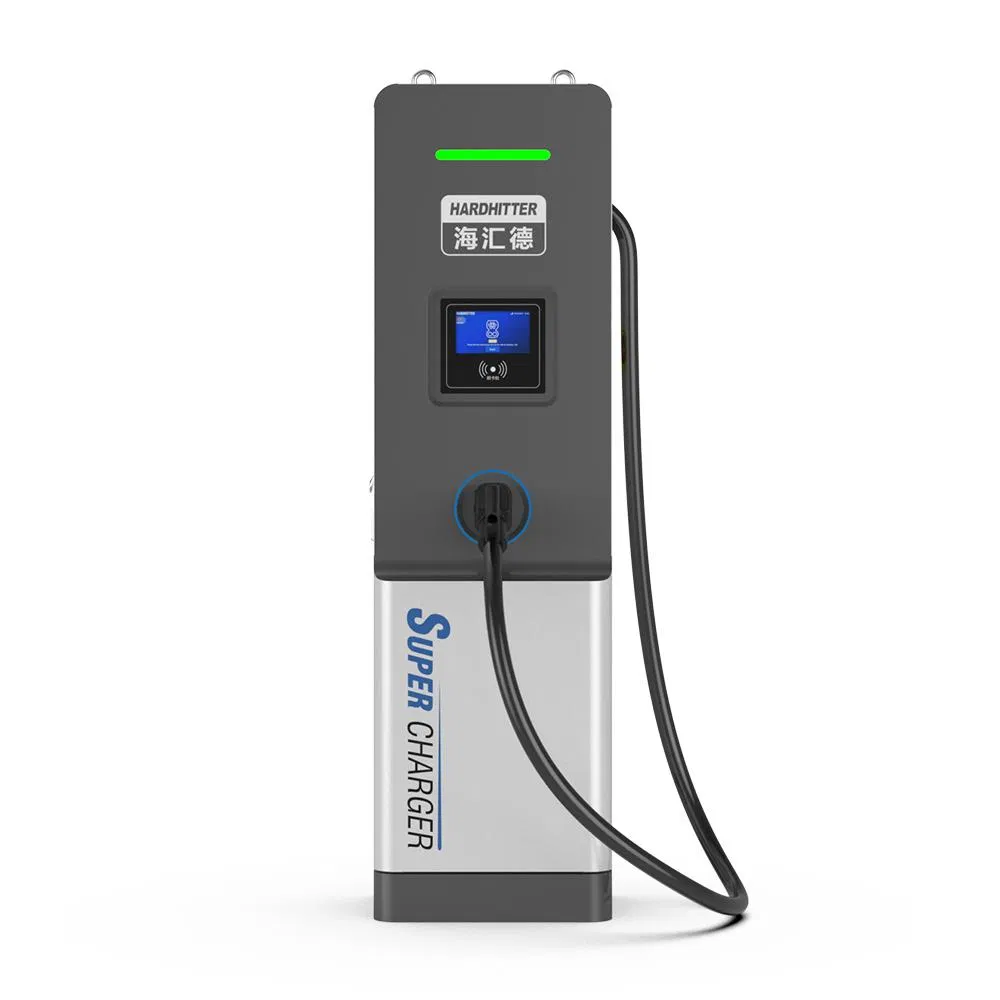

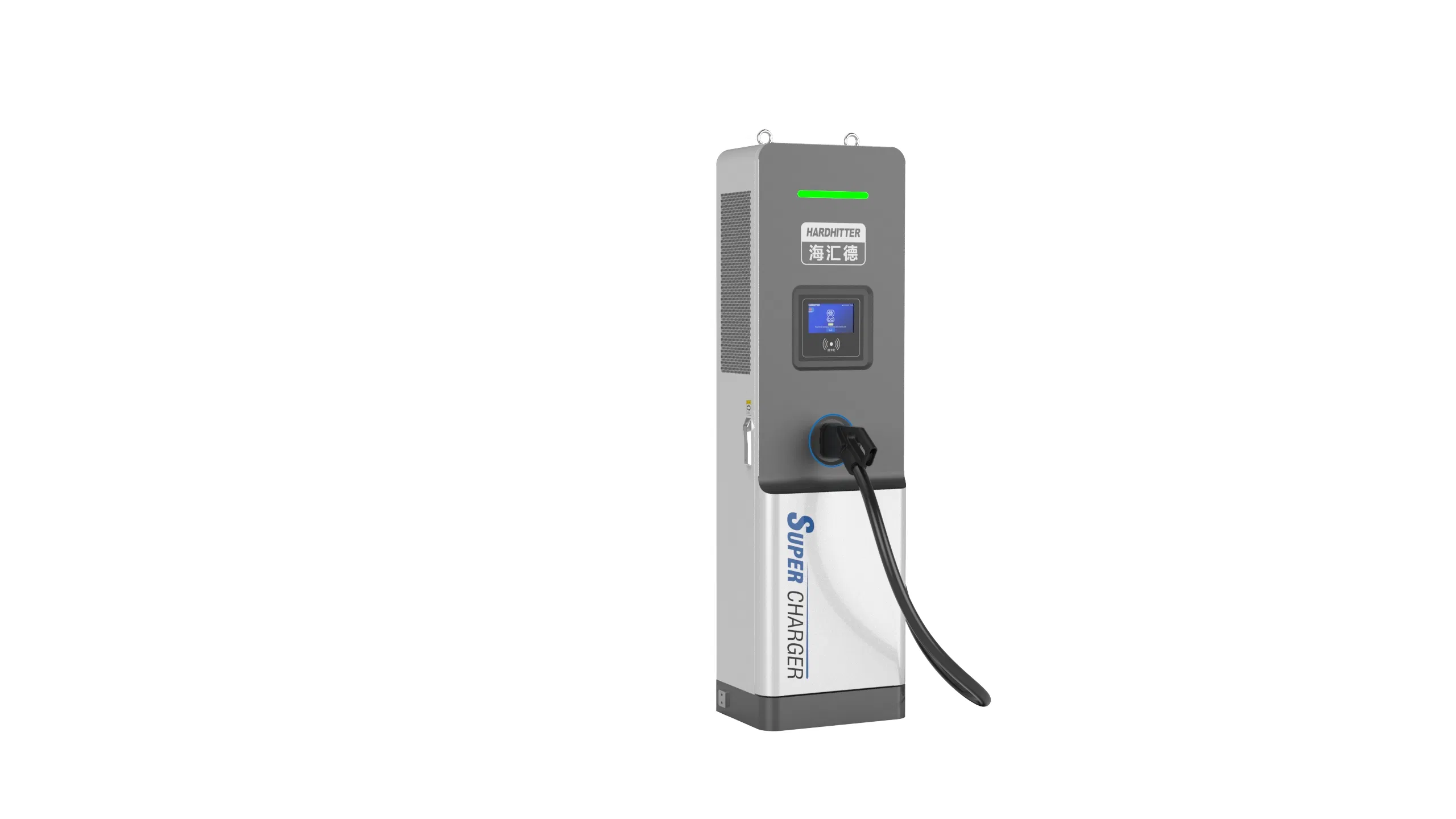

DC Super Charging Terminal 2

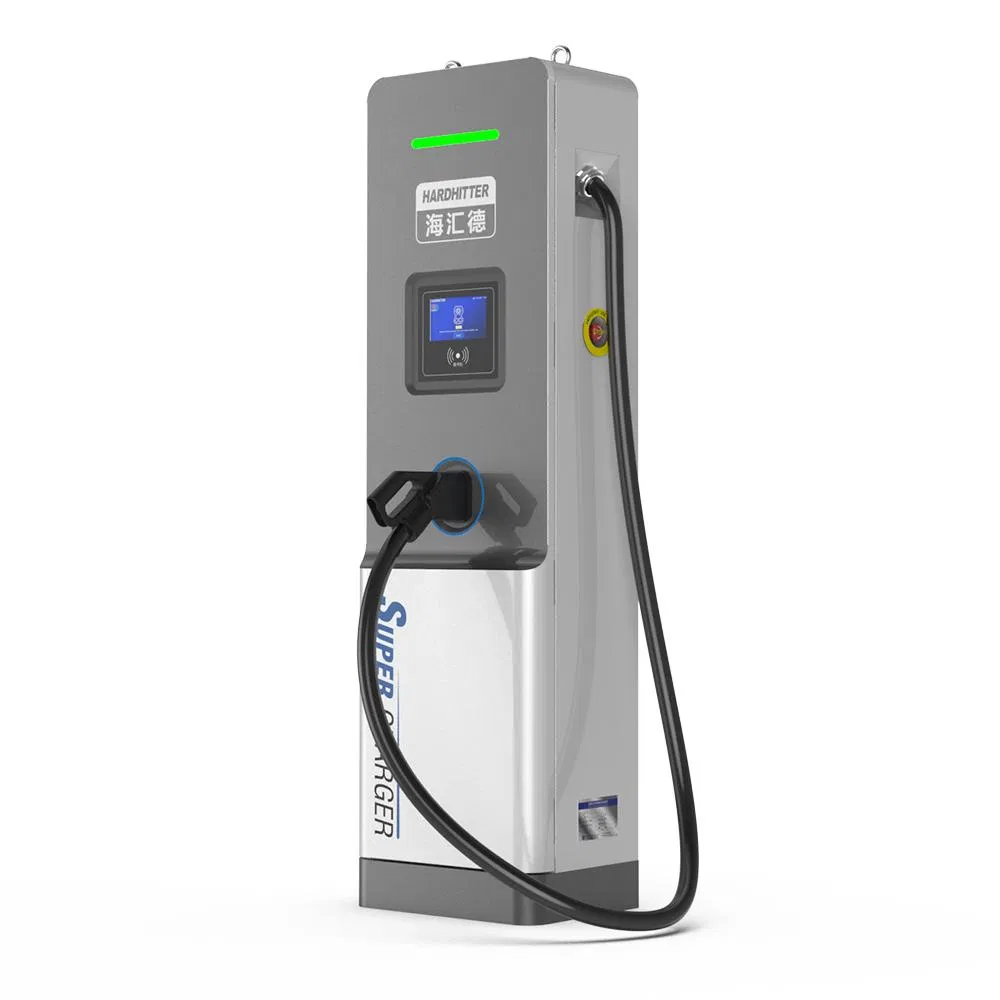

DC Super Charging Terminal 3

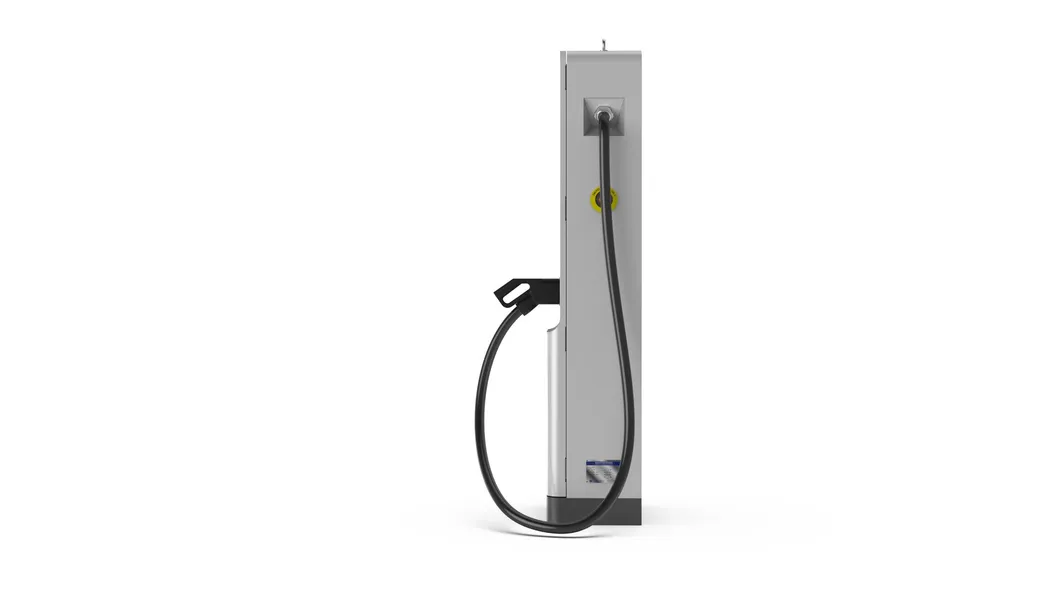

Charging System Detail 1

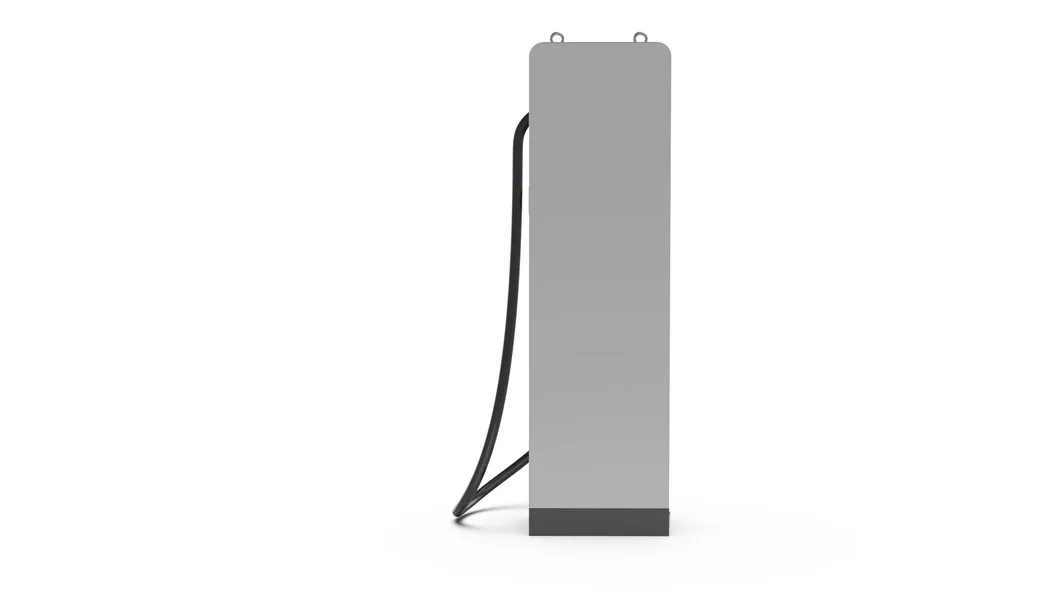

Charging System Detail 2

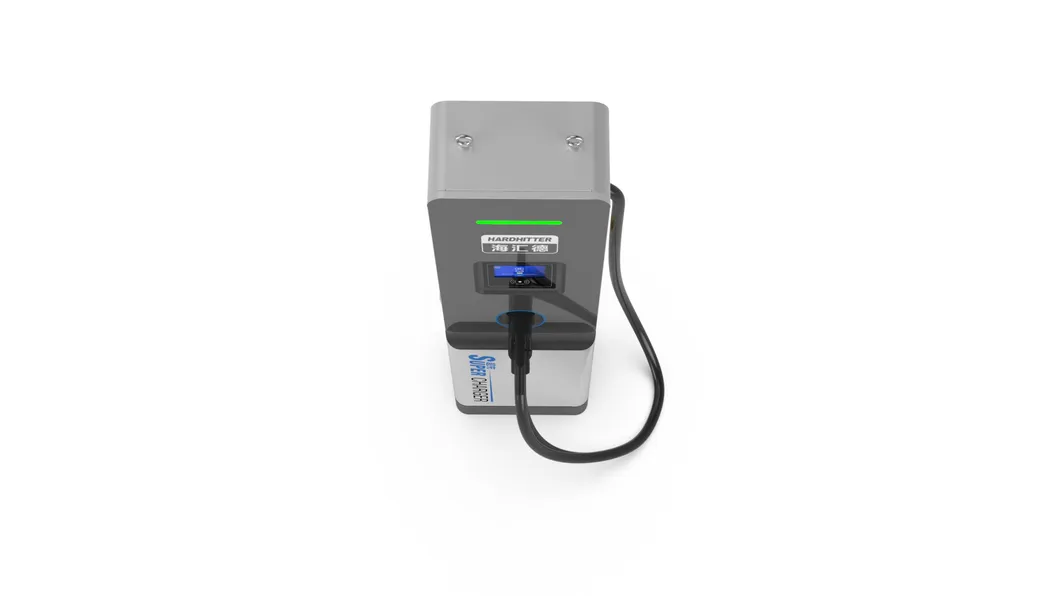

Charging System Detail 3
🔍 Technical Overview
Overview Banner
Technical Info
Production Process
Quality Control
Components
System Integration
Assembly Line
Testing
Technical Specs
❓ Frequently Asked Questions
What is the typical lead time for orders?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products have quality certifications?
Yes, we have a strict quality control system. Our EV charging products are certified with CE & TUV standards to ensure high quality and safety.
How long is the warranty period?
The warranty for our products is 12 months upon the receipt of your shipment under normal operating circumstances.
What kind of after-sale service support do you provide?
We respond to every after-sale request within the warranty period by appointing a dedicated technician for timely online assistance.
Can these chargers work with all electric vehicles?
Yes, our EV chargers are compatible with all electric vehicles. Tesla vehicles require a J1772 to Tesla adapter to work with our systems.
Is an App or internet connection required to use the charger?
Some models are standalone (using RFID cards or plug-and-play), while others are Wi-Fi connected and work with Apps and OCPP 1.6j applications.
