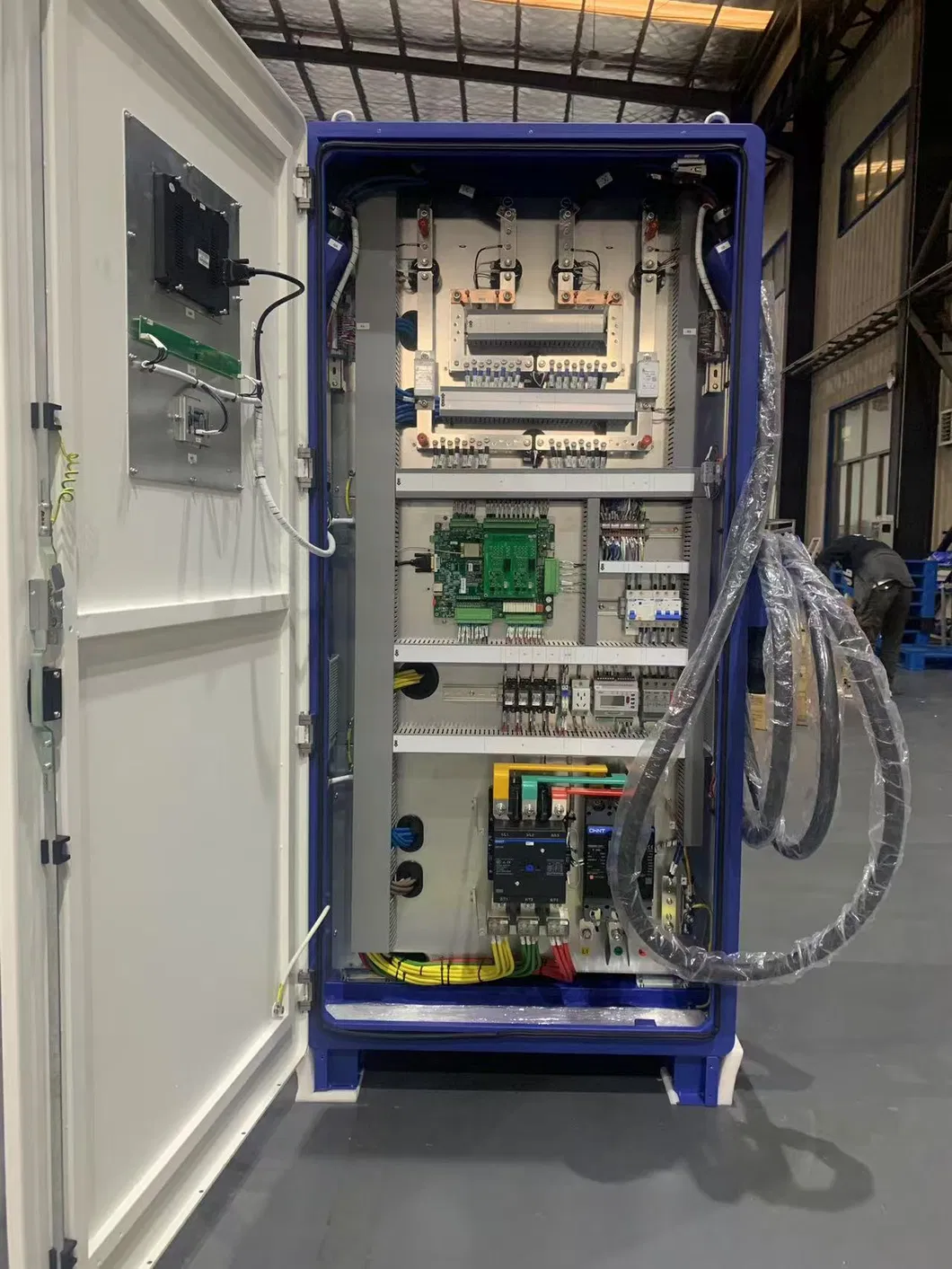

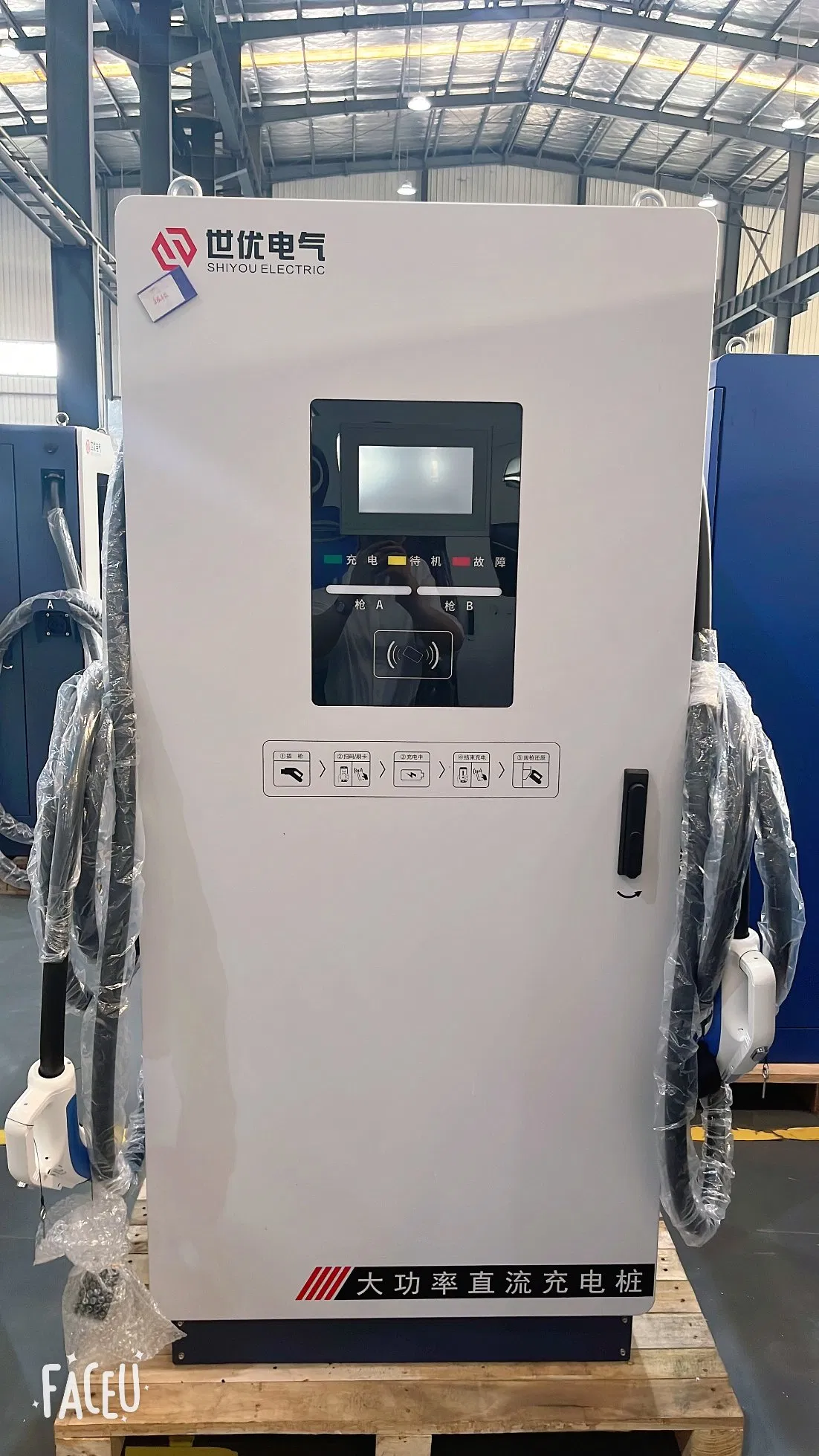

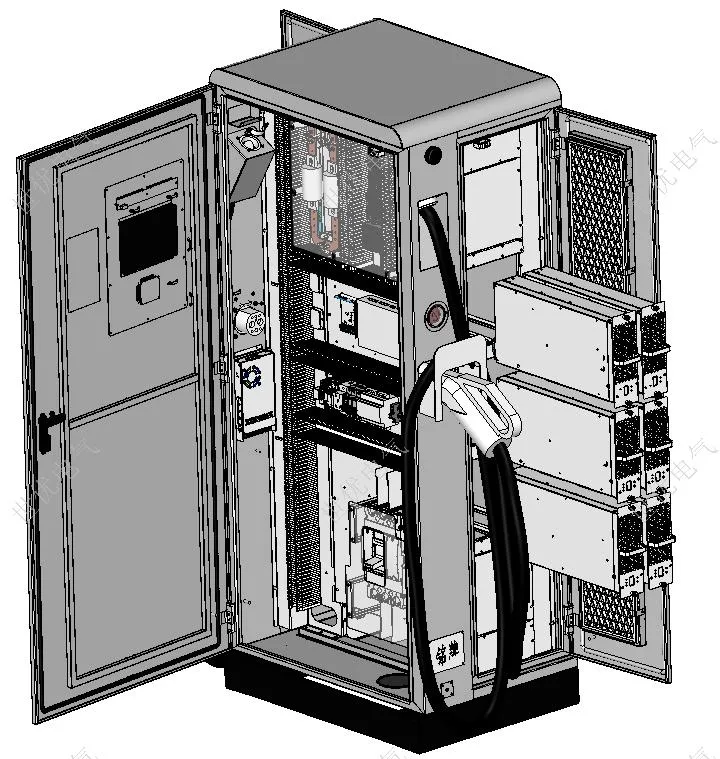

The SYE-CPEV series is an all-in-one DC charging pile which integrates power conversion, charging control, human-machine interface, communication, billing, and metering. It features an IP55 protection level and supports single or dual gun options, making it suitable for both outdoor and indoor environments. With modular design, it can be configured into 60kW, 80kW, 100kW, 120kW, 160kW, and other power outputs. The 240kW-400kW ultra-charging stations are specifically designed for e-trucks, e-buses, and long-distance travel emergency usage.
| Type | SYE-CPEV-240-1000DC-1 | SYE-CPEV-320-1000DC-1 | SYE-CPEV-400-1000DC-1 |
|---|---|---|---|
| Output Voltage | 200-1000Vdc | 200-1000Vdc | 200-1000Vdc |
| Rated Power | 240kW | 320kW | 400kW |
| Output Current | 250A | 250A | 250A |
| Screen | 7" Interactive Display | ||
| Feature | Dual gun charging one car simultaneously, quick charging | ||
| Enclosure | IP55 | ||
| Start Mode | App control, RFID, Card, Remote Control etc. | ||
| Network | 4G, Ethernet | ||
| Dimension | 1750mm×800mm×750mm | ||
| Weight | ≤450kg | ||
| Certification | CE, CQC | ||
