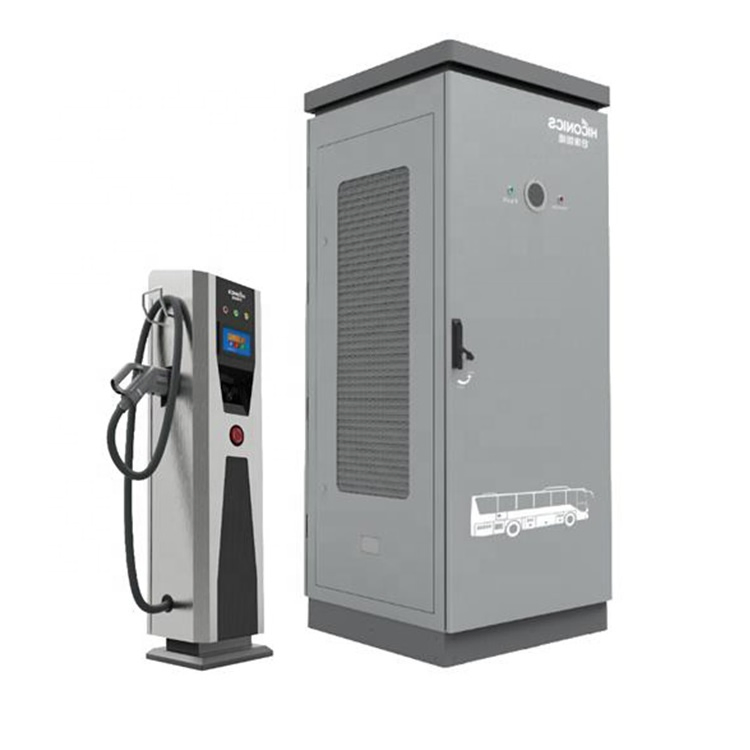

High-Power 300kw DC Charging System with Ocpp 1.6j Compatibility

1 / 5

High-Power 300kw DC Charging System with Ocpp 1.6j Compatibility

Customization:	Available
Connector Type:	CCS2
Start Mode:	APP Control, Book Charging, Remote Control, RFID Card

Send Inquiry

Product Description

Basic Information

Model NO.60-180KW EV car charger

Charging InterfacesMultiple Charges

LocationPublic Use

InstallationFloor Type

Charge MethodQuick Charge

TypeFast EV Charging Station

CertificationCE, ISO

Warranty24 Months

Specification500*339*720mm

OriginChina

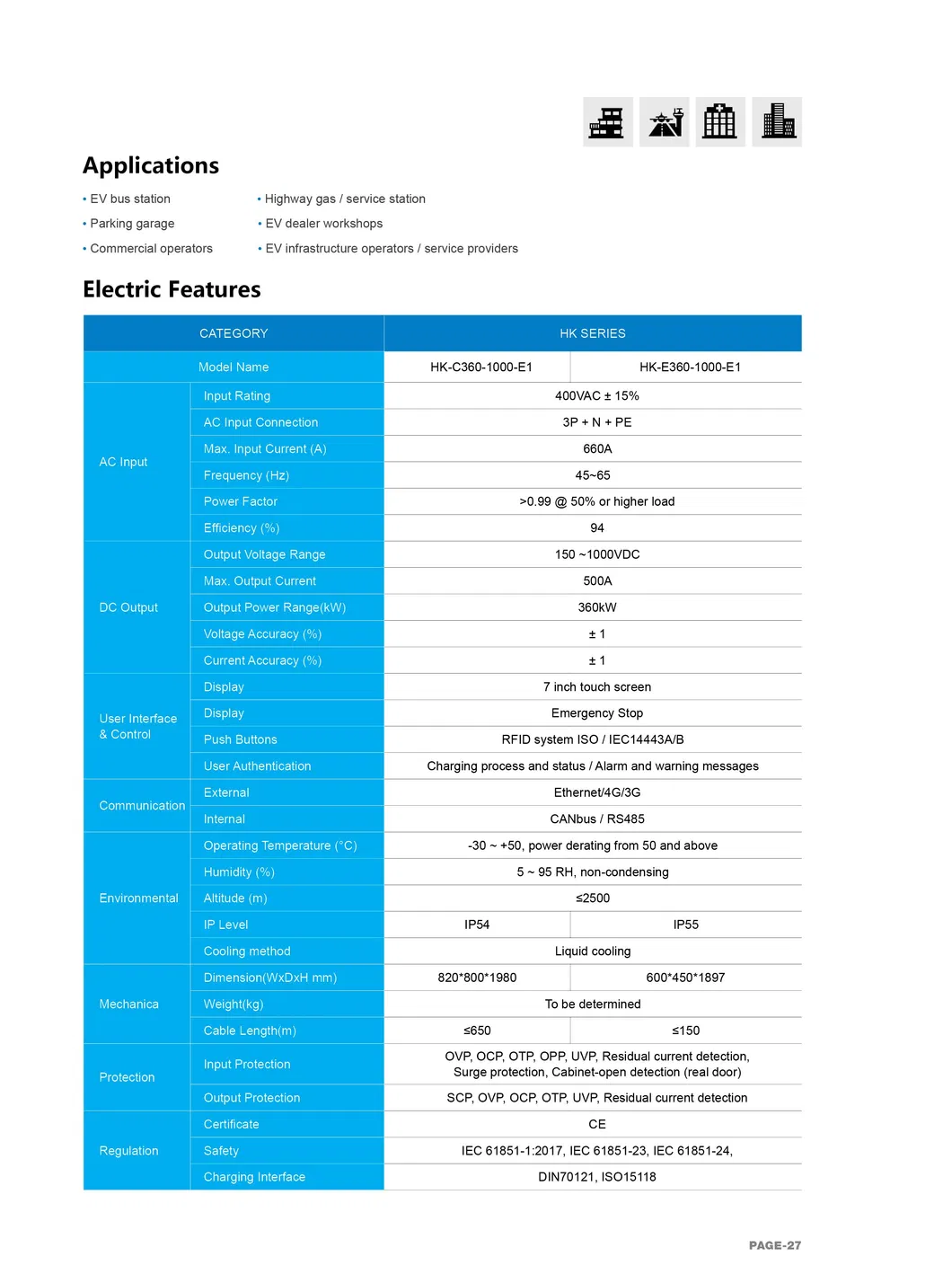

Technical Specifications

Category		HK Series Specifications
Model Name		HK-E360-1000-E1
AC Input	Input Rating	400Vac ± 15%
	Connection	3P + N + PE
	Max. Current	660A
	Frequency	45~65 Hz
	Power Factor	>0.99 @ 50% or higher load
DC Output	Voltage Range	150 ~1000VDC
	Max. Current	0-500A CCS2
	Power Range	360kW
	Accuracy	Voltage: ± 0.5% \| Current: ± 1%
User Interface	Display	7 inch touch screen
	Authentication	RFID system ISO / IEC14443A/B
	Control	Emergency Stop / Alarm and warning messages
Communication	External	Ethernet / 4G / 3G
Communication	Internal	CANbus / RS485
Environmental	Temperature	-30 ~ +50°C
	IP Level	IP55
	Altitude	≤2500m
	Cooling	Liquid cooling
Protection	Input	OVP, OCP, OTP, OPP, UVP, Surge, Cabinet detection
Protection	Output	SCP, OVP, OCP, OTP, UVP, Residual current

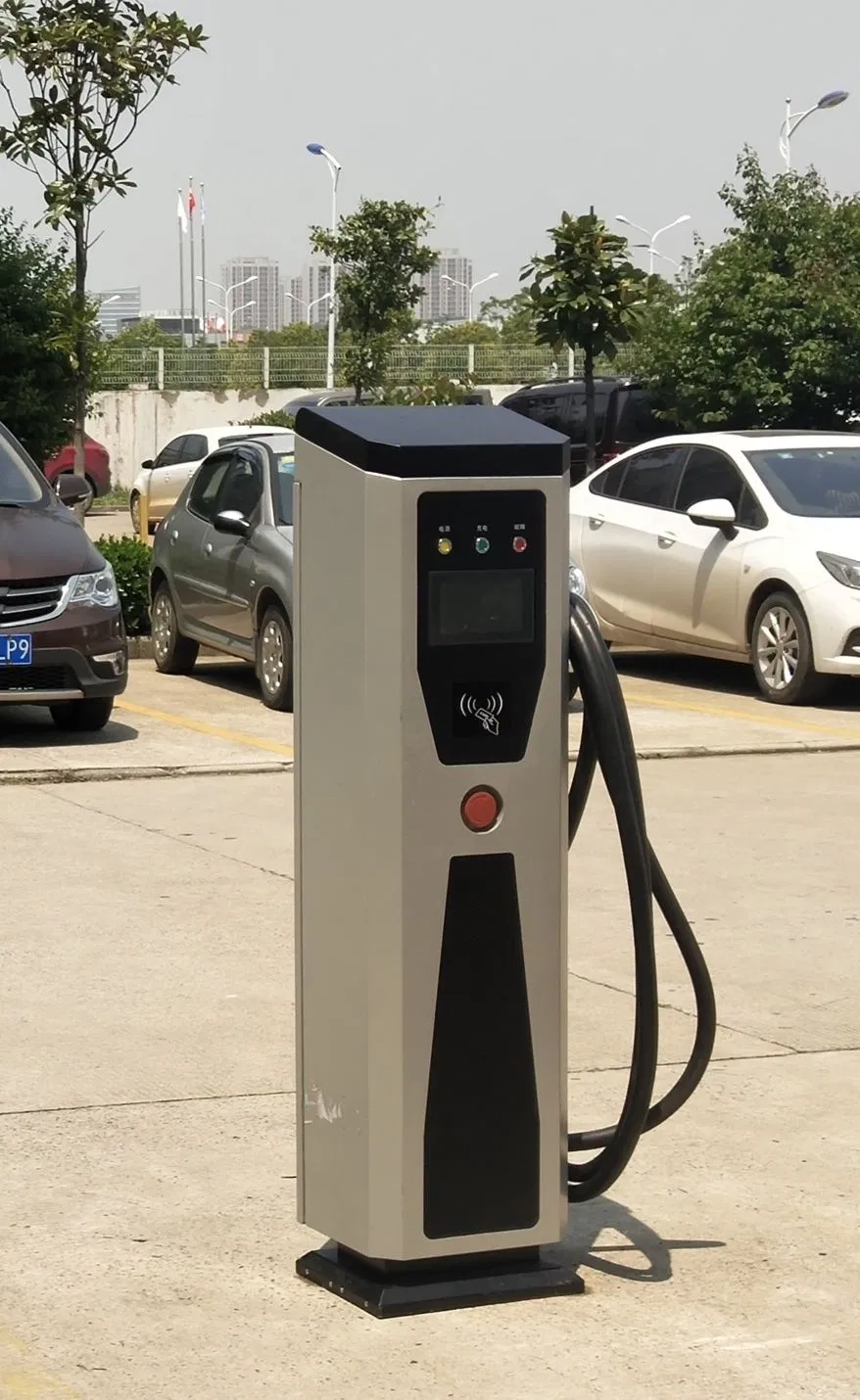

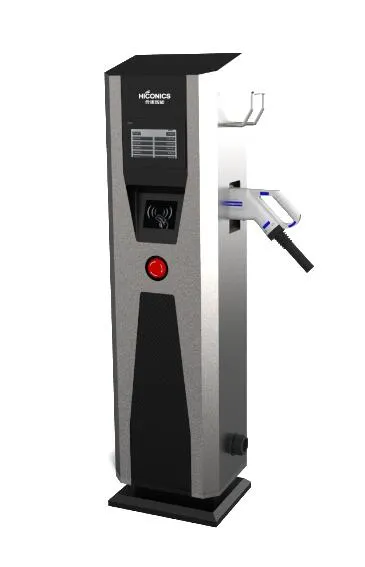

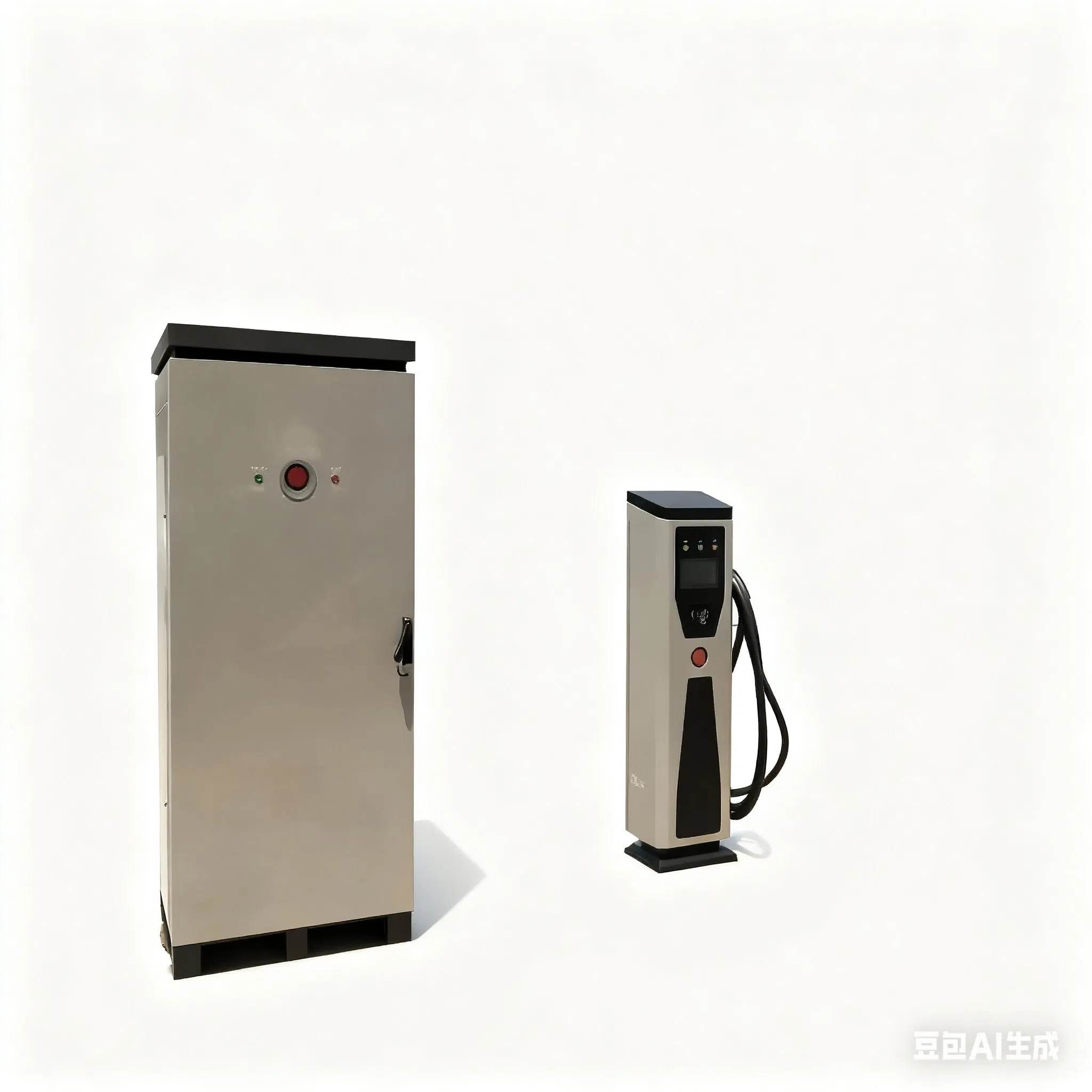

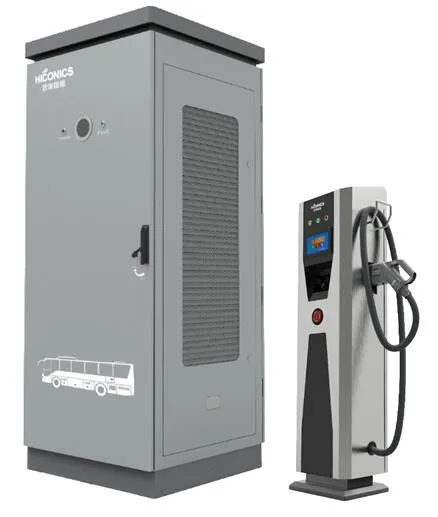

Product Display

Frequently Asked Questions

Q1. What are your terms of packing? Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded packaging is available with proper authorization letters.

Q2. What are your terms of payment? Our standard terms are T/T 30% as a deposit and 70% before delivery. We provide photos of the products and packages before final payment.

Q3. How about your delivery time? Generally, it takes 30 to 60 days after receiving your advance payment. The specific time depends on the items and the order quantity.

Q4. Can you produce according to specific samples? Yes, we can produce based on your samples or technical drawings. We are capable of building necessary molds and fixtures.

Q5. Do you test all your goods before delivery? Yes, we conduct a 100% comprehensive test on all products before they are dispatched.

Q6. How do you ensure a long-term business relationship? We maintain high quality and competitive pricing to ensure our customers' benefit, treating every client with respect and sincerity.
