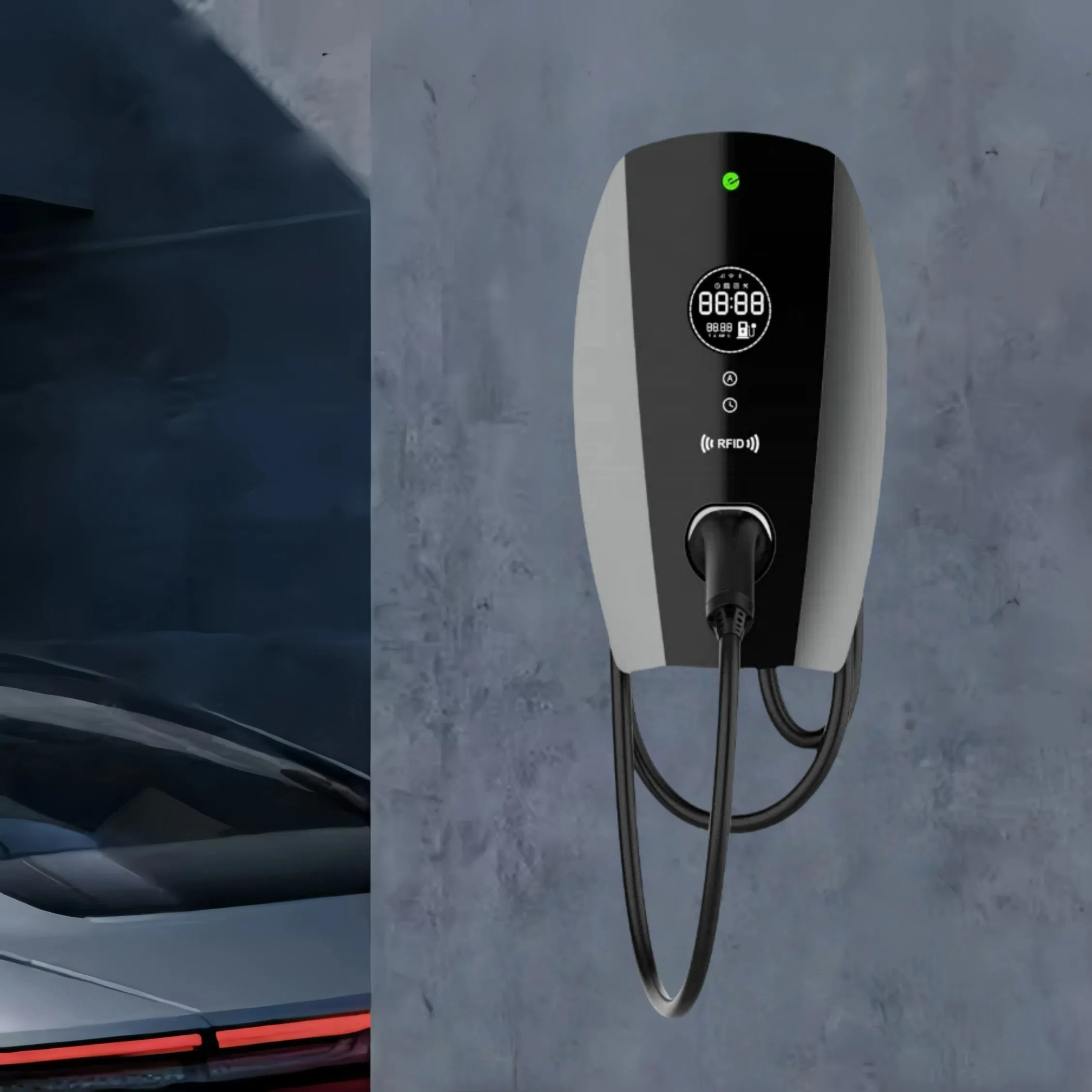

Guhe IP54 Level 2 Charging Station 11kw Type 1 Type 2 GB/T EV Fast Charging Wall Mount EV Charger Station

1 / 5

Guhe IP54 Level 2 Charging Station 11kw Type 1 Type 2 GB/T EV Fast Charging Wall Mount EV Charger Station

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

11kW 4 Inches LCD Screen AC Type 2 Smart Charger
16A, 11kW Smart Charger for Home or Commercial (with OCPP 1.6J) Use

Basic Information

Model NO.	ZAU311C-CS
Charging Interfaces	One Pile with One Charge
Location	Private & Public
Installation	Wall Mounted
Charge Method	Normal Charge
Transport Package	Carton Box
Dimensions	405mm220mm95mm
Origin	China
Production Capacity	5000/Month

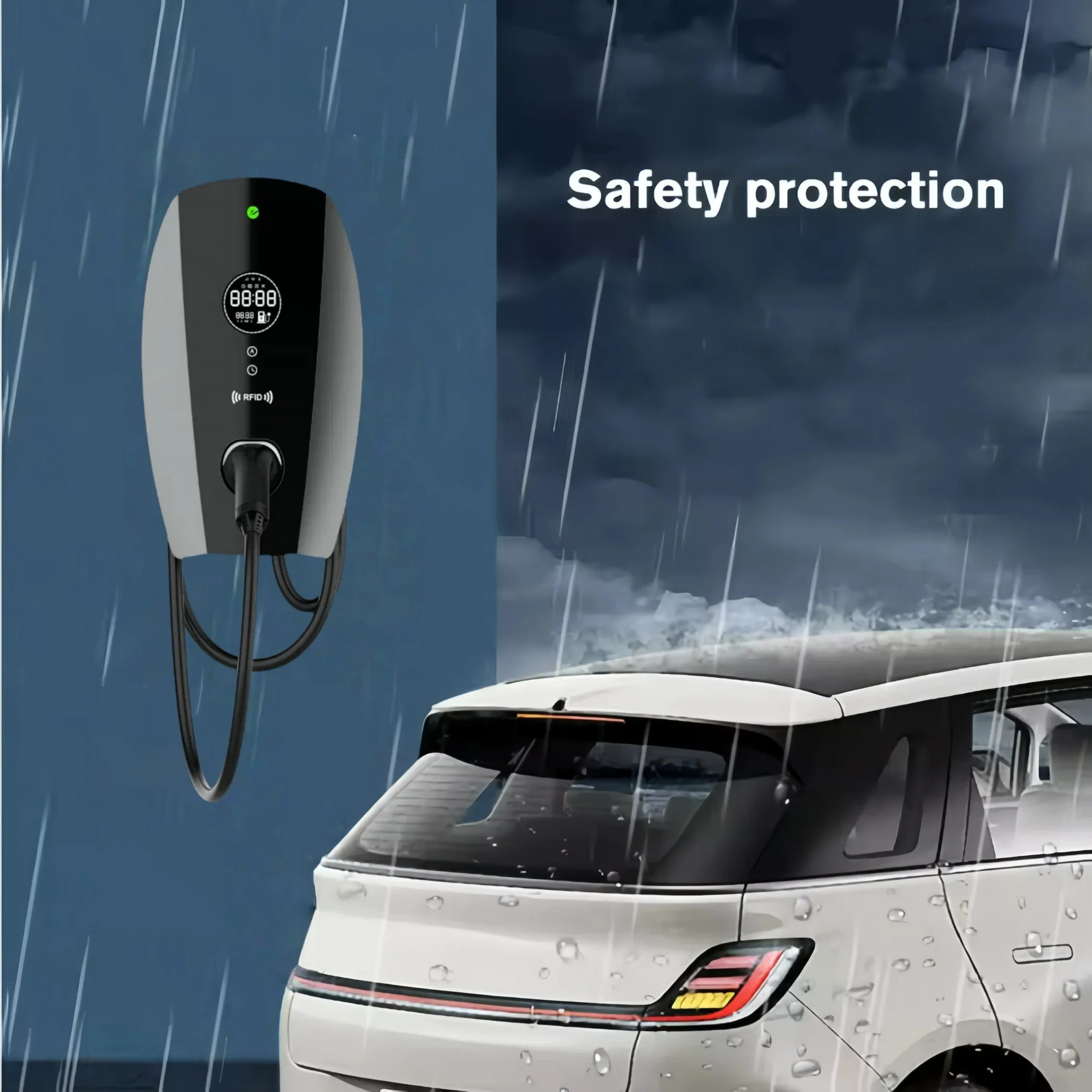

Protection & Control

Multiple Protections:

(1) IP54 for outdoor commercial use
(2) Emergency Stop Button
(3) Leakage Protection
(4) Over Temperature Protection
(5) Lightning Protection
(6) Over Current Protection
(7) Over Voltage Protection
(8) Short Circuit Protection

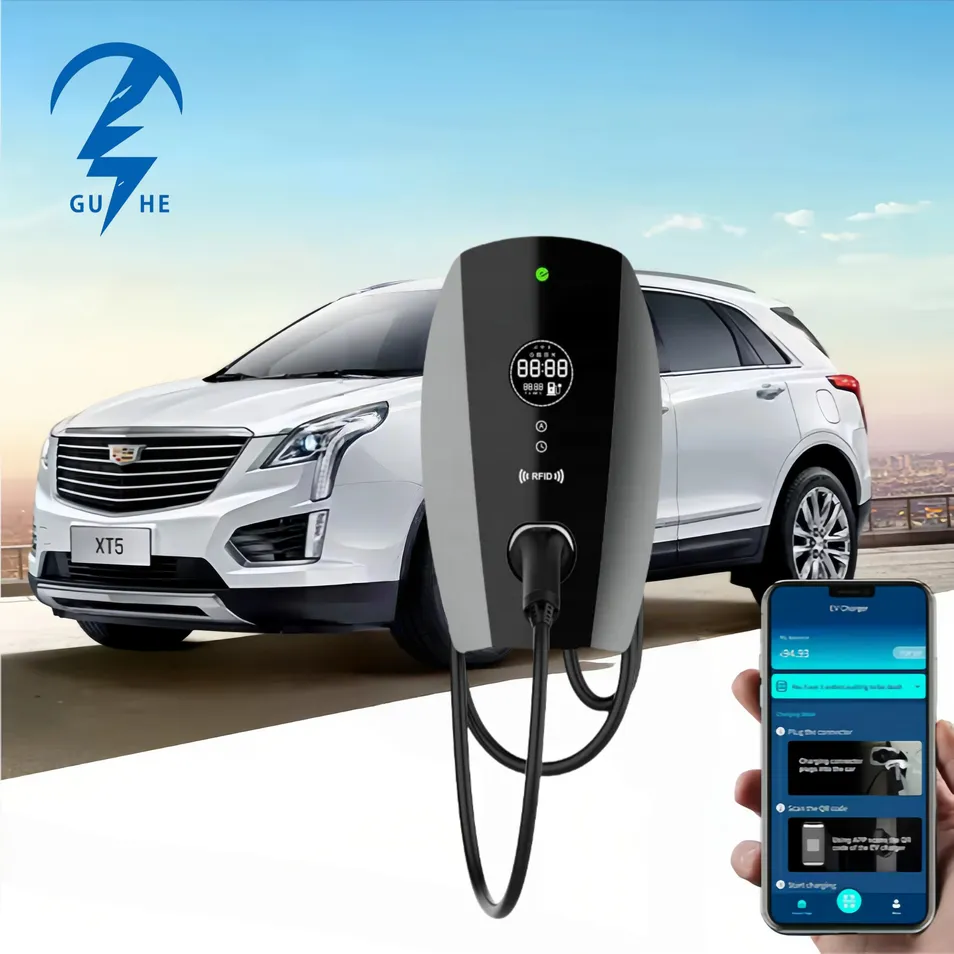

Multiple Control:

(1) App Remote Control via WiFi, Bluetooth
(2) RFID Card Control
(3) Plug-in & Charging

Technical Specification

Power	11kW
Rated Voltage	AC 400V ±15%
Rated Current	16A
Operating Frequency	50/60Hz
Phase	Three Phases
Functions	WiFi / Bluetooth / RFID (with 2 RFID cards) / Plug-in & Charging
Communication Protocol	OCPP1.6 JSON
IP Rating	IP54
Impact Protection	IK10
LCD Display	None / 4 inches VA Screen / 7 inches TFT Screen
Cable Length	5m
Operating Temperature	-20℃~+55℃
Leakage Protection (RCD)	AC 30mA & DC 6mA
Product Size (HWD)	405mm220mm95mm
Net Weight	7.5Kg (11kW)

Packing & Delivery

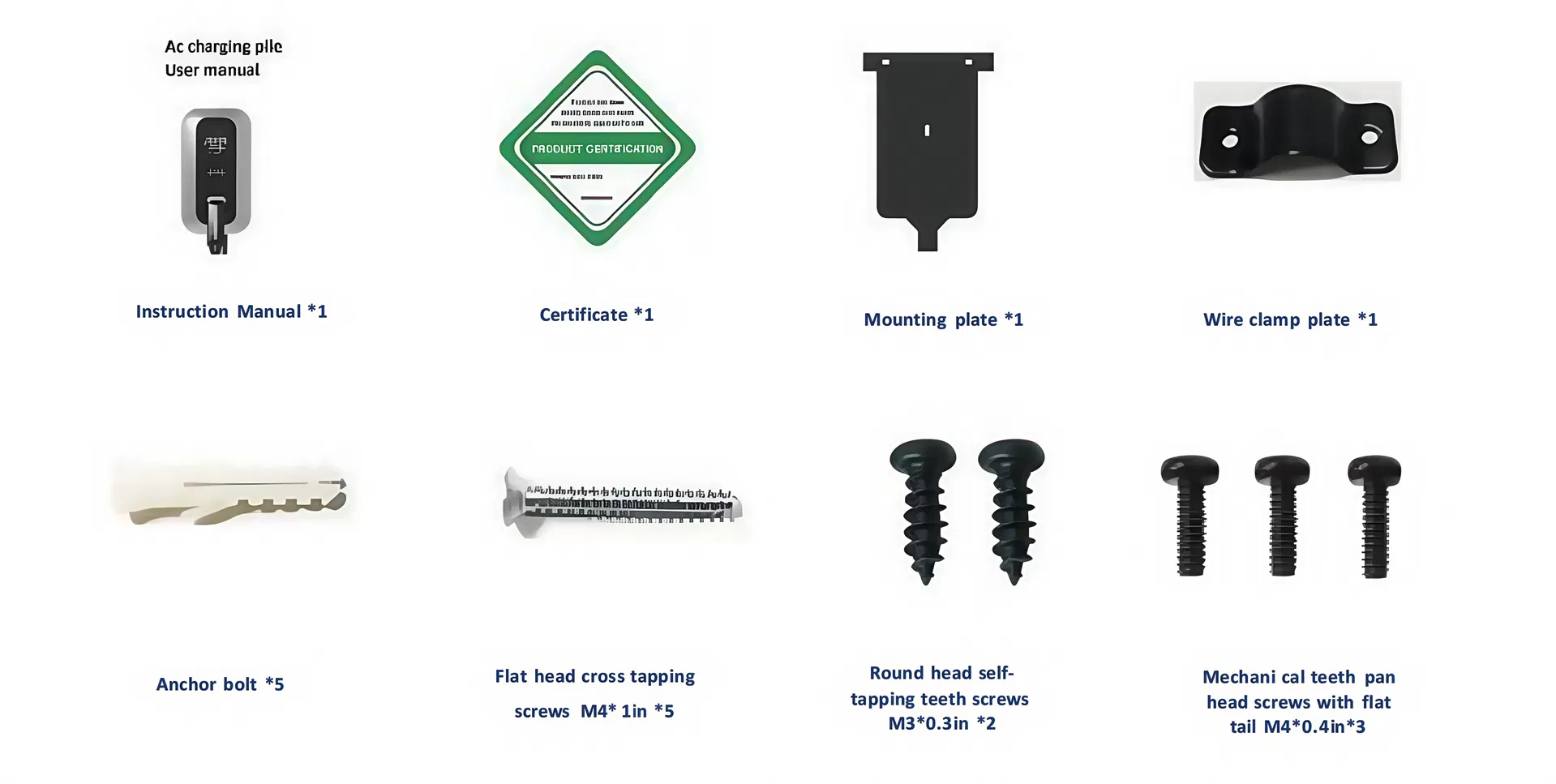

Standard Accessories Pack:

1× Socket AC EV Charger
1× Charger Instruction Manual
1× Certificate Label
1× Mounting Plate
1× Wire Clamp Plate

Installation Hardware:

5× Anchor Bolt
5× Flat Head Cross Tapping Screw M4*1in
2× Round Head Self-Tapping Teeth Screws M3*0.3in
3× Mechanical Teeth Pan Head Screws with Flat Tail M4*0.4in

After Sales Service

24-Month Warranty

Against Manufacturing Defects

Core Components

Core Components Replacement for Free

Technical Support

Technical Support on Working Day for Free

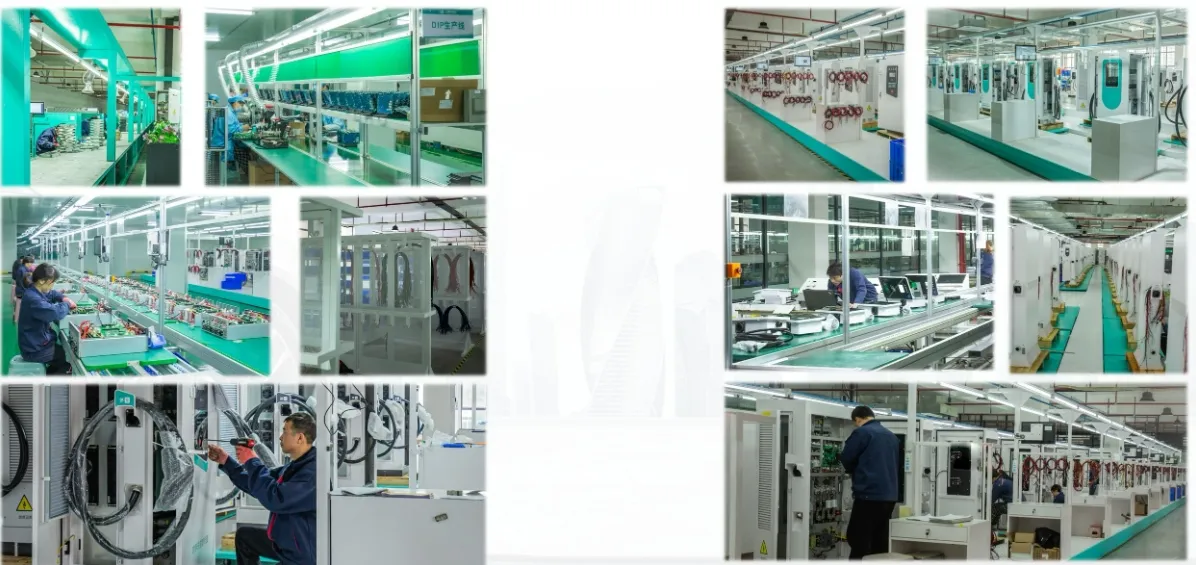

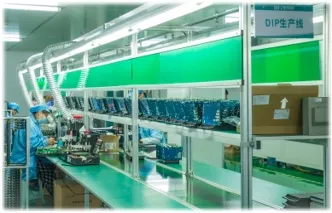

Manufacturing Excellence

Focus: New Energy Products, including AC Chargers, DC Chargers, Solar Panels, Inverters, and Power Storage.
Capacity: 5,000 units/month
Factory Advantages:
- Professional Testing Lab for Incoming & Outcoming Products Test
- Up to 2 Hours Endurance Test before sending out
- Certified manufacturing standards

Certifications

ISO9001

SGS Certificates

TUV Certificates

Frequently Asked Questions

How long is the charging cable?

It is 5m for the standard charging cable, but also could be customized as 7m, 10m or longer.

Is it possible to customize the charger?

Yes, it is OK to customize the charger. Color, logo, RFID card and APP are able to be customized.

How will you ship products to us?

For less than 5 units, we will ship via express, like DHL or SF; for more than 5 units, we will ship via sea.

What kind of protections are built into the charger?

The charger includes multiple protections: IP54 weatherproofing, Emergency Stop, Leakage protection, Over-temperature, Lightning, Over-current, Over-voltage, and Short Circuit protection.

Does this charger support mobile APP control?

Yes, it supports remote control via a dedicated App using WiFi and Bluetooth connectivity, along with RFID card control.

What communication protocols does the charger use?

The charger uses the standard OCPP 1.6 JSON communication protocol, making it compatible with various charging management systems.
