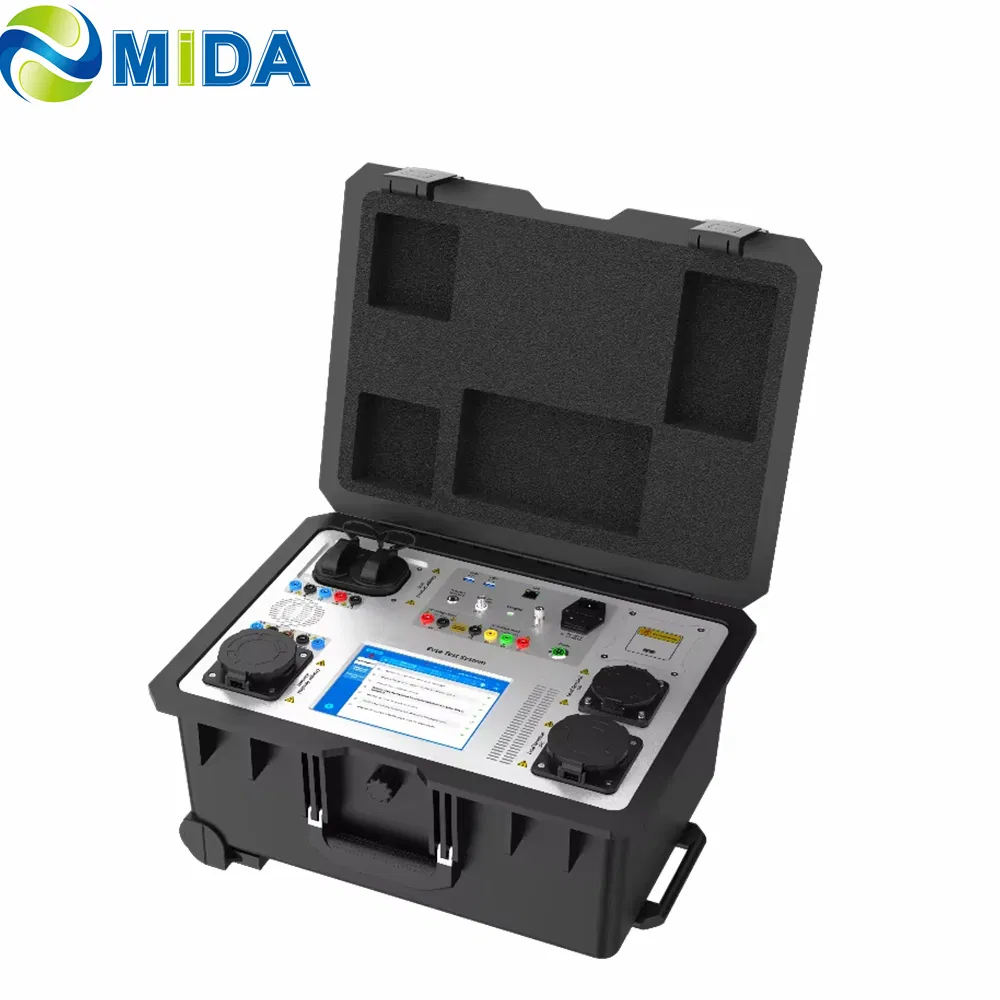

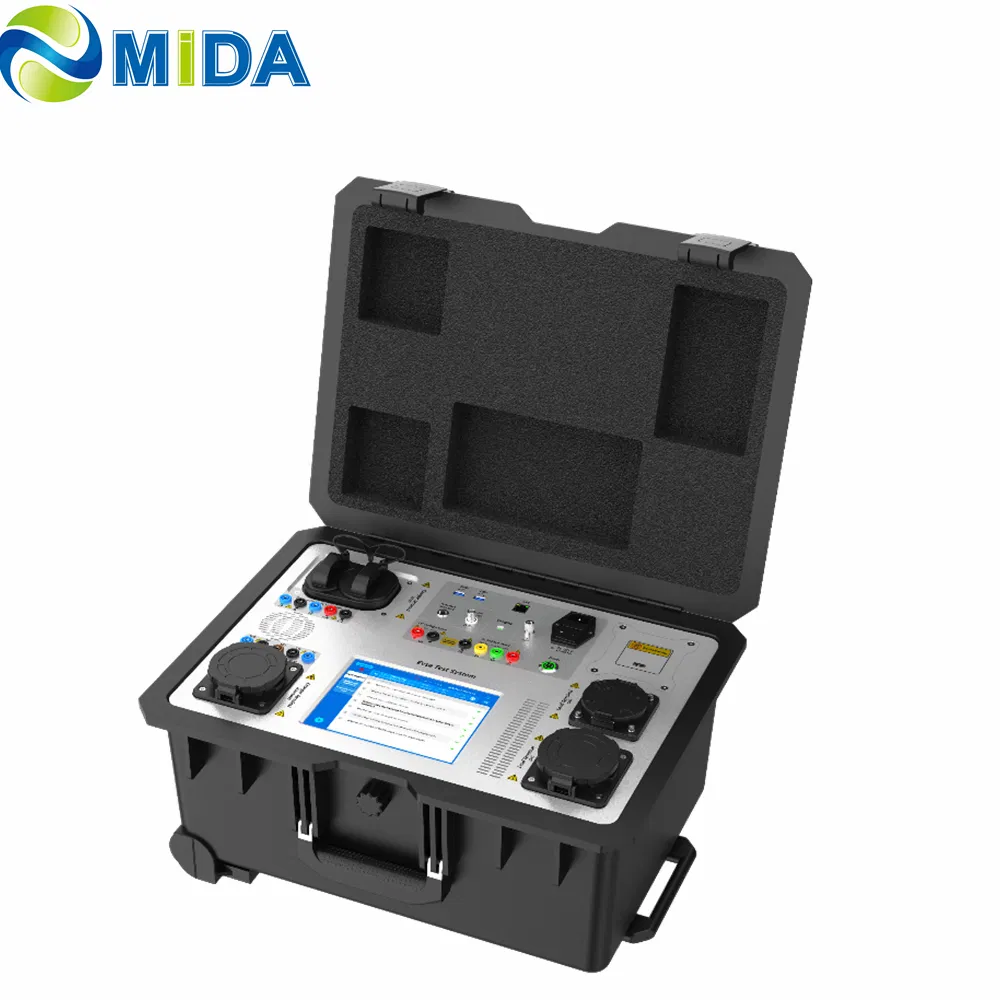

EV Simulator CCS1 Nacs Chademo Portable DC Charging Station Tester Device

1 / 5

EV Simulator CCS1 Nacs Chademo Portable DC Charging Station Tester Device

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Product Name: CCS1 NACS CHAdeMO Portable DC Charging Station Tester Device EVSE Analyzer DC Charging Station CCS2 CBT CHAdeMO EV Simulator System

Portable Electric Vehicle Charger Equipment (EVSE) analyzers are handheld or portable devices used to test, diagnose, and troubleshoot electric vehicle (EV) charging stations and cables. These analyzers simulate charging conditions, measure electrical parameters such as voltage and current, verify communication protocols, and generate test reports to ensure safety and performance compliance.

Key Functions & Features

🔍 Diagnostic Testing

Verifies functionality and safety of EVSE, including stations and cables.

💻 Simulation

Simulates EV and charging station operations to test communication protocols.

📊 Measurement

High accuracy measurement of voltage, current, power, and cumulative energy.

🔌 Protocol Support

Compatible with AC/DC CCS, CHAdeMO, and NACS standards.

📋 Report Generation

Generates professional pass/fail results for compliance and records.

🏃 Portability

Rugged and compact design, optimized for on-site field testing.

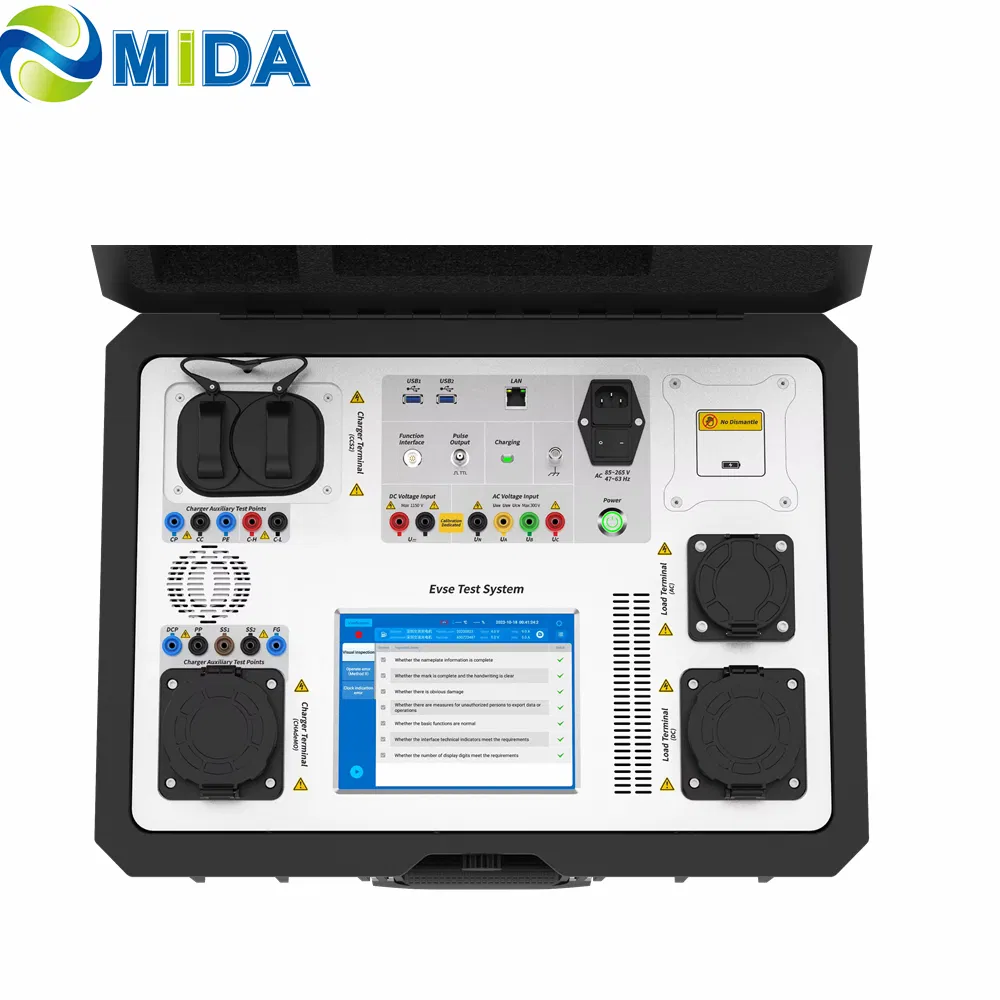

Technical Parameters

Model NO.	TEST-15kW
Size	8006001100mm
Weight	≤160kg
Safety Standard	CE, UL
Operation Voltage	AC230V±20%
Display Method	7-inch touch screen
Operating Temperature	-30ºC to 70ºC
Supported Standards	GB/T, CHAdeMO, CCS1, CCS2, Tesla/NACS

Product Capability

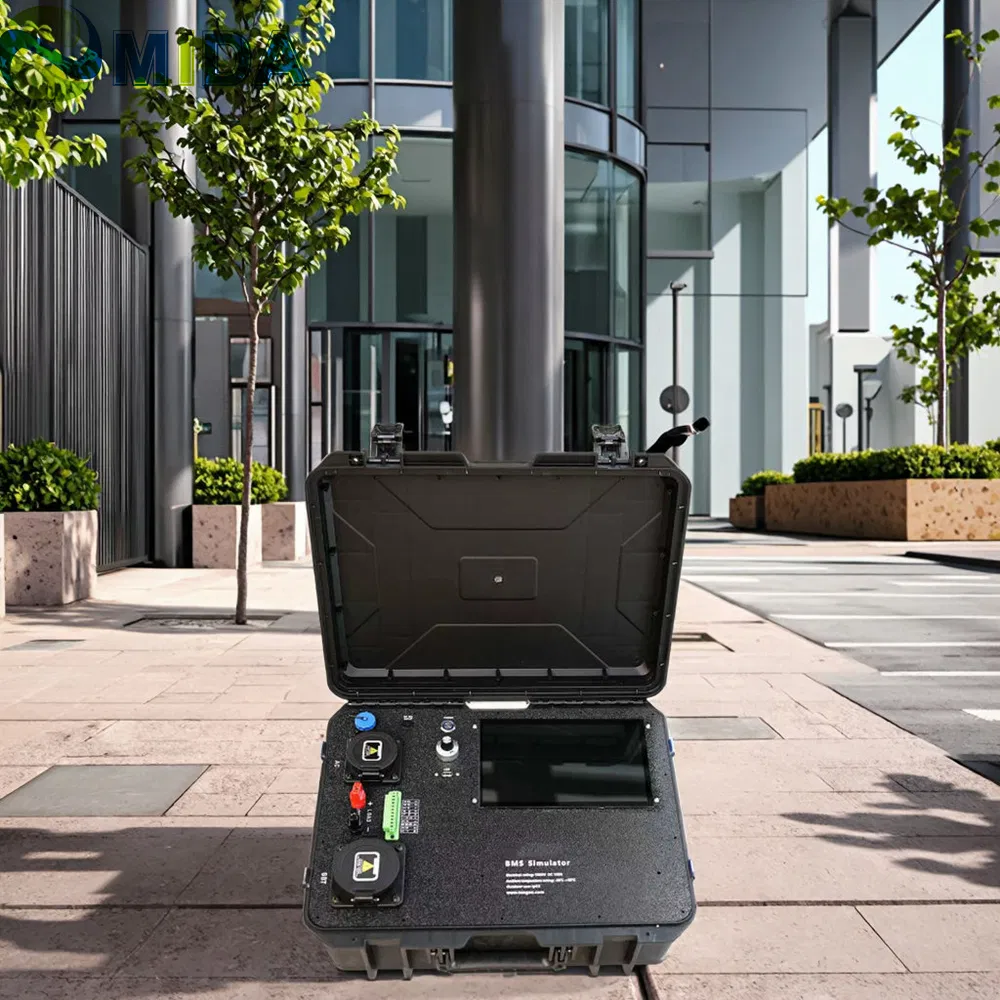

The DC EV charger tester is developed for multiple scenarios including factory debugging, on-site testing, laboratory analysis, and R&D. It features a touch screen with button design and intuitive color indicators.

✅ Integrated portable tester: Built-in expandable loads for single-person on-site testing.

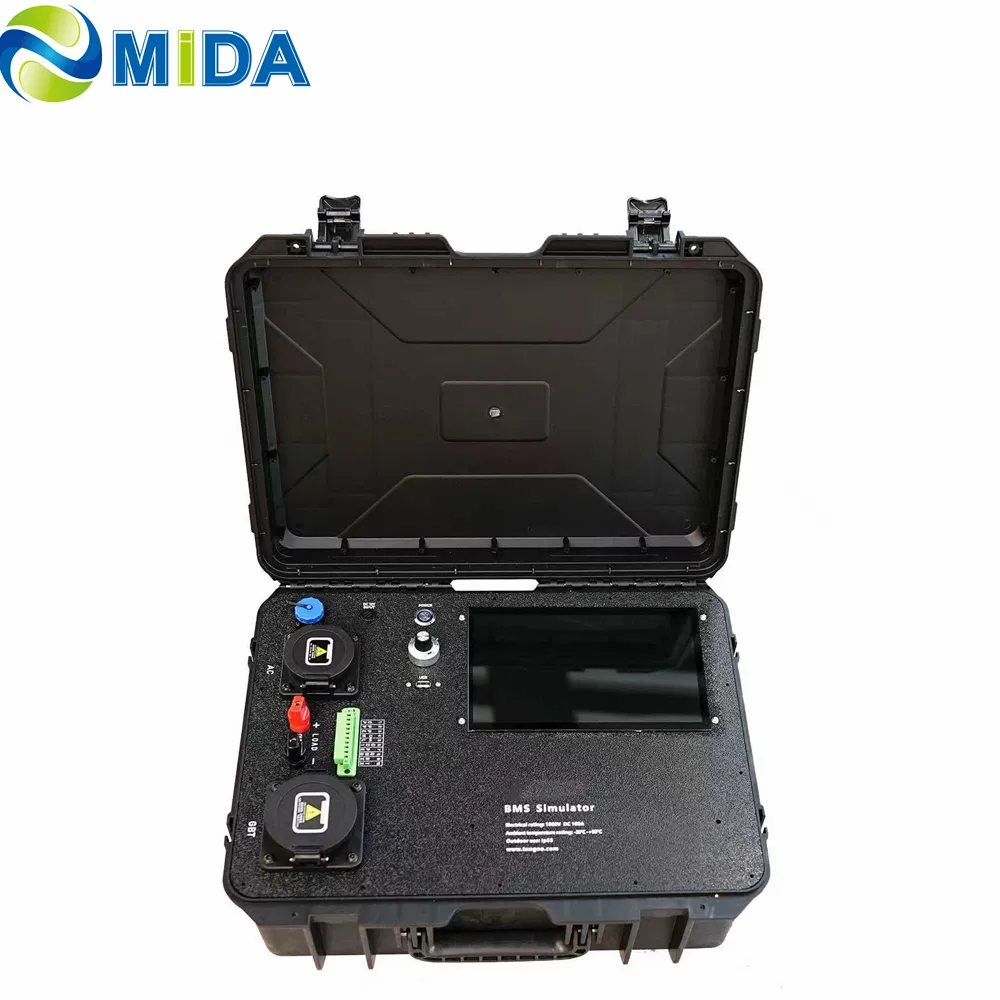

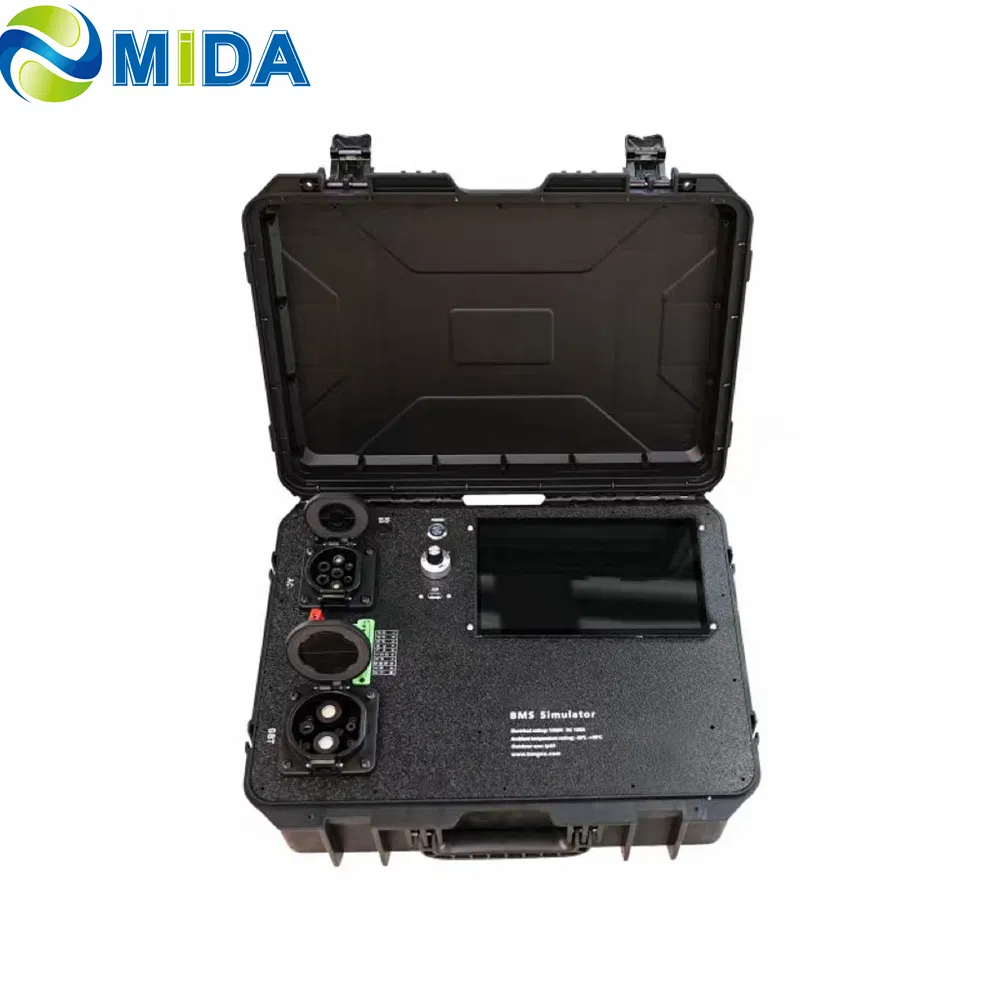

✅ BMS Simulator: Professional check of communication between chargers and vehicle batteries.
✅ Safety Inspection: Tests insulation resistance and grounding continuity.
✅ Independent Cooling: Specialized air duct design for high-power stability.

Application & Support

Frequently Asked Questions

What is the primary use of a DC charging station tester?

It is used to verify the functionality, safety, and accuracy of DC electric vehicle (EV) charging stations by simulating an electric vehicle and performing power and communication protocol checks.

Which charging standards are compatible with this device?

The tester supports multiple global standards including GB/T, CHAdeMO, CCS1, CCS2, and Tesla (NACS) interfaces.

Can this tester perform safety inspections?

Yes, it can test critical safety characteristics such as insulation resistance and grounding continuity to ensure safe installation and operation.

Does the device include a load system?

Yes, it comes with a resistive load and can be used in conjunction with adjustable resistor load boxes for high-power performance verification.

Is the interface user-friendly?

The device features a 7-inch touch screen plus physical buttons with color indicators, supporting easy switching between Chinese and English languages.

Can it be used for laboratory R&D?

Absolutely. It is designed for various scenarios including factory debugging, on-site field testing, laboratory analysis, and product R&D.
