Product Overview

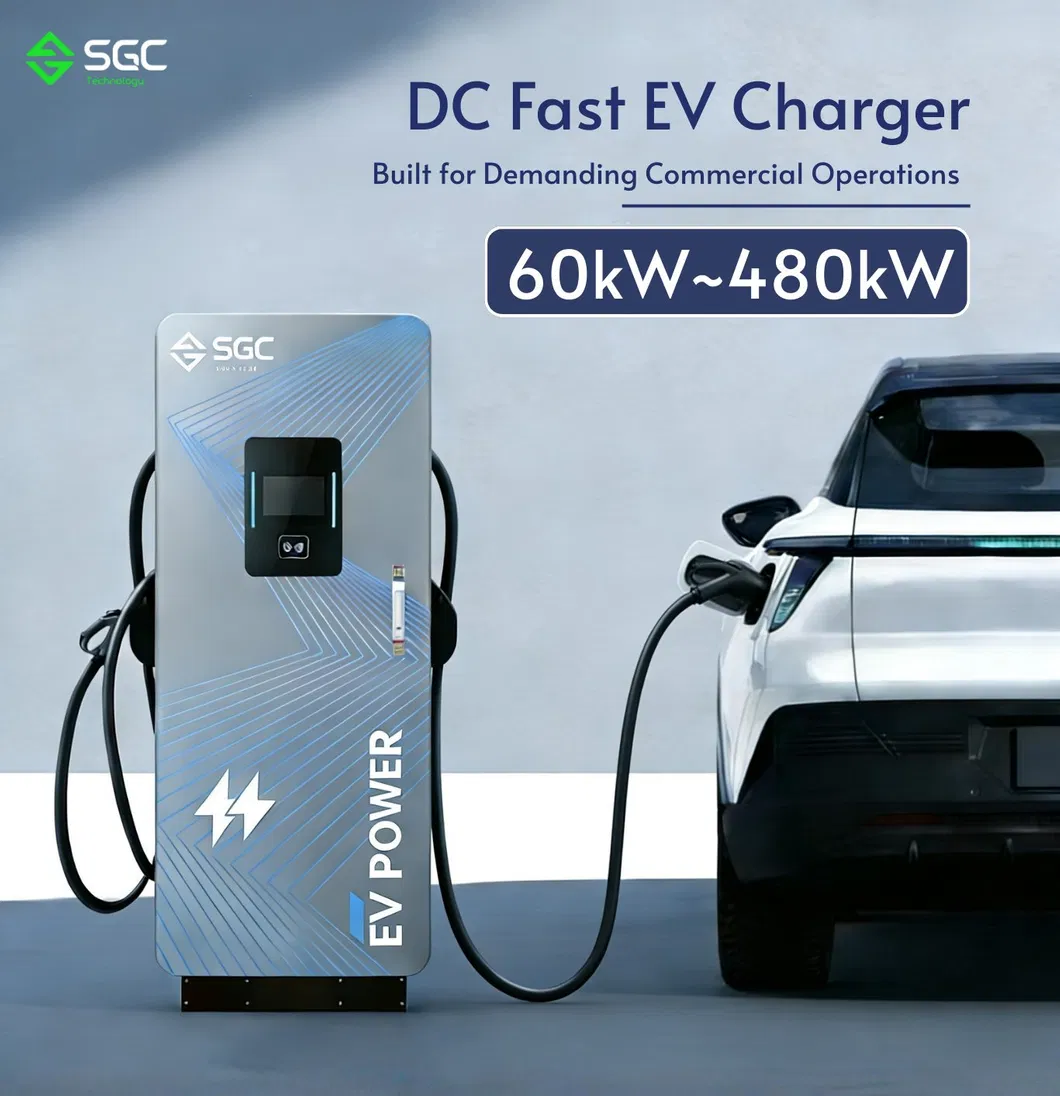

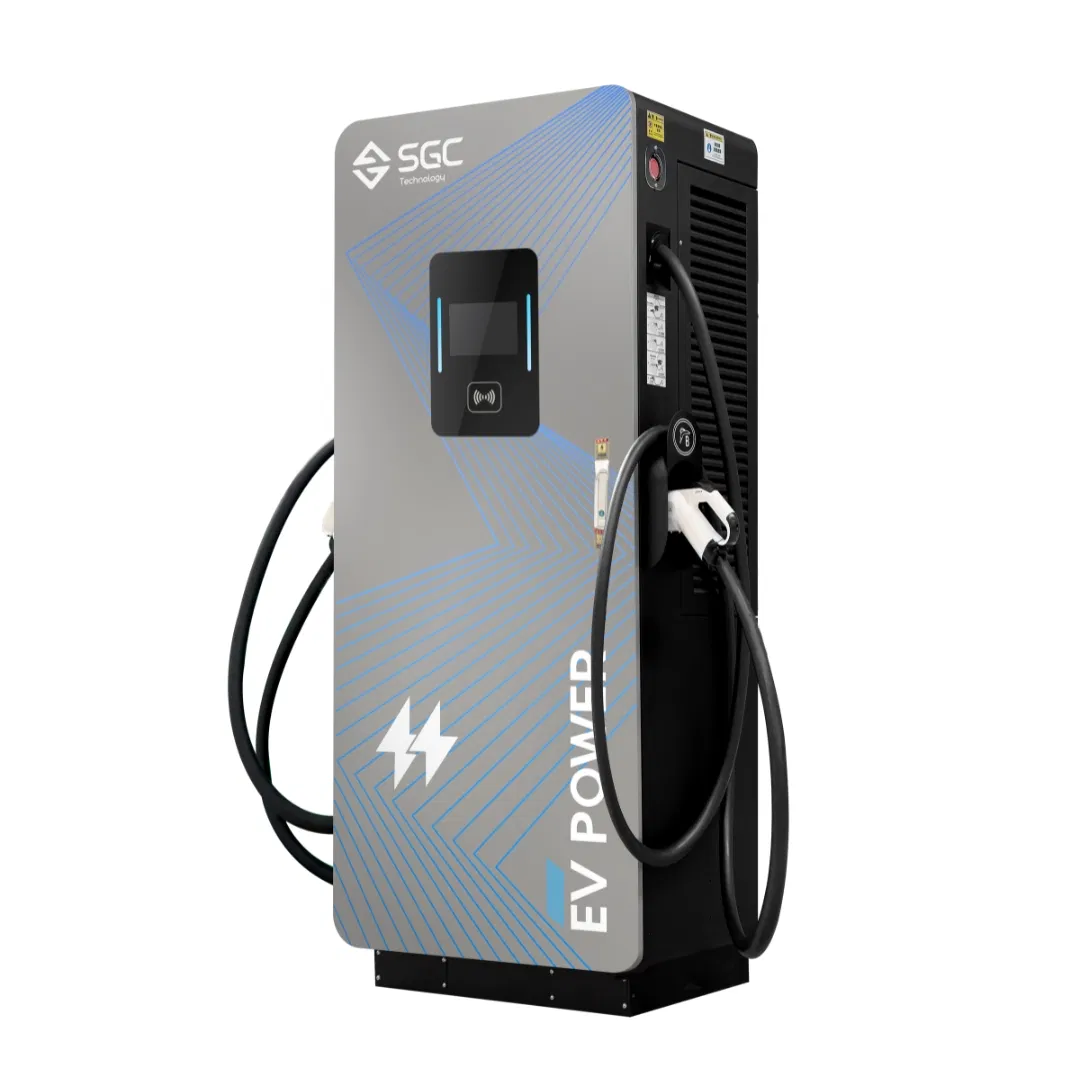

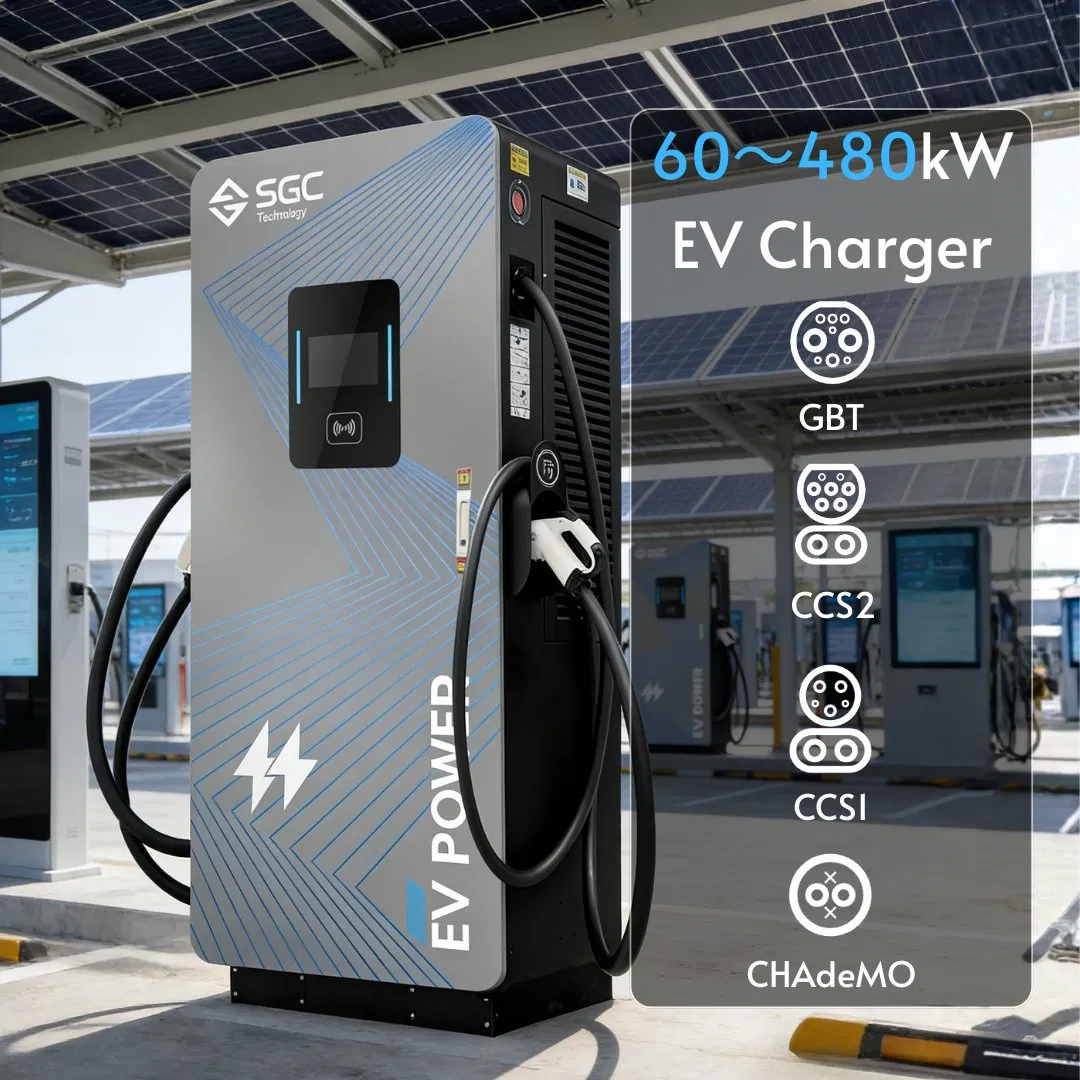

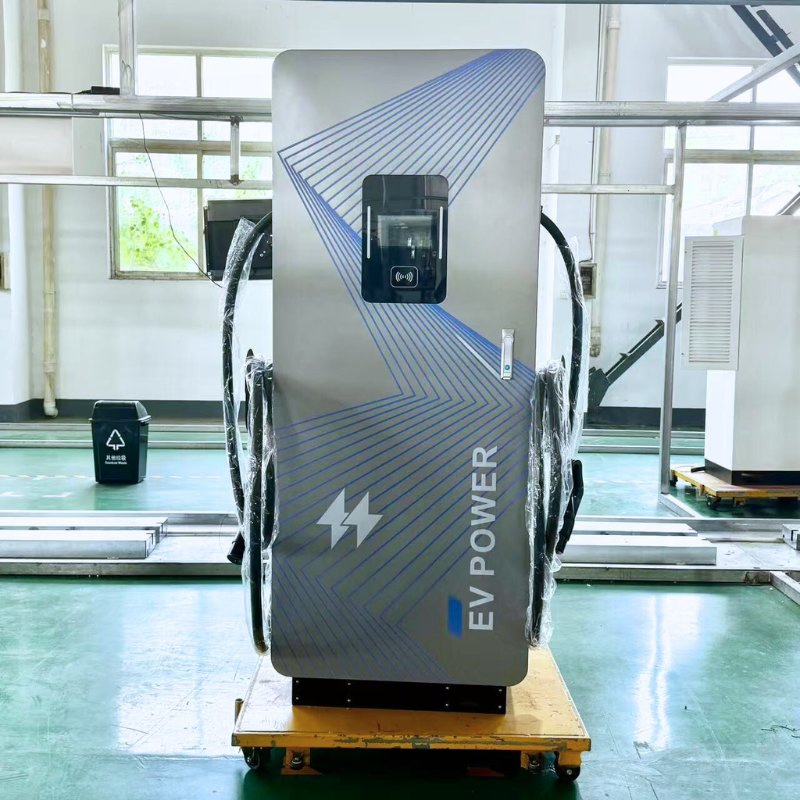

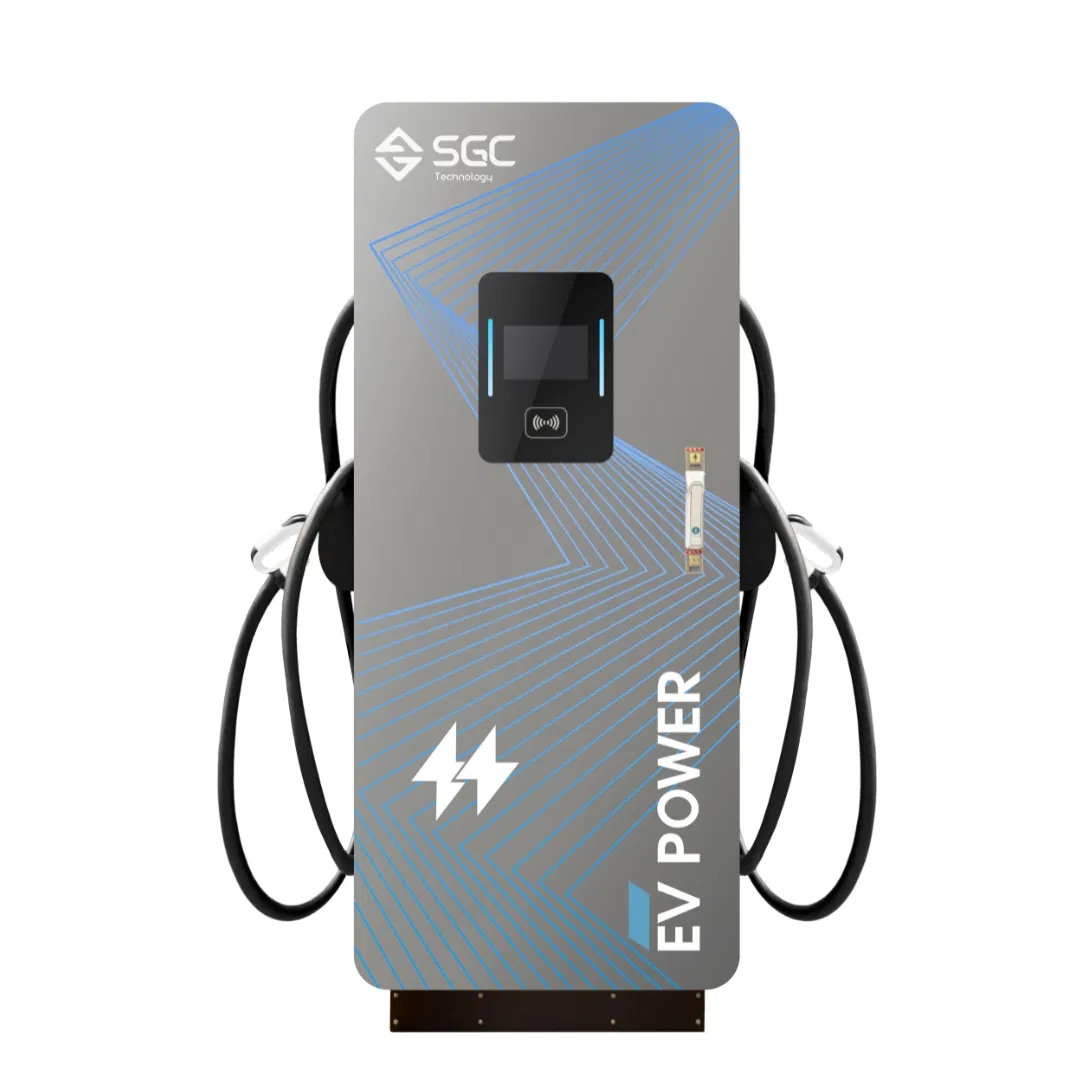

This 60-480kW all-in-one DC fast charging station is a scalable solution designed for commercial and public EV charging networks, including fleet operations and highway rest stops. The station supports dual-gun charging with intelligent power allocation and is compatible with major global standards (CCS1, CCS2, GB/T and CHAdeMO).
⚡
High Performance
Supports up to 480kW output with intelligent power allocation and dual-gun simultaneous charging.
🛡️
Robust Protection

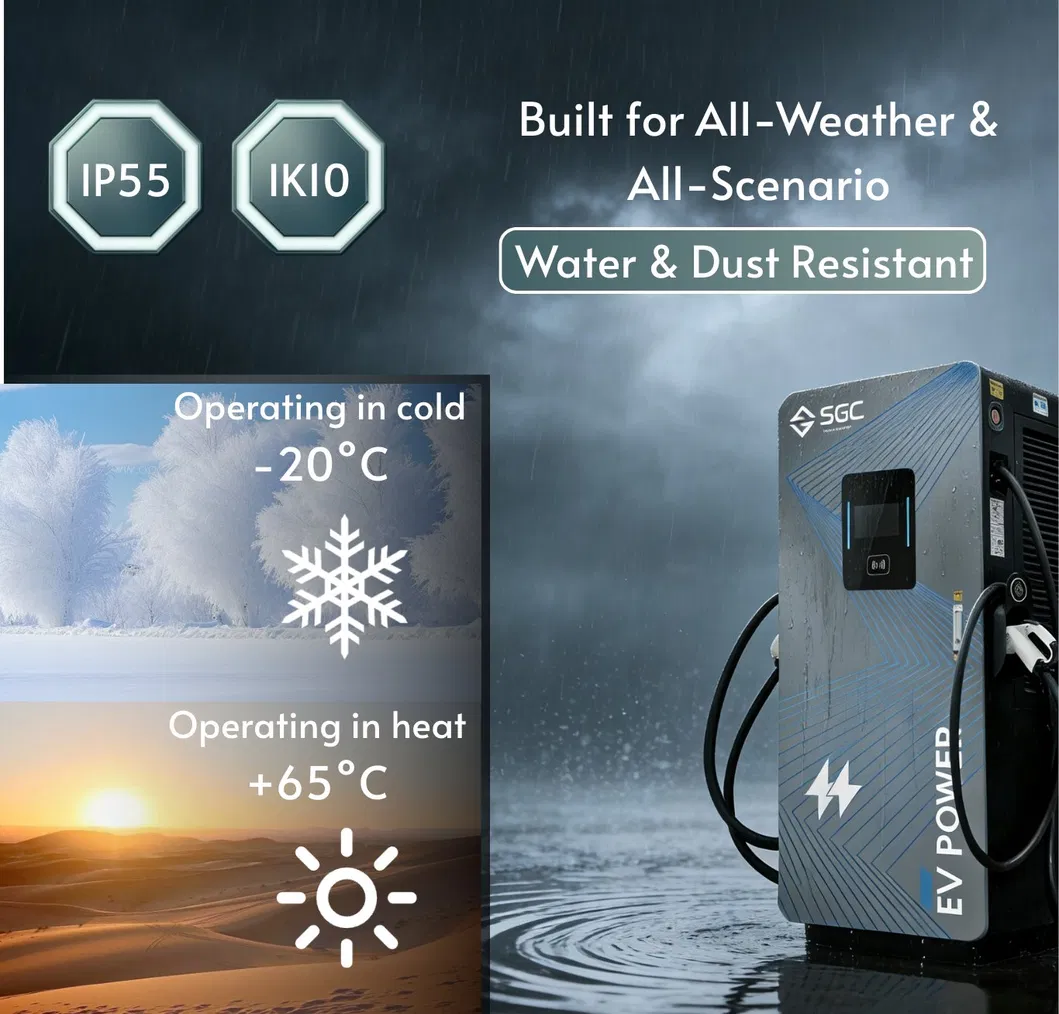

IP55 and IK10 rated enclosure with galvanised steel for rust and corrosion protection.
🌐
Smart Connectivity
OCPP 1.6J/2.0 compliance for seamless network integration via 4G, Ethernet, or WiFi.
Technical Specifications
| Basic Information |
| Product Name | Integrated DC Fast Charger |
| Output Power | 60KW to 480KW (Scalable) |
| Input Voltage | AC380V±15% (3P+N+PE) |

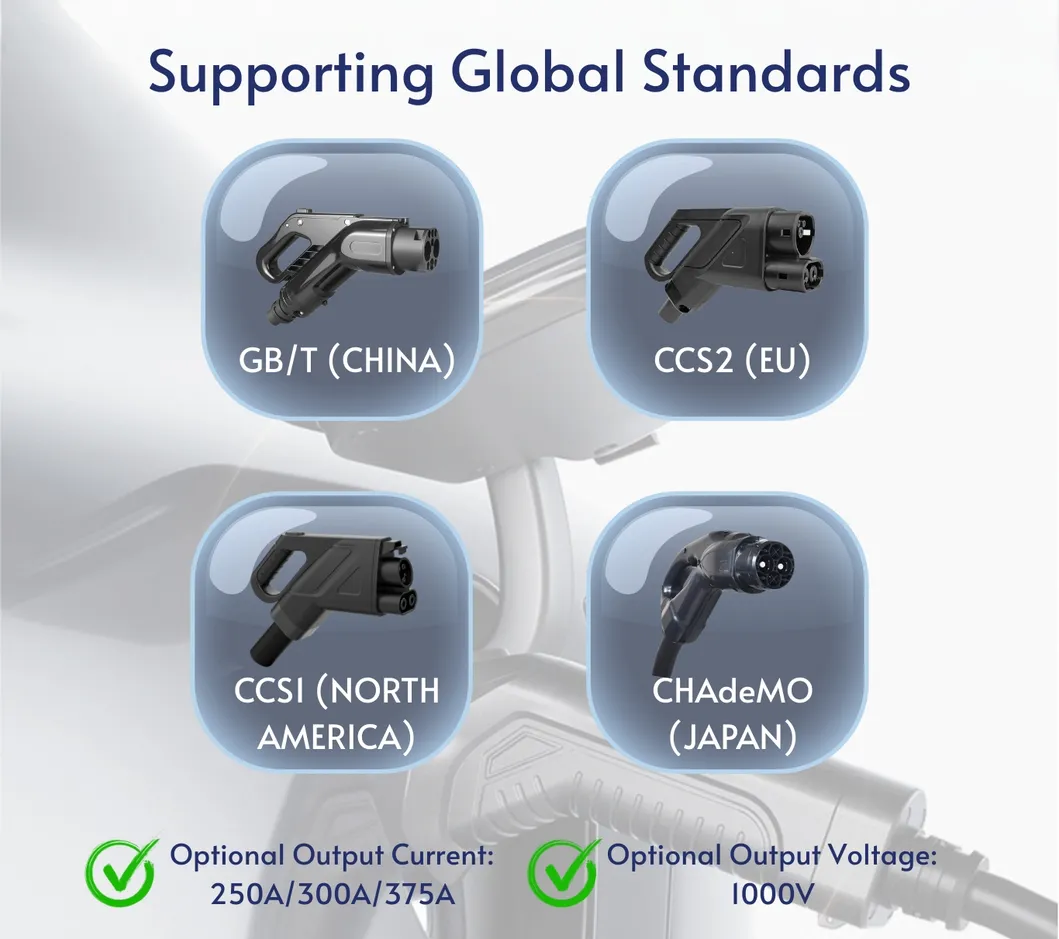

| Connector Type | CCS1 / CCS2 / GBT / CHAdeMO |

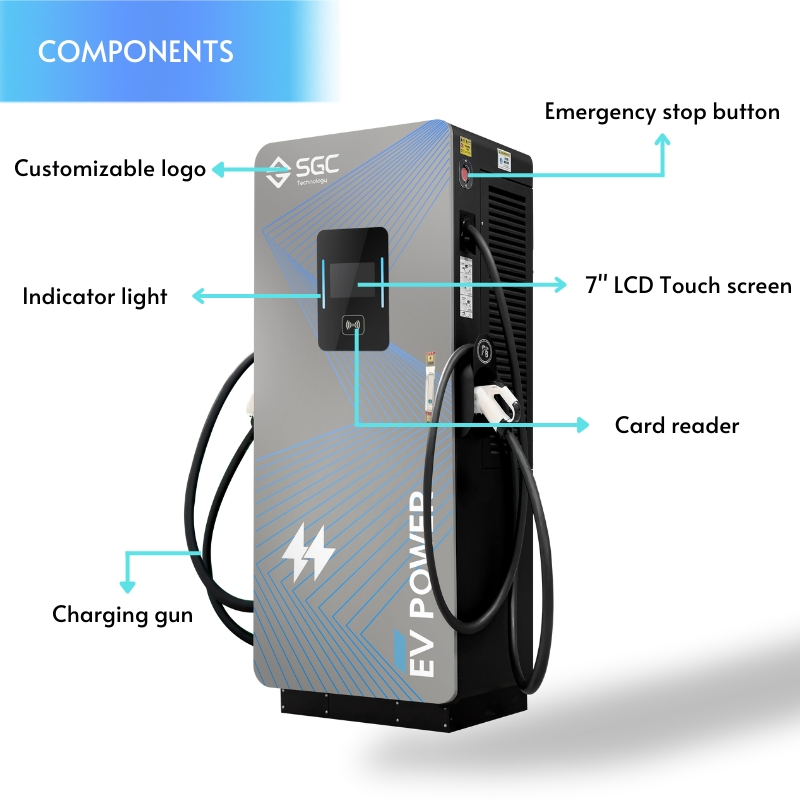

| User Interface | 7~10" LCD Touch Screen + LED Indicator |

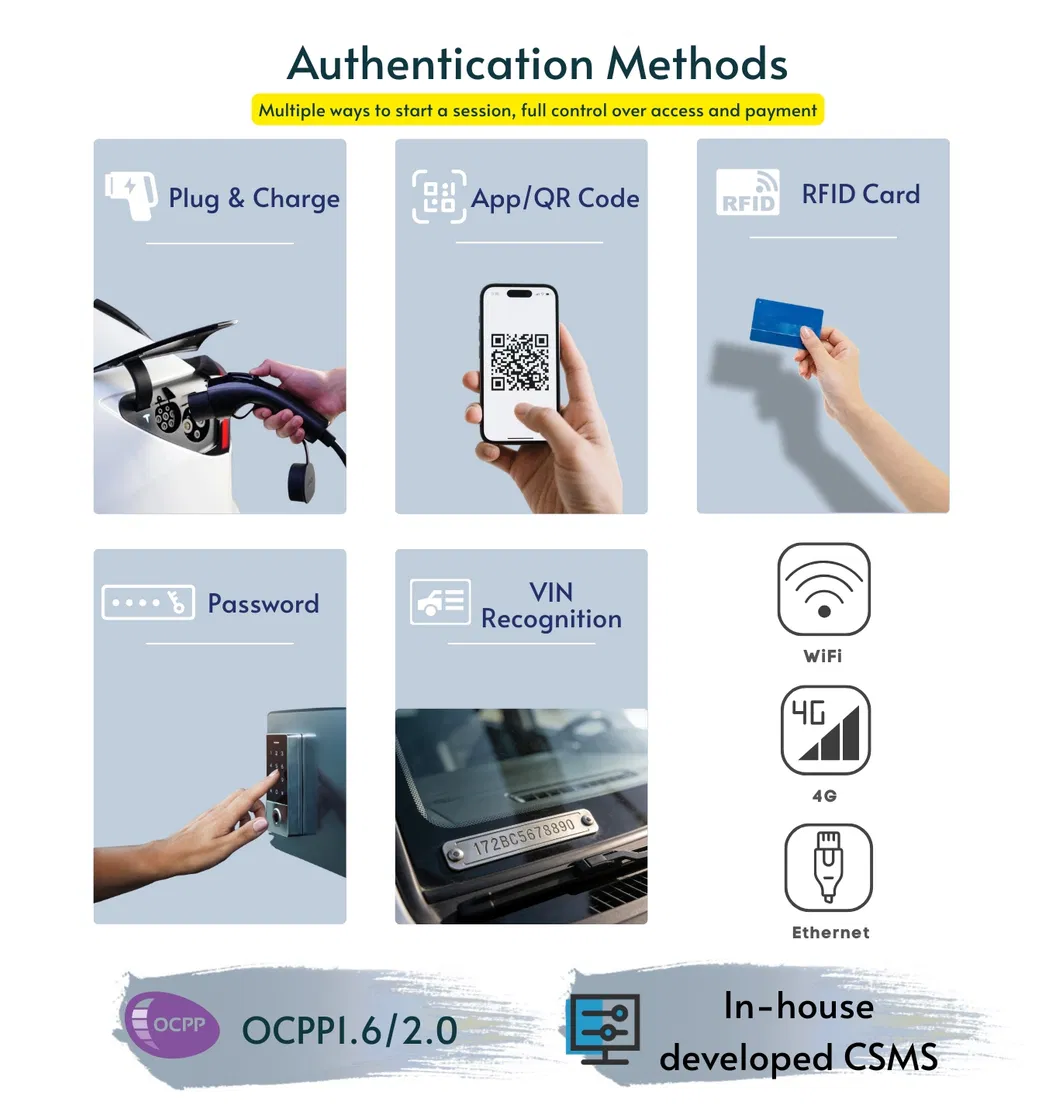

| Authentication | RFID Card / Password / VIN Code / QR Code |
| Protection Rating | IP55 / IK10 |
| Efficiency | ≥94% |
| Operating Temp | -20°C to +55°C (Full Load); up to 65°C (Derated) |
| Certification | CE, TUV, ISO, RoHS |
Key Functionalities
The design features Plug & Charge (ISO 15118) capability and is fully compatible with advanced energy management systems. Utilizing components from established global suppliers, the station can be managed via a cloud-based CSMS platform for remote monitoring, diagnostics, and control.
Professional Charging Solutions

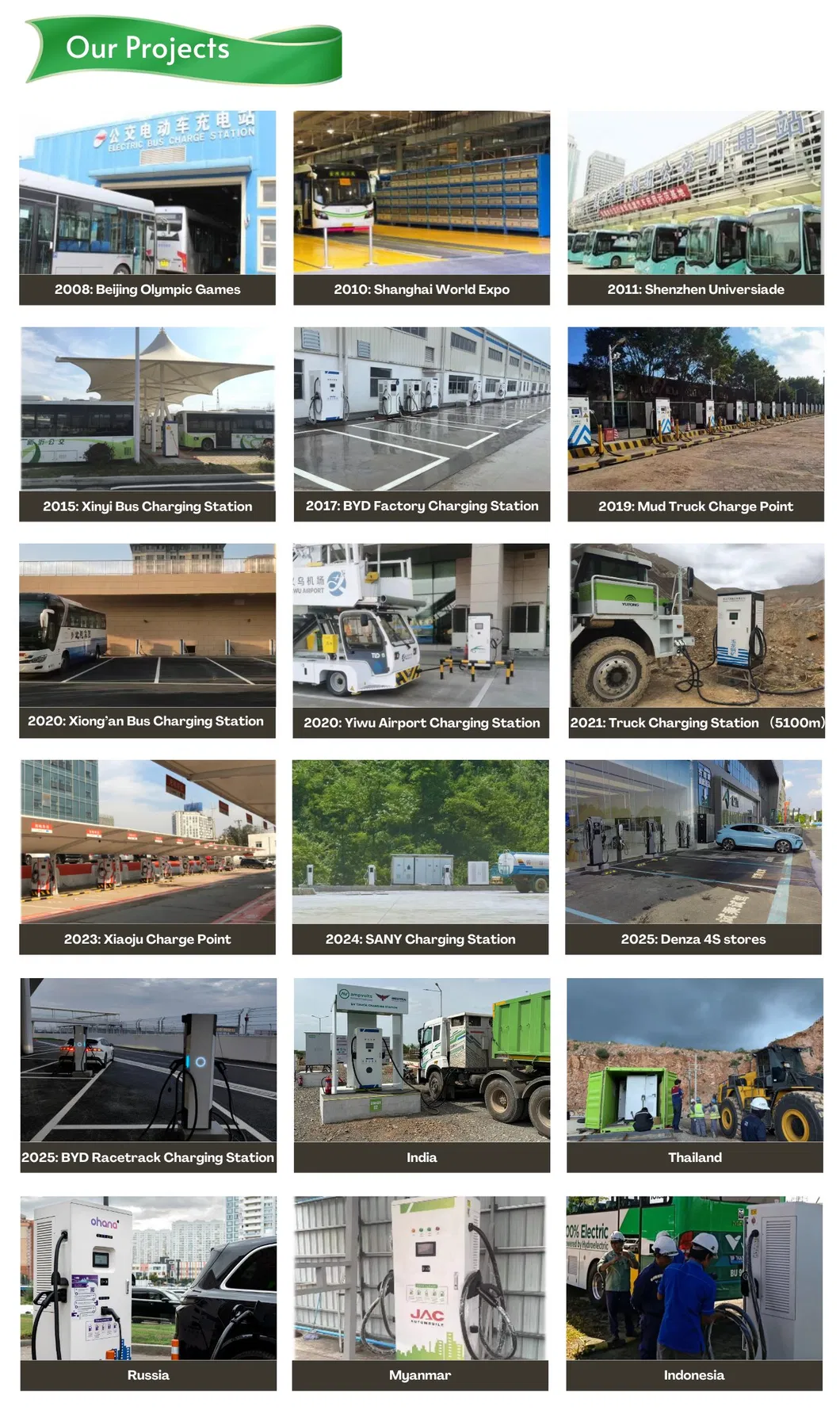

With comprehensive in-house capabilities across hardware, software, and platform development, we provide high-quality charging stations and trusted solutions to clients in over 30 countries worldwide. Our proven track record includes supporting major infrastructure development and international events with innovative and reliable charging infrastructure.
Frequently Asked Questions
How do you ensure product safety during transport?
Each DC fast charger is protected with shockproof and waterproof packaging, and securely placed inside a customized, sturdy wooden crate for ultimate protection during sea or land freight.
What are the standard payment terms?
Our standard terms are a 30% deposit and 70% balance before shipment via T/T.
What is the typical lead time for an order?
Standard production lead time is 25-40 days after order confirmation, depending on the model and quantity. Expedited production can be arranged for urgent projects.
Do you support OEM/ODM customization?
Yes. We offer comprehensive OEM/ODM services, including custom colors, logos, branding, hardware configurations, and software interfaces based on project specifications.
What is your quality control process?

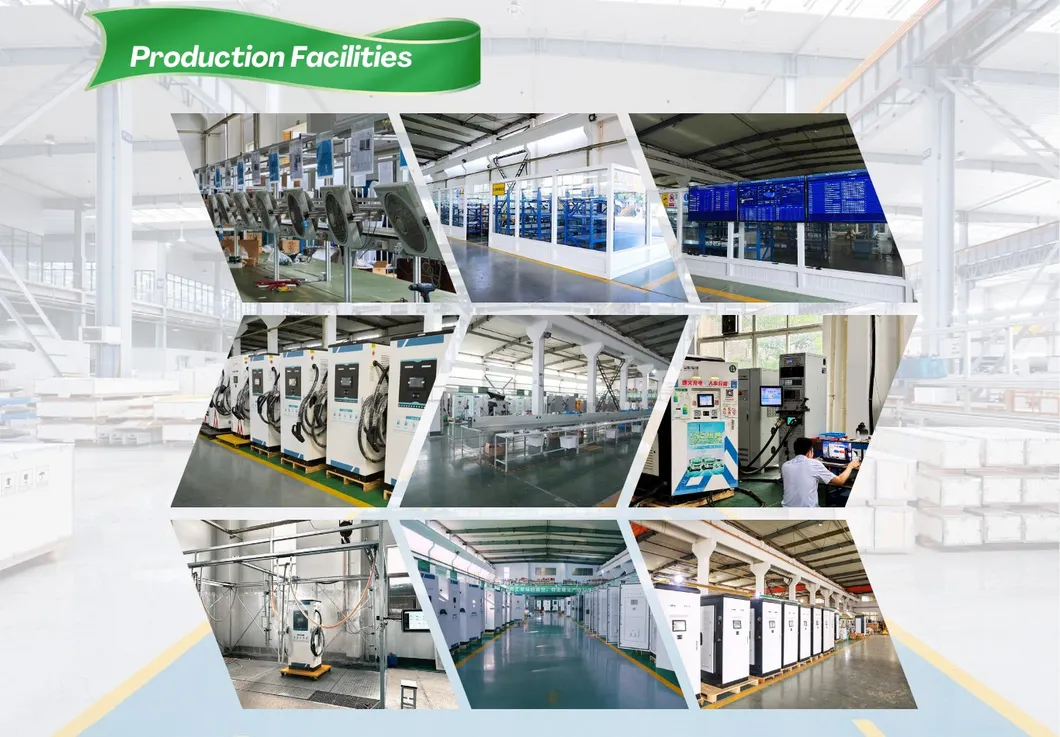

Every single unit undergoes a 100% full-load aging test and functional check before leaving the factory to ensure it meets strict performance and safety standards.
What is the warranty period for the charging stations?
We provide a standard 2-year warranty with optional warranty extensions available for long-term project security.
