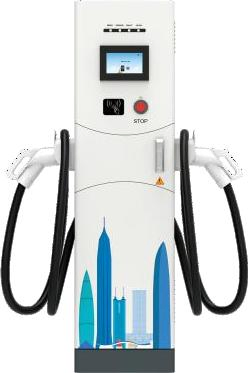

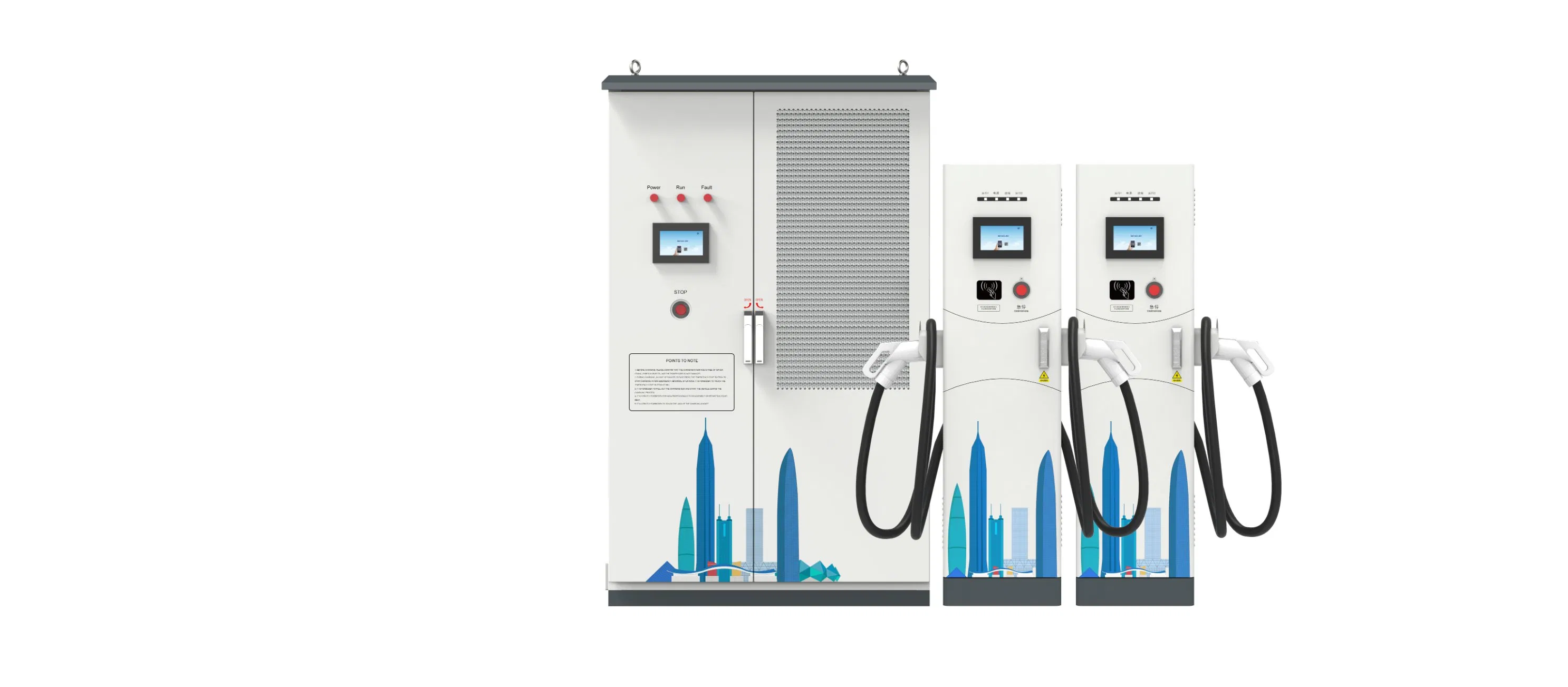

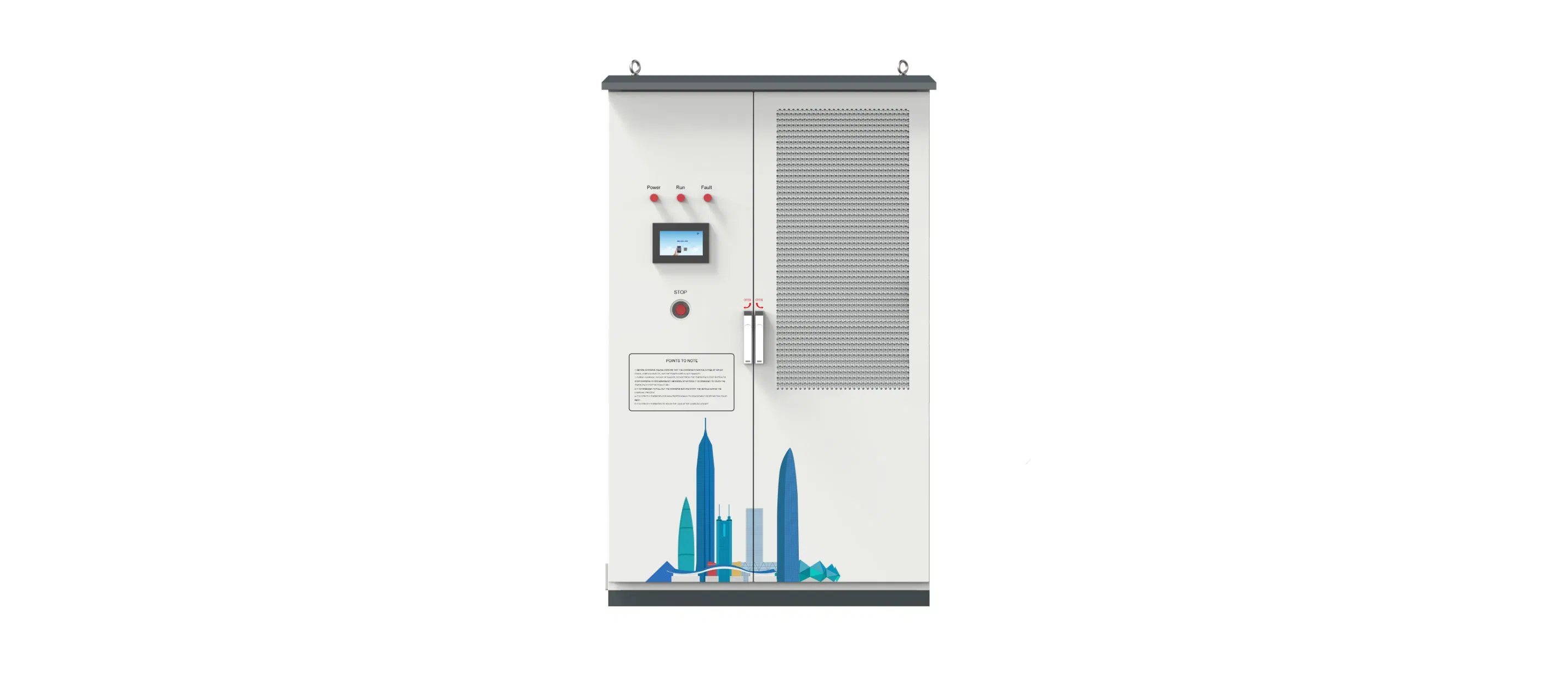

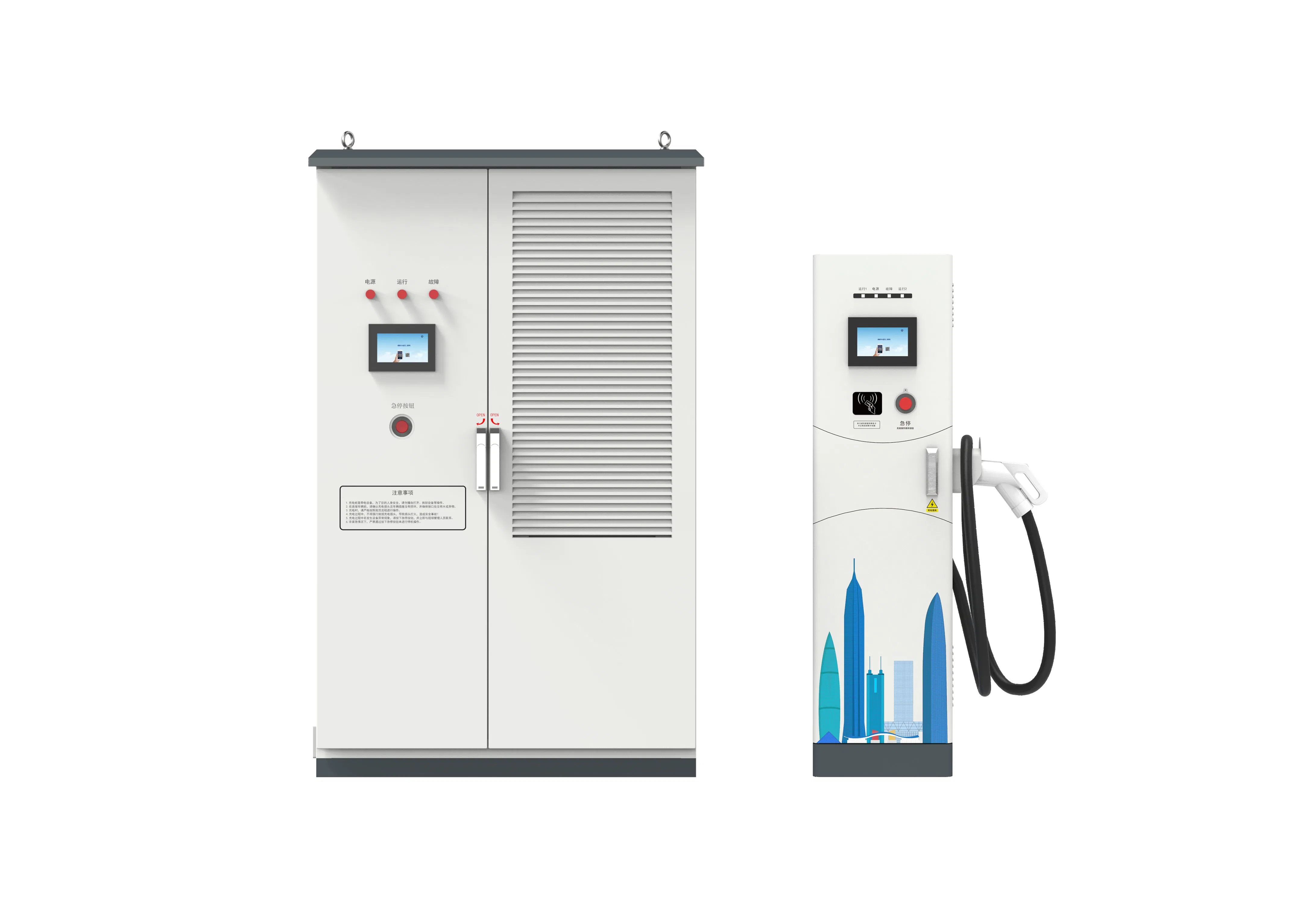

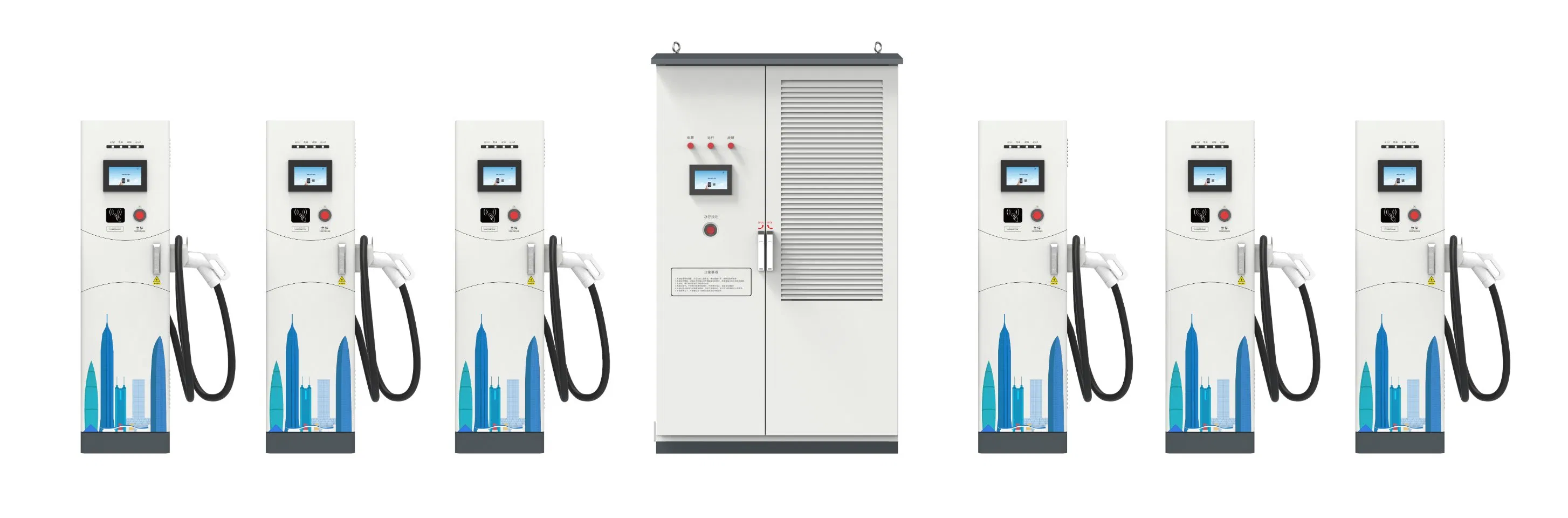

Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
1 / 5
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station
Electric Vehicle Fleet Operator Fast EV Charging Station

Electric Vehicle Fleet Operator Fast EV Charging Station

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
DCF240D, DCF360E, DCF480F
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Display
7 Inch
Input
380V
Output
DC200-1000V
UI Language
English, Russian, Japanese, Turkish, German, etc.
Specification
750*1200*1980mm

Product Highlights

✓
Simple operation and convenient installation for various sites.
✓
Friendly interaction interface with a 7-inch color touch screen.
✓
Multiple modes of charging, operation management, and payment support.
✓
Advanced connectivity: 3G/4G, Ethernet, or wireless telecommunication.
✓
Full compatibility with CCS-2, CCS-1, CHAdeMO, and GB/T connectors.
✓
Comprehensive integrated protection against overload and electrical faults.

Technical Parameters

NO. Parameters Requirements
1 EV Charger Type DC Fast Charger
2 Charger Capacity 360KW 480KW
3 AC Supply System Three-Phase, 5 Wire AC system
4 Input Voltage AC380V±15%
5 Temperature Range -25 to 55°C (Operating) / -40 to 70°C (Storage)
6 IP Ratings IP 54
7 Max Output Current 200 Amp (Single Output)
8 Safety Standards IEC 62196, IEC 61851, SAE J1772, CHAdeMO

Product Showcase

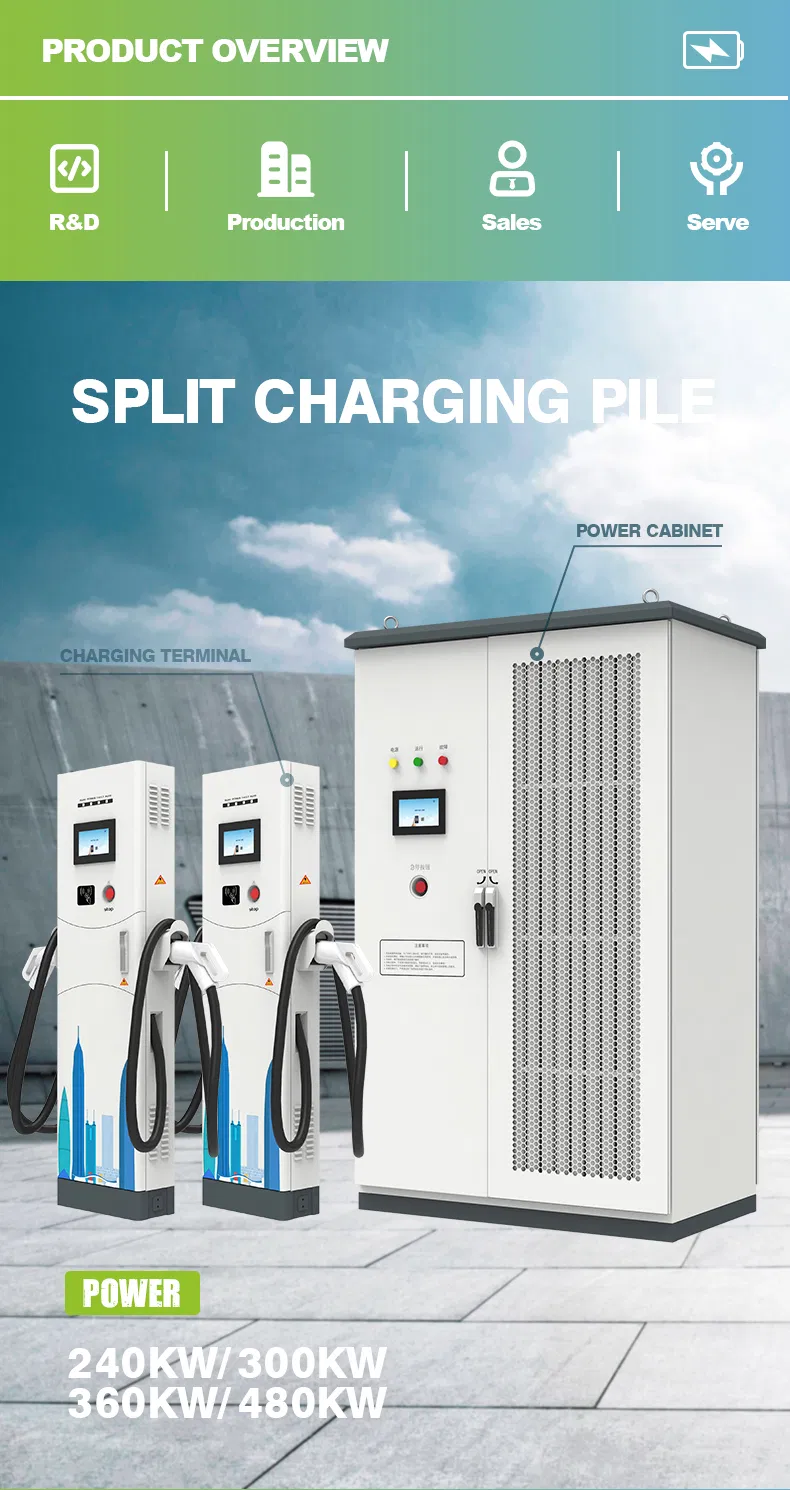

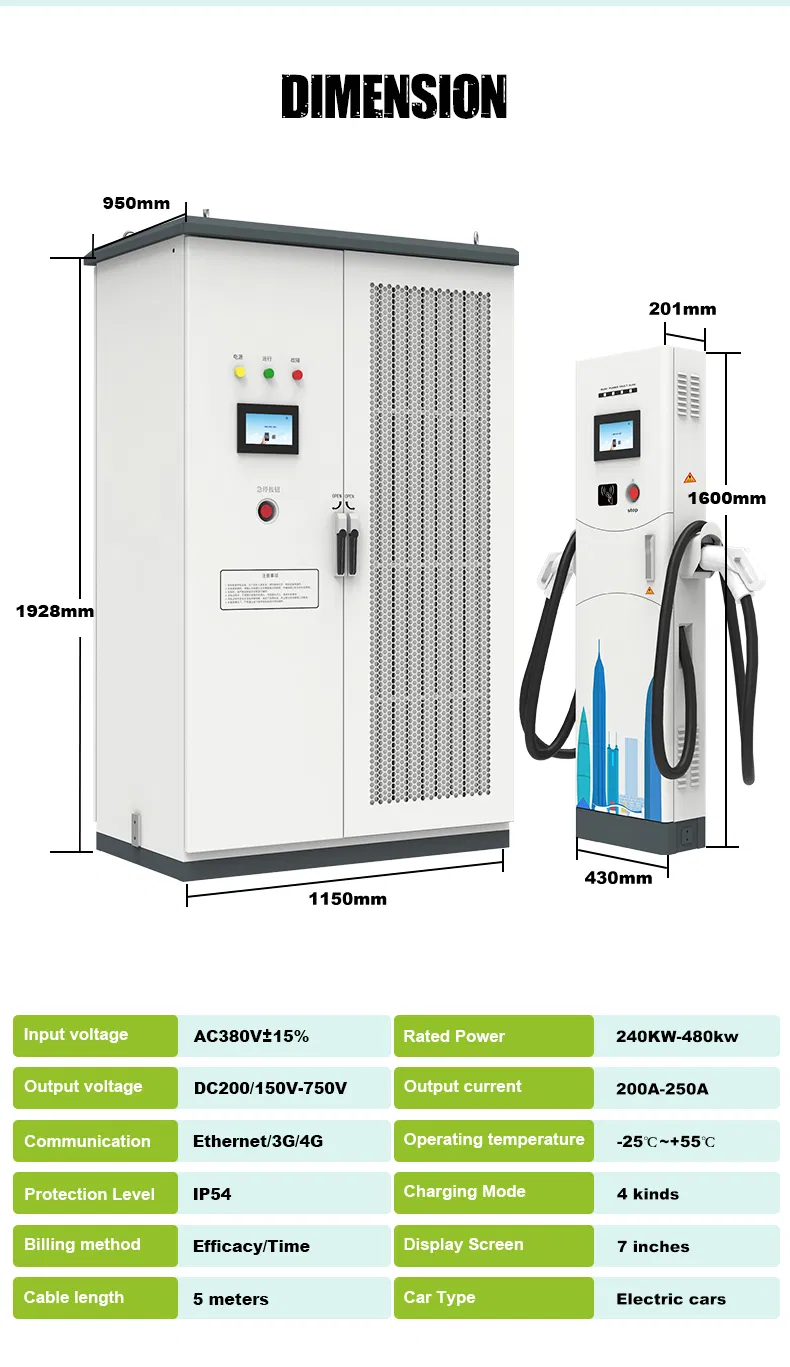

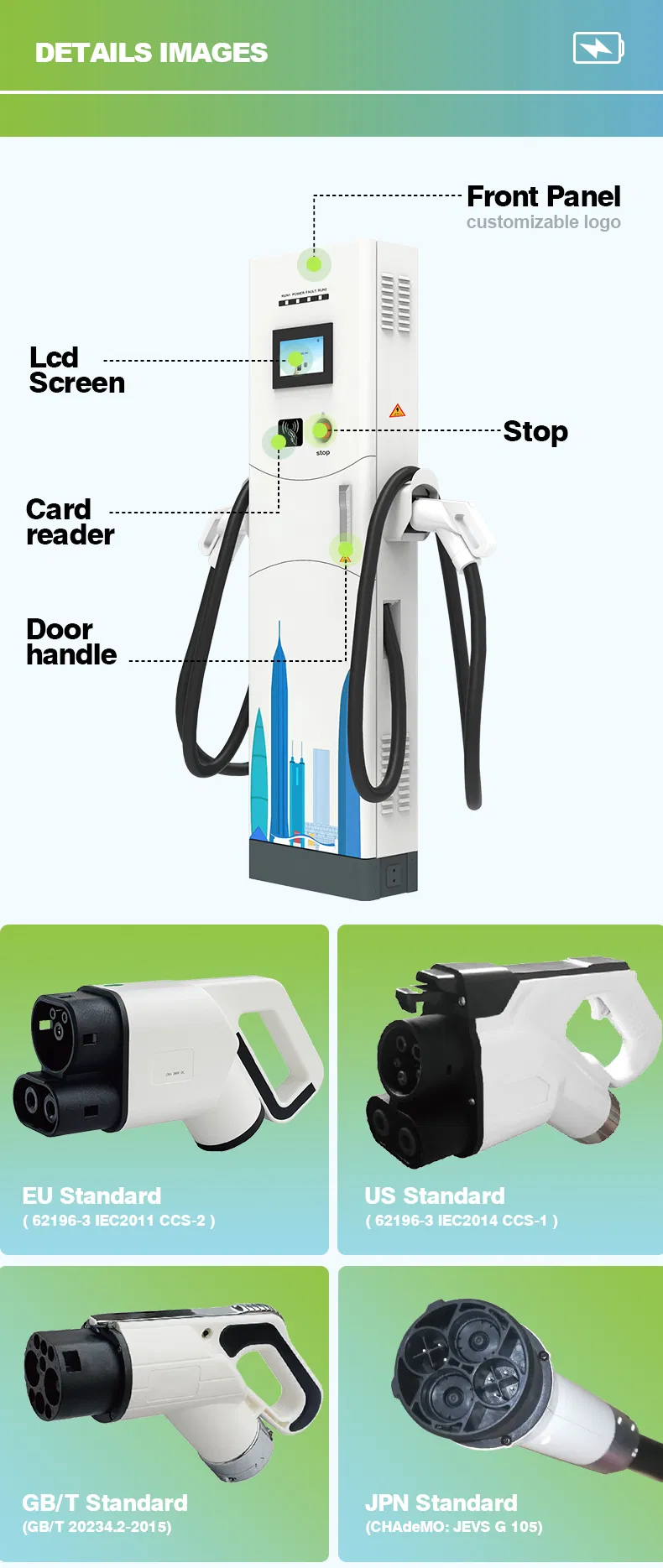

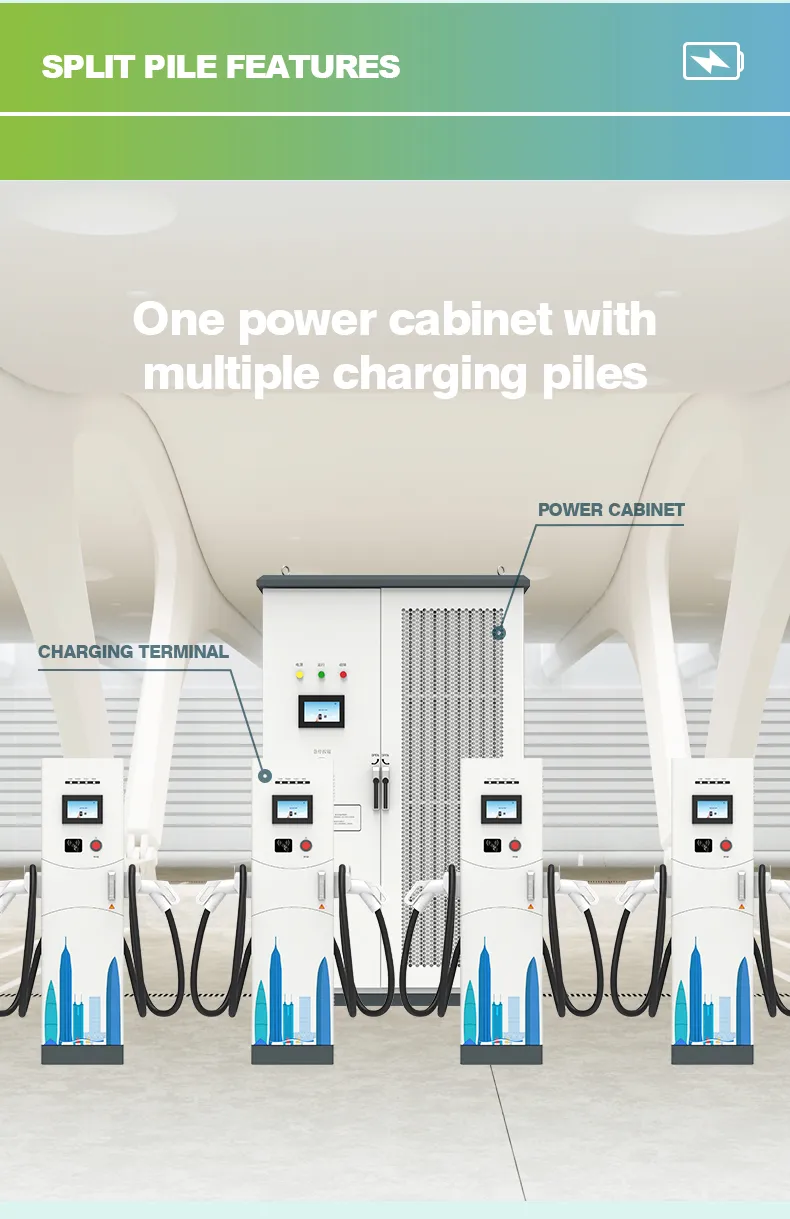

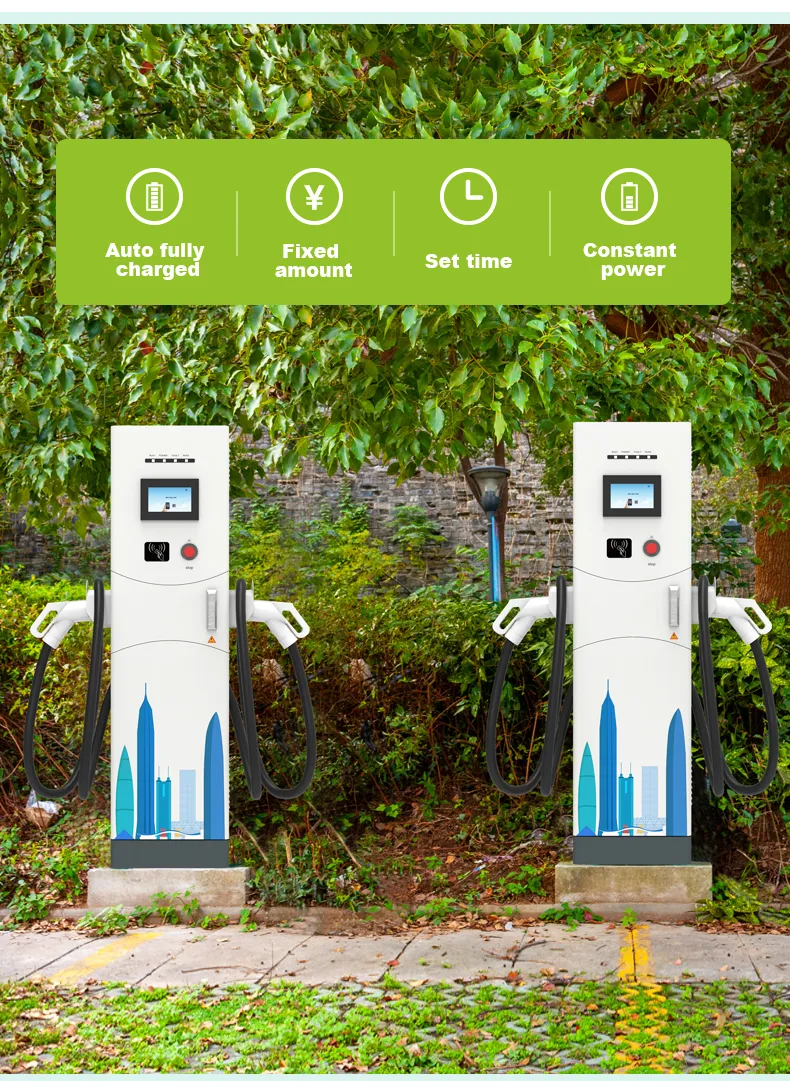

Fast EV Charging Station 1 Fast EV Charging Station 2 Fast EV Charging Station 3 Fast EV Charging Station 4 Fast EV Charging Station 5 Fast EV Charging Station 6

Frequently Asked Questions

What types of connectors does this charger support?
The station supports multiple standards including CCS-1, CCS-2, CHAdeMO, and GB/T (optional socket or connector).
Is the charging station suitable for outdoor installation?
Yes, it features an IP54 rating, making it resistant to dust and water splashes, suitable for outdoor public use.
How can users authenticate and start a charging session?
Users can authenticate via RFID cards, mobile applications, QR code scanning, or password login through the touch screen.
Does the station support remote management?
Absolutely. It supports the OCPP 1.6J protocol and connects via Ethernet, 4G, or Wi-Fi for remote operation and data monitoring.
What safety protections are integrated into the system?
The system includes comprehensive protection for over-current, under-voltage, surge, short circuit, leakage, and over-temperature scenarios.
