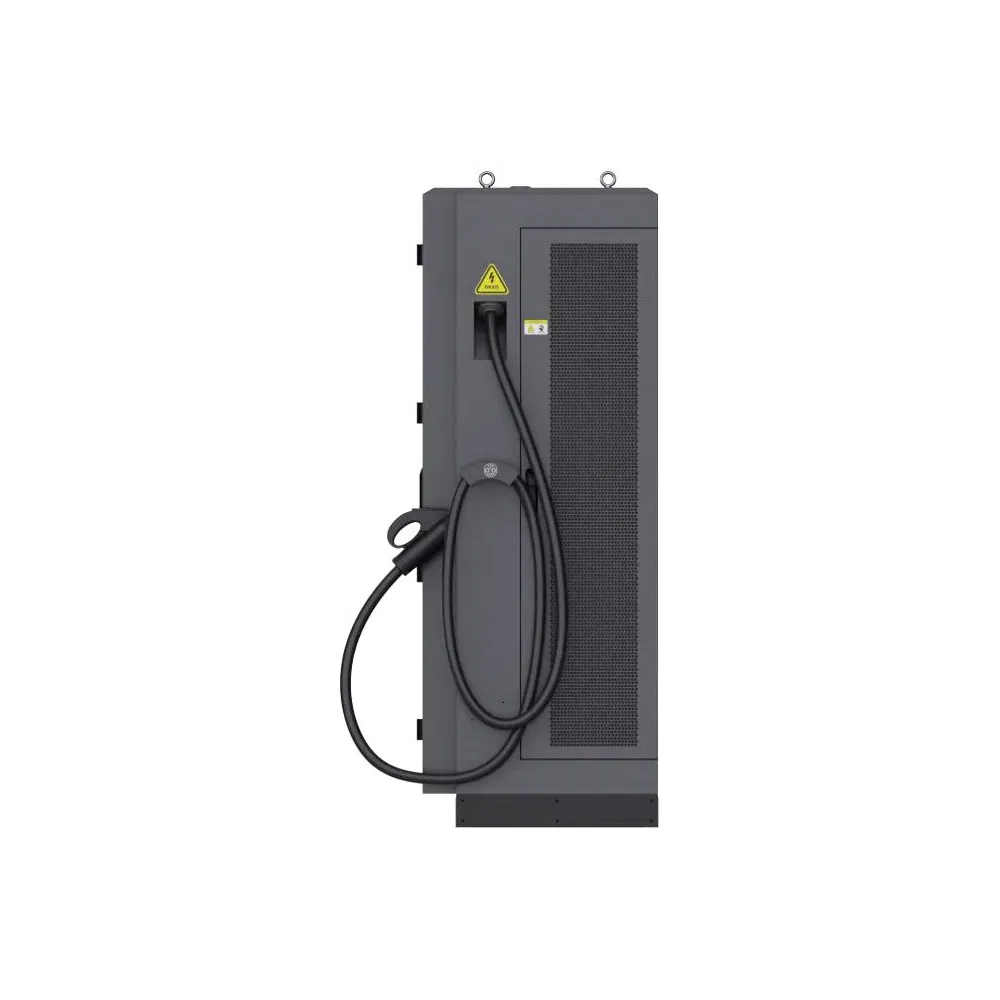

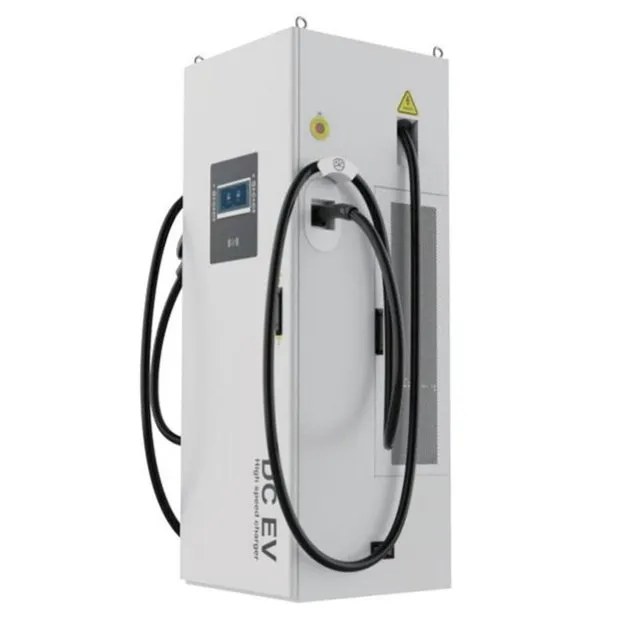

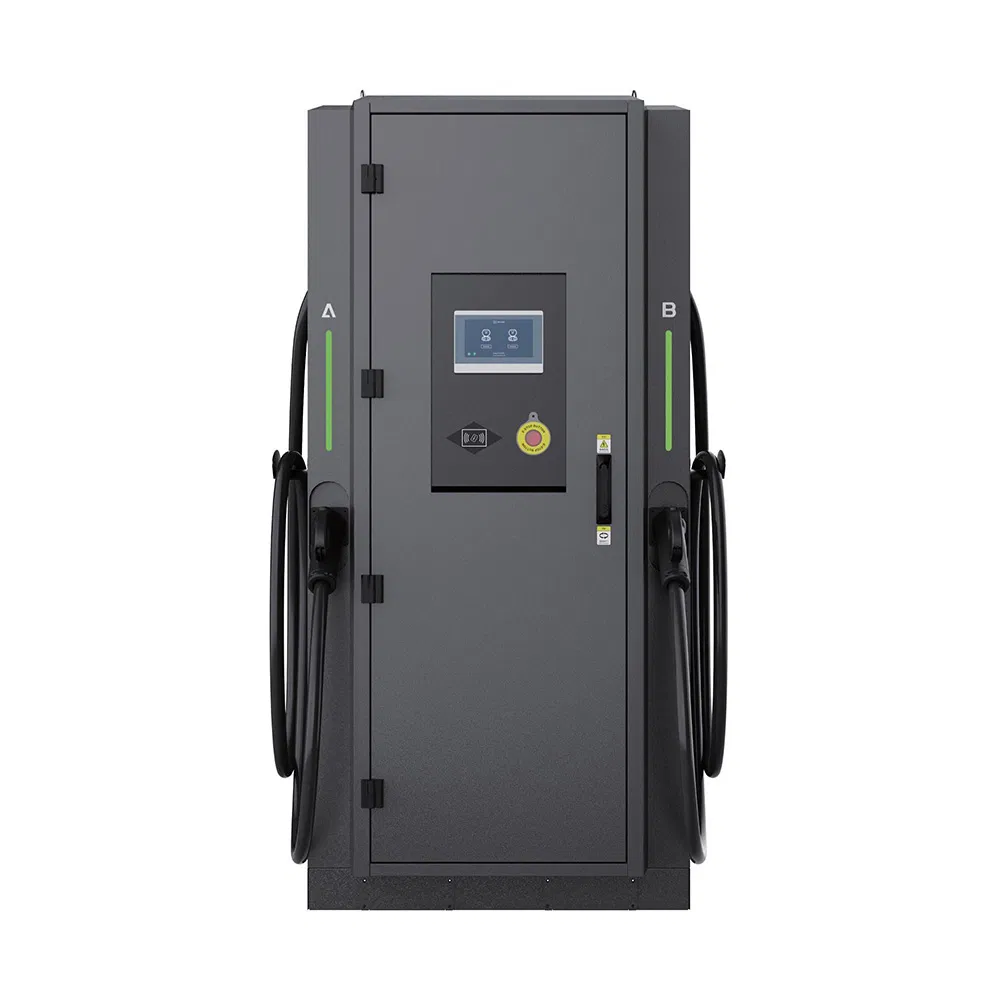

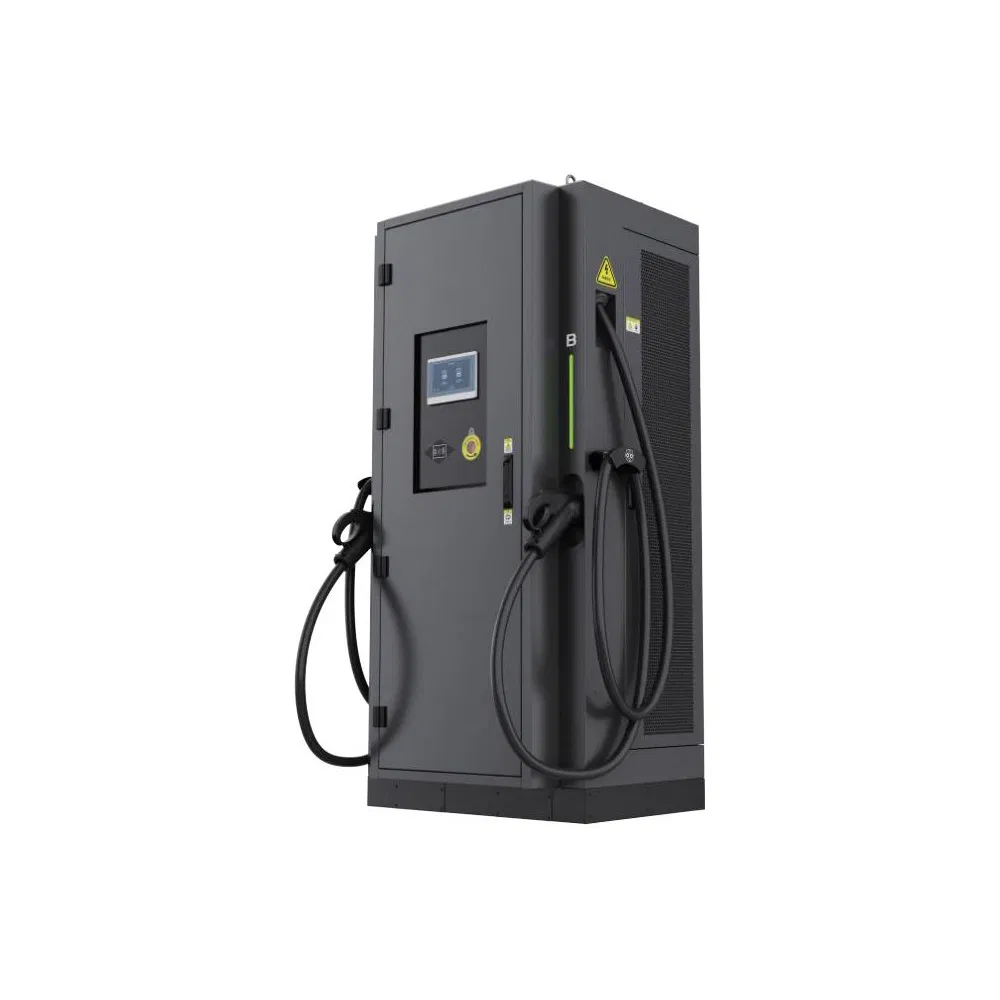

240-400kW Series DC EV charger
This series of DC charging piles boasts a rugged design and can be scaled up to 320kW (liquid cooled DC electric car charging pile 400KW). The charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles. Equipped with an advanced control system and communication module, it supports intelligent scheduling, remote monitoring, and fault diagnosis.
| Category | Specifications | Data Parameters |
| Appearance | Dimensions | 900mm x 700mm x 1900mm |
| Weight | 400kg | |

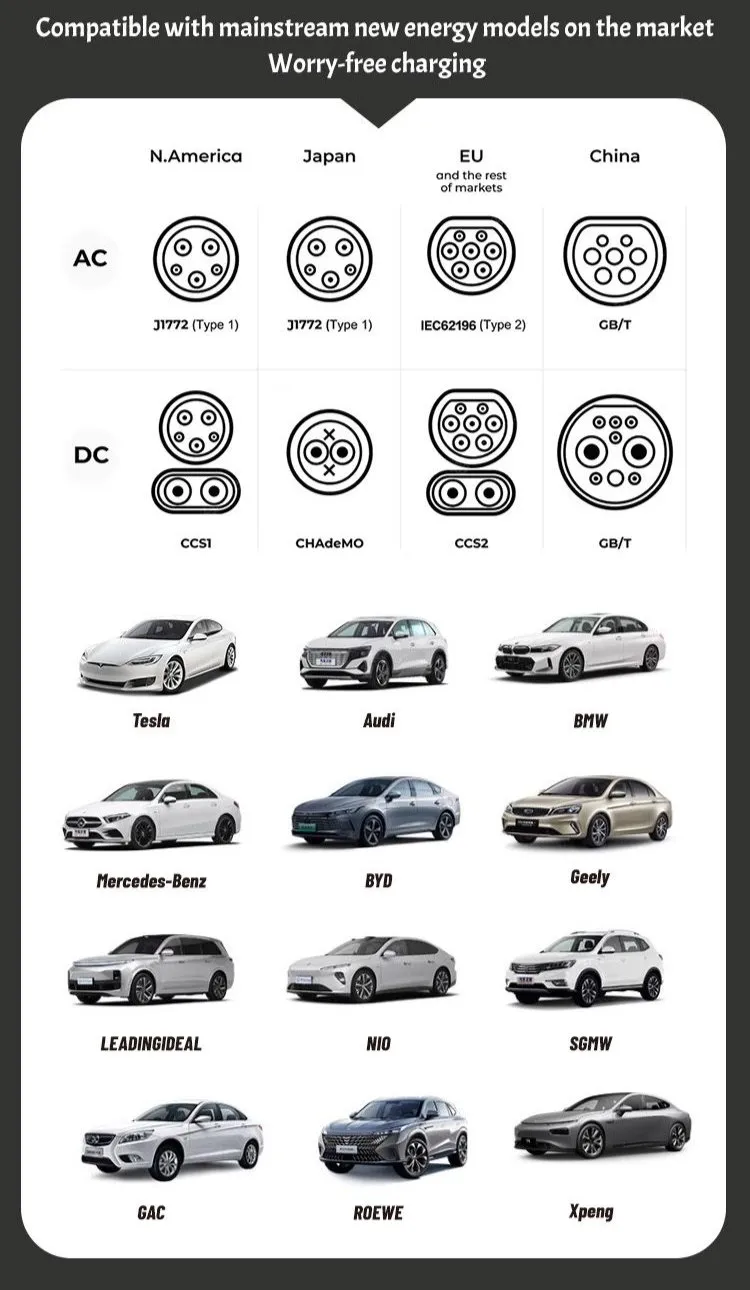

| Connectors | CCS1, CCS2, CHAdeMO, GBT, NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 240-400kW | |
| Efficiency | ≥94% at nominal output power | |
| Environment | Operating Temp | -30 °C to 55°C |
| Protection | IP54 || IK10 |

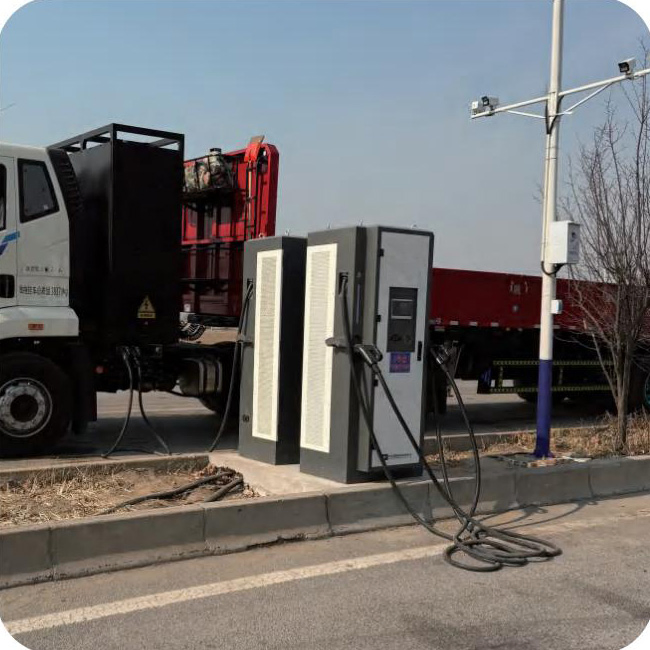

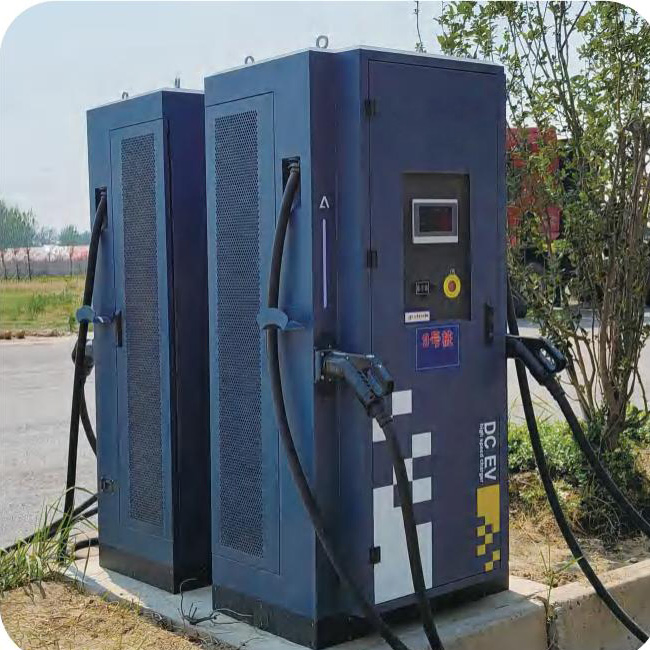

Public Charging Piles: Set up in urban parking lots, gas stations, and commercial centers.
Highway Charging Stations: Providing fast charging for long-distance EVs.

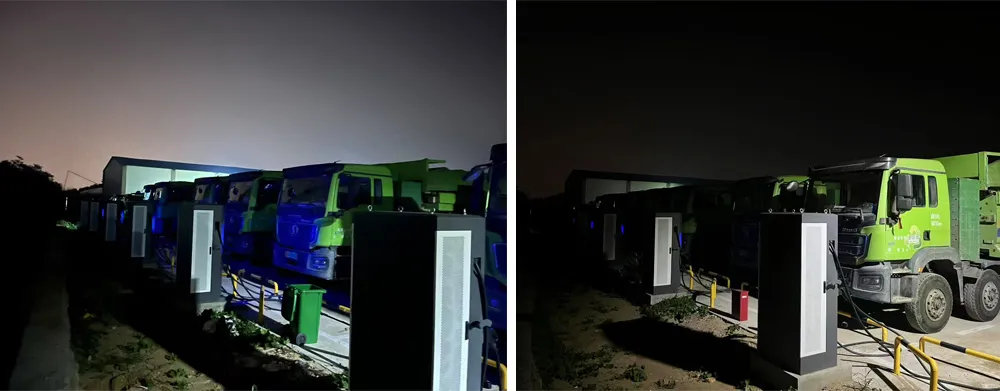

Logistics Parks: Dedicated charging for logistics fleet operations.
Enterprise Internal Use: Charging services for employees and customers at office buildings.
