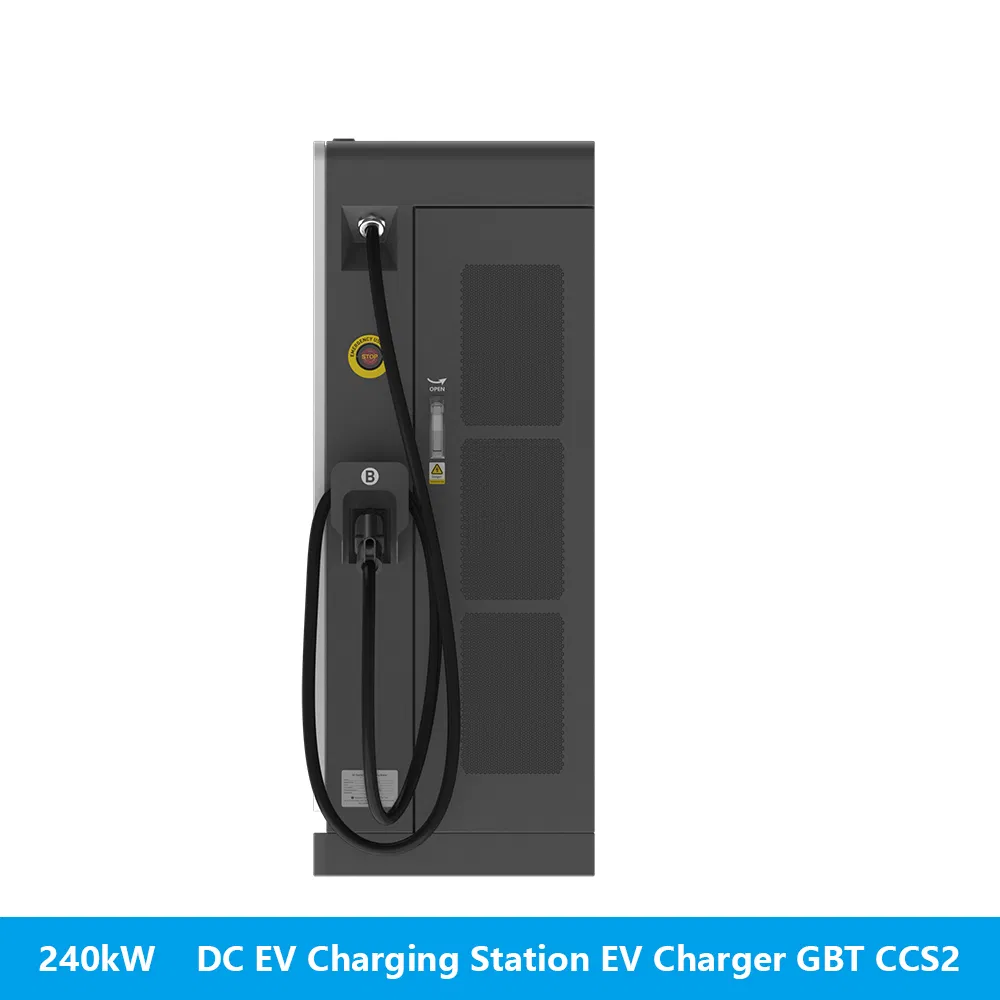

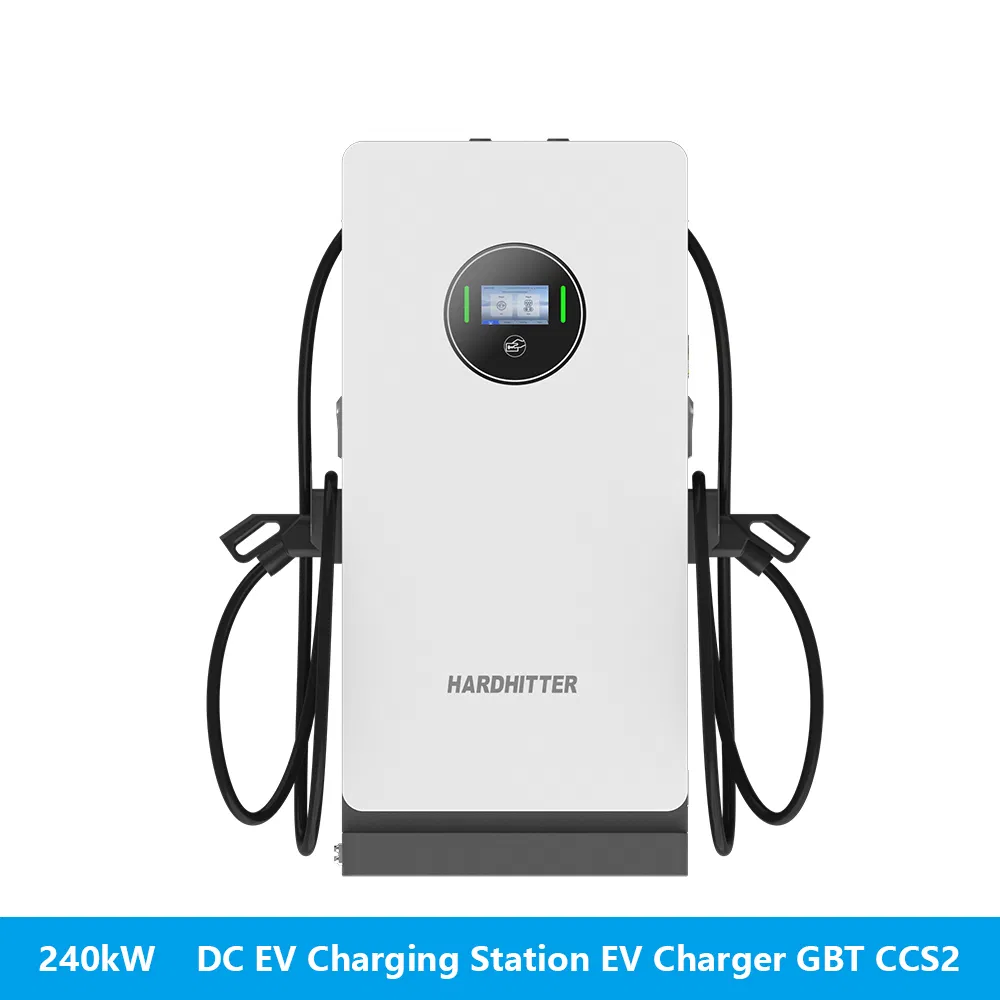

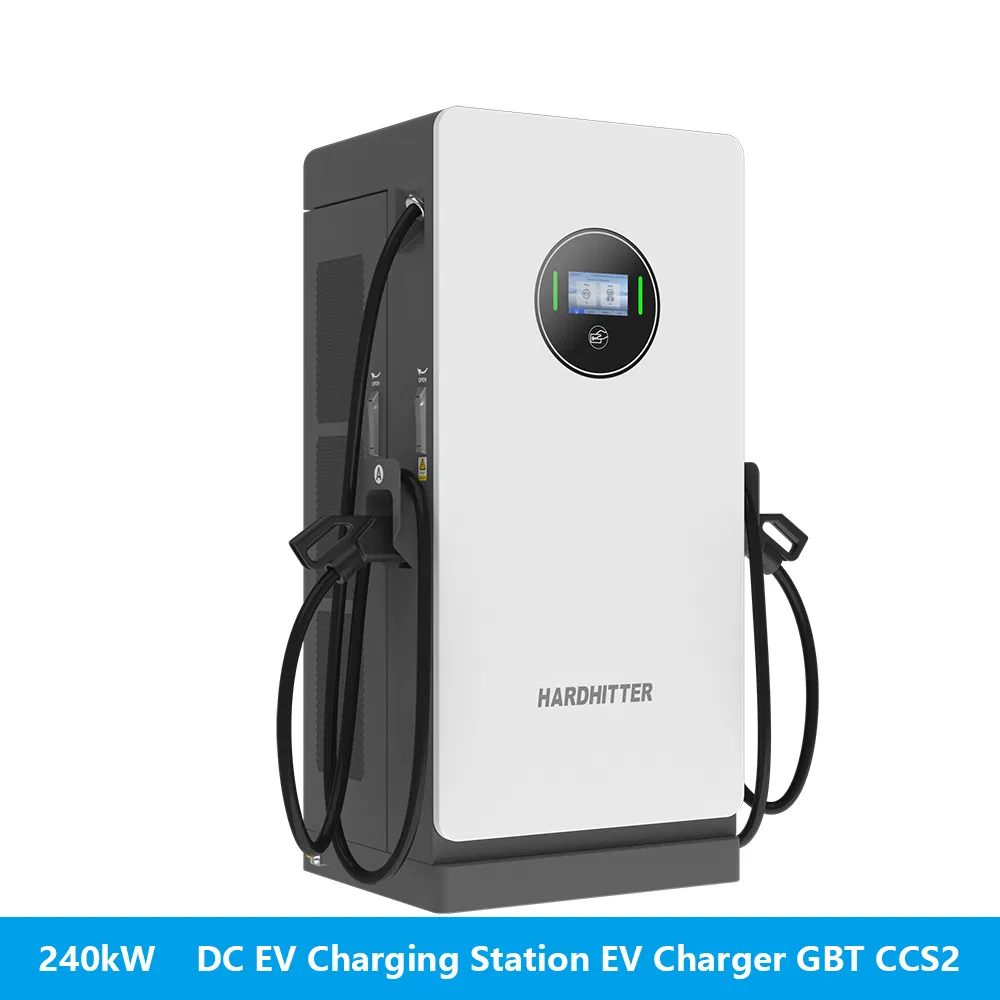

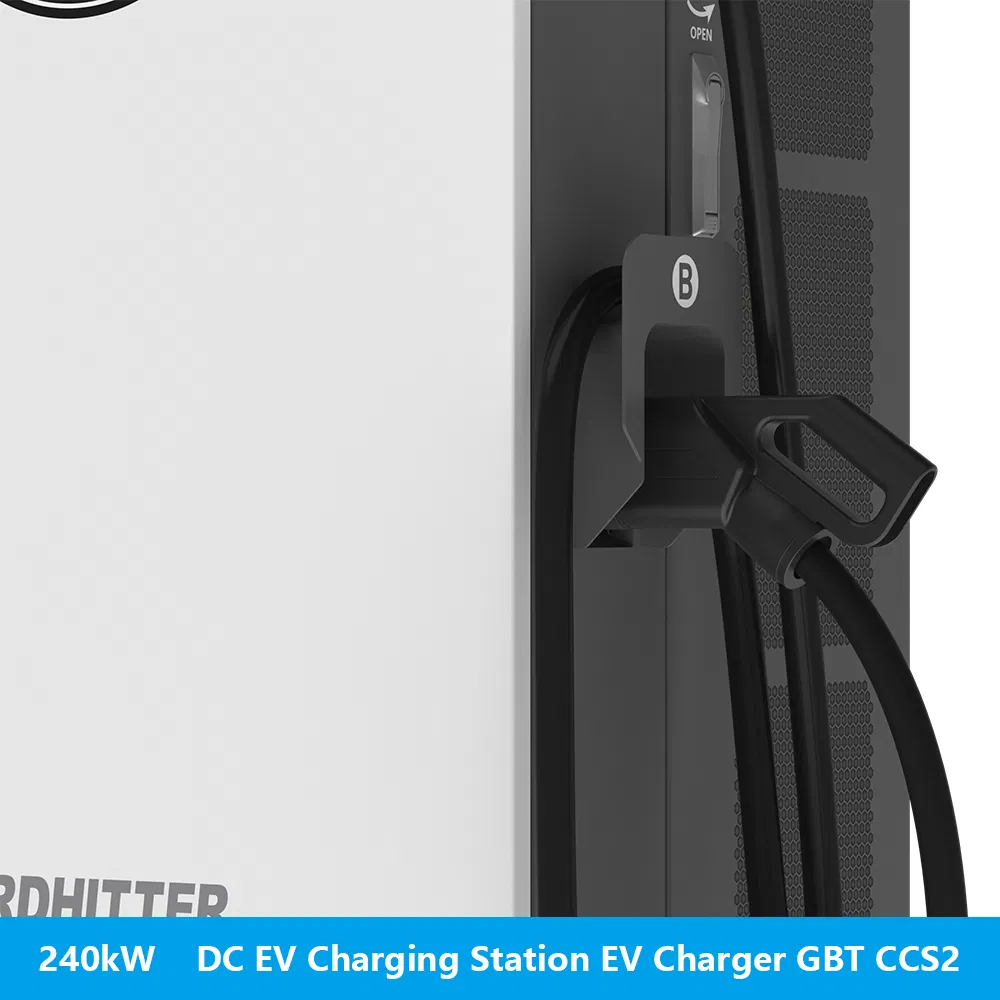

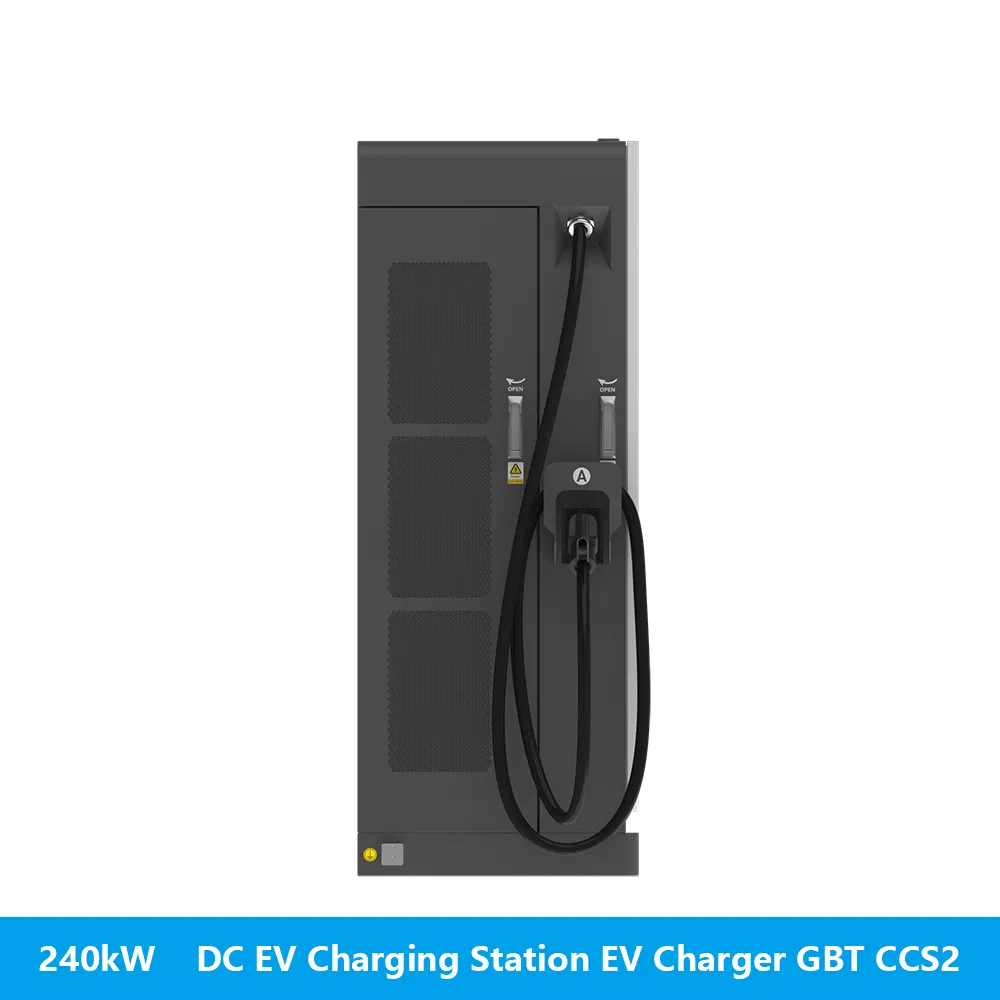

One Pile with Dual Guns Level 3 240kw DC EV Charger

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.HQC23-240/1000/500-Y02-EE
InstallationFloor Type
Charge MethodQuick Charge
Rated Power240kw
Output Voltage150-1000V DC
Max. Output Power240kw (Single Plug)
Charging PointCCS2/Gbt
MaterialSheet Metal Spraying
Communications ProtocolOcpp
Cable Length5m or Customized
ConnectivityEthernet/4G/WiFi
DisplayTFT Color Touch Display 7”
Protection DegreeIP55
Environment Temperature-40~+60 Degrees Celsius
CertificateCE

Packaging & Delivery

Package Size135.00cm * 160.00cm * 200.00cm
Package Gross Weight528.000kg
Lead Time15 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)

Product Parameters

Input Characteristics
Input Voltage400V±15% AC
Input Frequency50/60Hz
Input Amps/per phase200A
DC Output Characteristics
Charging modeMode 4
Output voltage150-1000V DC
Max output current0.5~200A DC
Efficiency≥ 95% (Full load)
Protection
Safety FeaturesOver/Under voltage, Over load, Short circuit, O-PEN, Over-temp, Surge, TypeA RCBO
Working Environment
Mechanical impactIK08
Noise emission<65db

Main Features

High-efficiency dustproof mesh with IP55 protection. Fully glue-pouring power module for high system reliability.
Supports GB/T and CCS2 charging interfaces which can be freely combined.
7-inch true color touch screen, integrated card reader and optional POS machine support.
Multiple startup methods: QR code, RFID card, Plug & Play, button start, and remote scheduling.
Supports dual gun charging for one vehicle simultaneously, ideal for buses and heavy truck vehicles.
Front door maintenance design allows for installation against the wall to save space.
Production Facility Charging Station Installation Technical Specifications Overview

Frequently Asked Questions

How about your lead time?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products have quality certification?
Yes, we have a strict quality control system. Our EV charging products have passed CE and TUV certifications to ensure the best quality.
How long is the warranty?
The warranty for our products is 12 months upon the receipt of your shipment under normal circumstances.
Can you provide customized services?
Yes, we have been involved with OEM and ODM projects since 2012 and can provide professional customized services for our clients.
Can this charger charge all electric vehicles on the road?
Yes, our EV chargers work with all electric vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to work with our systems.
Does the charger need an app or internet connection?
We offer both standalone models (using RFID cards or plug-and-play) and Wi-Fi connected models that work with Apps and any OCPP 1.6j application.
