Volt Charger
1 / 5

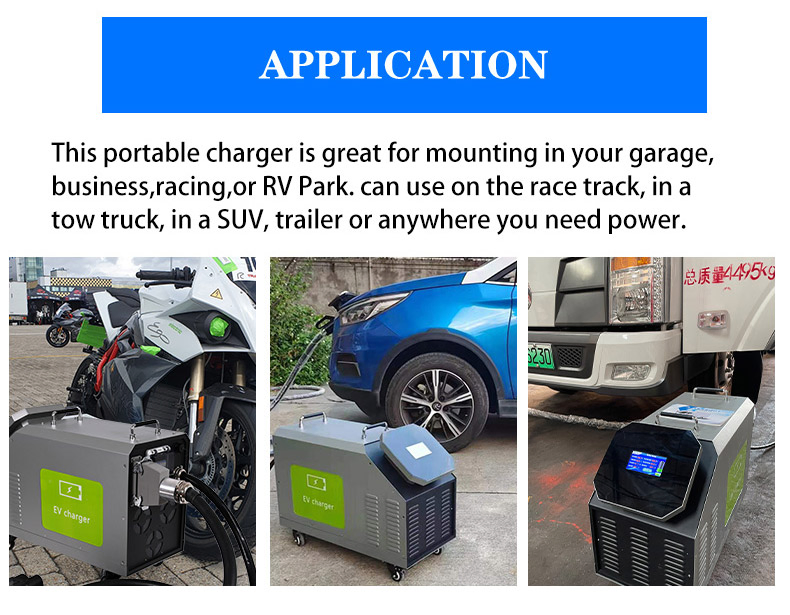

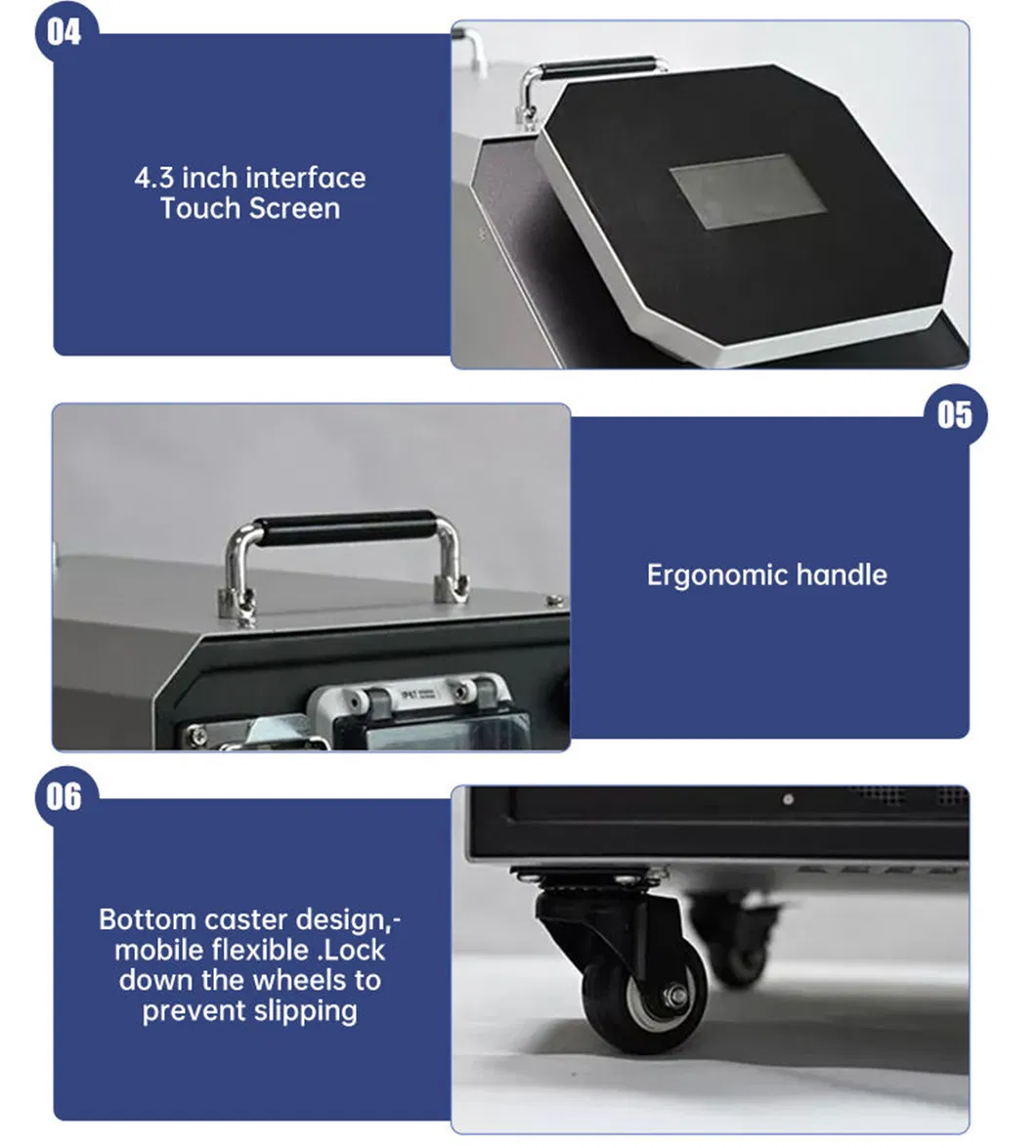

This portable charger is designed for flexibility and high performance. With an input voltage of 380V from the grid, it allows for efficient EV charging anywhere. It features an intelligent control module, lightning protection, and a user-friendly interface.
| Parameter Item | Specification (30KW) | |
|---|---|---|
| AC Input | Input Rating | 380Vac±10% |
| Connection | 3P + N + PE | |
| Frequency | 50 / 60 Hz | |
| Efficiency | 95% | |
| DC Output | Voltage Range | 200-750Vdc |
| Max Current | 100A | |
| Environment | Operating Temp | -40~85ºC |
| Altitude | 2000m | |
| Mechanical | Dimension | 570×190×350mm |
| Weight | 58KG | |
