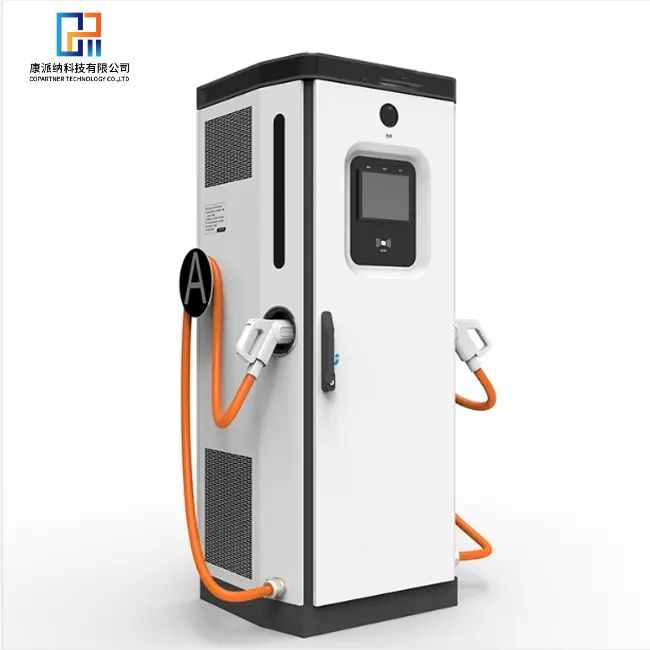

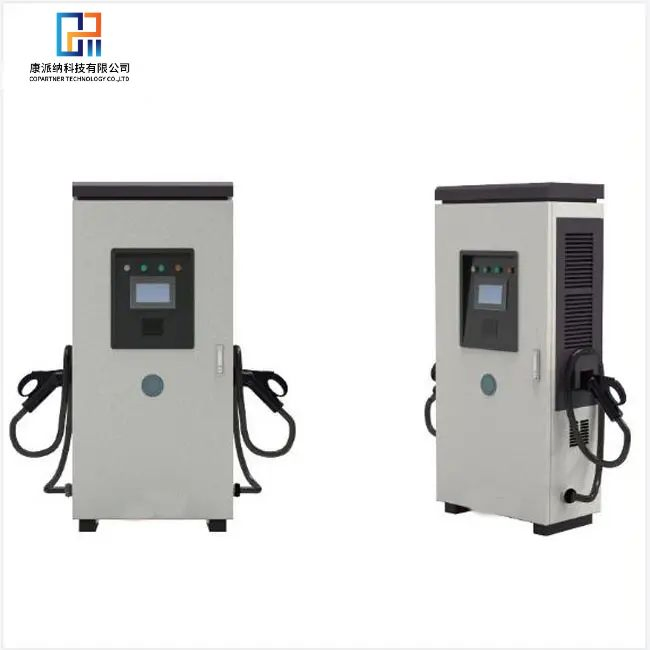

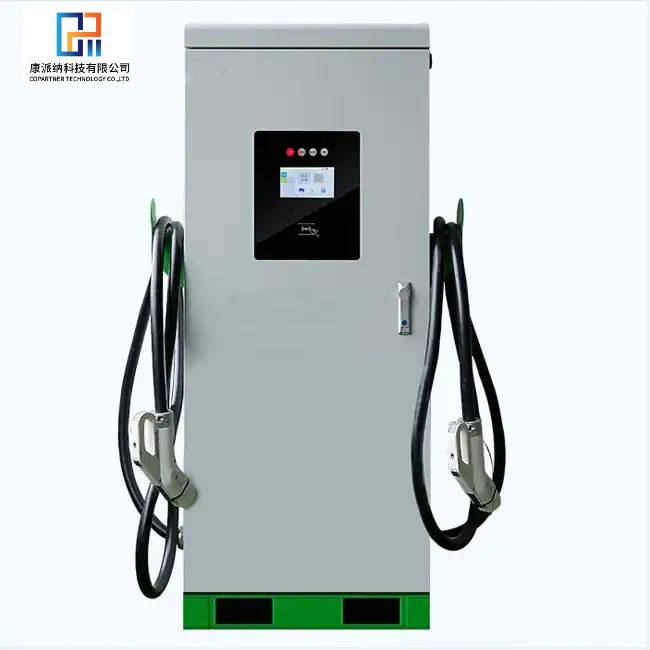

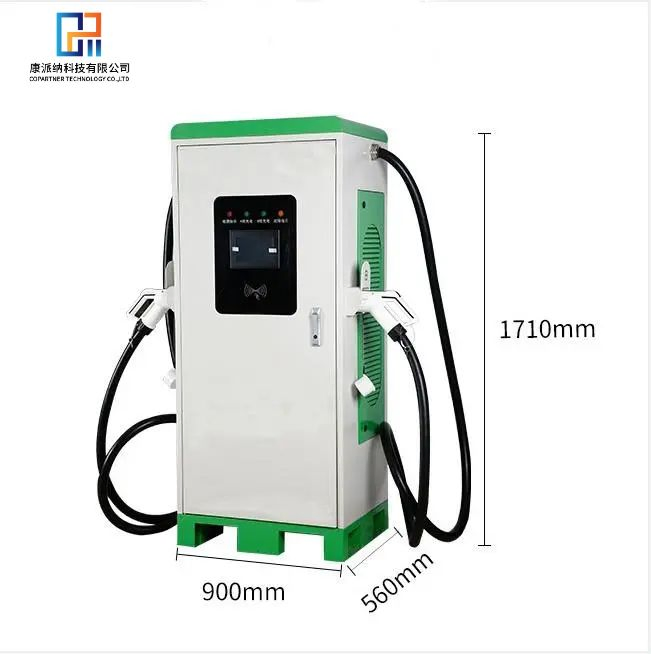

CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
1 / 5
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station
CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station

CE Approved Smart EV DC Charger 60kw-160kw DC Level 3 Fast Charging Station Three Phase for Gas Station

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
📍
Installation:
Floor Type
⚡
Charge Method:
Quick Charge
🌡️
Temperature:
-40°c ~ +60°c
🛡️
Protection:
IP55
📏
Cable Length:
Car: 4.5m / Bus: 6m
📦
Dimensions:
800*500*1700mm
🌍
Origin:
China
📊
HS Code:
8504409999
CE Approved Smart EV DC Charger (60KW-160KW)
Level 3 Fast Charging Station - Three Phase for Gas Stations & Commercial Use
Model CEVDC60kW CEVDC80kW CEVDC120kW CEVDC160kW
DC Output (Single) CCS: 60kW, CHAdeMO: 60kW CCS: 60kW, CHAdeMO: 60kW CCS: 120kW, CHAdeMO: 60kW CCS: 160kW, CHAdeMO: 60kW
Simultaneous Charge CCS: 40kW, CHAdeMO: 40kW CCS: 40kW, CHAdeMO: 40kW CCS: 60kW, CHAdeMO: 60kW CCS: 80kW, CHAdeMO: 80kW
Output Voltage CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Output Current CCS: 0 - 400A, CHAdeMO: 0 - 125A
Input Voltage 400Vac +/-10%, 50/60Hz, 3-phase + N + PE
Dimensions (H*W*D) 1880*580*750mm
Protection Class IP55 / Air Cooling
User Interface 7" LCD Display Touch Screen
Communication CAN, 485, 4G or Ethernet / OCPP 1.6J
Standards IEC 62196, IEC 61851, ISO/IEC 15118, DIN SPEC 70121

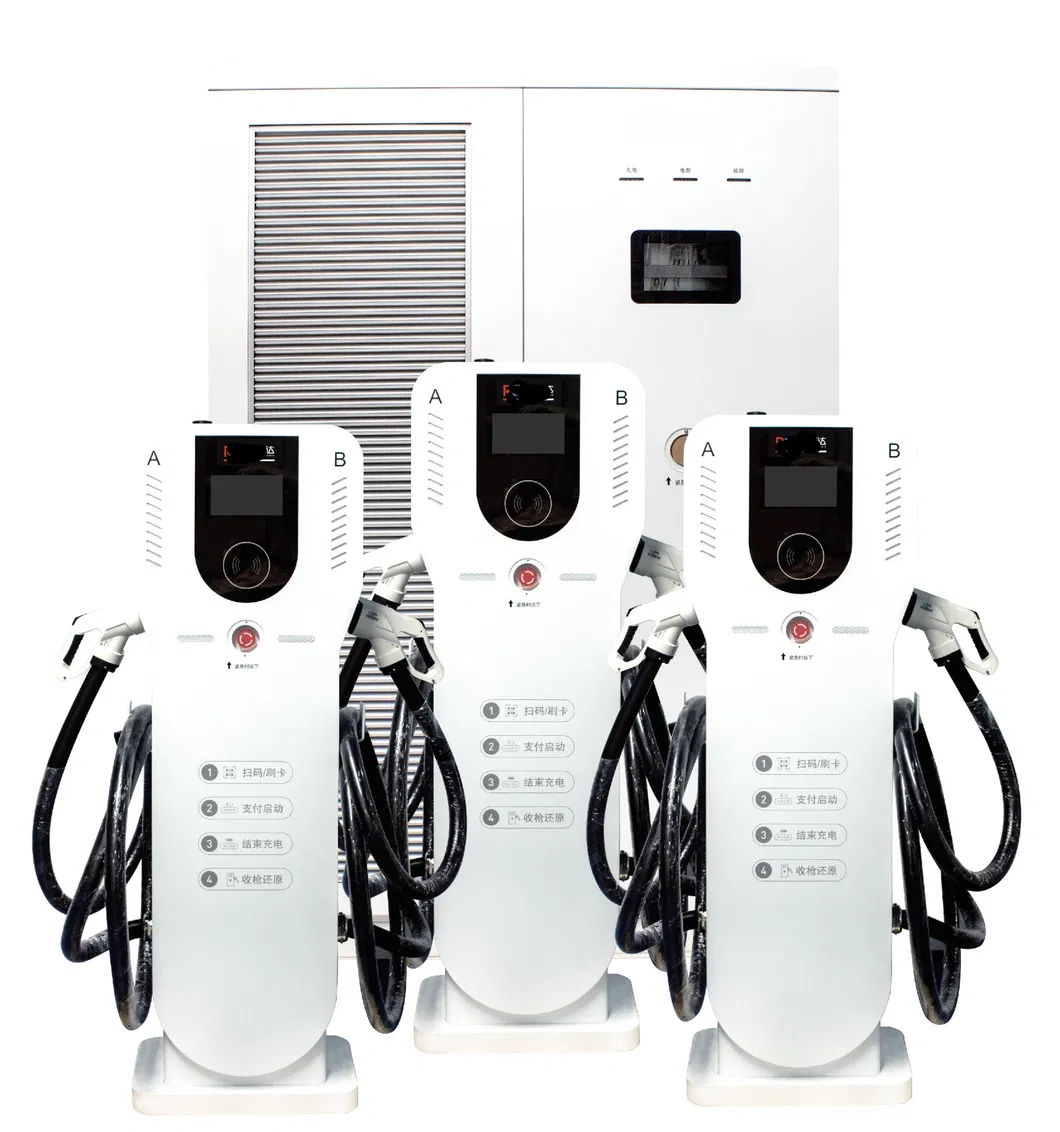

Smart EV DC Charger Main View

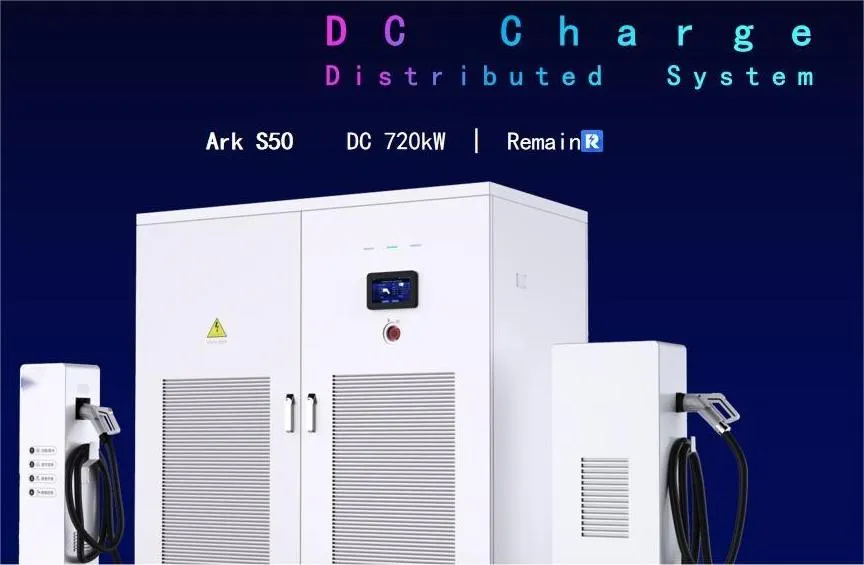

EV DC Charger Details 1
EV DC Charger Details 2
EV DC Charger Details 3

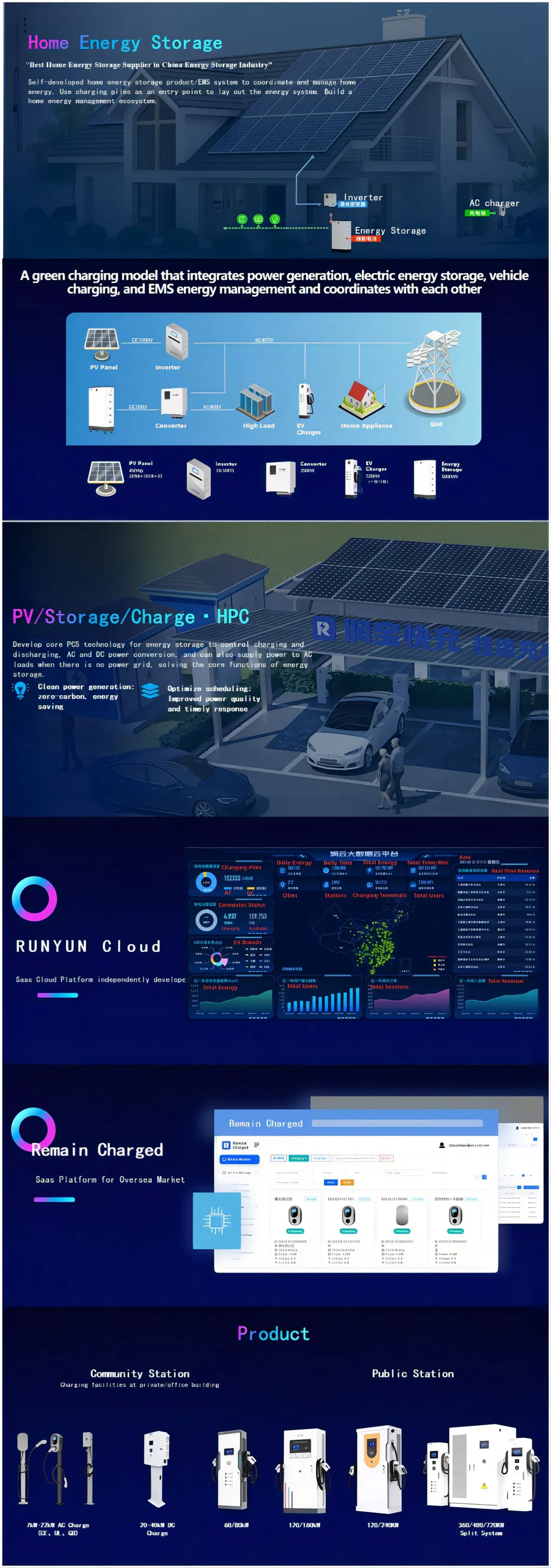

Internal Structure and Components
Connector Details
Application Scenario 1
Application Scenario 2

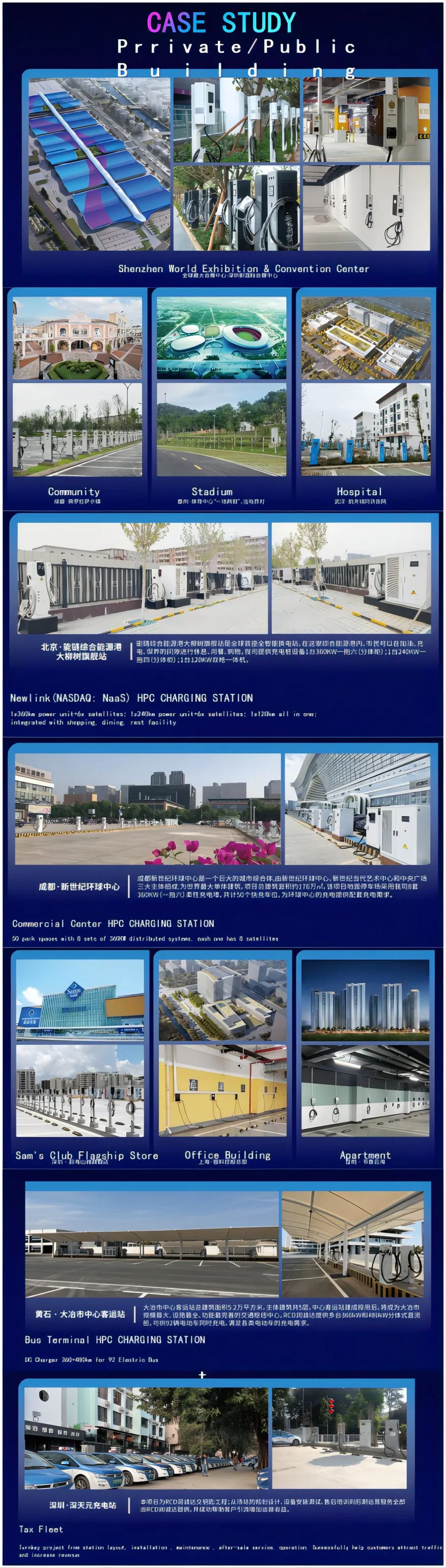

Product Full Dimensions and Features
Frequently Asked Questions
1. What power range does this Level 3 DC fast charger support?
This station supports a wide power range from 60kW to 160kW, making it suitable for both passenger cars and heavy-duty vehicles like electric buses.
2. Can it charge two vehicles at the same time?
Yes, it supports double-gun simultaneous charging (CCS2/CHAdeMO). It intelligently distributes power to ensure both vehicles are charged efficiently.
3. Is this charging station suitable for outdoor installation?
Absolutely. With an IP55 protection rating and an operating temperature range of -40°C to +60°C, it is designed to withstand harsh outdoor environments and extreme weather.
4. Which charging standards are compatible with this device?
The charger is fully compliant with international standards including IEC 62196, IEC 61851, ISO/IEC 15118, and DIN SPEC 70121, covering CCS and CHAdeMO connectors.
5. Does it support remote management and monitoring?
Yes, it features OCPP 1.6J protocol support via 4G or Ethernet, allowing operators to monitor charging status, manage payments, and perform remote diagnostics.
6. What user interface features are provided for drivers?
Drivers can interact with a 7-inch LCD touch screen that supports multiple charging modes: automatic charge, charge by amount, charge by power, or charge by set time.
