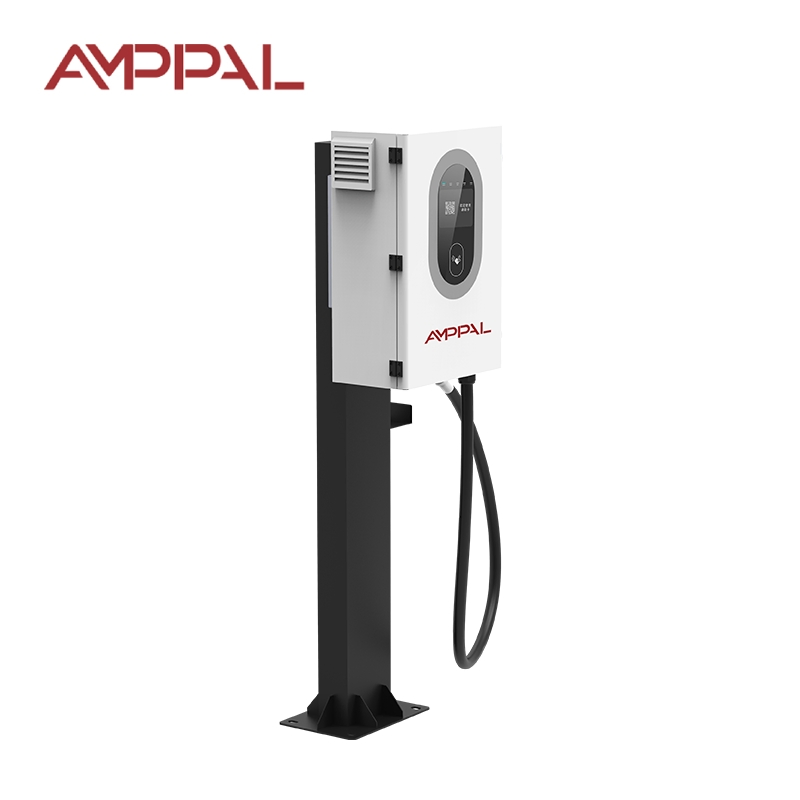

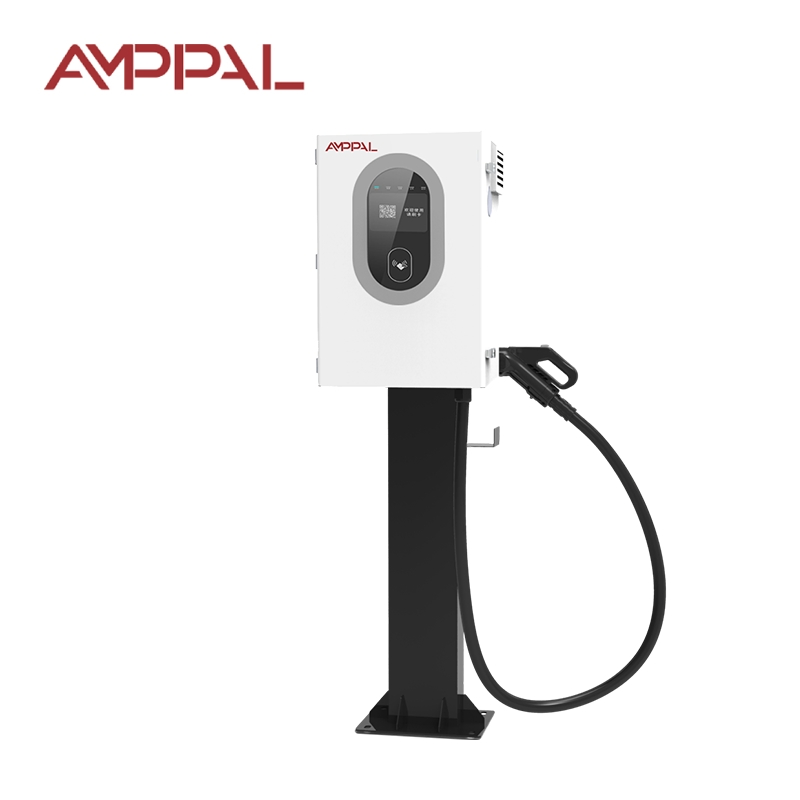

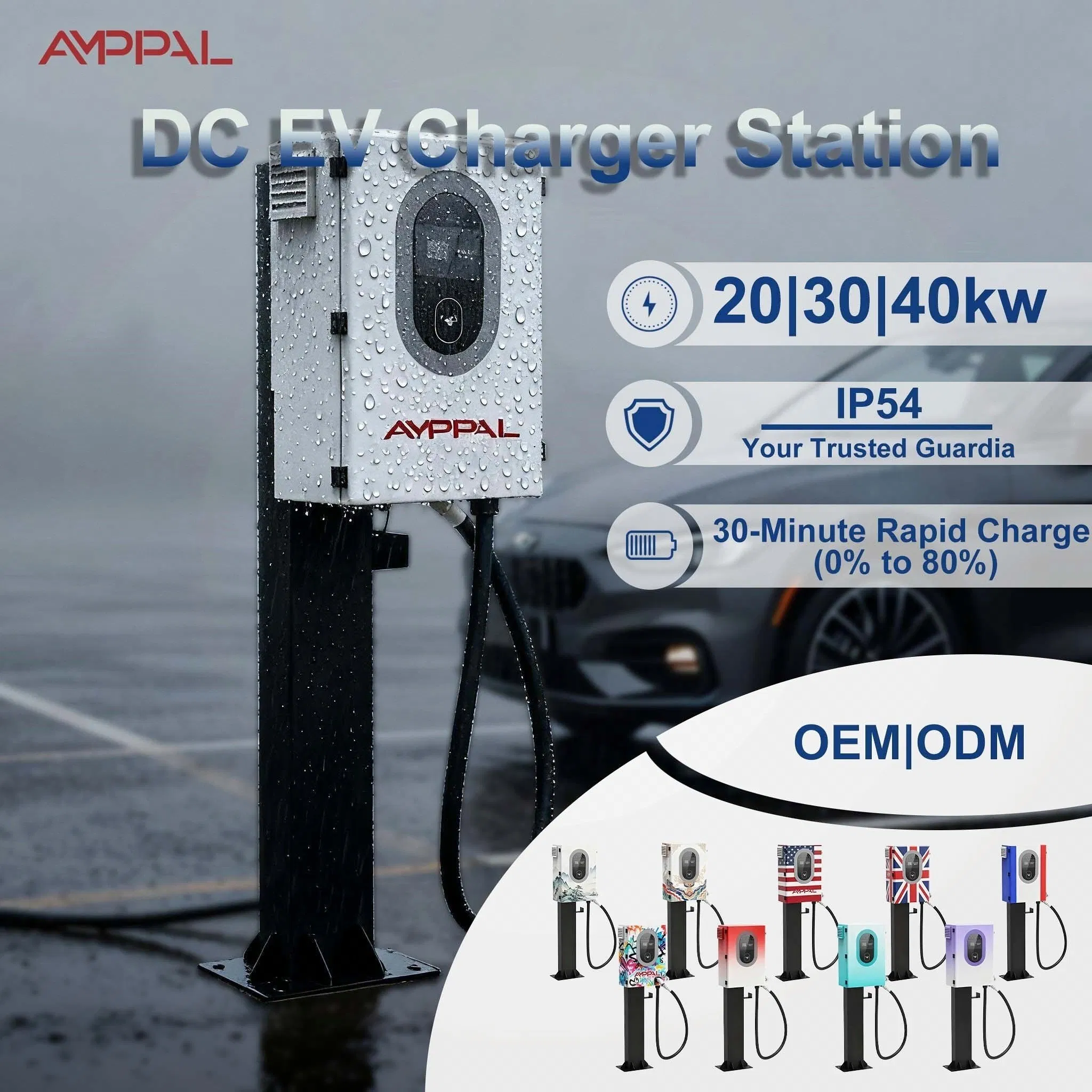

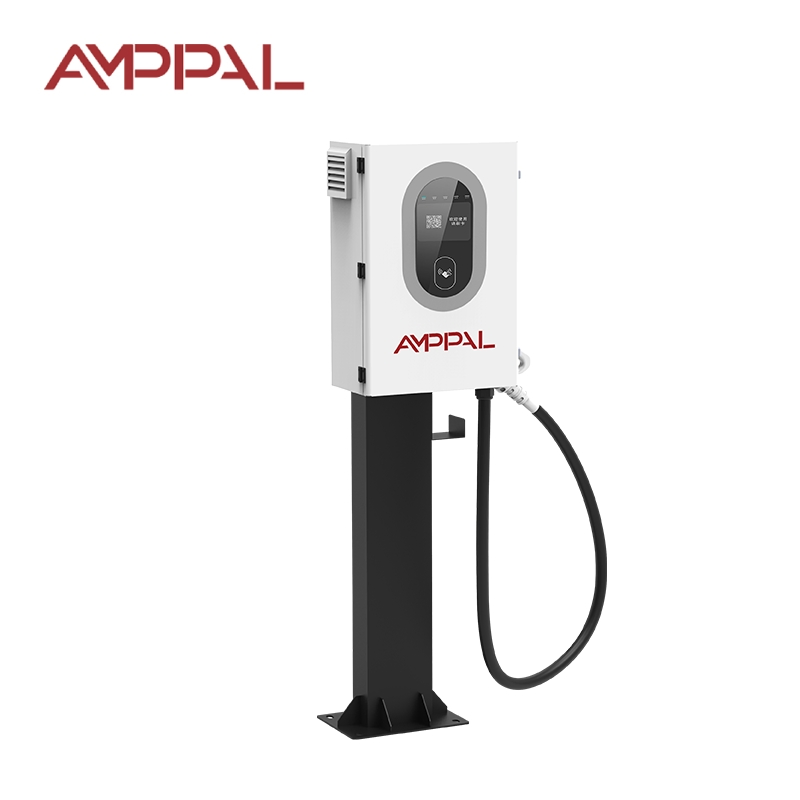

Amppal IoT Enabled 20kw 30kw 40kw Charging System

1 / 5

Amppal IoT Enabled 20kw 30kw 40kw Charging System

Customization:	Available
Connector Type:	CCS2
Installation:	Wall Mounted

Send Inquiry

Product Description

📋

Basic Information

Model NO.

AF-DC-020-B-A-O-2-H

Location

Private Use or Public Use

Charging Interfaces

One Pile with One Charge

Start Mode

Credit Card, Mobile Remote, RFID

Installation

Floor-Standing / Wall-Mounted

Type

Fast EV Charging Station

Certification

CCC, CE, TUV, RoHS

Warranty

24 Months

Rated Power

20kW / 30kW / 40kW

Input Voltage

AC380V±15%

Output Voltage

200-1000VDC

Efficiency

95%

Protection Level

IP54

Cooling

Forced Air Cooling

📦

Packaging & Delivery

Package Size

86.00cm * 53.00cm * 47.00cm

Gross Weight

58.000kg

Transport Package

Wooden Case

⚡

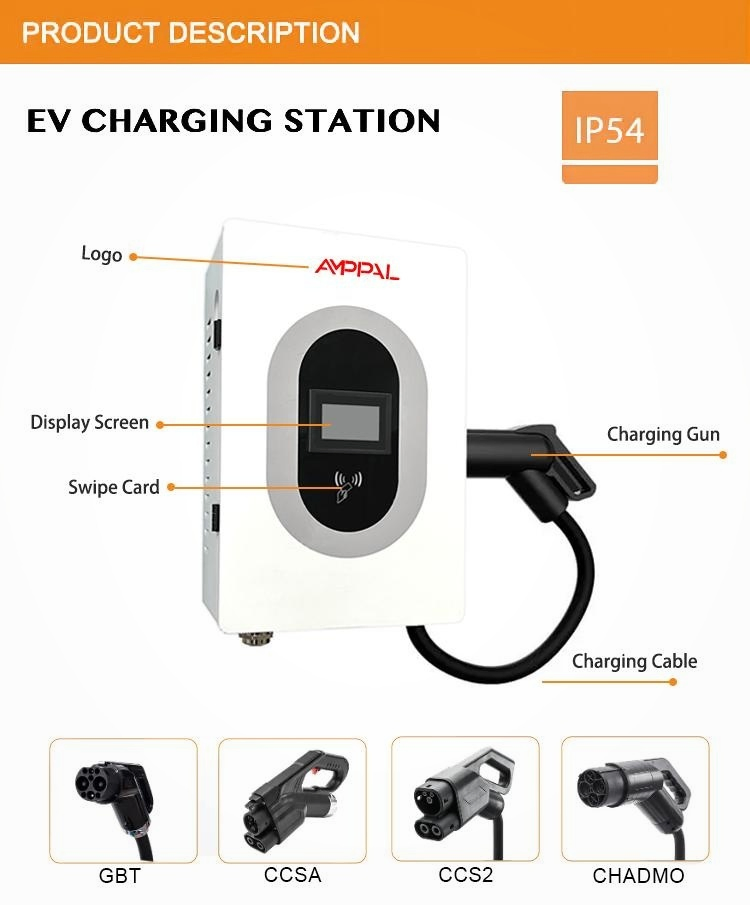

Product Description

Category	Feature	20KW Specification	30KW Specification	40KW Specification
Main Specs	Product Number	AF-DC-020-B-A-O-2-H	AF-DC-030-B-A-O-2-H	AF-DC-040-B-A-O-2-H
	User Interface	7 inch LCD color display touch screen
	Input Voltage	AC380V±20%
	Output Voltage	200-750VDC
Current	Output (200V-500V)	0-67A	0-100A	0-133A
Current	Output (200V-750V)	0-67A	0-100A	0-133A
Design	HMI	7 inch LCD color touch screen, LED indicator
	Payment	Credit card / APP / Scan code payment
	Communication	Ethernet, 2/3/4G (optional)

❓

Frequently Asked Questions

What are your terms of payment?

We accept online fast payment and T/T (Telegraphic Transfer).

Do you test all your chargers before shipping?

Yes, all major components are tested before assembly and each charger is fully tested before being shipped.

Can I order samples? What is the lead time?

Yes, samples can be ordered. Typically, it takes 7-10 days for production and 7-10 days for express delivery.

How long does it take to fully charge an electric car?

The charging time depends on the car's battery capacity and the power of the charger or OBC. For example, a 40kWh battery with a 7kW charger takes approximately 5.7 hours (40/7).

What safety protections are included in these chargers?

Our chargers include overvoltage, undervoltage, overload, short circuit, grounding, over-temperature, lightning, and leakage protection, as well as insulation monitoring.

Are you a manufacturer or a trading company?

We are a professional manufacturer specializing in EV charging solutions.
