Volt Charger
1 / 3

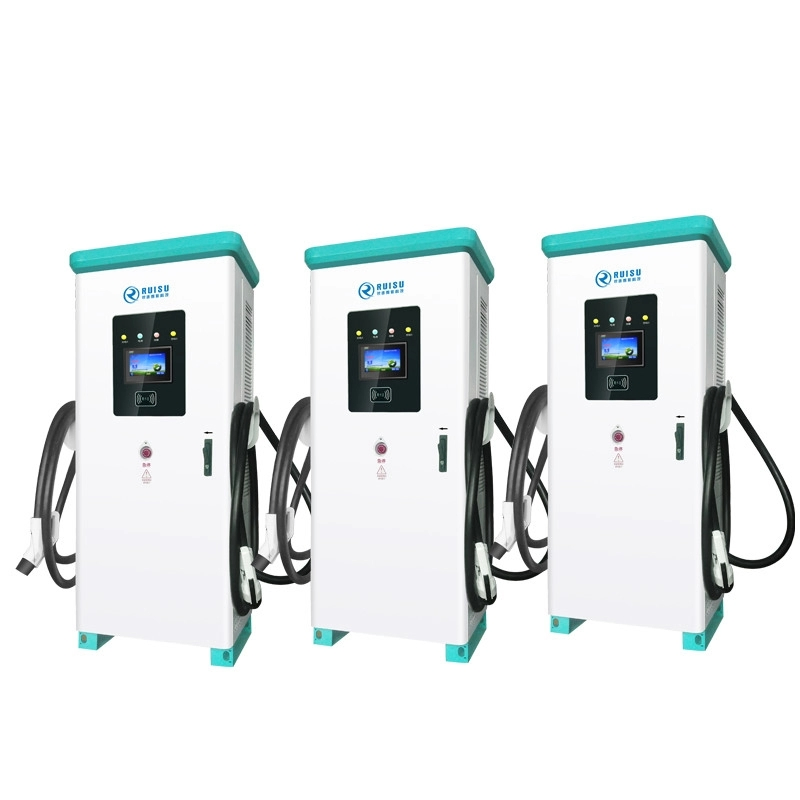

Advanced US charging system for electric trucks featuring CCS1 connectors and full OCPP support.

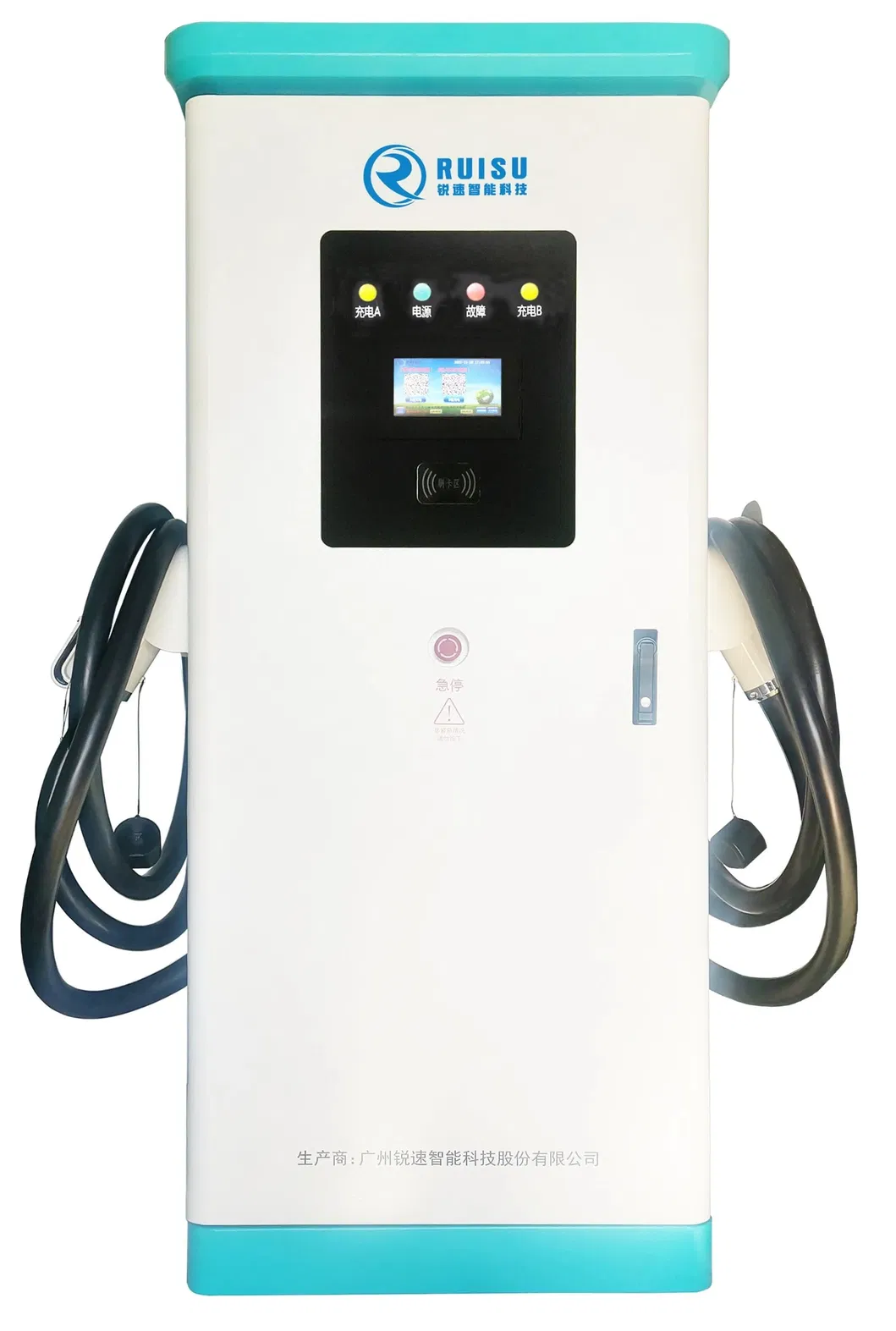

| Product Name | 360KW All-in-one DC Charger |
| Dimension (H*W*D)(mm) | 945*826*1966 |
| Display Mode | 7' Color Touch Screen |
| Input Frequency (HZ) | 45~66Hz |
| Protection Grade | Outdoor IP54 / sheet metal shell |
| AC Input Voltage Range | 480±15%, Wye |
| Power Factor | ≥0.99 |
| Communication Interface | 4G |
| Charging Operation | Swiping card / scanning code |
| Communication Protocol | OCPP 1.6 |
| Heat Dissipation | Natural cooling |
High power density and efficiency, especially suitable for buses and heavy electric vehicles requiring large-power charging.
Reduces energy consumption while improving module efficiency, making power distribution more stable and granular.
Dynamically distributes power based on BMS requirements. Highly integrated system with station monitoring and cooling control.
Designed to scale with rising battery charging demands; modules can be expanded to meet future large-power requirements.
