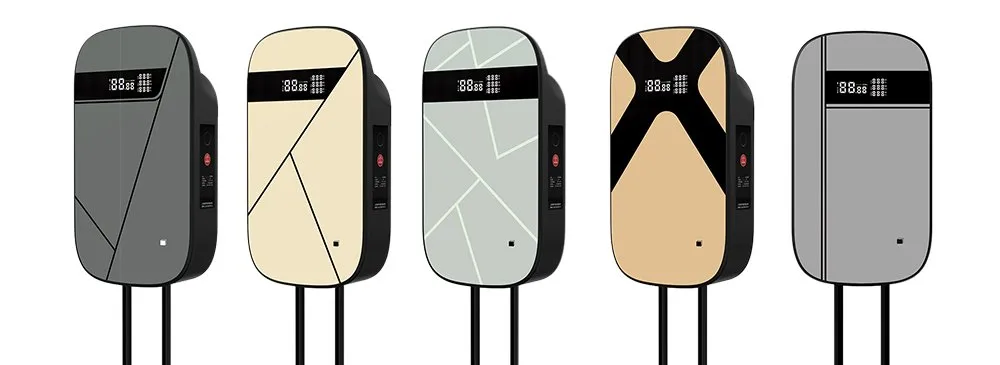

Specializing in electric vehicle charging solutions, producing TPYE 1 / TYPE 2 / GBT / NACS AC charging stations. Supports customization of logo, packaging, and patterns.

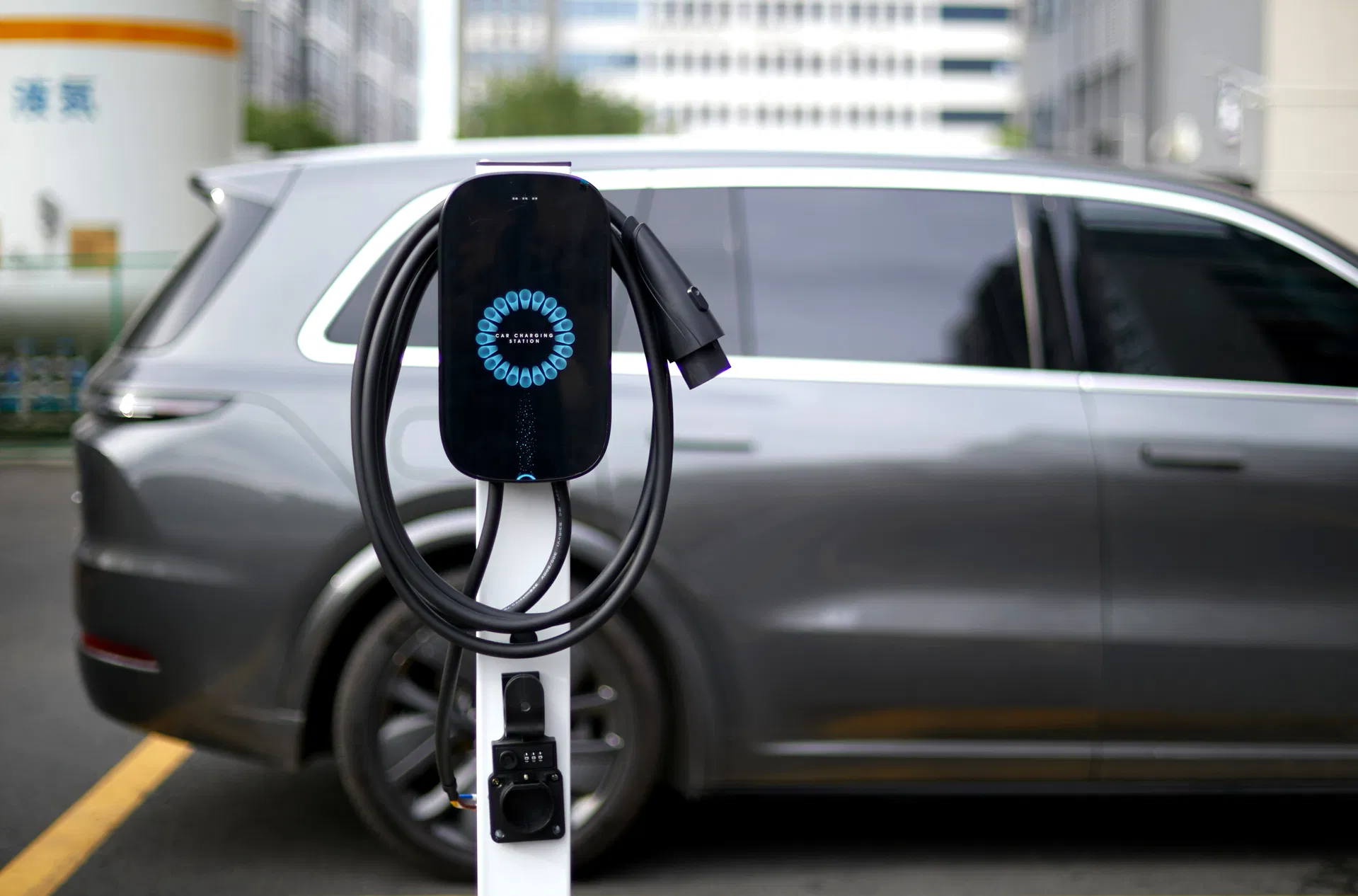

| Model NO. | ZD05 |
| Charging Interfaces | One Pile with One Charge |

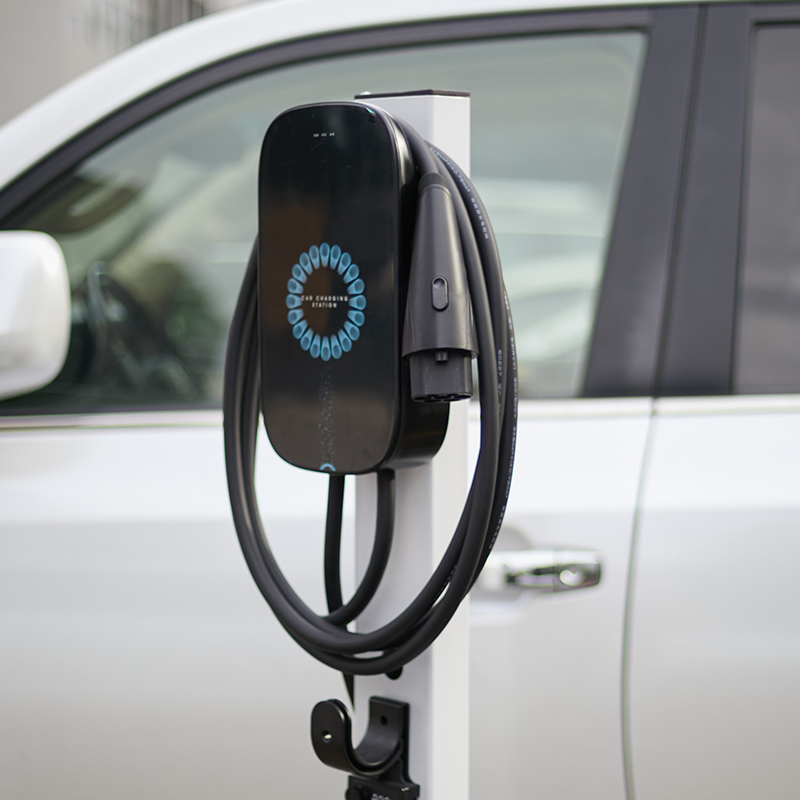

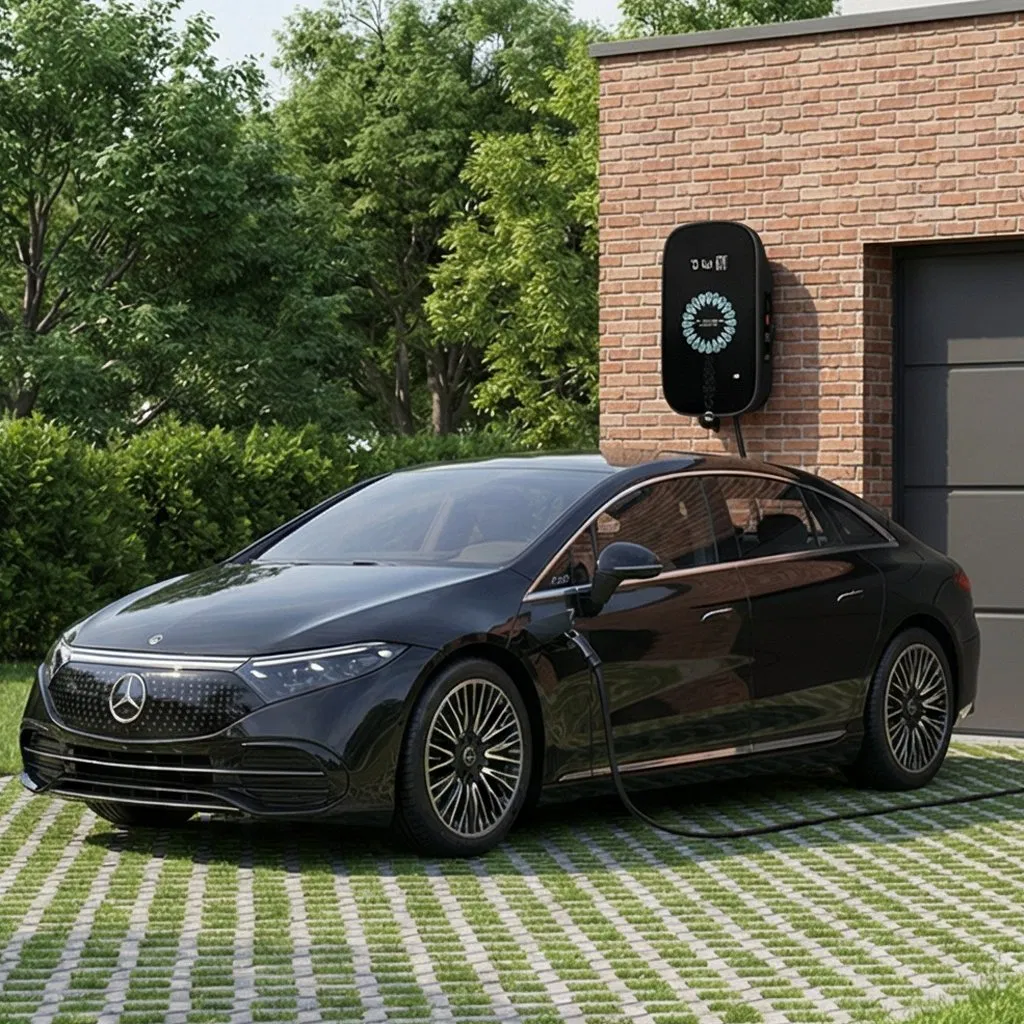

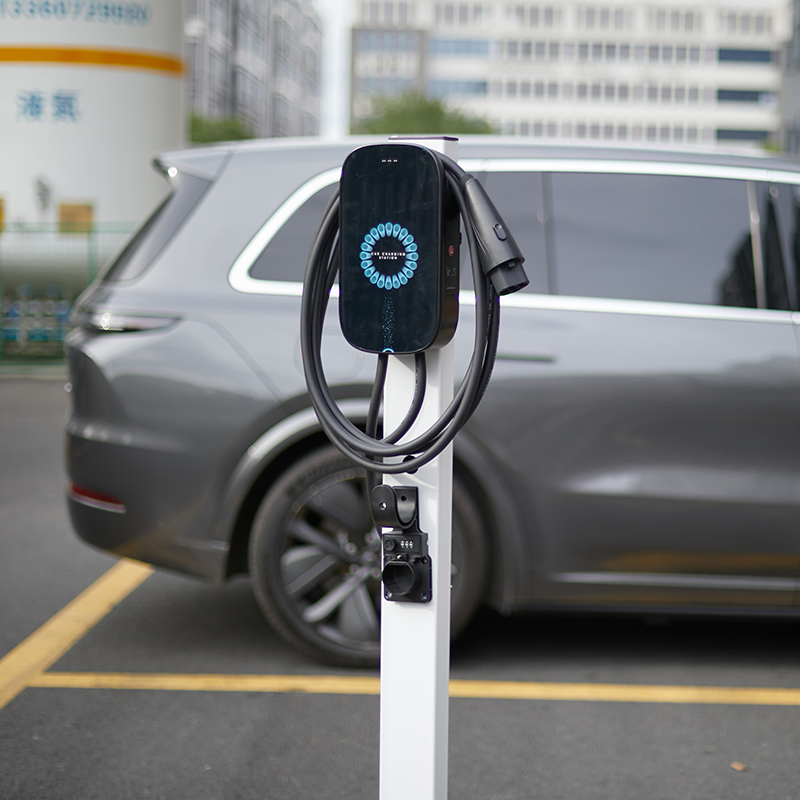

| Installation | Wall Mounted / Floor Standing |
| Charge Method | Quick Charge |
| Adjustable Current | 8-10-13-16-32A |
| Delay Charging | 0~12 Hour |
| Phase Electricity | Single-Phase / Three-Phase |
| IP Grade | IP65 |
| IK Level | IK10 |
| Cable Length | 5 Meters / OEM |
| Plug Types | Type 2 / Type 1 / GBT / NACS |
Safety Protection: RCD 30mA AC + 6mA DC detection, Surge protection, and leading thermal management.

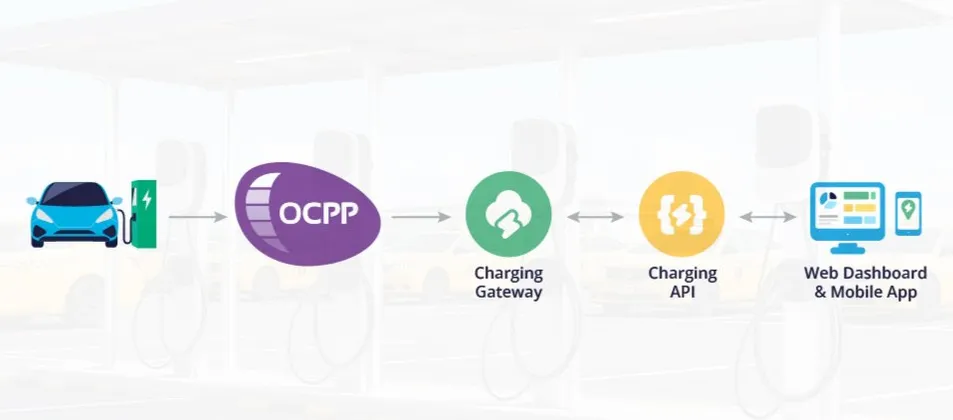

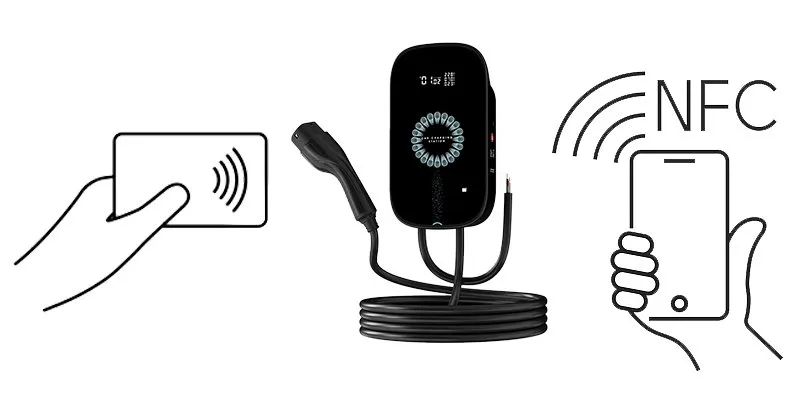

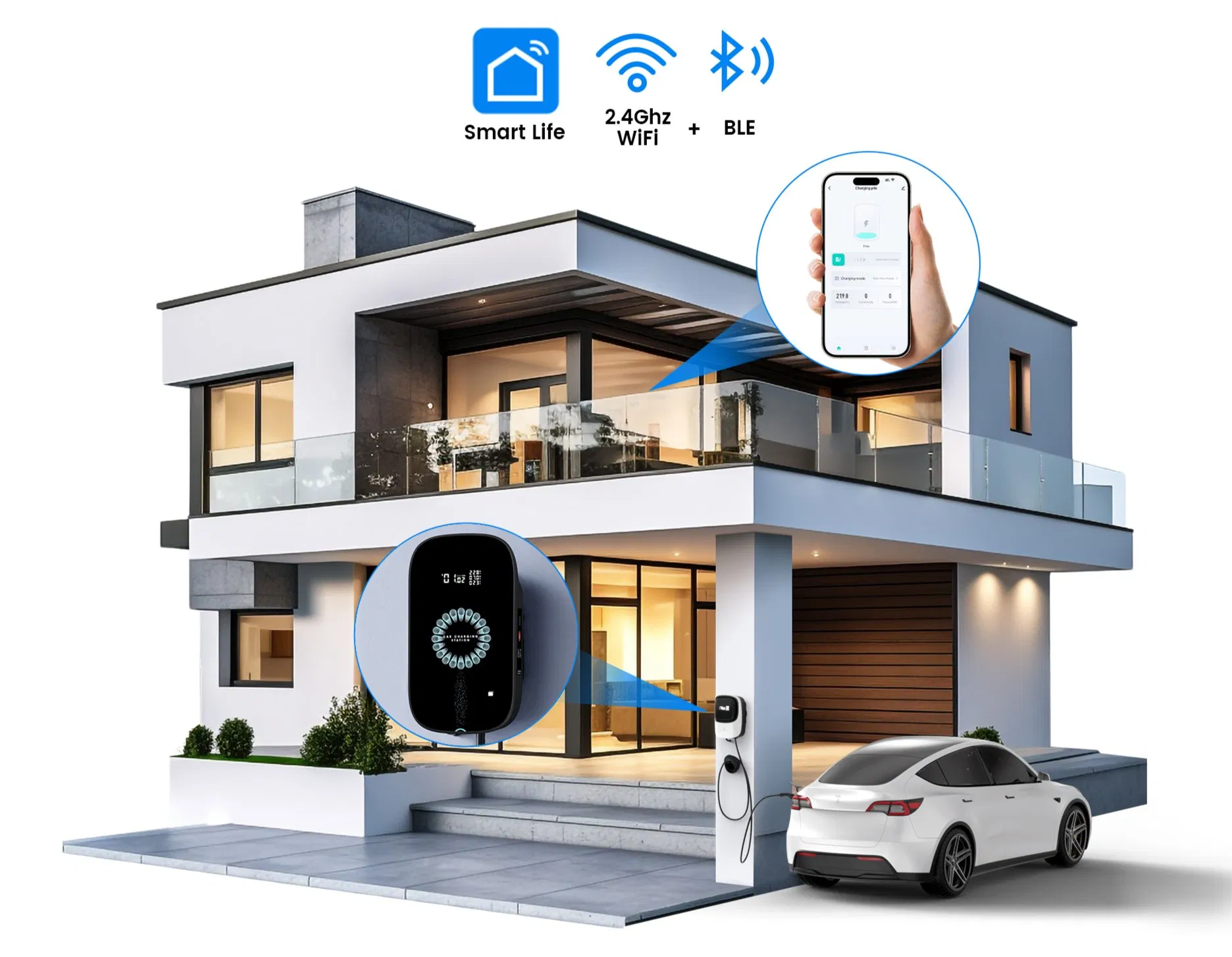

Smart Control: Controlled via RFID Card, Bluetooth, WIFI, and Ethernet with a free convenient App.
Robust Design: IP65 waterproof/dustproof and IK10 impact protection rating for all environments.
| Electrical Specifications | |
| Rated Voltage | 100V/240V AC ± 10% |
| Rated Power | 7kW / 11kW / 22kW |
| Frequency | 47~63Hz |
| Standards | IEC 62196-2, SAE J1772, GB/T 18487, NACS |
| Environment & Safety | |
| Working Temperature | -20ºC ~+50ºC |
| Cooling | Natural air cooling |
| Certificates | CE, FCC, ISO9001, CCC, IP65, IK10 |

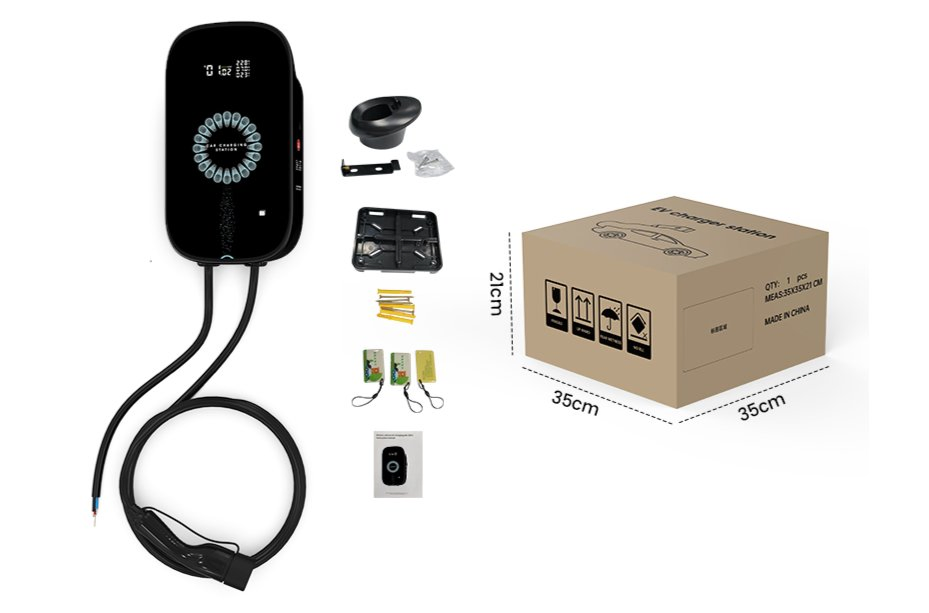

Standard Export Pack:
OEM Services:
24-Month Warranty
Against manufacturing defects
Damage Protection
Logistics compensation provided
Technical Support
Professional engineering team
