32A 7.2kw Type 2 to Gbt EV Cable Plug to IEC 62196 Socket Charging Adapter for Car Chargers

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
YJ-IEC05
Installation
Wall Mounted
Charge Method
Quick Charge
Operation Voltage
110V ~240V
Rated Current
AC 16A and 32A
Protection Grade
IP54
Material
Thermoplastic, Flame Retardant
Pin Material
Copper Alloy, Silver Plated
Temperature
-25℃ ~ 50℃
Certifications
CE, RoHS, CCC, SGS
Product Description

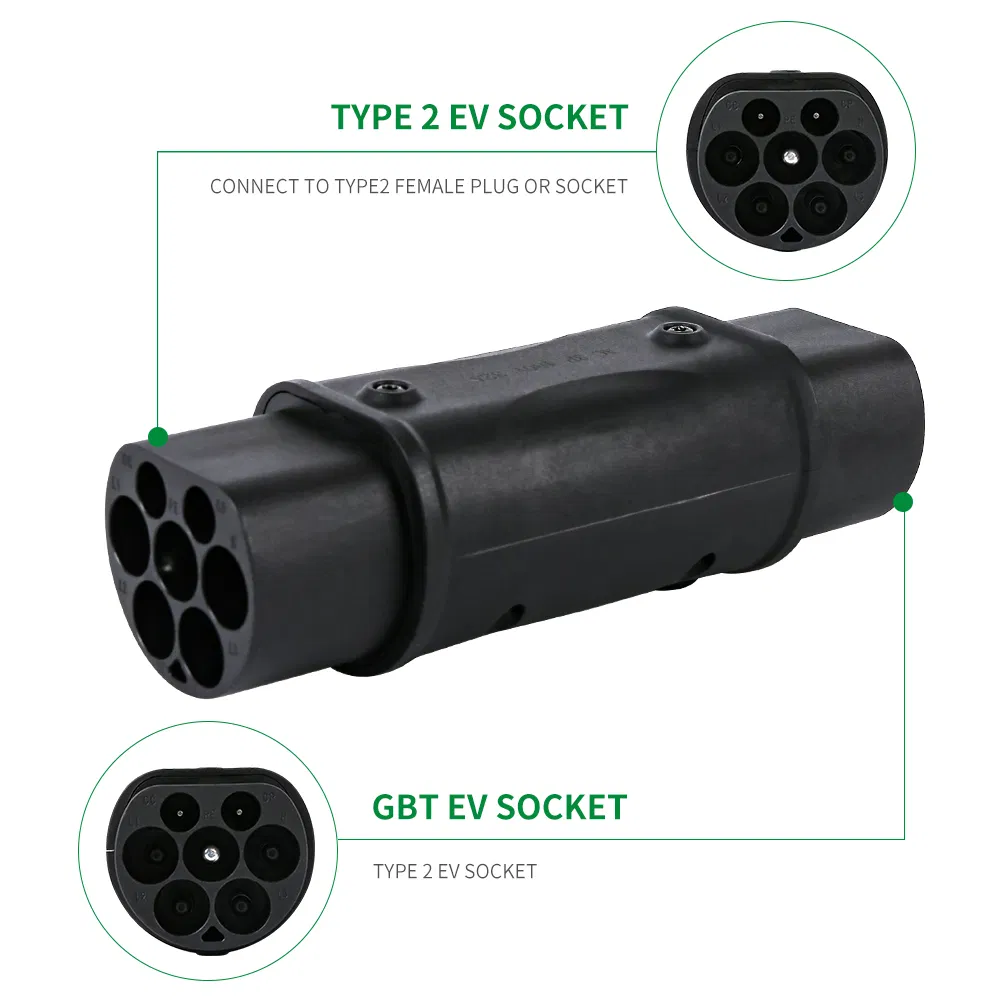

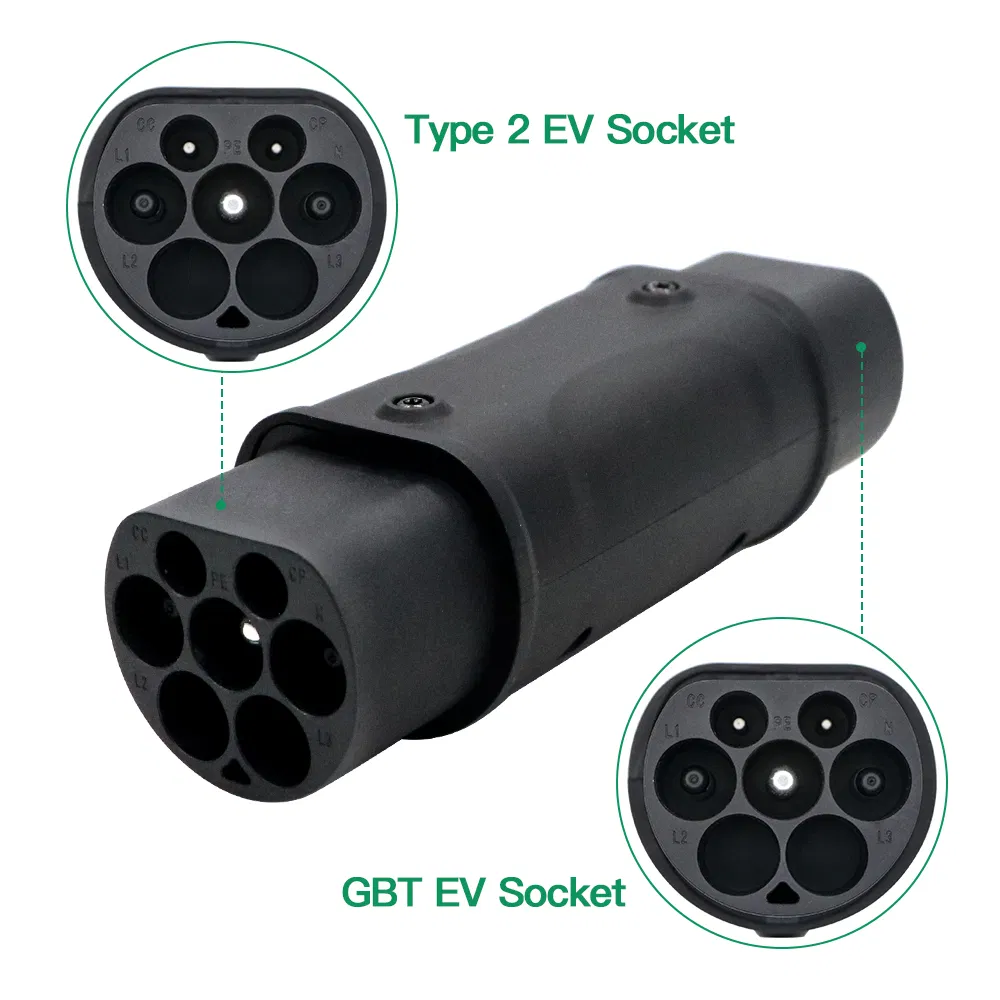

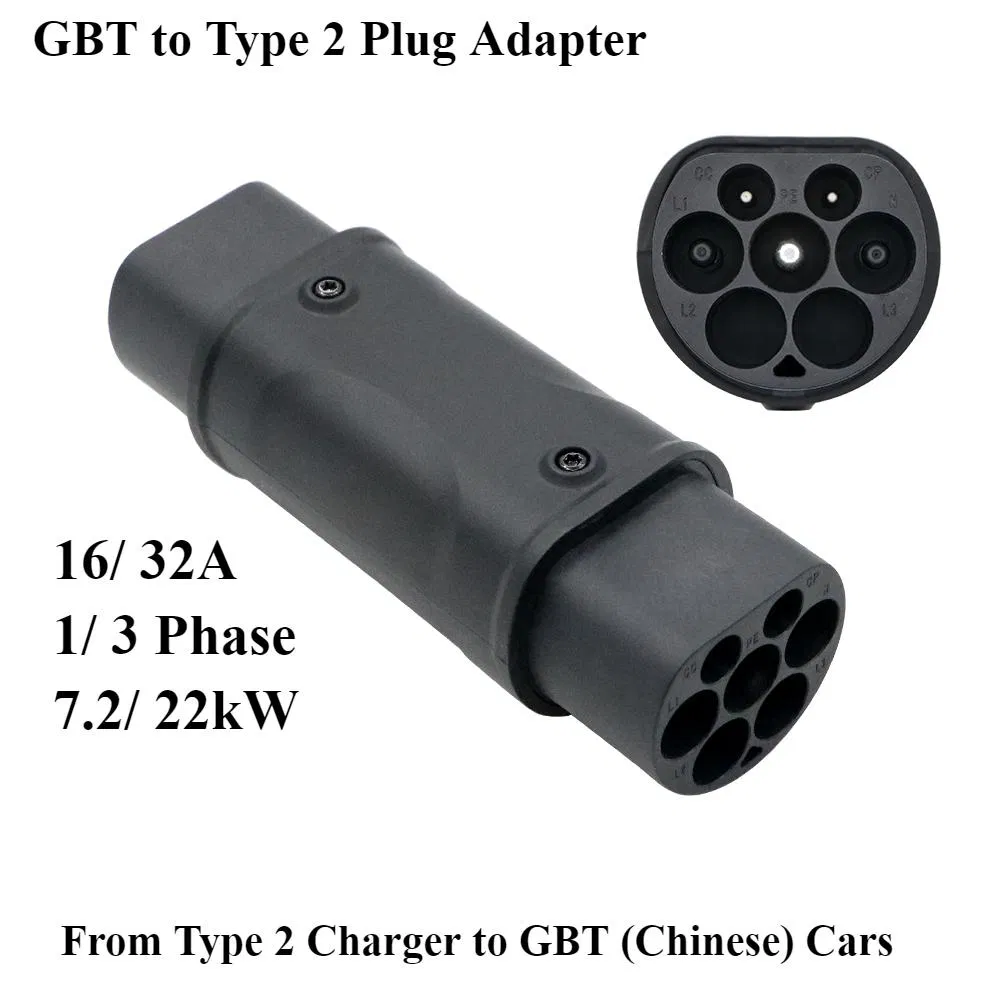

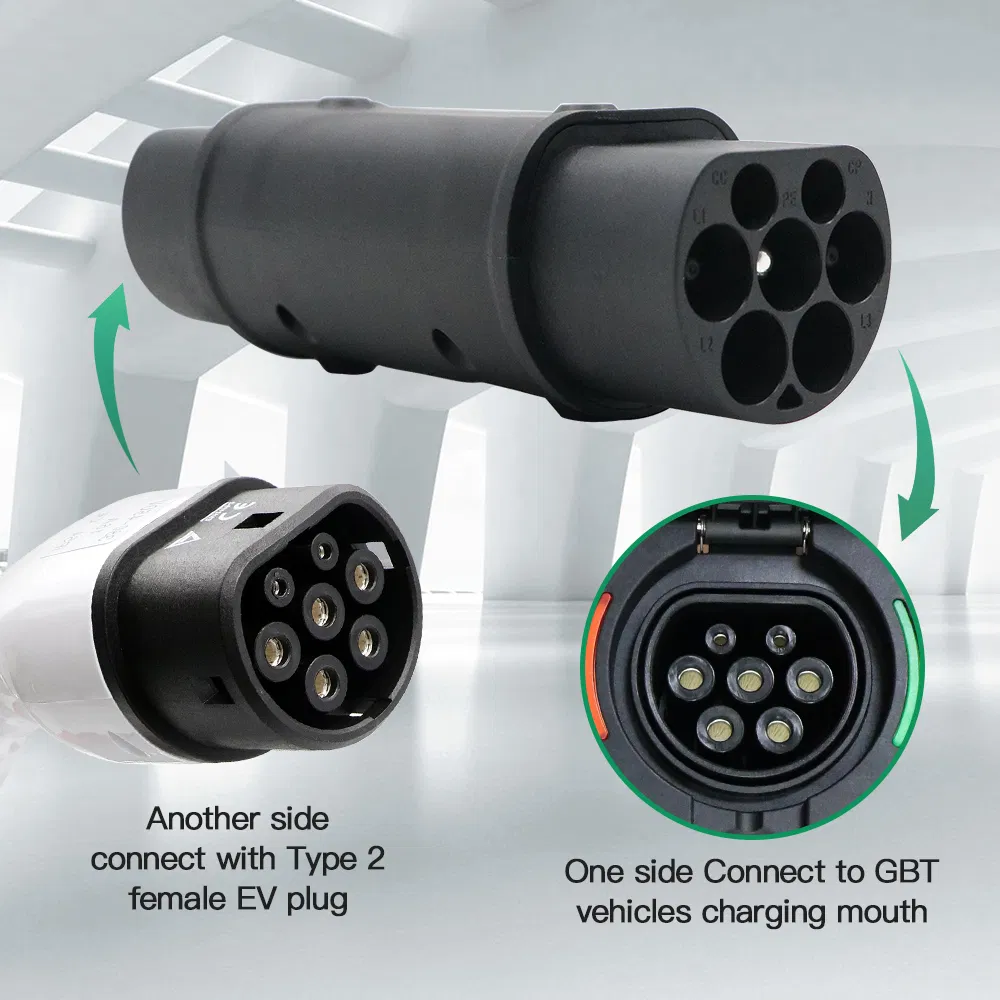

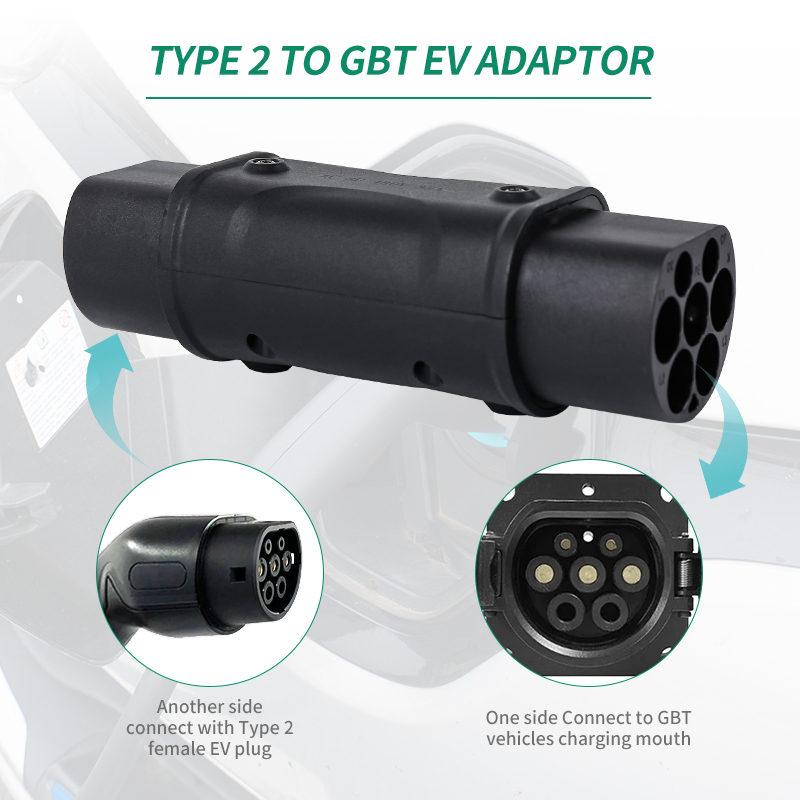

Type 2 To GBT (IEC 62196 To GB/T) New Energy EV Charging Adapter

Universal Compatibility: Can be used in both directions without distinguishing between positive and negative connections.

🚀 Key Features

  • Fully complies with IEC 62196 standard requirements.
  • Pin head designed with safety insulation to prevent accidental direct contact.
  • Superior protective performance with IP54 rating for outdoor reliability.
  • High mechanical life with no-load plugging over 10,000 times.

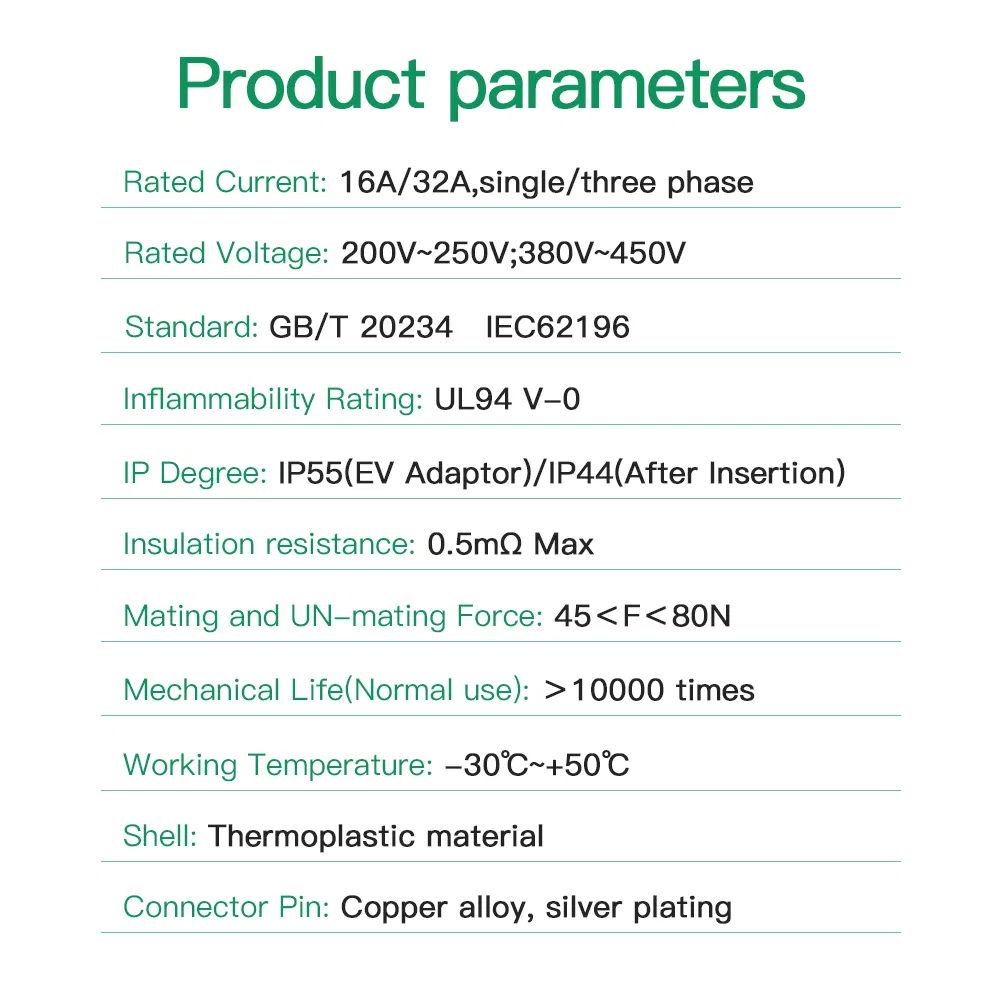

Technical Specification
Phase Type
Single Phase / Three Phases
Flame Retardant
UL94V-0
Rated Current
32A
Working Voltage
240V / 415V
Insulation Res.
>1000MΩ (DC 500V)
Withstand Voltage
2000V
Contact Res.
0.5mΩ Max
Insertion Force
< 80 N
Size Chart

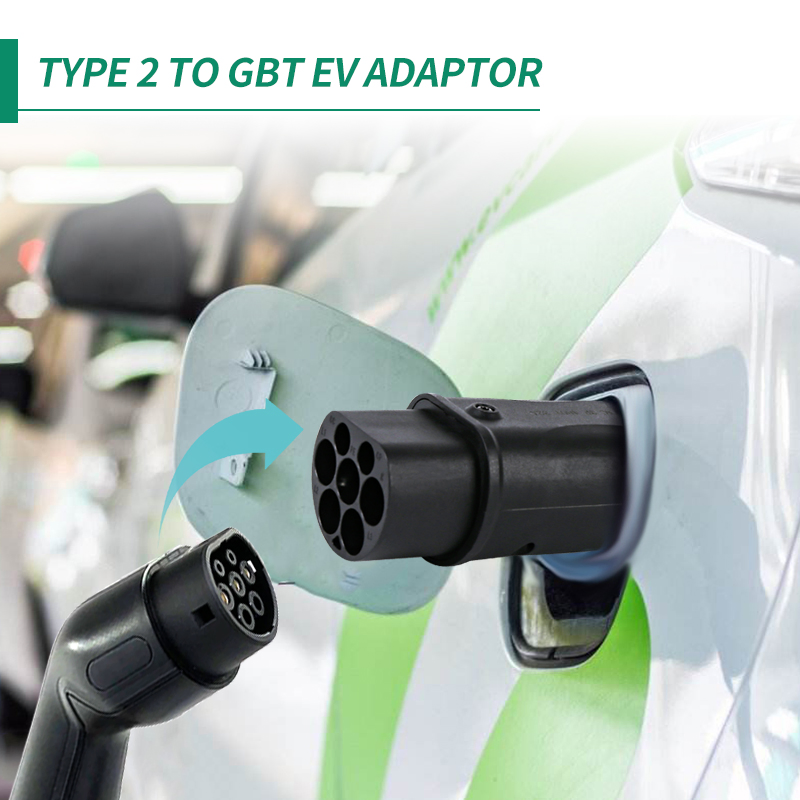

Usage Scenario
Product Diagram Long
Our Services
Warranty 12 months
Payment Terms 30% as deposit, and 70% before delivery after inspection by T/T, Western Union, PayPal, Cash, L/C, etc.
Delivery Time 1 to 3 weeks after receiving your advance payment.
Frequently Asked Questions
Is this adapter compatible with my Type 2 charger?

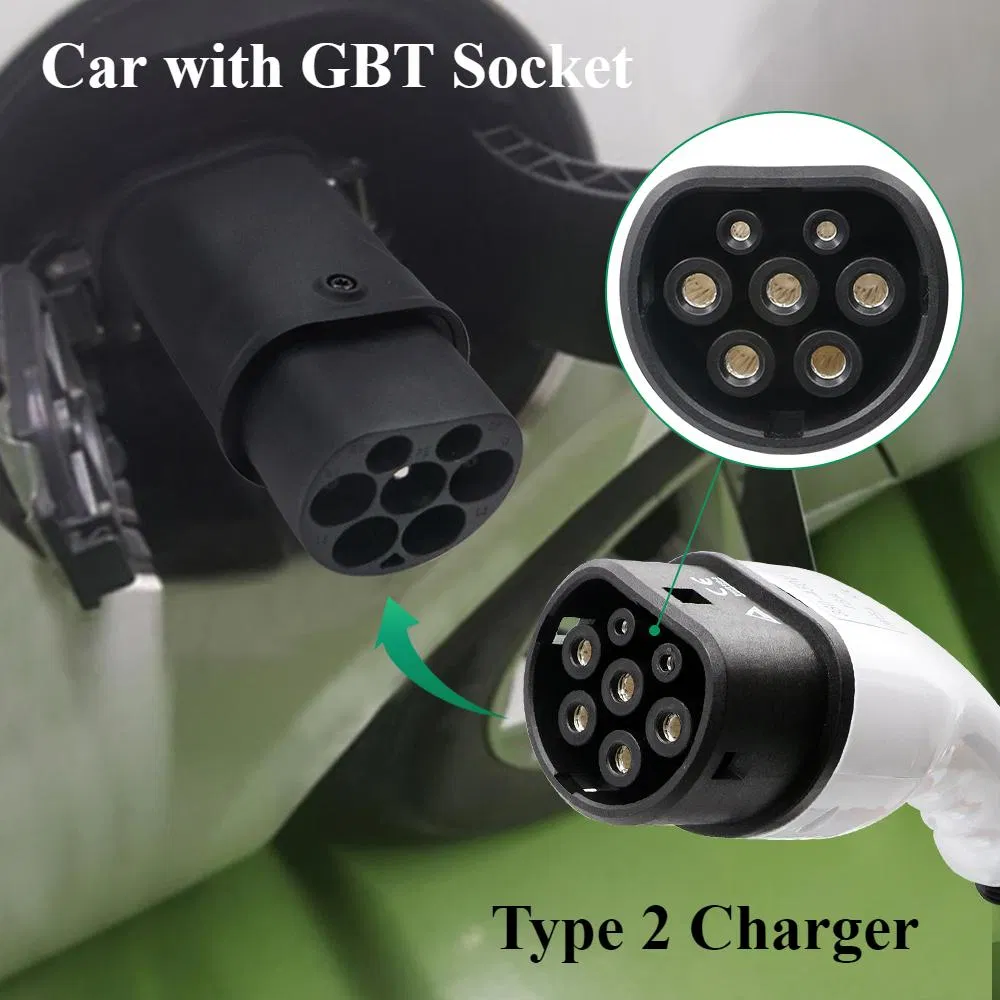

Yes, this adapter is designed to convert IEC 62196 Type 2 charging stations to GB/T standard vehicles, ensuring seamless compatibility with standard Type 2 cables.
What is the waterproof level of this adapter?
The adapter has an IP54 protection grade, meaning it is protected against dust ingress and water splashes from any direction, making it suitable for outdoor use.
Does it support 32A fast charging?
Absolutely. The adapter is rated for a working current of 32A and supports both single-phase and three-phase charging voltages (240V/415V).
Are the pins durable enough for daily use?
Yes, the pins are made of high-quality copper alloy with silver plating, providing excellent conductivity and a mechanical life of over 10,000 plug-in/plug-out cycles.
Can I use it in extreme weather conditions?
The adapter is designed to operate safely in temperatures ranging from -30ºC to +50ºC, covering most environmental conditions.
What safety certifications does it have?
The product is fully certified with CE, RoHS, CCC, and SGS standards, ensuring it meets international safety and quality requirements.
