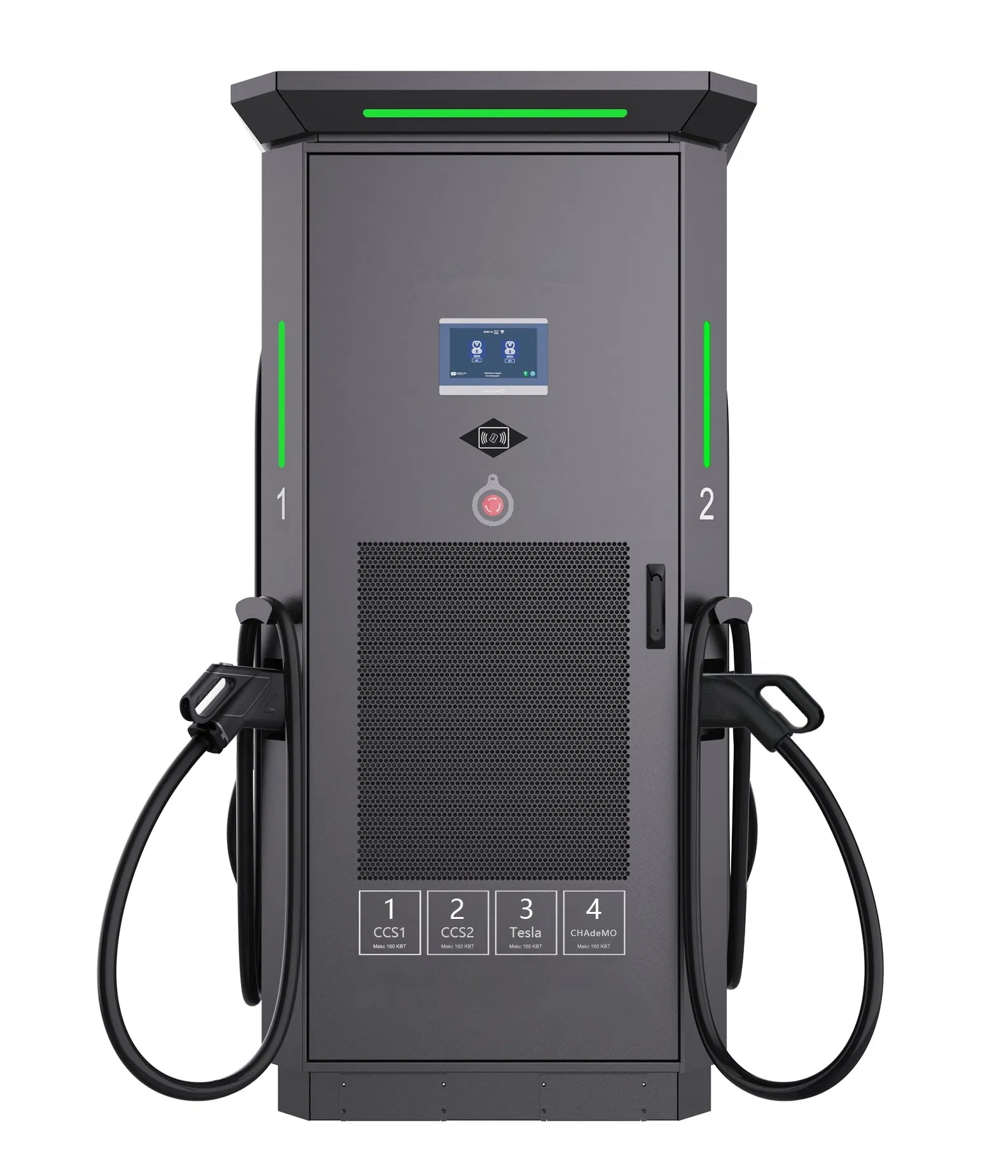

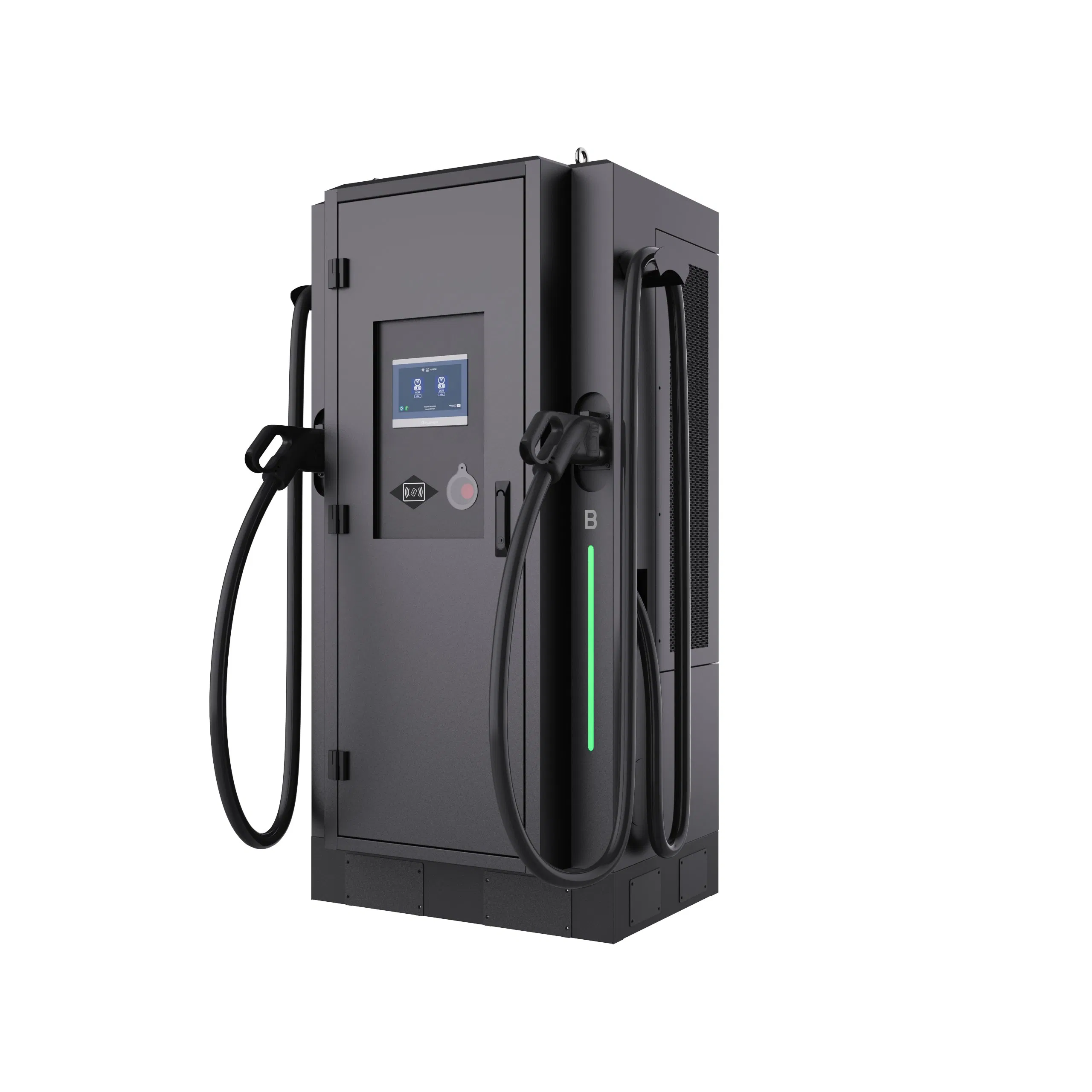

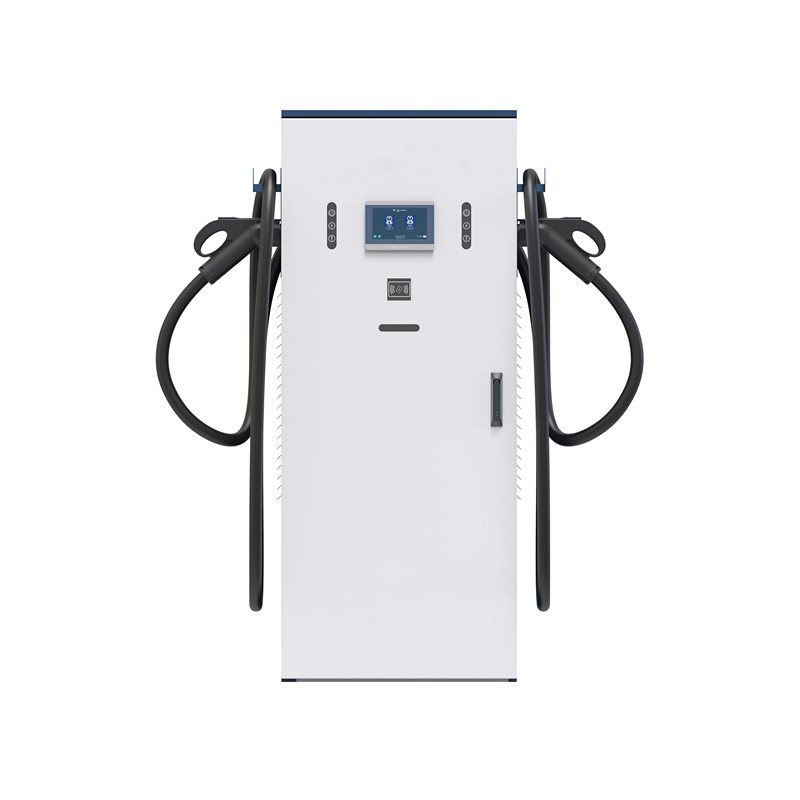

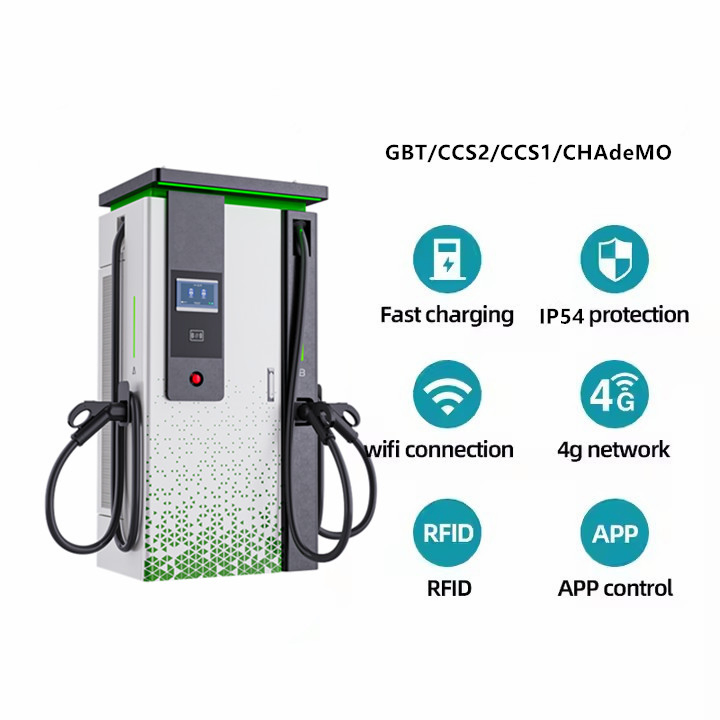

240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
1 / 5
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas
240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas

240kw Modular DC Fast Charging System for Highway Rest Stops and Service Areas

Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Floor Type
Location: Public Use
Send Inquiry

Product Description

Basic Information
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Protocol
Ocpp 1.6
Protection Level
IP54
4G Connectivity
Accepted
HS Code
8504409999
Production Capacity
50,000 Sets/Year
Origin
China

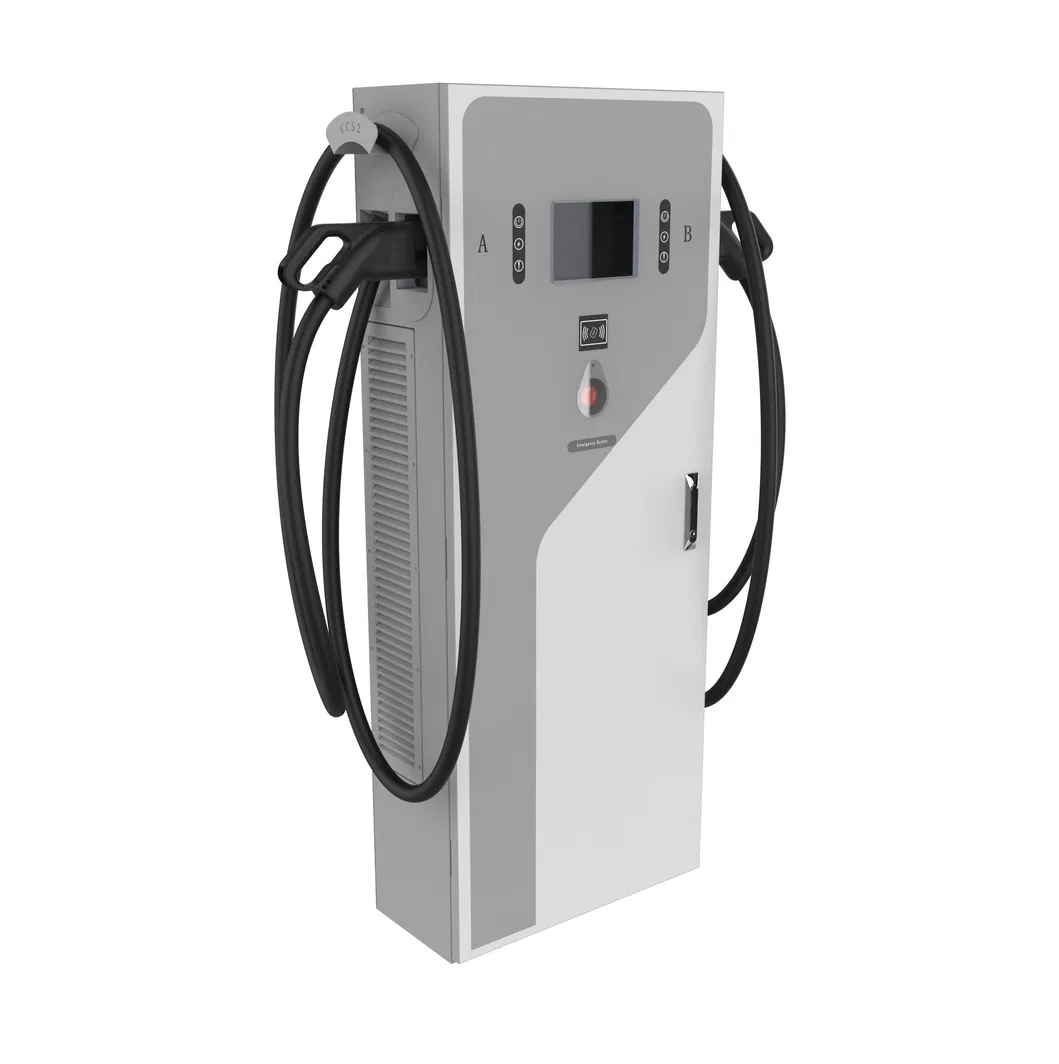

DC Fast Charging System 1

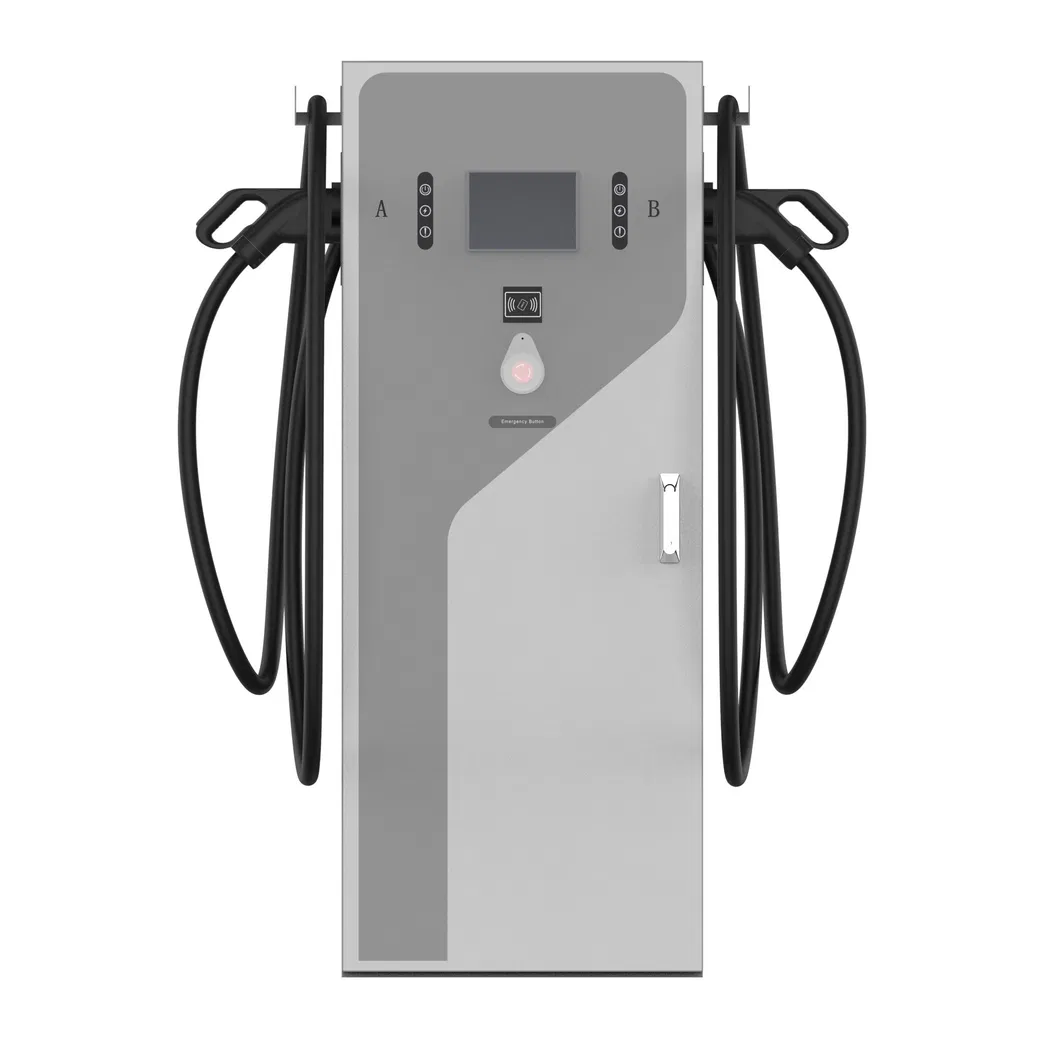

DC Fast Charging System 2

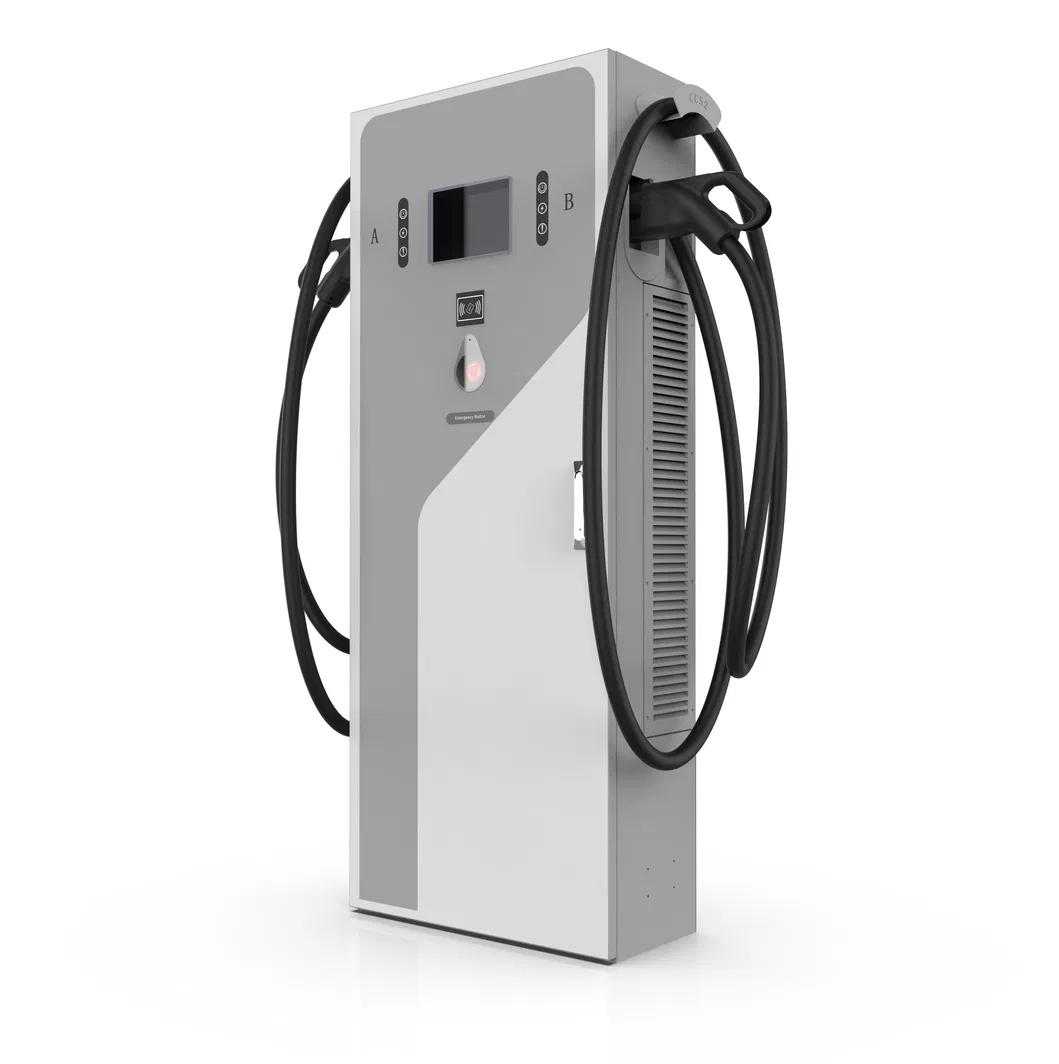

DC Fast Charging System 3
Technical Specifications
No. Name Parameter
1Power60KW-320KW
2Connector typeGBT/CCS1/CHAdeMO/CCS2
3Emergency stop buttonYes
4Communication protocolOCPP1.6J
5Input voltage380V(-25%,+25%)AC
6Output voltage50V~1000VDC
7Input frequency50Hz±10%
8Protection levelIP54
9Power factor≥0.99
10Peak efficiency95.5%
11Operating temperature-35ºC~+55ºC
12Display screen7" touch screen

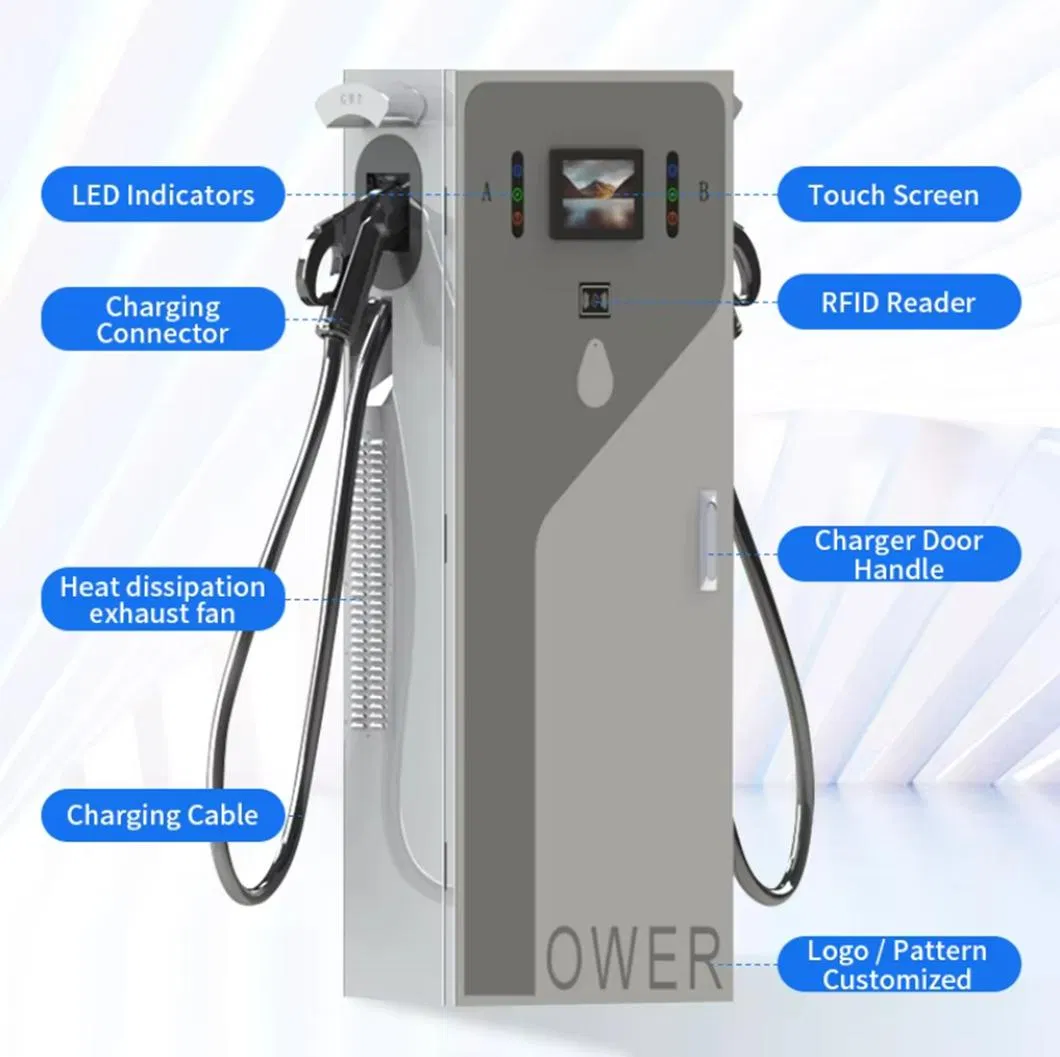

System Detail 1
System Detail 2

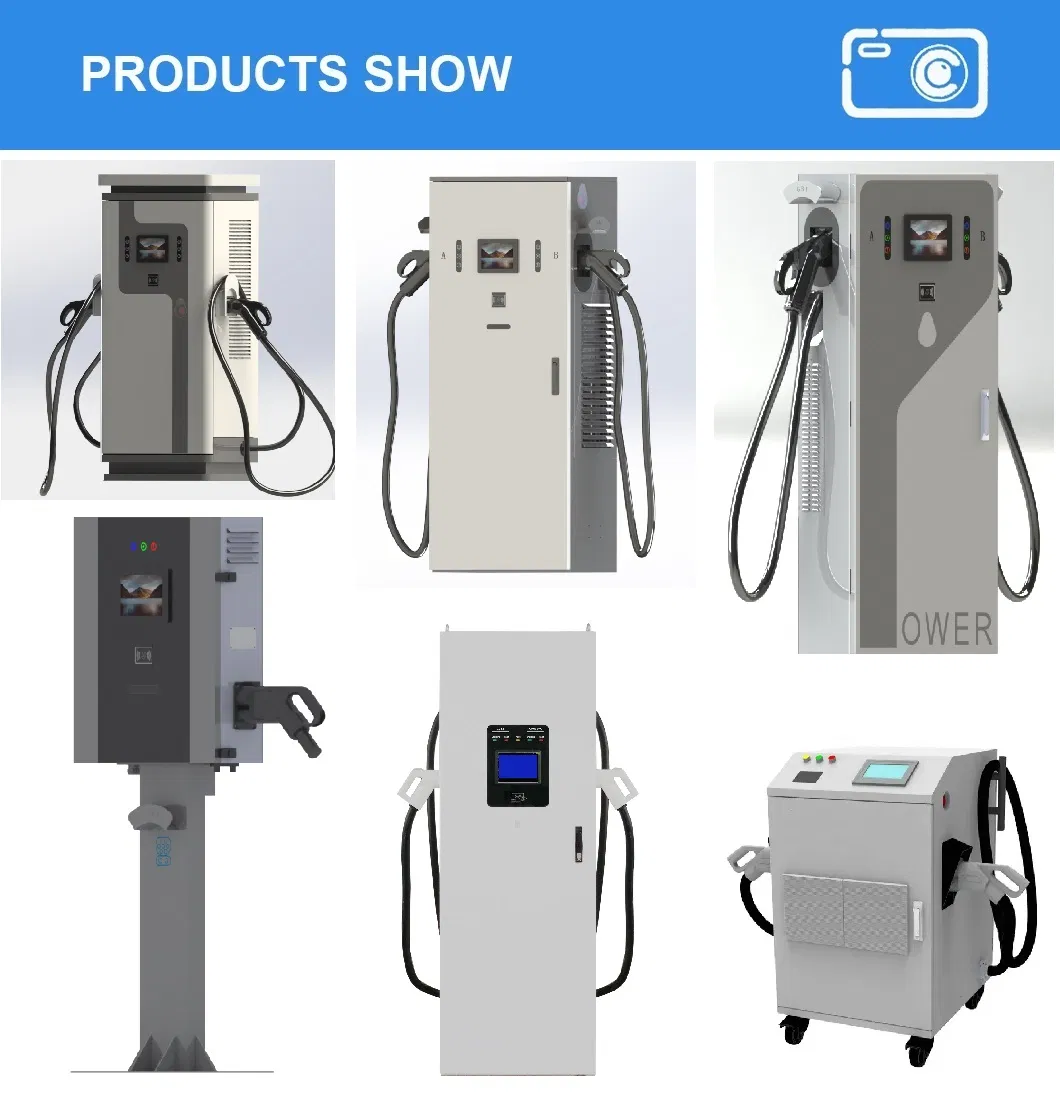

System Detail 3

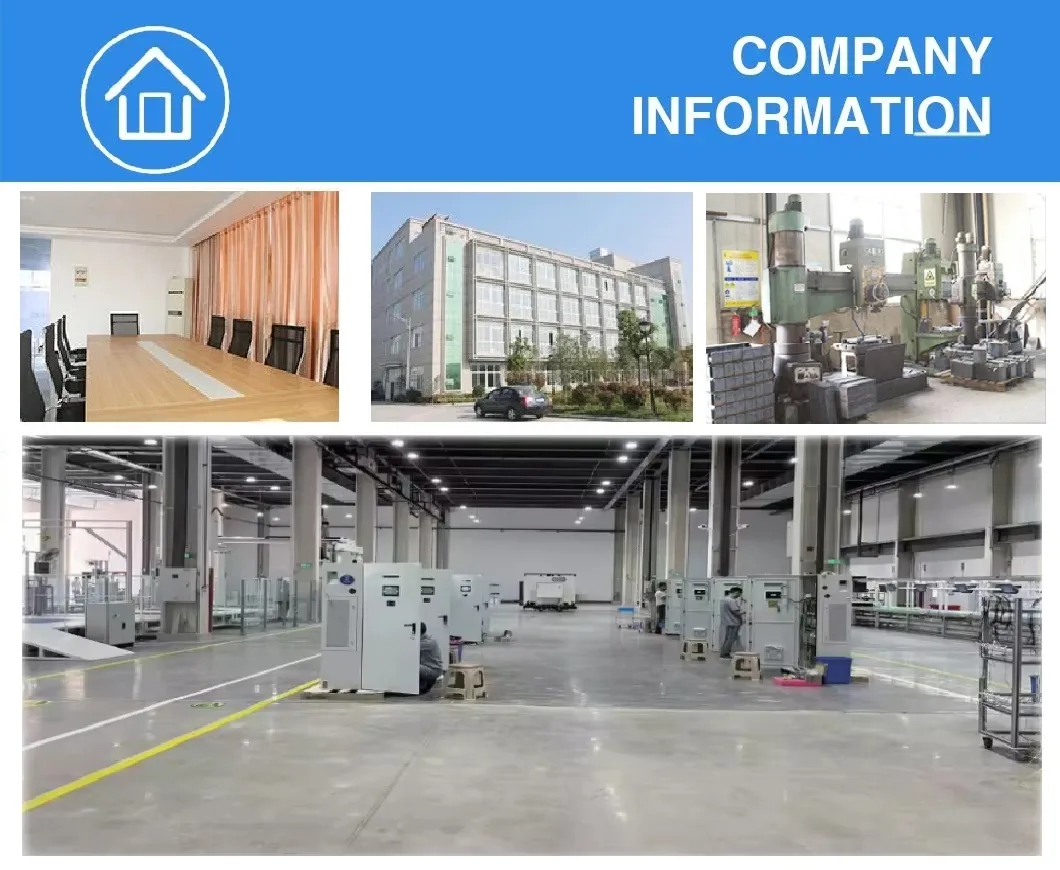

System Detail 4

Professional Charging Solutions: Specialized in providing high-power DC fast charging systems for highway rest stops and service areas. Designed for durability and high efficiency with modular configurations.

Production Flow 1
Production Flow 2
Frequently Asked Questions
What is the estimated delivery time?
Generally, the delivery time is about 30 days after receiving the client's payment.
Do you provide after-sales support?
Yes, we provide a 1-year warranty and have a dedicated after-sales service team offering 24/7 online support.
Are the products tested before shipping?
Yes, our production engineering team performs comprehensive testing on all goods once production is finished.
What are the accepted payment methods?
Our standard terms are a 50% deposit with the full balance payment required before shipment.
Can I use custom RFID cards or Apps?
The system identifies compatible RFID cards and apps. We provide 2 free RFID cards for each charger unit.
Is there an installation guide available?
Yes, we provide an installation guide video. The process is straightforward for anyone familiar with basic electrical safety, and we offer online assistance for any questions.
