240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
1 / 5
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6
240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6

240kw 300kw 320kw CCS2 Gbt EV DC Fast Charger/DC Charging Stations/EV Charging System with Ocpp1.6

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO. HQC23-320/1000/500-Y02
Installation Floor Type
Rated Power 320kW
Input Voltage AC380V±10%
Output Voltage 200-1000V DC
Protection Level IP55
Operation Temp -40°C ~ +60°C
Connectivity Ethernet / WiFi / 4G
Charging Point CCS2
Communication OCPP 1.6J
DC Fast Charger
EV Charging Station
EV Charging System
🚀 Product Features
High Protection & Reliability
Adopting high-efficiency dustproof mesh (IP55). Power modules utilize a fully glue-pouring process for high system reliability and long lifespan.
Multiple Standard Support
Supports GB/T, CCS2, and CHAdeMO charging interfaces. Multiple standards can be freely combined.
Smart Interaction
Configurable with a 7-inch true color touch screen, card reader, and POS machine to meet various interaction methods.
Versatile Start Modes
Supports scanning code, RFID card, plug and play, button start, remote start, and timed charging.
Dual Gun Charging
Supports dual gun charging for one vehicle simultaneously, ideal for buses and heavy truck vehicles.
Easy Maintenance
Adopting front door maintenance design, allowing for installation against walls to save space.
⚙️ Technical Parameters
Efficiency ≥95% (Load rate ≥50%)
Altitude ≤2000m
Dimensions W800mm * H1900mm * D750mm
Weight 289kg (Without modules)
Cooling Method Forced Air Cooling
Wiring Method Bottom Incoming
Protection Over/Under Voltage, Over Temperature, Surge, Emergency Stop
📦 Packaging & Delivery

Package Size: 130.00cm * 91.00cm * 210.00cm

Gross Weight: 400.00kg

Lead Time: 20 days (1-1 Pieces); To be negotiated for larger orders.

Packaging Type: Safety Wooden Box Packaging

🏭 Production Showcase

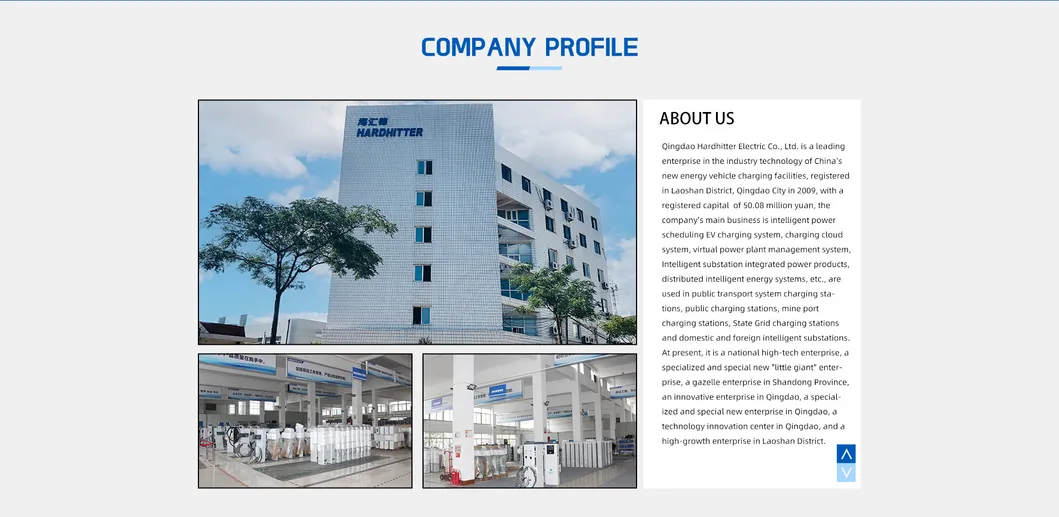

Factory View
Production Line
Quality Control
Shipment
❓ Frequently Asked Questions
What is the typical lead time for an order?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products have quality certifications?
Yes, we have a strict quality control system. Our EV charging products have passed CE and TUV certifications to ensure the best quality.
What is the warranty period?
The warranty for our products is 12 months upon receipt of your shipment under normal operating circumstances.
Can you provide customized (OEM/ODM) services?
Yes, we have been involved in OEM and ODM projects since 2012, allowing us to provide professional customized services to meet specific client needs.
Can this charger work with all electric vehicles?
Yes, our EV chargers are compatible with all electric vehicle models. Note: Tesla vehicles require a J1772 to Tesla adapter to operate with our charging stations.
Does the charger require an App or internet connection?
Some models are standalone (using RFID cards or plug-and-play), while others are Wi-Fi connected and compatible with Apps and any OCPP 1.6j applications.
